DTC C0031-14, C0034-14, C0037-14, C003A-14

DTC C0031-14  : Left Front Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)DTC C0034-14  : Right-Front Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)DTC C0037-14  : Left Rear Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)DTC C003A-14  : Right Rear Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)

NOTE: Before you troubleshoot, review the general troubleshooting information .

DTC Description DTC Freeze Frame
C0031-14 Left Front Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)
C0034-14 Right-Front Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)
C0037-14 Left Rear Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)
C003A-14 Right Rear Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)

DTC (VSA)

  1. Problem verification

    -1. Turn the vehicle to the ON mode.

    -2. Clear the DTC with the HDS.

    -3. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.

    -4. Check for DTCs with the HDS.

    DTC Description DTC Freeze Frame
    C0031-14 Left Front Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)
    C0034-14 Right-Front Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)
    C0037-14 Left Rear Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)
    C003A-14 Right Rear Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)

    Is DTC C0031-14, C0034-14, C0037-14, or C003A-14 indicated?

    YES

    The failure is duplicated. Go to step 2.

    NO

    Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting . If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

  2. Shorted wire check (Wheel speed sensor lines to ground)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    VSA modulator-control unit 46P connector

    -3. Check for continuity between body ground and the appropriate wheel speed sensor +B and GND terminals of the VSA modulator-control unit 46P connector individually (see table).

    Test condition Vehicle OFF (LOCK) mode
      VSA modulator-control unit 46P connector: disconnected
    Connector DTC Test point 1 Test point 2
    VSA modulator-control unit 46P connector C0031-14Left-front No. 33 Body ground
    No. 42
    C0034-14Right-front No. 30
    No. 35
    C0037-14Left-rear No. 17
    No. 32
    C003A-14Right-rear No. 31
    No. 15

    Is there continuity?

    YES

    Wheel speed sensor wires are shorted to ground. Go to step 3.

    NO

    Wheel speed sensor wires are not shorted to ground. Go to step 4.

  3. Wheel speed sensor (s) check 1

    -1. Disconnect the following connectors.

    Appropriate wheel speed sensor 2P connector (front)
    Appropriate wheel speed sensor 4P connector (rear)

    -2. On the sensor side, check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      VSA modulator-control unit 46P connector: disconnected
      Appropriate wheel speed sensor 2P connector (front): disconnected
      Appropriate wheel speed sensor 4P connector (rear): disconnected
    Test circuit 1
    Test point 1 Appropriate wheel speed sensor 2P connector (male terminals) No. 1:
      Appropriate wheel speed sensor 4P connector (male terminals) No. 3:
    Test point 2 Body ground
    Test circuit 2
    Test point 1 Appropriate wheel speed sensor 2P connector (male terminals) No. 2:
      Appropriate wheel speed sensor 4P connector (male terminals) No. 4:
    Test point 2 Body ground
    GHH431823Courtesy of HONDA, U.S.A., INC.
    GHH431824Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Replace the appropriate wheel speed sensor .

    NO

    Repair a short to ground in the wire between the VSA modulator-control unit and the wheel speed sensor.

  4. Shorted wire check (Wheel speed sensor lines to power)

    -1. Turn the vehicle to the ON mode.

    -2. Measure the voltage between body ground and the appropriate wheel speed sensor +B and GND terminals of the VSA modulator-control unit 46P connector individually (see table).

    Test condition Vehicle ON mode
      VSA modulator-control unit 46P connector: disconnected
    Connector DTC Test point 1 Test point 2
    VSA modulator-control unit 46P connector C0031-14Left-front No. 33 Body ground
    No. 42
    C0034-14Right-front No. 30
    No. 35
    C0037-14Left-rear No. 17
    No. 32
    C003A-14Right-rear No. 31
    No. 15

    Is there 1 V or more?

    YES

    The wheel speed sensor wires are shorted to power. Go to step 5.

    NO

    The wheel speed sensor wires are not shorted to power. Go to step 6.

  5. Wheel speed sensor (s) check 2

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connectors.

    Appropriate wheel speed sensor 2P connector (front)
    Appropriate wheel speed sensor 4P connector (rear)

    -3. Turn the vehicle to the ON mode.

    -4. On the sensor side, measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      VSA modulator-control unit 46P connector: disconnected
      Appropriate wheel speed sensor 2P connector (front): disconnected
      Appropriate wheel speed sensor 4P connector (rear): disconnected
    Test circuit 1
    Test point 1 Appropriate wheel speed sensor 2P connector (male terminals) No. 1:
      Appropriate wheel speed sensor 4P connector (male terminals) No. 3:
    Test point 2 Body ground
    Test circuit 2
    Test point 1 Appropriate wheel speed sensor 2P connector (male terminals) No. 2:
      Appropriate wheel speed sensor 4P connector (male terminals) No. 4:
    Test point 2 Body ground

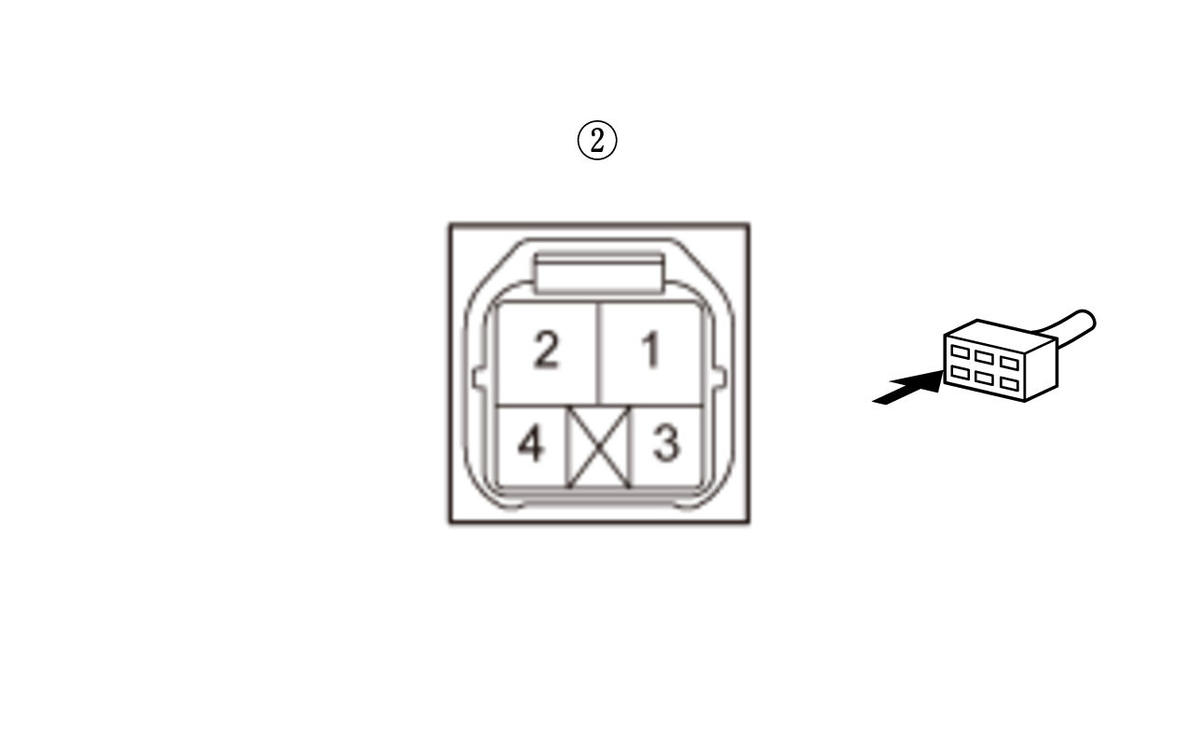

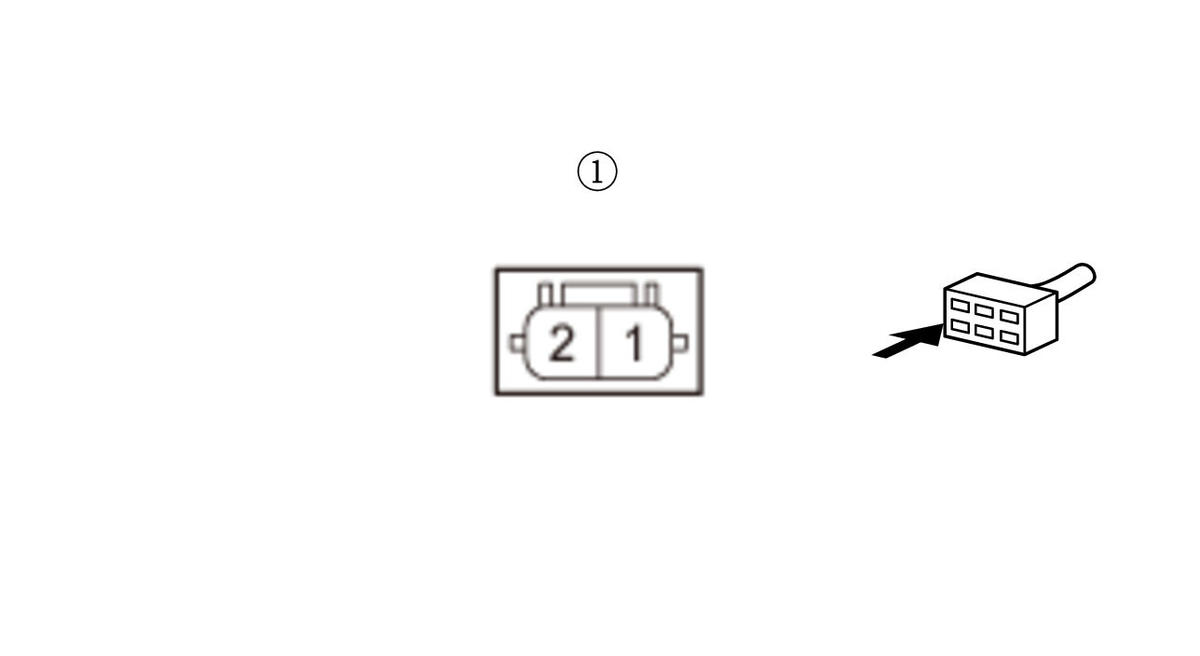

    GHH431829Courtesy of HONDA, U.S.A., INC.
    GHH431830Courtesy of HONDA, U.S.A., INC.

    Is there 1 V or more?

    YES

    Replace the appropriate wheel speed sensor .

    NO

    Repair a short to power in the wire between the VSA modulator-control unit and the appropriate wheel speed sensor.

  6. Shorted wire check (Wheel speed sensor lines wire to wire)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connectors.

    Appropriate wheel speed sensor 2P connector (front)
    Appropriate wheel speed sensor 4P connector (rear)

    -3. Check for continuity between the appropriate VSA modulator-control unit 46P connector wheel speed sensor +B and GND terminals (see table).

    Test condition Vehicle OFF (LOCK) mode
      VSA modulator-control unit 46P connector: disconnected
      Appropriate wheel speed sensor 2P connector (front): disconnected
      Appropriate wheel speed sensor 4P connector (rear): disconnected
    Connector DTC Test point 1 Test point 2
    VSA modulator-control unit 46P connector C0031-14Left-front No. 33 No. 42
    C0034-14Right-front No. 30 No. 35
    C0037-14Left-rear No. 17 No. 32
    C003A-14Right-rear No. 31 No. 15

    Is there continuity?

    YES

    Repair a short in the wires between the VSA modulator-control unit and the appropriate wheel speed sensor.

    NO

    The wheel speed sensor wires are not shorted in the wires. Go to step 7.

  7. Open wire check (Wheel speed sensor lines) 1

    -1. Check for continuity between the appropriate VSA modulator-control unit 46P connector terminal and the appropriate wheel speed sensor connector terminal (see table).

    Test condition Vehicle OFF (LOCK) mode
      VSA modulator-control unit 46P connector: disconnected
      Appropriate wheel speed sensor 2P connector (front): disconnected
      Appropriate wheel speed sensor 4P connector (rear): disconnected
    DTC VSA modulator-control unit 46P connector Appropriate Wheel Speed Sensor Connector Terminal
    C0031-14Left-front No. 33 Left-front wheel speed sensor 2P connector (female terminals) No. 1:
    C0034-14Right-front No. 30 Right-front wheel speed sensor 2P connector (female terminals) No. 1:
    C0037-14Left-rear No. 17 Left-rear wheel speed sensor 4P connector (female terminals) No. 3:
    C003A-14Right-rear No. 31 Right-rear wheel speed sensor 4P connector (female terminals) No. 3:

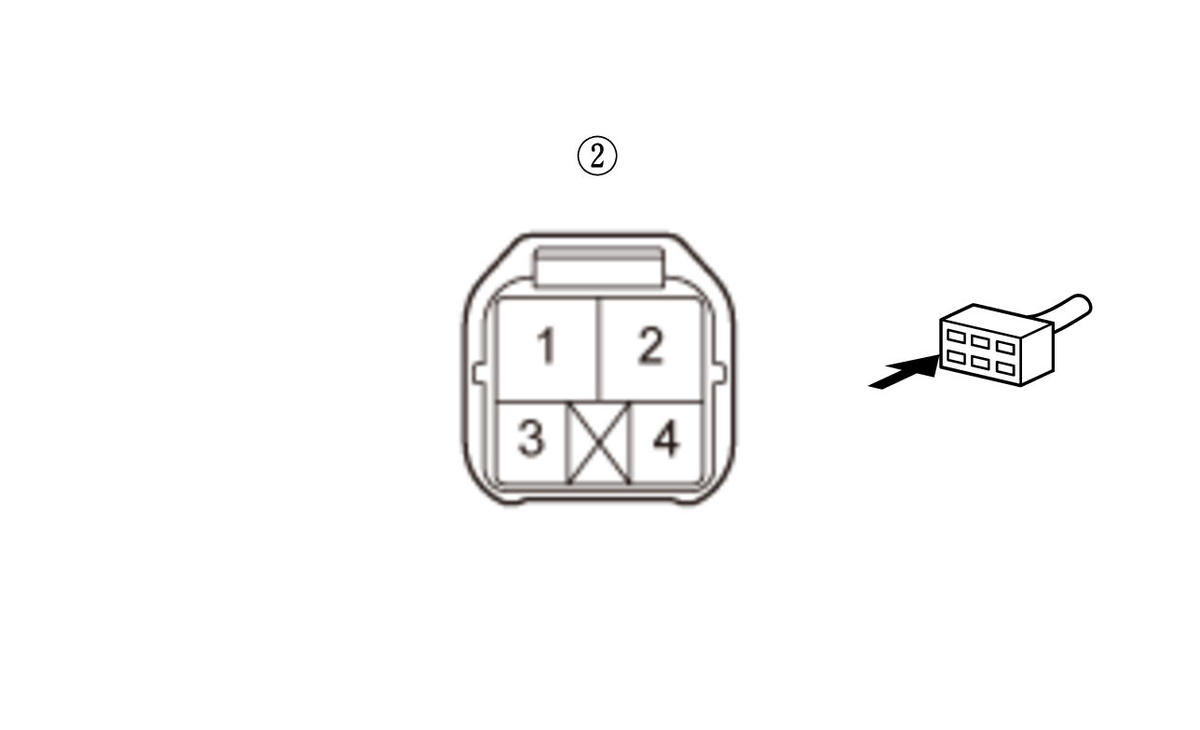

    GHH431835Courtesy of HONDA, U.S.A., INC.
    GHH431836Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Go to step 8.

    NO

    Repair an open in the wire between the VSA modulator-control unit and the appropriate wheel speed sensor.

  8. Open wire check (Wheel speed sensor lines) 2

    -1. Check for continuity between the appropriate VSA modulator-control unit 46P connector terminal and the appropriate wheel speed sensor connector terminal (see table).

    Test condition Vehicle OFF (LOCK) mode
      VSA modulator-control unit 46P connector: disconnected
      Appropriate wheel speed sensor 2P connector (front): disconnected
      Appropriate wheel speed sensor 4P connector (rear): disconnected
    DTC VSA modulator-control unit 46P connector Appropriate Wheel Speed Sensor Connector Terminal
    C0031-14Left-front No. 42 Left-front wheel speed sensor 2P connector (female terminals) No. 2:
    C0034-14Right-front No. 35 Right-front wheel speed sensor 2P connector (female terminals) No. 2:
    C0037-14Left-rear No. 32 Left-rear wheel speed sensor 4P connector (female terminals) No. 4:
    C003A-14Right-rear No. 15 Right-rear wheel speed sensor 4P connector (female terminals) No. 4:

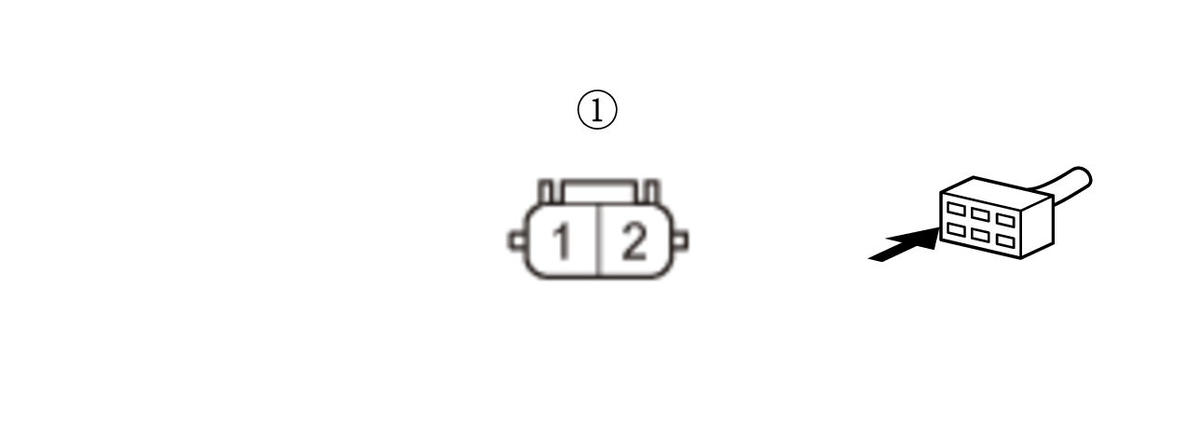

    GHH431841Courtesy of HONDA, U.S.A., INC.
    GHH431842Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The wheel speed sensor wires are OK. Go to step 9.

    NO

    Repair an open in the wire between the VSA modulator-control unit and the appropriate wheel speed sensor.

  9. Wheel speed sensor (s) check

    -1. Substitute a known-good wheel speed sensor .

    DTC Appropriate Wheel Speed Sensor
    C0031-14 Left-front
    C0034-14 Right-front
    C0037-14 Left-rear
    C003A-14 Right-rear

    -2. Reconnect the following connectors.

    VSA modulator-control unit 46P connector
    Appropriate wheel speed sensor 2P connector (front)
    Appropriate wheel speed sensor 4P connector (rear)

    -3. Turn the vehicle to the ON mode.

    -4. Clear the DTC with the HDS.

    -5. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.

    -6. Check for DTCs with the HDS.

    DTC Description DTC Freeze Frame


    Is DTC C0031-14, C0034-14, C0037-14, or C003A-14 indicated?

    YES

    Check for loose terminals and poor connections in the VSA modulator-control unit 46P connector. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting. If they are OK, replace the VSA modulator-control unit .

    NO

    Replace the original wheel speed sensor .
