Brake Hose Removal and Installation: Removal

NOTE: Review the Service Precautions before doing repairs or service .

Front

1. Vehicle - Lift
2. Front Wheel - Remove
3. Brake Hose - Remove

   Courtesy of HONDA, U.S.A., INC.

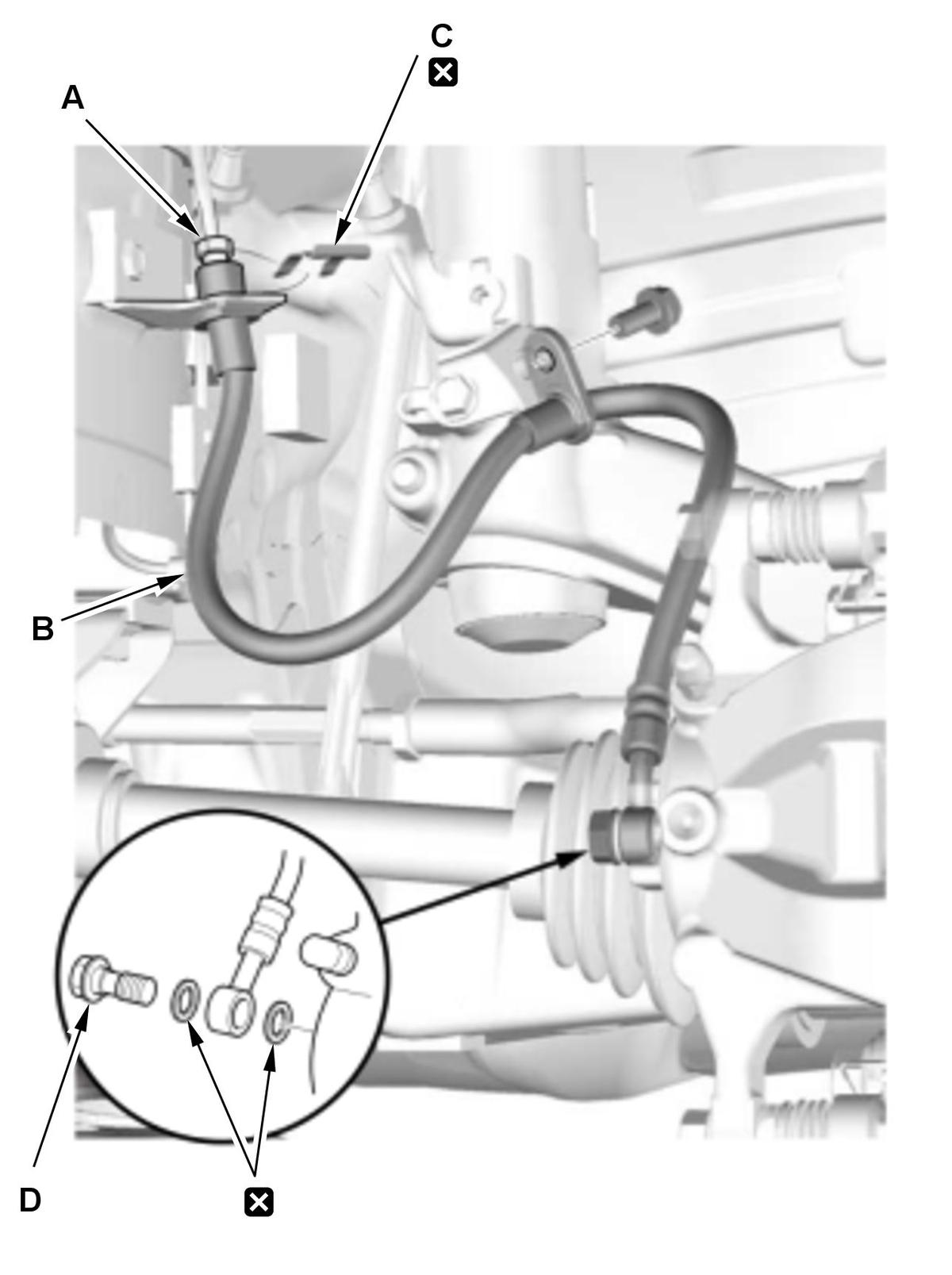

   1. Disconnect the brake line (A) from the brake hose (B). 2. Remove the brake hose clip (C). 3. Remove the banjo bolt (D), and disconnect the brake hose from the caliper body. 4. Remove the brake hose.

   Rear

4. Vehicle - Lift
5. Rear Wheel - Remove
6. Brake Hose - Remove

   Courtesy of HONDA, U.S.A., INC.

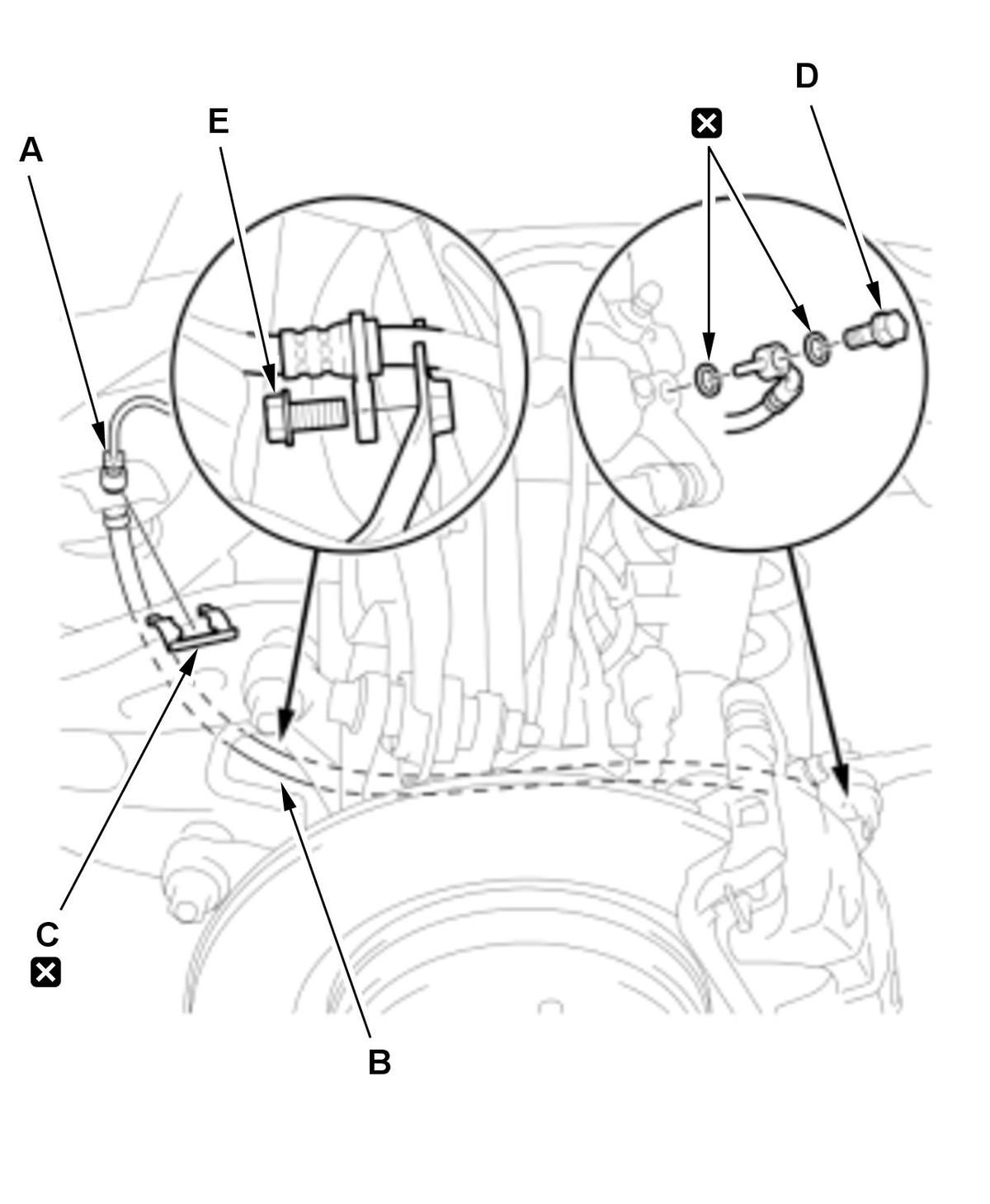

   1. Disconnect the brake line (A) from the brake hose (B). 2. Remove the brake hose clip (C). 3. Remove the banjo bolt (D), and disconnect the brake hose from the caliper body. 4. Remove the brake hose mounting bolt (E).
