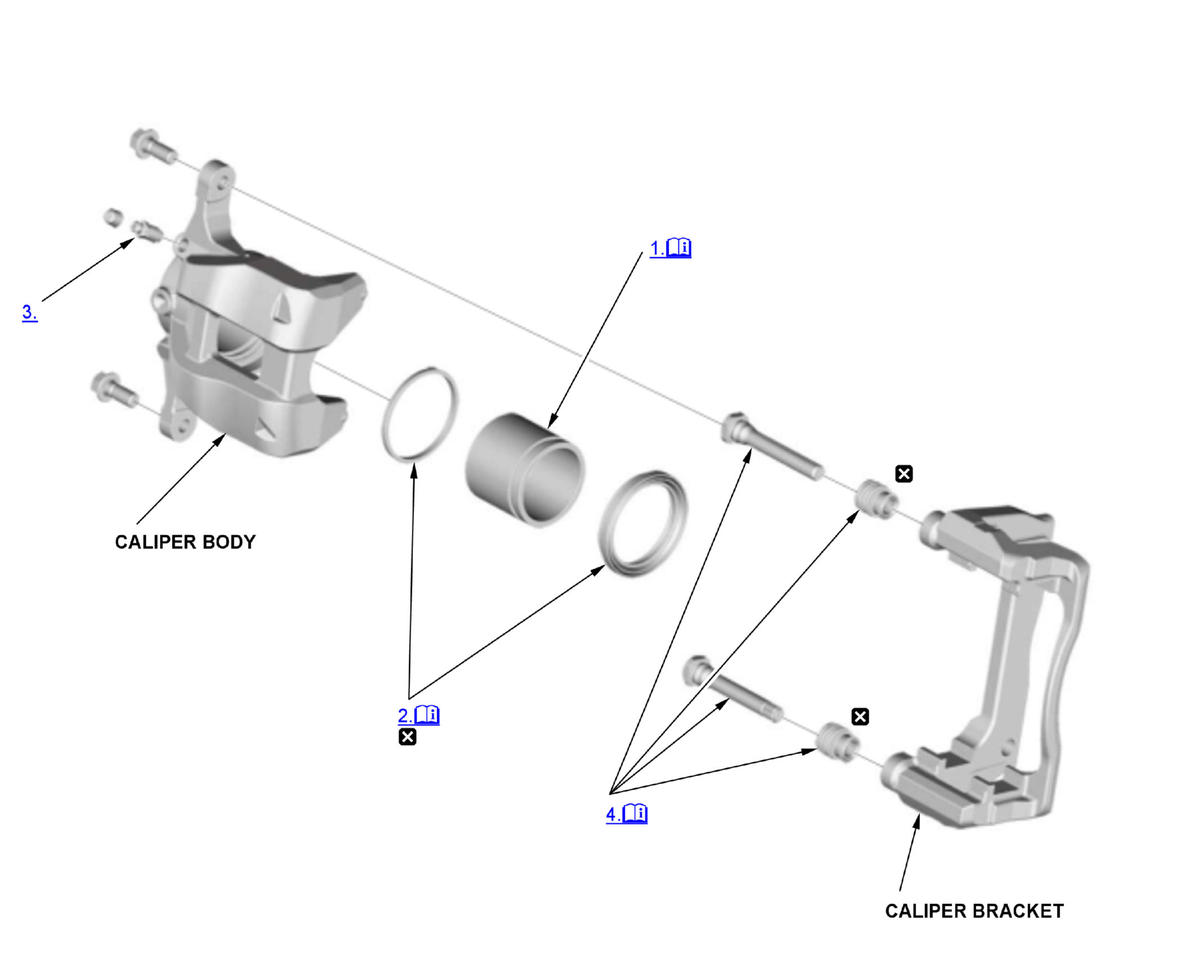

Front Brake Caliper Overhaul: Disassembly

NOTE:

• Where icon is shown, see below for further information.
• Review the Service Precautions before doing repairs or service .

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

1. Piston - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Set the wooden block (A) or several shop towels in the caliper body (B) as shown. 2. Blow out the piston (C) with compressed air gradually, and remove the piston from the caliper body. NOTE:  Do not put your hand into the caliper body because the piston will come out forcibly from the caliper body.

2. Piston Boot and Piston Seal - Remove

   NOTE:  Be careful not to damage the inner surface of the cylinder wall with the tool.

3. Bleed Screw - Remove
4. Caliper Pin and Pin Boot - Remove

   NOTE:  The upper and lower caliper pins are different. During installation, make sure the caliper pins are in the proper positions.
