Front Brake Pad Removal, Installation, and Inspection: Removal

NOTE: Review the Service Precautions before doing repairs or service .

1. Brake Fluid - Remove

   1. Remove some brake fluid from the reservoir.

2. Vehicle - Lift
3. Front Wheels - Remove
4. Brake Pad - Remove

   Courtesy of HONDA, U.S.A., INC.

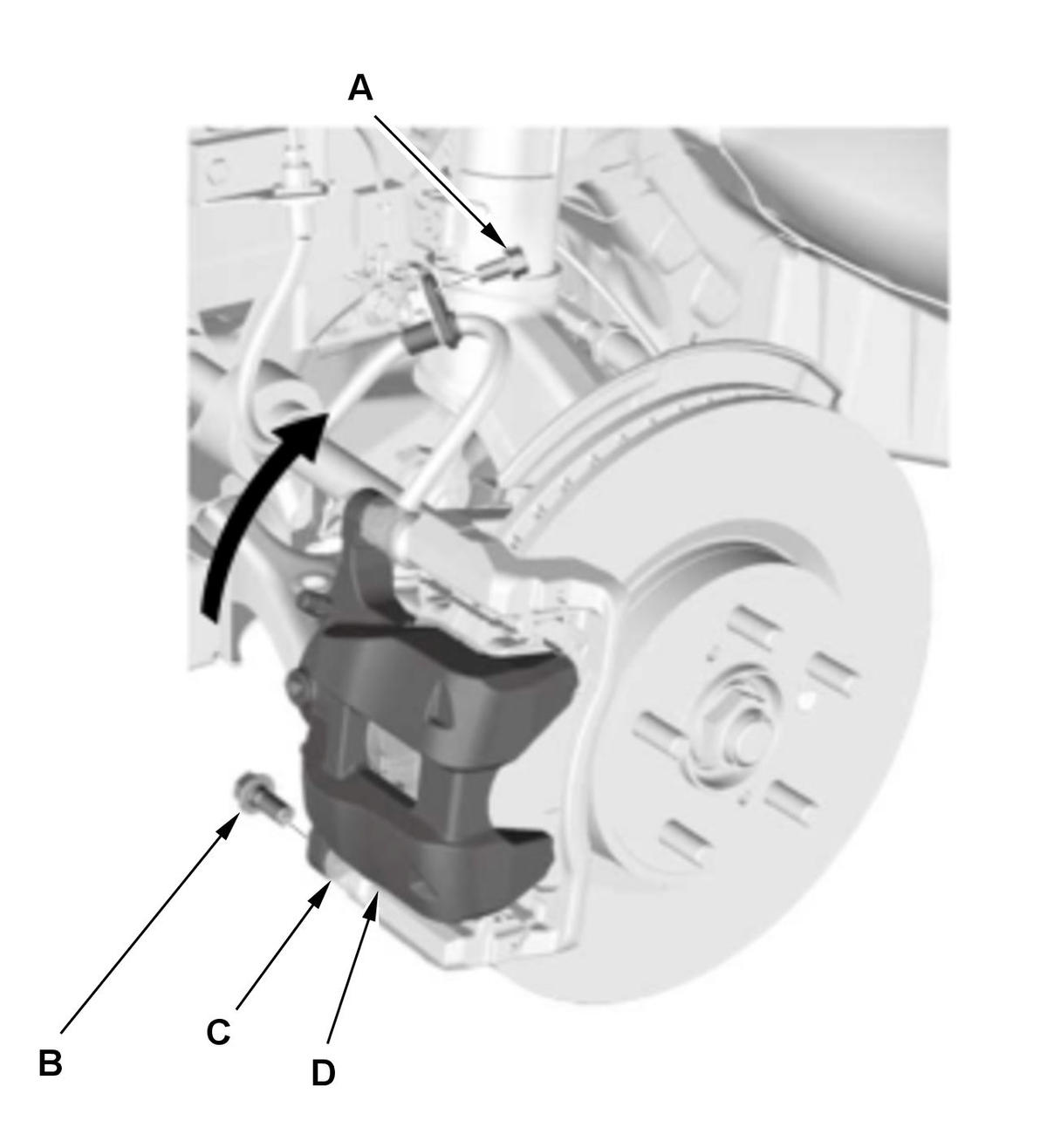

   1. Remove the brake hose mounting bolt (A). 2. Remove the flange bolt (B) while holding the caliper pin (C). NOTE:  Be careful not to damage the pin boot. 3. Pivot the caliper body (D) up out of the way. NOTE:  Check the hose and the pin boots for damage and deterioration.

   Courtesy of HONDA, U.S.A., INC.

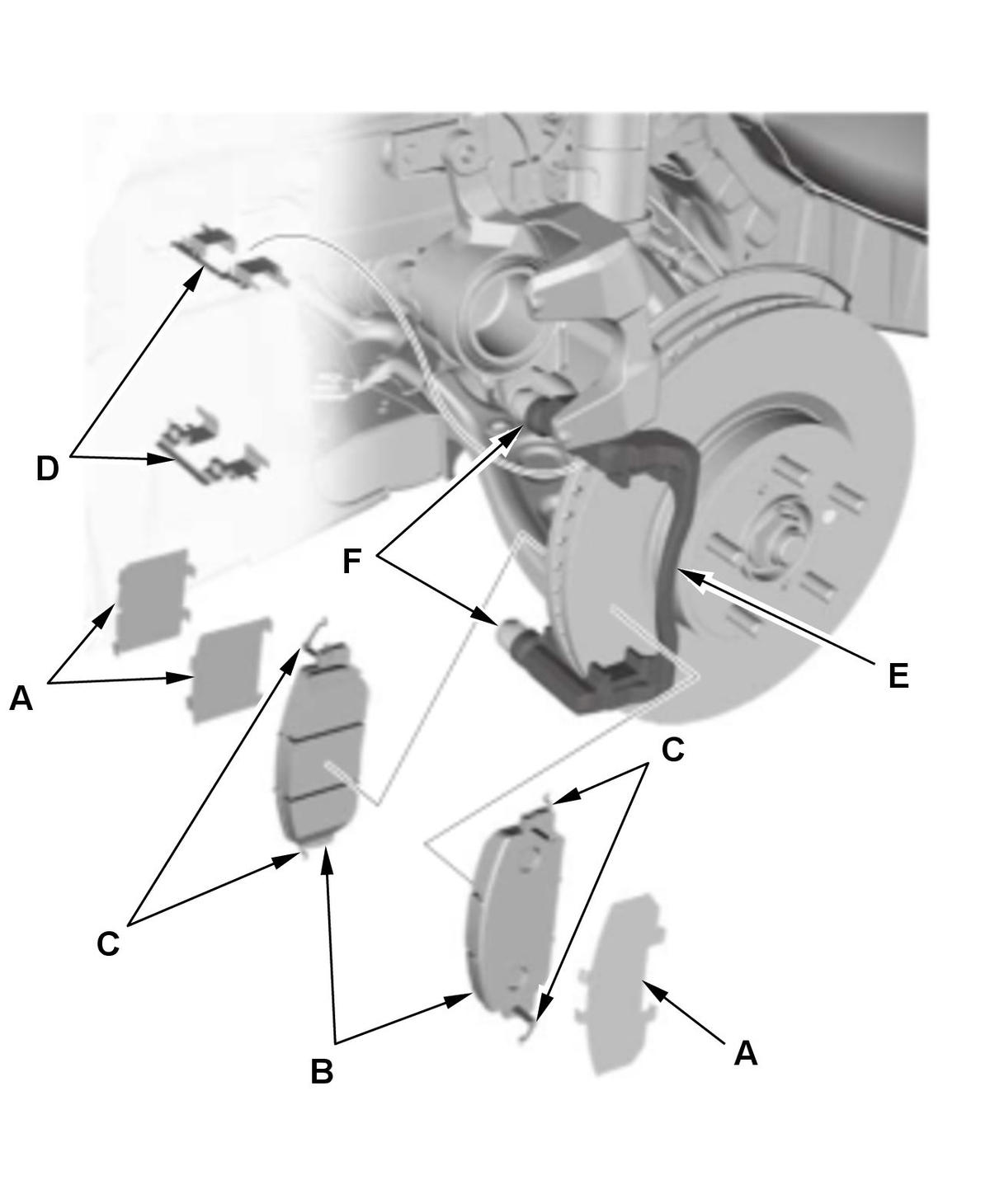

   4. Remove the pad shims (A) and the brake pads (B). NOTE:  Be careful not to damage or deform the pad return springs (C). 5. Remove the pad retainers (D). NOTE:  The upper and lower pad retainers are different. During installation, make sure the pad retainers are in the proper positions. 6. Clean the caliper bracket (E) thoroughly; remove any rust, and check for grooves and cracks. 7. Verify that the caliper pins (F) move in and out smoothly. Clean and lube if needed.

5. Brake Disc - Inspect
