Removal and Installation

NOTE:

• How to read the torque specifications .
• Review the Service Precautions before doing repairs or service .

1. Vehicle - Lift
2. Front Wheel - Remove
3. Front Brake Caliper - Remove

   1. Remove the caliper assembly without disconnecting the brake hose from the caliper body .

4. Front Brake Disc - Remove

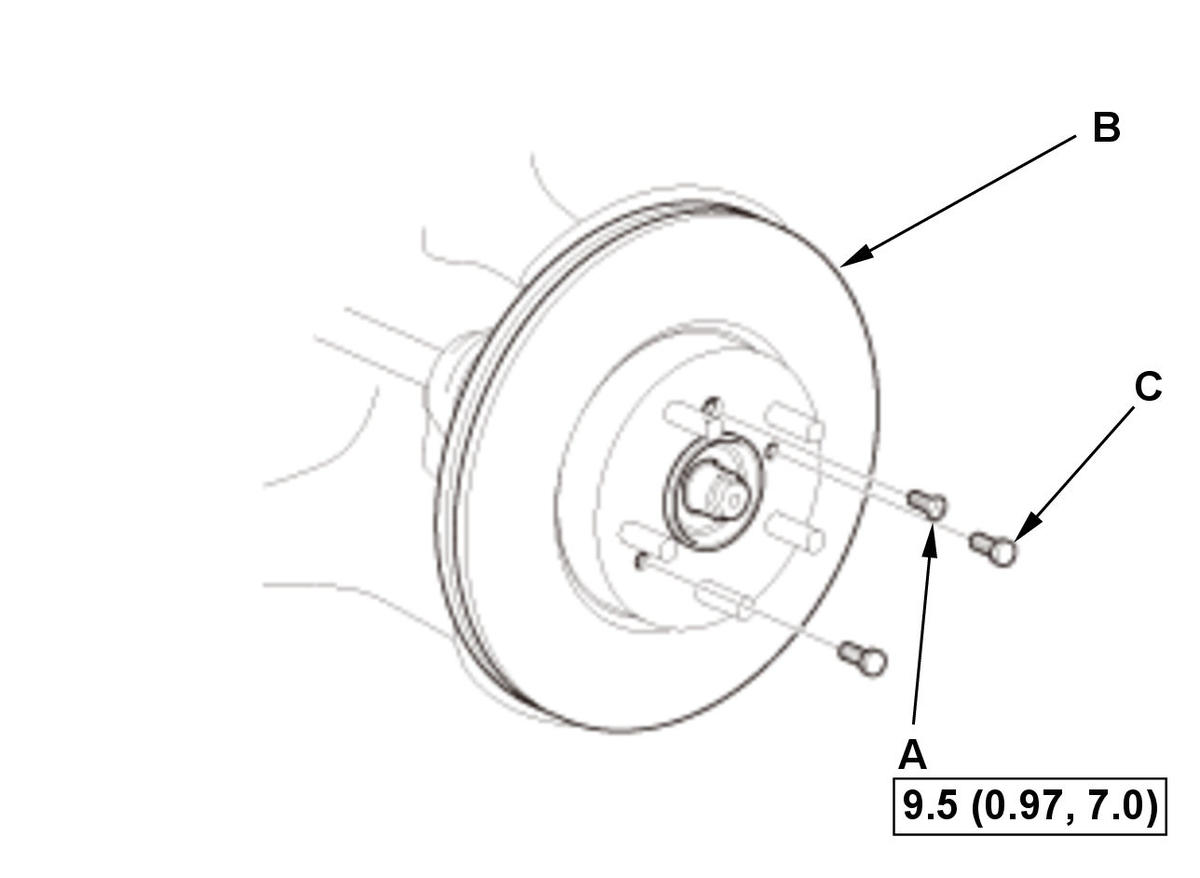

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the brake disc flathead screw (A). 2. Remove the brake disc (B). NOTE:  If the brake disc is stuck to the front hub, thread two 8 x 1.25 mm bolts (C) into the brake disc to push it away from the front hub. Turn each bolt 90 degrees at a time to prevent the brake disc from binding.

5. All Removed Parts - Install

   1. Install all removed parts in the reverse order of removal.

6. Front Brake Disc Runout - Inspect
