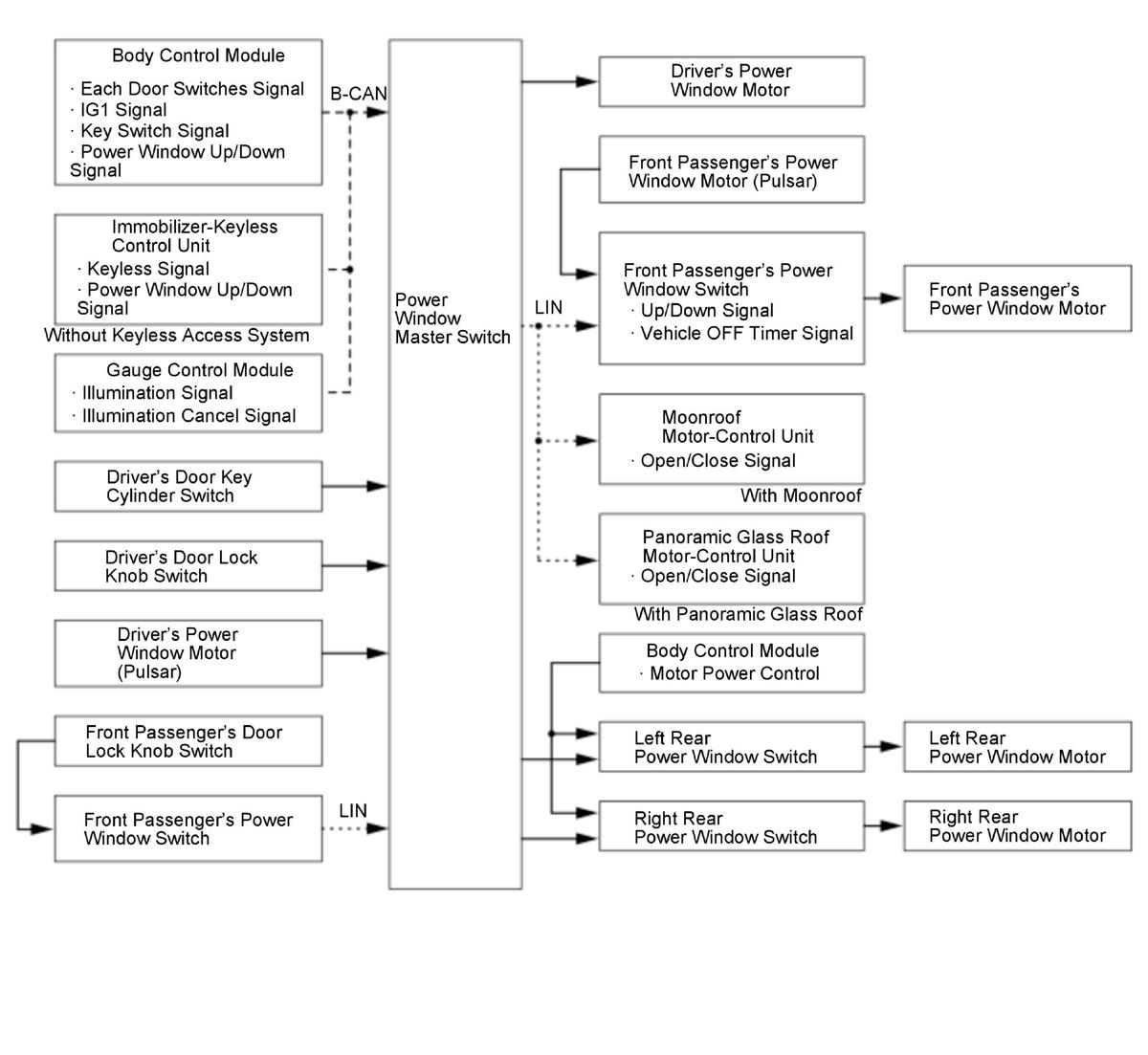

Power Windows System Description - System Diagram
Power Windows System Description - System Diagram
For locations of each component on the vehicle, refer to Component Location Index
Courtesy of HONDA, U.S.A., INC.
