Rear Power Window Switch Connector for Inputs and Outputs

Connector Index
Left Rear Power Window Switch 10P Connector
Right Rear Power Window Switch 10P Connector

Left Rear Power Window Switch Connector (female terminals)

GHH431944

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	P/W RR L MTR DOWN	Drives left rear power window motor	With left rear power window motor DOWN operation: about battery voltage If none of above conditions are met: less than 0.2 V
2	GND	Left rear power window switch ground	Less than 0.2 V at all times
3	---	Not used	---
4	+B P/W RR L	+B power source	About battery voltage at all times
5	---	Not used	---
6	P/W RR L MTR UP	Drives left rear power window motor	With left rear power window motor UP operation: about battery voltage If none of above conditions are met: less than 0.2 V
7	P/W RR L SW RLY UP	Drives left rear power window motor	With left rear power window moving to UP using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
8	P/W RR L SW RLY DOWN	Drives left rear power window motor	With left rear power window moving to DOWN using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
9	---	Not used	---
10	P/W SW ILLUMI	Detects illumination signal	With combination light switch PARKING: about battery voltage With combination light switch OFF: less than 0.2 V

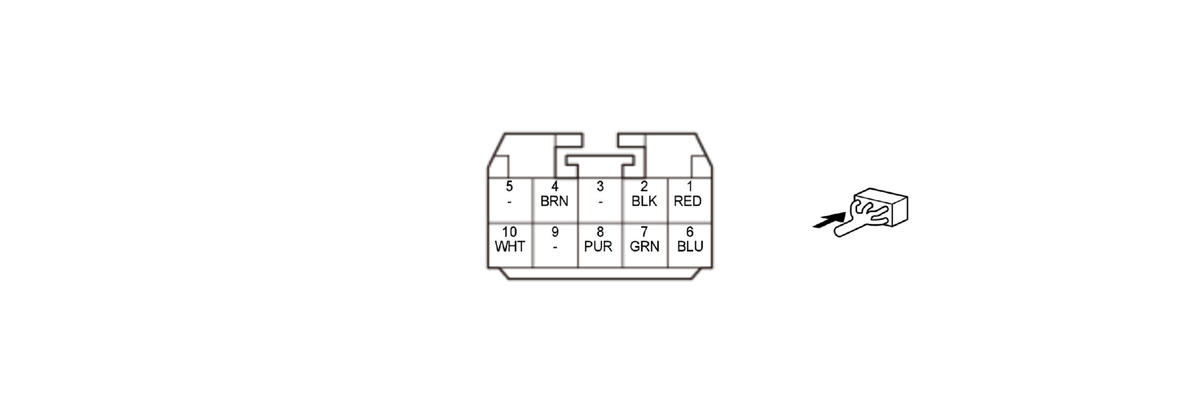

Right Rear Power Window Switch Connector (female terminals)

GHH431945

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	P/W RR R MTR DOWN	Drives right rear power window motor	With right rear power window motor DOWN operation: about battery voltage If none of above conditions are met: less than 0.2 V
2	GND	Right rear power window switch ground	Less than 0.2 V at all times
3	---	Not used	---
4	+B P/W RR R	+B power source	About battery voltage at all times
5	---	Not used	---
6	P/W RR R MTR UP	Drives right rear power window motor	With right rear power window motor UP operation: about battery voltage If none of above conditions are met: less than 0.2 V
7	P/W RR R SW RLY UP	Drives right rear power window motor	With right rear power window moving to UP using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
8	P/W RR R SW RLY DOWN	Drives right rear power window motor	With right rear power window moving to DOWN using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
9	---	Not used	---
10	P/W SW ILLUMI	Detects illumination signal	With combination light switch PARKING: about battery voltage With combination light switch OFF: less than 0.2 V
