Front Passenger's Power Window Switch Connector for Inputs and Outputs

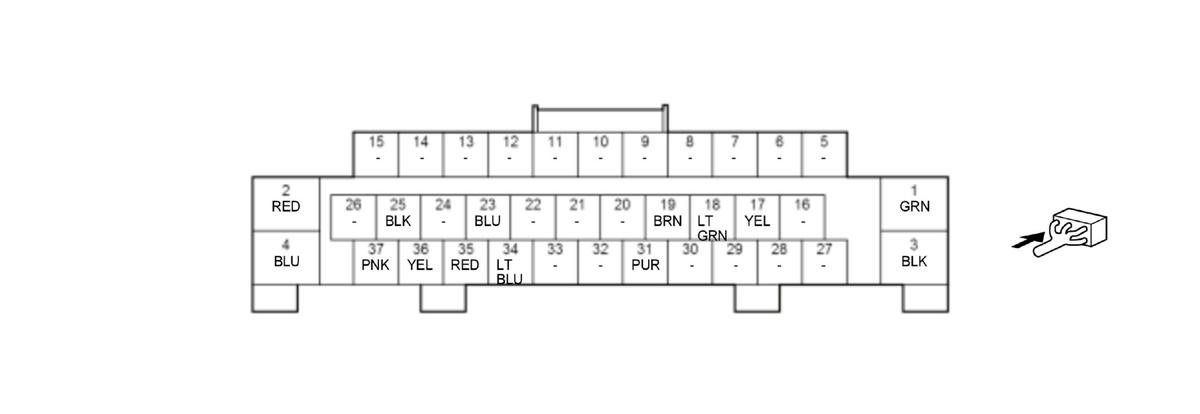

Front Passenger's Power Window Switch 37P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	+B P/W AS	+B power source	About battery voltage at all times
2	P/W AS MTR DOWN	Drives front passenger's power window motor	With front passenger's power window motor DOWN operation: about battery voltage If none of above conditions are met: less than 0.2 V
3	GND	Front passenger's power window switch ground	Less than 0.2 V at all times
4	P/W AS MTR UP	Drives front passenger's power window motor	With front passenger's power window motor UP operation: about battery voltage If none of above conditions are met: less than 0.2 V
5	---	Not used	---
6	---	Not used	---
7	---	Not used	---
8	---	Not used	---
9	---	Not used	---
10	---	Not used	---
11	---	Not used	---
12	---	Not used	---
13	---	Not used	---
14	---	Not used	---
15	---	Not used	---
16	---	Not used	---
17	AS MIRROR COM	Detects power mirror DOWN or LEFT function signal	With vehicle in ON mode and power mirror DOWN or LEFT function: about battery voltage
18	AS MIRROR UD	Detects power mirror UP or LEFT function signal	With vehicle in ON mode and power mirror UP or LEFT function: about battery voltage
19	AS MIRROR LR	Detects mirror DOWN or RIGHT function signal	With vehicle in ON mode and power mirror DOWN or RIGHT function: about battery voltage
20	---	Not used	---
21	---	Not used	---
22	---	Not used (reservation)	---
23	H/MIRROR AS	Drives right power mirror defogger	With power mirror defogger ON: about battery voltage

Terminal number	Terminal name	Description	Signal
24	---	Not used	---
25*	P/W AS MTR SGND	Ground for front passenger's power window motor pulser	Less than 0.2 V at all times
26	---	Not used (reservation)	---
27	---	Drives retract actuator	---
28	---	Drives retract actuator	---
29	---	Not used (reservation)	---
30	---	Not used (reservation)	---
31*	P/W AS MTR VCC	Drives front passenger's power window motor hall IC (pulser) unit	With front passenger's power window control unit is wakeup mode and front passenger's power window motor operation: about battery voltage If none of above conditions are met: less than 0.2 V
32	---	Not used	---
33	---	Not used	---
34	LIN (P/W)	Communication line	---
35	P/W AS MTR PLSA	Detects front passenger's power window motor hall IC (pulser) unit signal	---
36	AS SILCON UNLOCK	Detects front passenger's door lock knob switch (UNLOCK) signal	With front passenger's door lock knob switch LOCK: about battery voltage With front passenger's door lock knob switch UNLOCK: less than 0.2 V
37	P/W AS MTR PLSB	Detects front passenger's power window motor hall IC (pulser) unit signal	---

*: With front power window AUTO UP/DOWN function
