Removal and Installation

NOTE:  If the power window switch is replaced, reset the power window control unit . If the original power window switch is installed, confirm that the power window works properly.

1

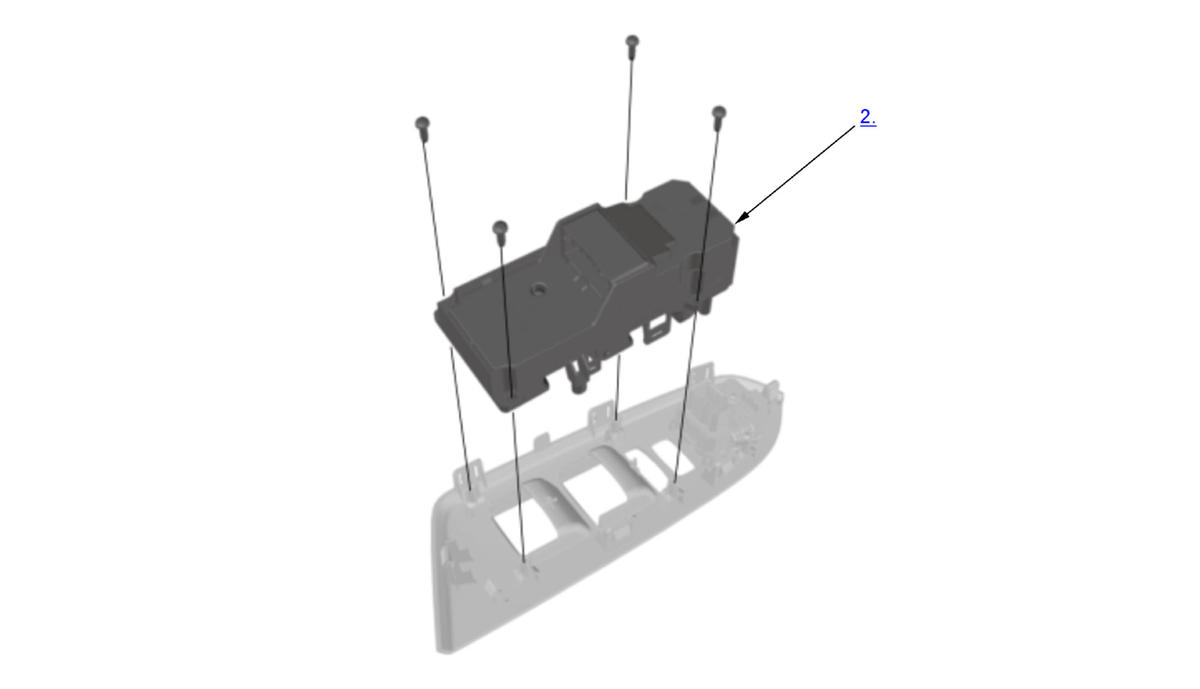

Driver's

Courtesy of HONDA, U.S.A., INC.

2

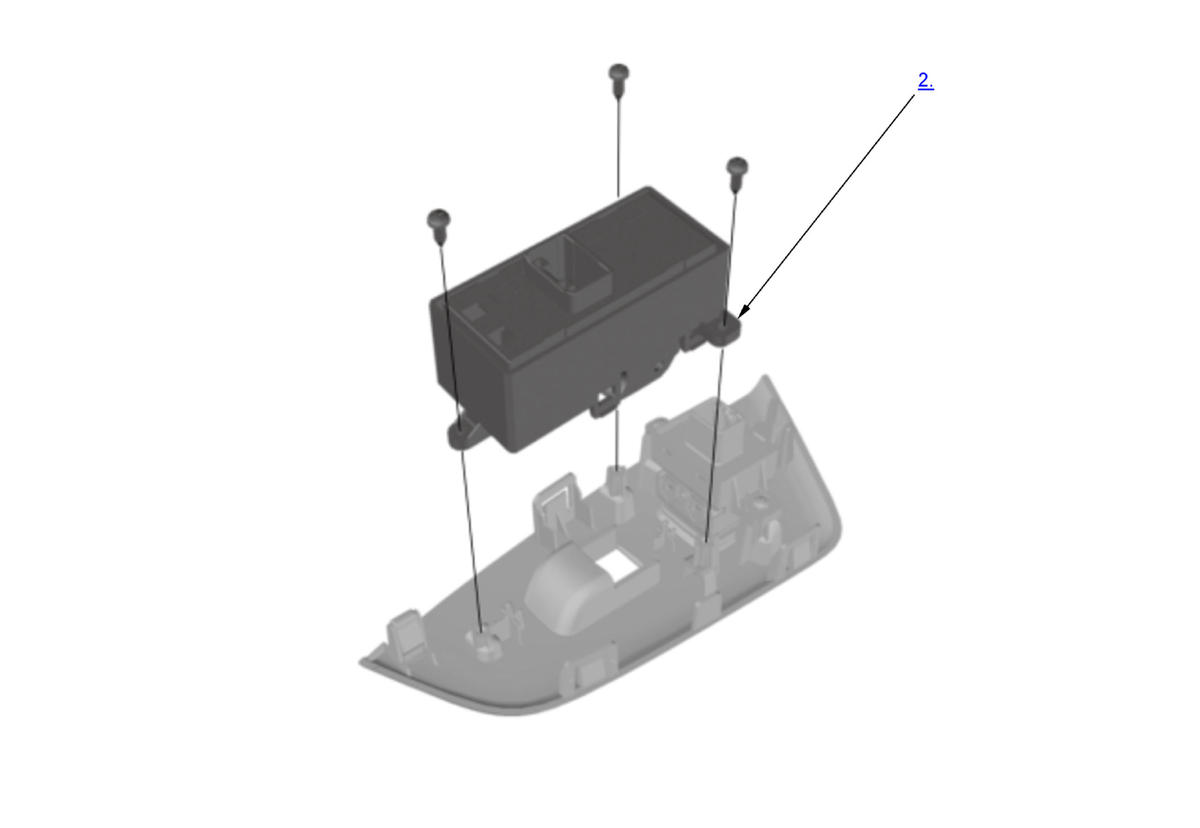

Front Passenger's

Courtesy of HONDA, U.S.A., INC.

3

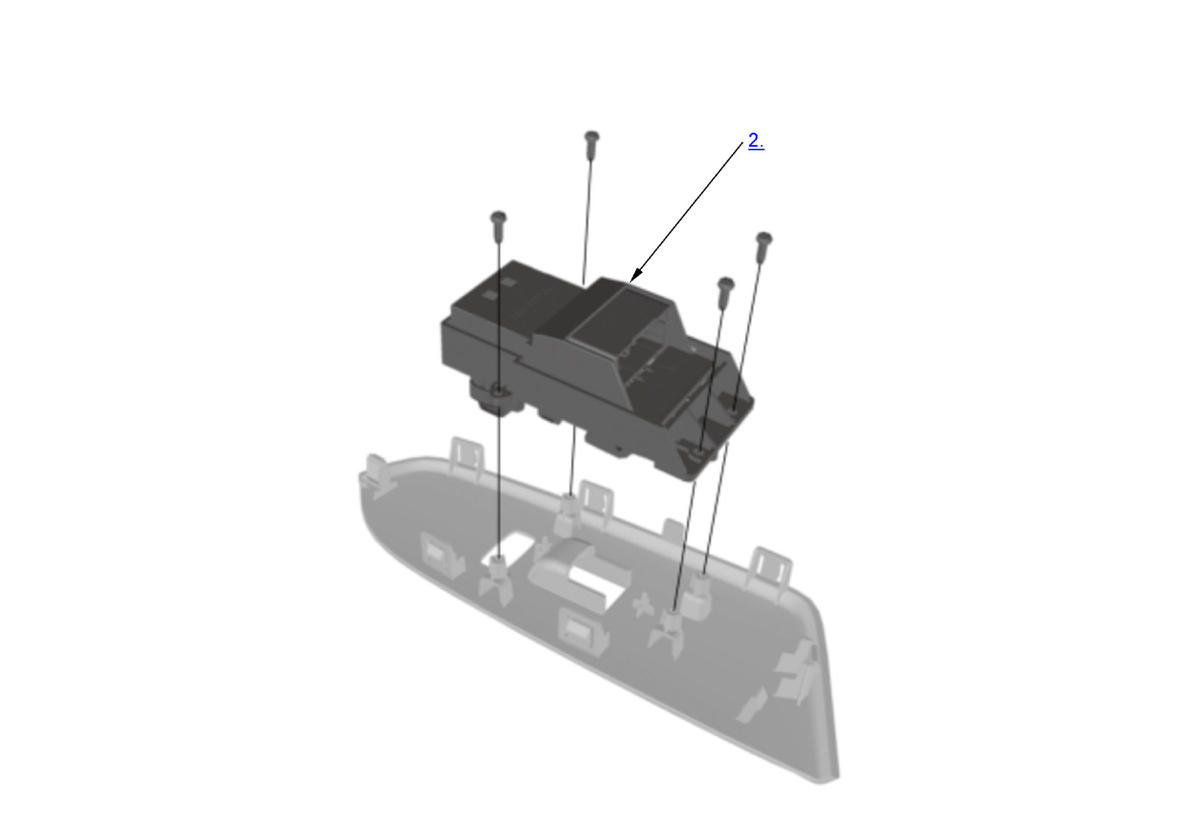

Rear

Courtesy of HONDA, U.S.A., INC.

Driver's

1. Front Door Power Window Switch Panel - Remove
2. Power Window Master Switch - Remove
3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

4. Power Window Control Unit - Reset

   Front Passenger's

5. Front Door Power Window Switch Panel - Remove
6. Front Passenger's Power Window Switch - Remove
7. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

8. Power Window Control Unit - Reset

   Rear

9. Rear Door Power Window Switch Panel - Remove
10. Rear Power Window Switch - Remove
11. All Removed Parts - Install

    1. Install the parts in the reverse order of removal.
