Side Windshield Trim Removal and Installation: Installation

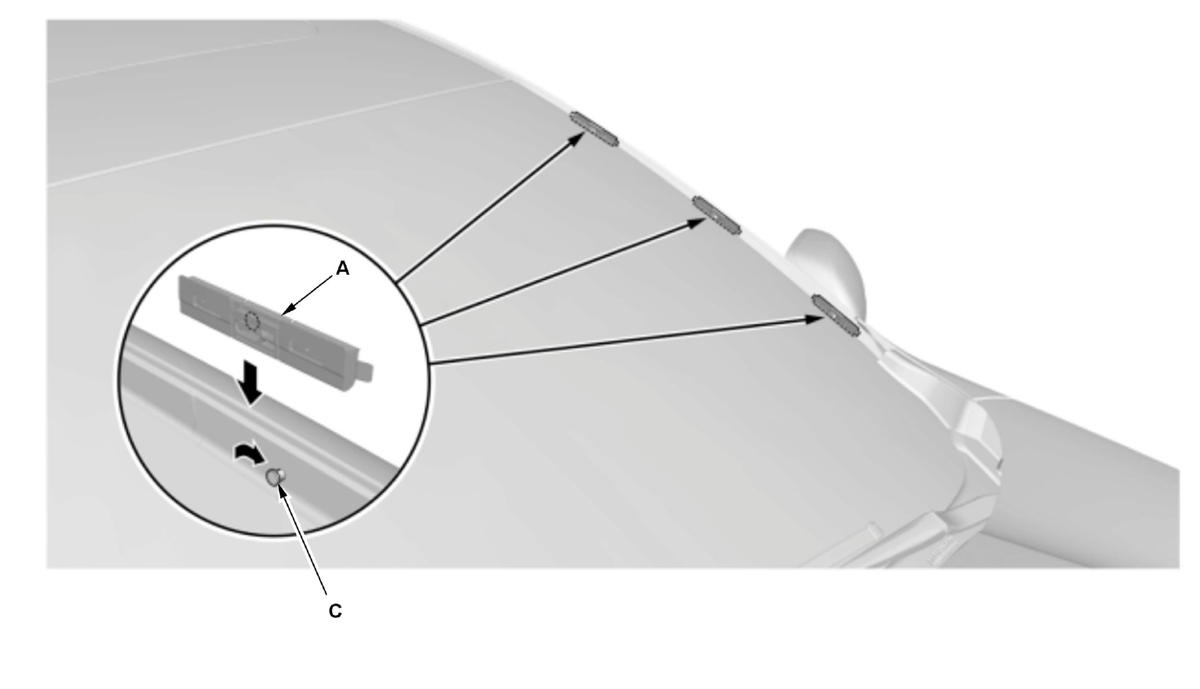

1. Install the retainers (A, B) to the pins (C).

Courtesy of HONDA, U.S.A., INC.

Without Roof Rail

Courtesy of HONDA, U.S.A., INC.

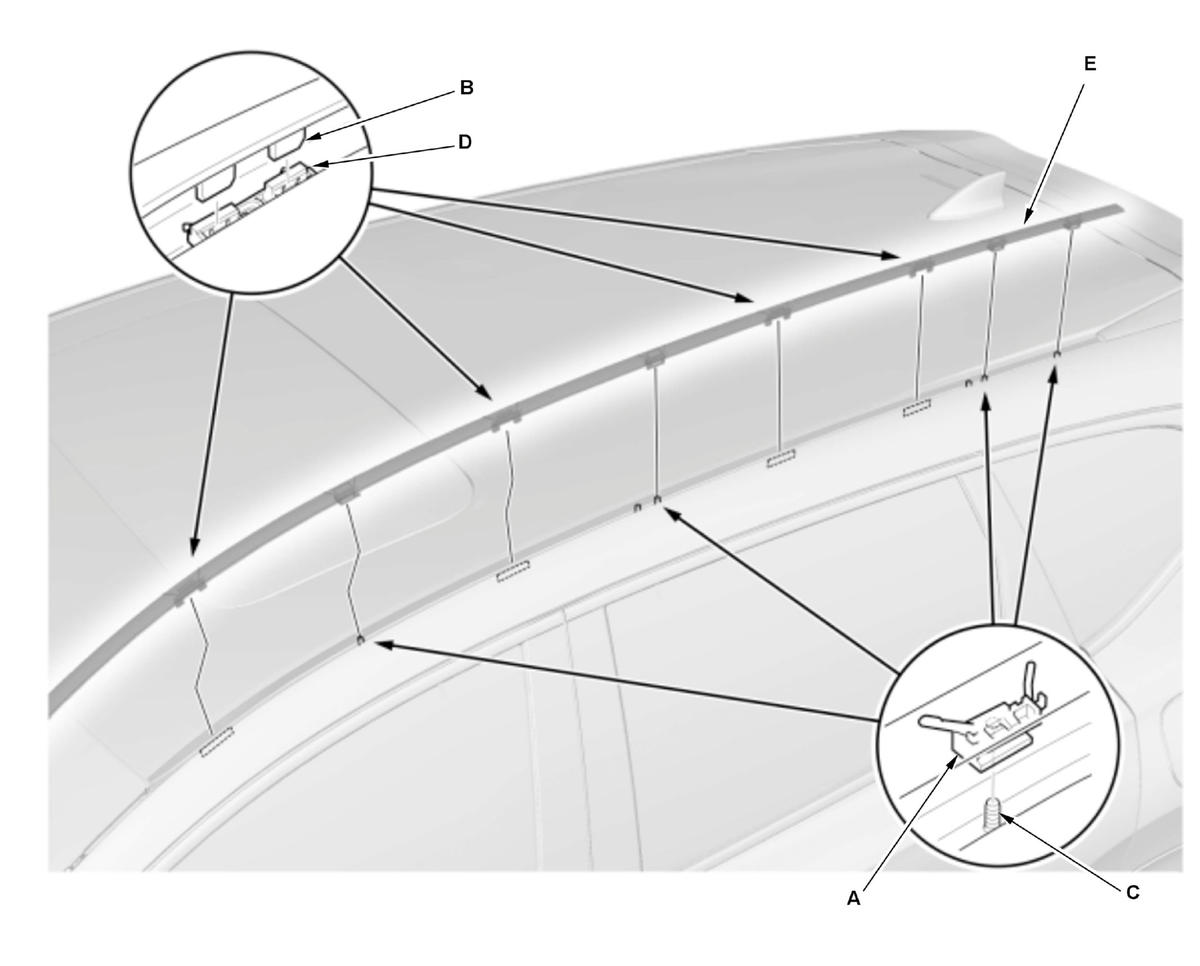

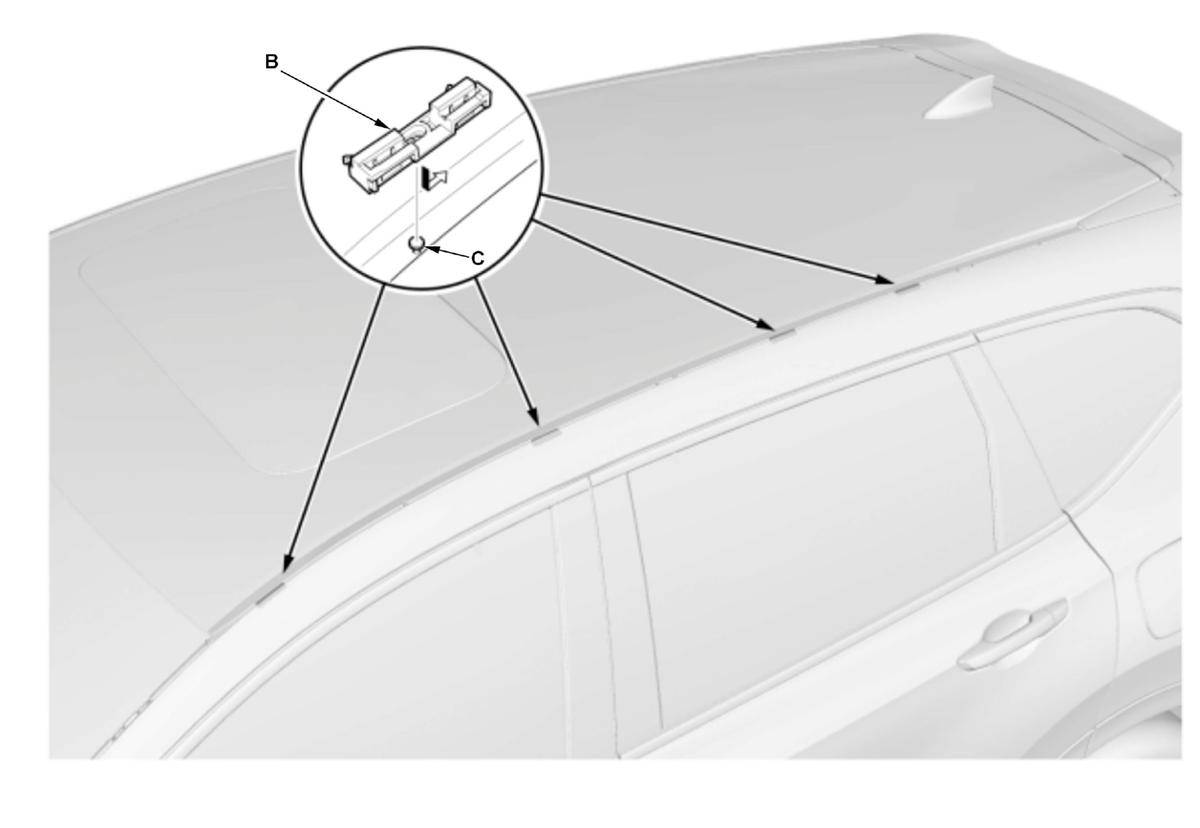

1. Without roof rail : From the rear to the front, fit the clips (A, B) to the stud bolts (C) and the retainers (D), then push on the molding until they snap into place.

Courtesy of HONDA, U.S.A., INC.

Without Roof Rail

Courtesy of HONDA, U.S.A., INC.

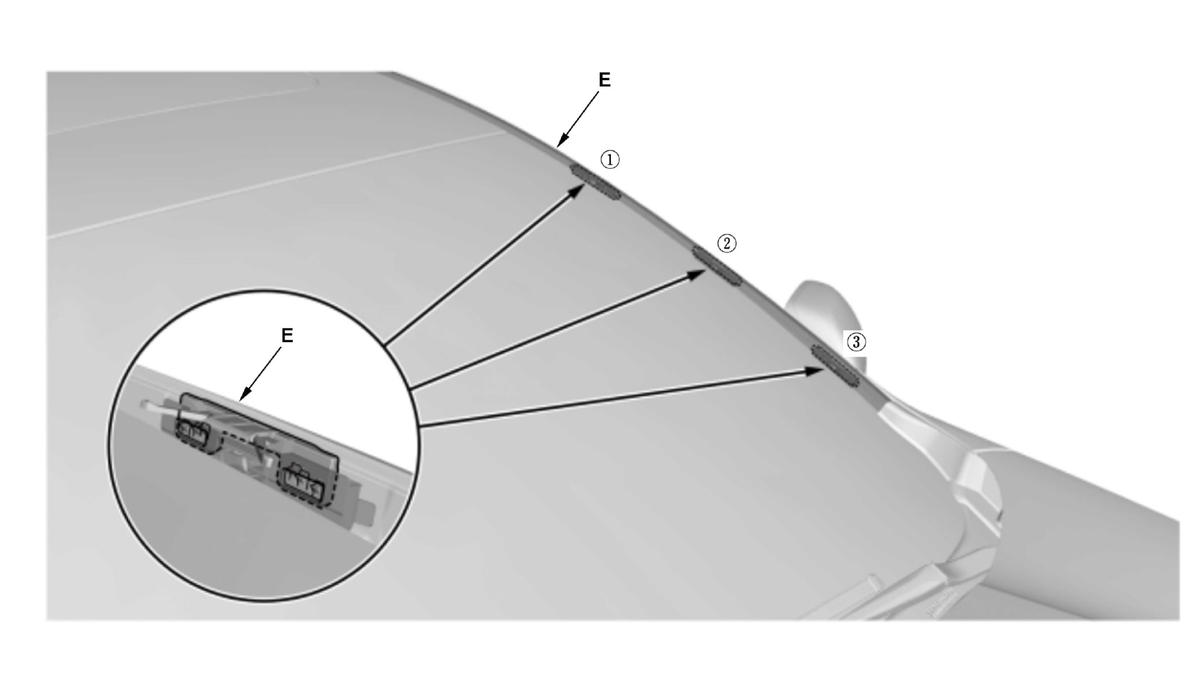

2. Install the windshield side trim (E) in the sequence shown.
