Removal and Installation

NOTE: How to read the torque specifications

1. Front Door Panel - Remove
2. Mirror Housing Cover - Remove (For Some Models)
3. Front Door Inner Handle - Remove

   1. Remove the front door inner handle as needed .

4. Front Door Plastic Cover - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Disconnect the connectors (A), and remove the harness clips (B). 2. Remove the plug caps (C), then carefully remove the plastic cover (D). NOTE:  If the plastic cover is damaged or torn, replace it with a new one.

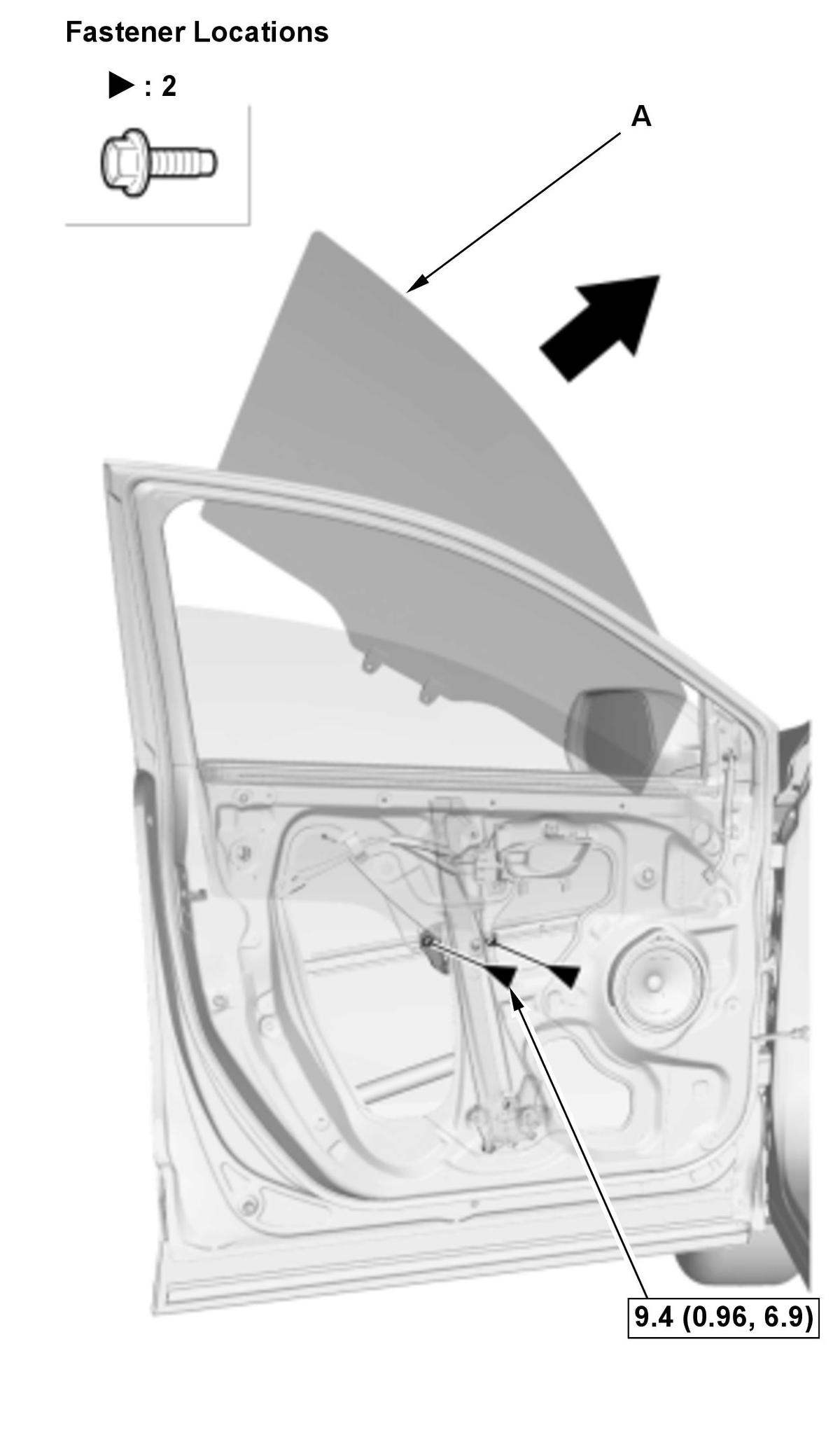

5. Front Door Glass - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Lower the front door glass (A) until you can see the bolts, and then remove them. 2. Carefully pull out the front door glass through the window slot. NOTE:  Be careful not to drop the front door glass inside the door.

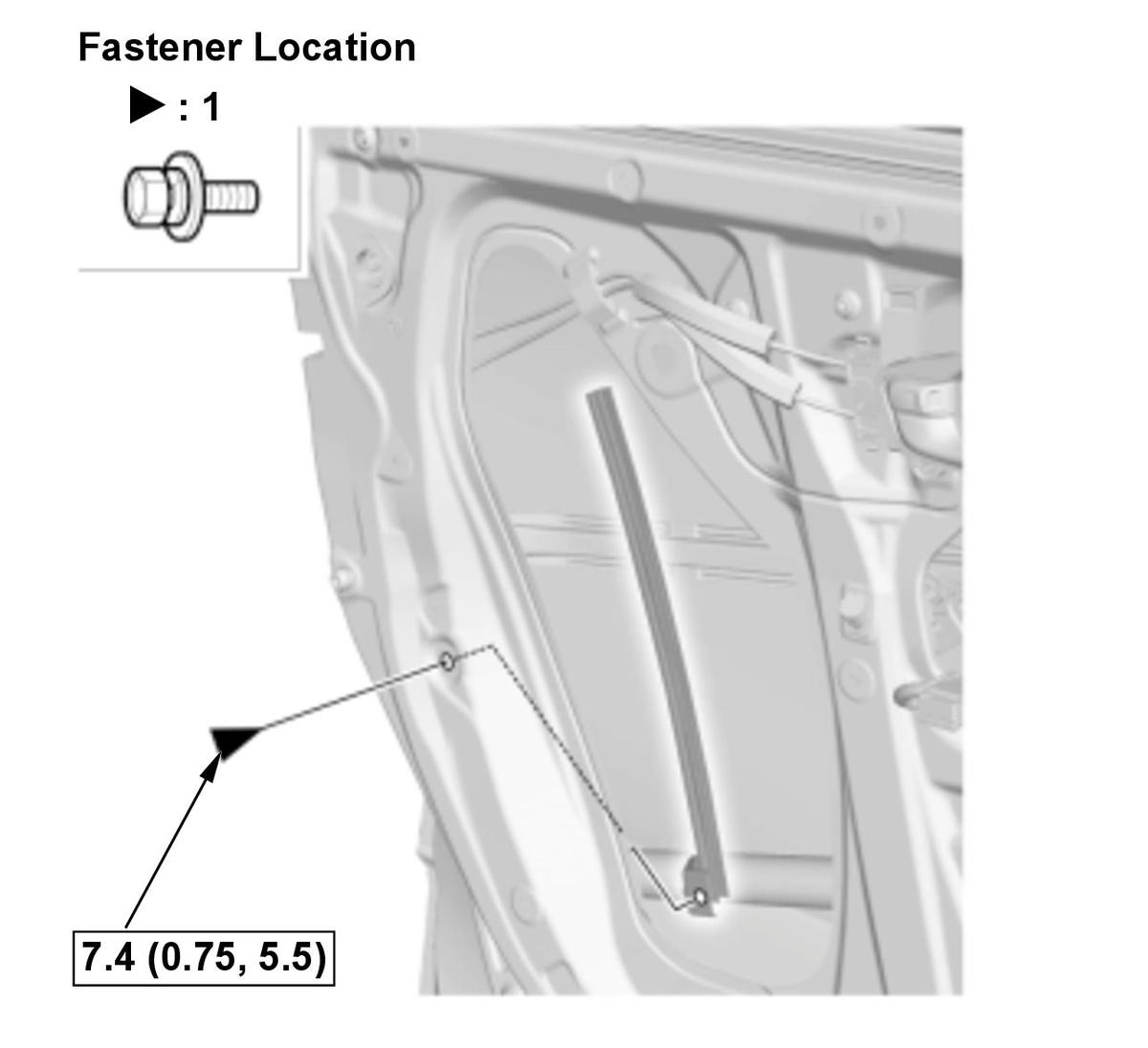

6. Front Door Center Lower Channel - Remove

   Courtesy of HONDA, U.S.A., INC.

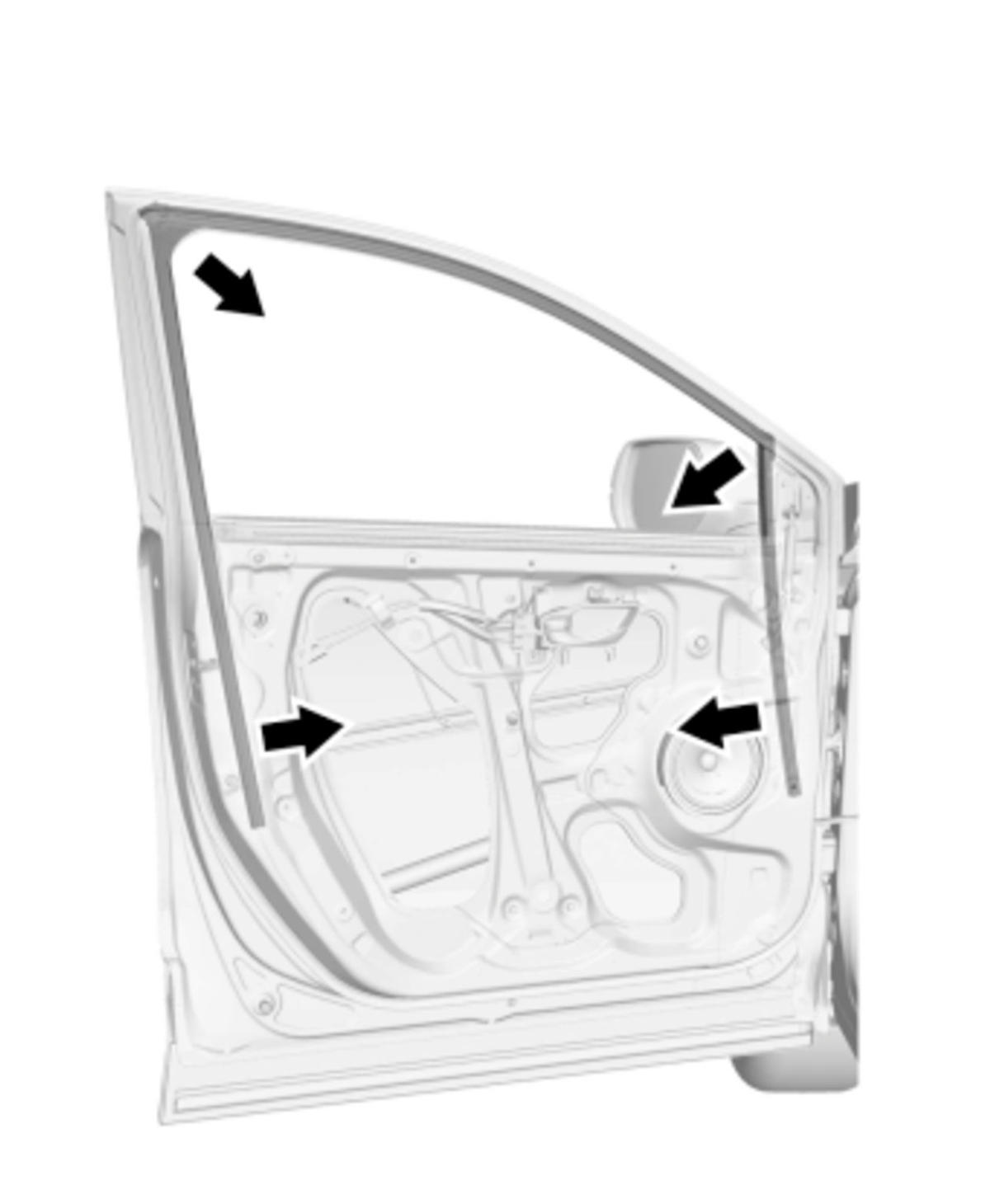

7. Front Door Glass Run Channel - Remove

   Courtesy of HONDA, U.S.A., INC.

8. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

9. Door Glass - Adjustment
10. Power Window Control Unit - Reset
