Removal and Installation

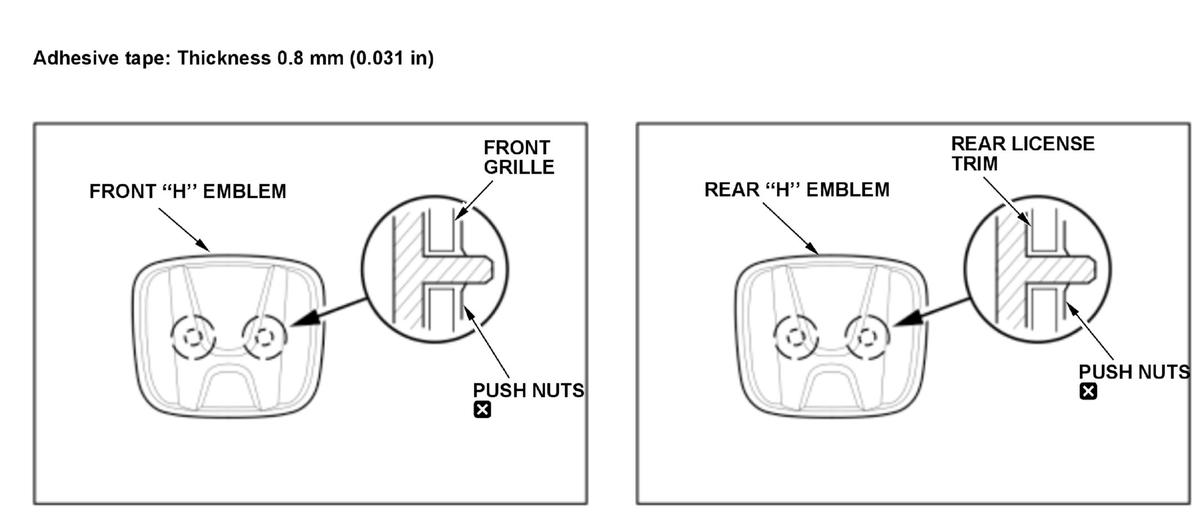

Front Grille - Remove
Tailgate Trim - Remove

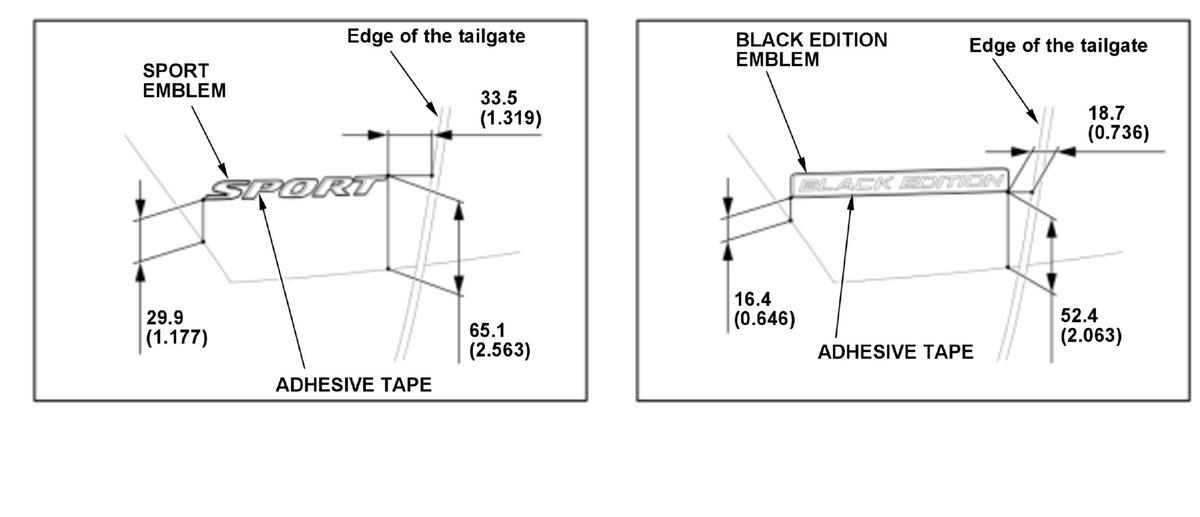

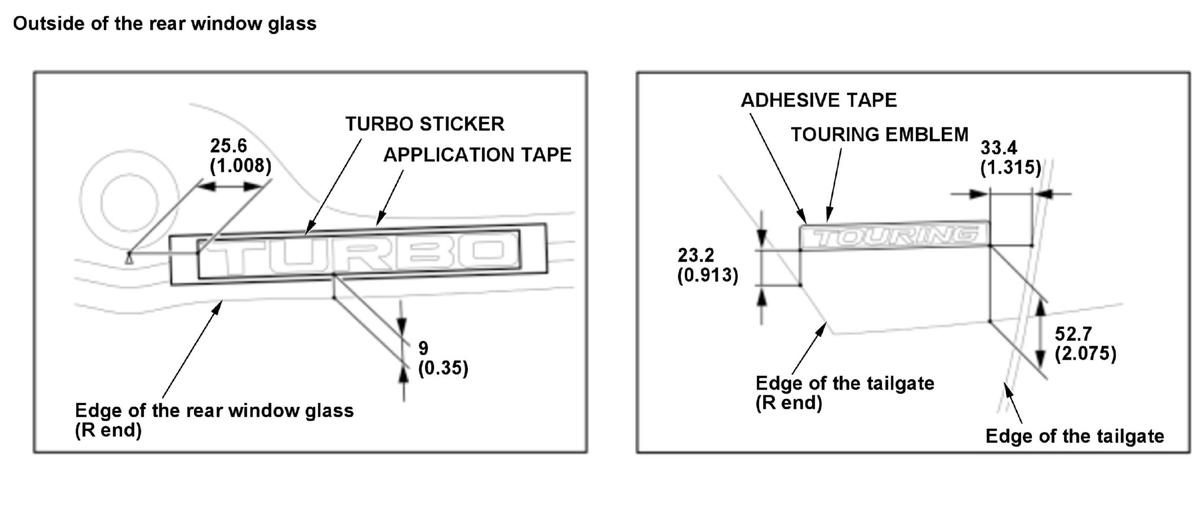

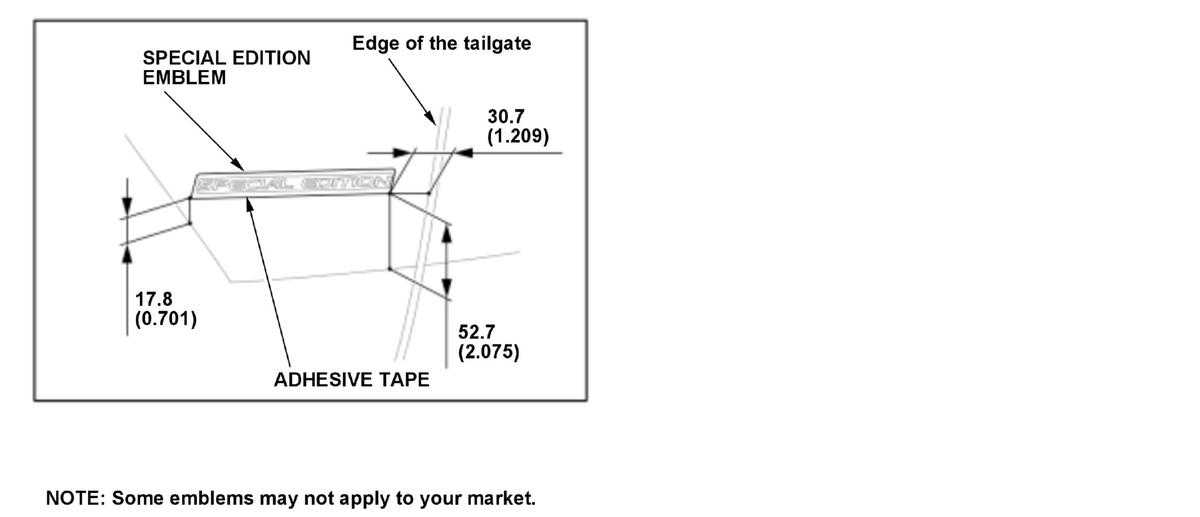

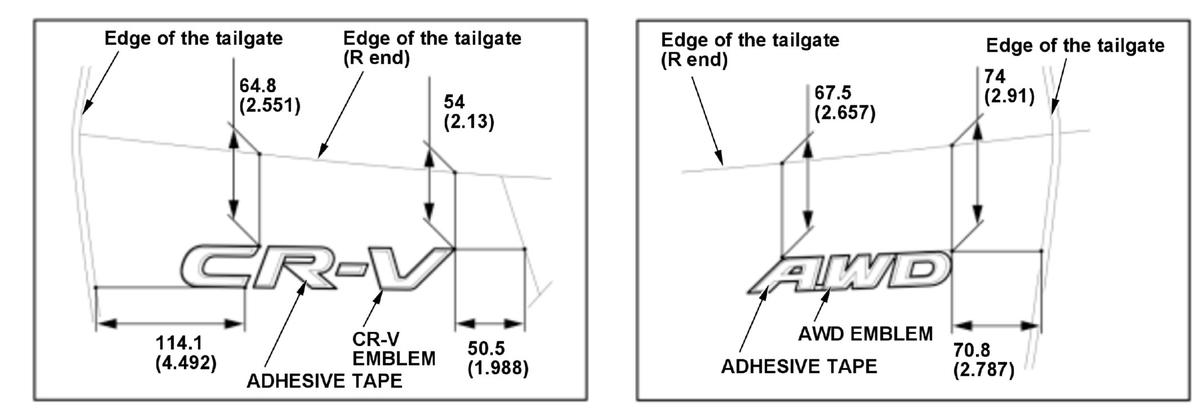

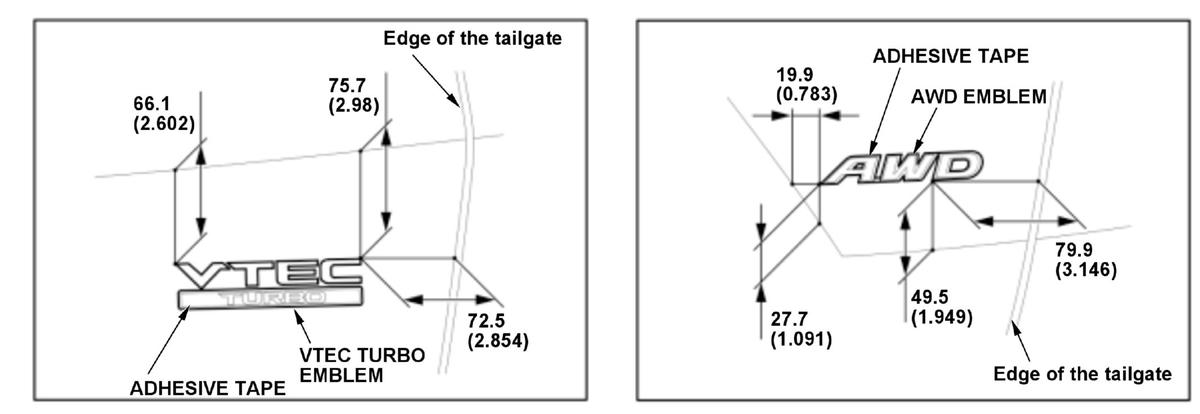

Rear Emblem/Sticker - Install
NOTE: The emblems vary according to the model and trim.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
NOTE: Clean the body surfaces where the emblems are applied with a shop towel dampened with isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.
