Panoramic Glass Roof Motor-Control Unit Input Test
NOTE:
- Make sure the fuses associated with the system is OK.
- If the panoramic glass roof works OK manually, but will not work in AUTO, or reverses frequently (obstacle detection), reset the panoramic glass roof motor-control unit before proceeding with the input test.
1. Turn the vehicle to the OFF (LOCK) mode.
2. Disconnect the panoramic glass roof motor-control unit 14P connector.

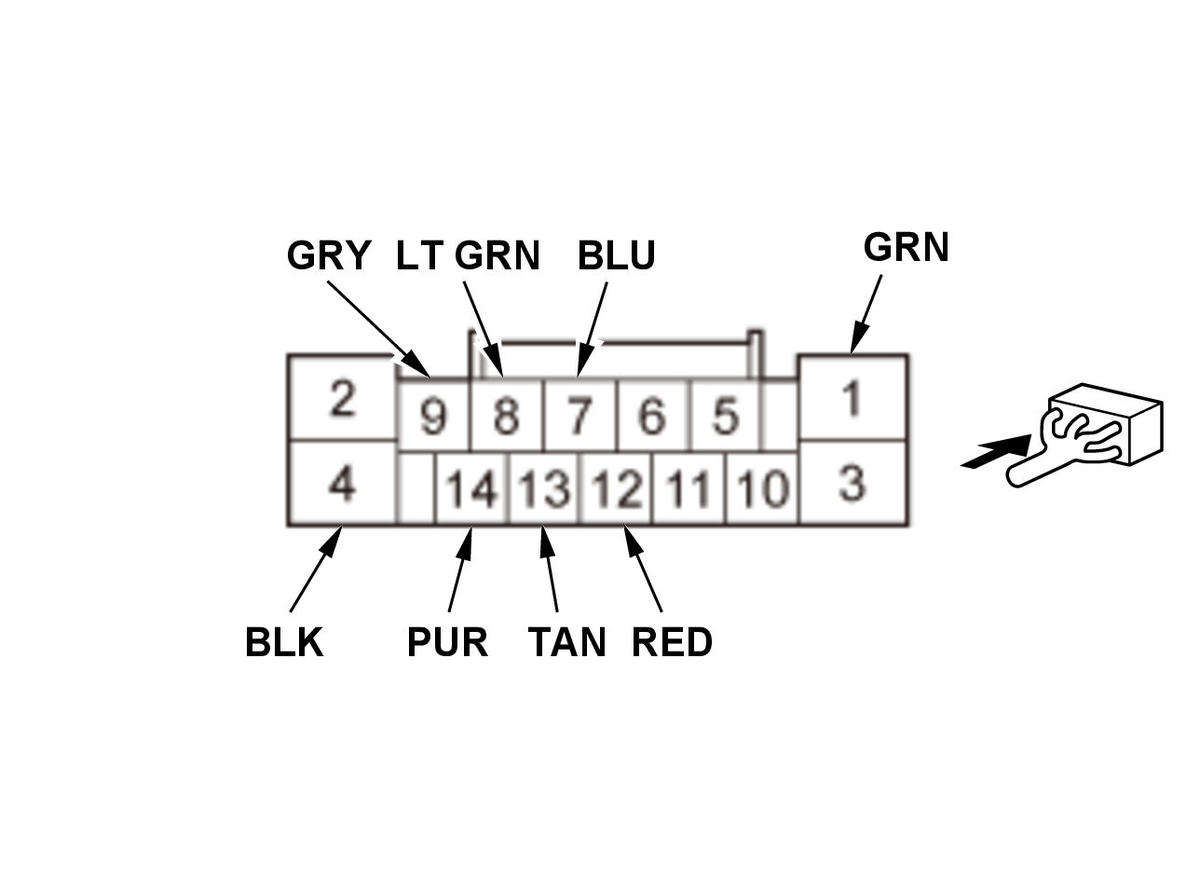

Panoramic Glass Roof Motor-Control Unit 14P Connector (female terminals)
Inspect the connector and socket terminals to be sure they are all making good contact:
- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals are OK, go to step 4.
With the connectors still disconnected, do the following input tests:
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.
| Cavity | Wire | Test condition | Test: Desired result | Possible cause if desired result is not obtained |
|---|---|---|---|---|
| 12 | RED | Disconnect these connectors:
|
Check for continuity between terminal No. 12 and power window master switch 37P connector terminal No. 36:There should be continuity | An open in the LIN(P/W) wire |
| Check for continuity between terminal No. 12 and front passenger's power window switch 37P connector terminal No. 34:There should be continuity. | An open in the LIN(P/W) wire | |||
| Check for continuity to ground: There should be no continuity. | A short to ground in the LIN (P/W) wire |
| Cavity | Wire | Test condition | Test: Desired result | Possible cause if desired result is not obtained |
|---|---|---|---|---|
| 13 | TAN | Disconnect power sunshade motor-control unit 14P connector | Check for continuity between terminal No. 13 and power sunshade motor-control unit 14P connector terminal No. 13: There should be continuity | An open in the SUNSHADE CONTL wire |
| Check for continuity to ground: There should be no continuity. | A short to ground in the SUNSHADE CONTL wire |
Reconnect the connector, and do the following input tests:
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, replace the panoramic glass roof motor-control unit .
| Cavity | Wire | Test condition | Test: Desired result | Possible cause if desired result is not obtained |
|---|---|---|---|---|
| 1 | GRN | Under all conditions | Measure the voltage to ground: There should be battery voltage. | An open or high resistance in the wire |
| 4 | BLK | In all power modes | Measure the voltage to ground: There should be less than 0.2 V. |
|
| 9 | GRY | Vehicle ON mode, panoramic glass roof switch in CLOSE position | Measure the voltage to ground: There should be less than 0.2 V. |
|
| Vehicle ON mode, panoramic glass roof switch released | Measure the voltage to ground: There should be battery voltage. |
|
||
| 8 | LT GRN | Vehicle ON mode, panoramic glass roof switch in TILT position | Measure the voltage to ground: There should be less than 0.2 V. |
|
| Vehicle ON mode, panoramic glass roof switch released | Measure the voltage to ground: There should be battery voltage. |
|
||
| 7 | BLU | Vehicle ON mode, panoramic glass roof switch in OPEN position | Measure the voltage to ground: There should be less than 0.2 V. |
|
| Vehicle ON mode, panoramic glass roof switch released | Measure the voltage to ground: There should be battery voltage. |
|
| Cavity | Wire | Test condition | Test: Desired result | Possible cause if desired result is not obtained |
|---|---|---|---|---|
| 14 | PUR | Vehicle ON mode, panoramic glass roof switch in AUTO (OPEN) or AUTO (CLOSE) position | Measure the voltage to ground: There should be less than 0.2 V. |
|
| Vehicle ON mode, panoramic glass roof switch released | Measure the voltage to ground: There should be battery voltage. |
|
