Panoramic Glass Roof Motor-Control Unit Connector for Inputs and Outputs

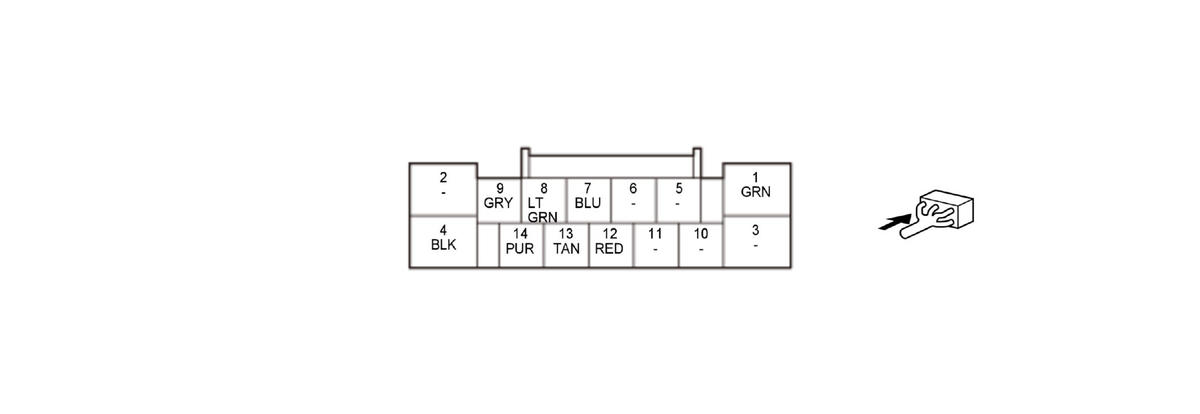

Panoramic Glass Roof Motor-Control Unit 14P Connector (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B SUNROOF | +B power source | About battery voltage at all times |
| 2 | --- | Not used | --- |
| 3 | --- | Not used | --- |
| 4 | GND | Panoramic glass roof motor-control unit ground | Less than 0.2 V at all times |
| 5 | --- | Not used | --- |
| 6 | --- | Not used | --- |
| 7 | S/R SW OPEN | Detects panoramic glass roof switch OPEN signal | With panoramic glass roof switch OPEN: less than 0.2 V With panoramic glass roof switch any other than OPEN and panoramic glass roof motor-control unit is wakeup mode: about battery voltage |
| 8 | S/R SW TILT | Detects panoramic glass roof switch TILT signal | With panoramic glass roof switch TILT: less than 0.2 V With panoramic glass roof switch any other than TILT and panoramic glass roof motor-control unit is wakeup mode: about battery voltage |
| 9 | S/R SW CLOSE | Detects panoramic glass roof switch CLOSE signal | With panoramic glass roof switch CLOSE: less than 0.2 V With panoramic glass roof switch any other than CLOSE and panoramic glass roof motor-control unit is wakeup mode: about battery voltage |
| 10 | --- | Not used | --- |
| 11 | --- | Not used | --- |
| 12 | LIN(P/W) | Communication line | --- |
| 13 | SUNSHADE CONTL | Communication line | --- |
| 14 | S/R SW AUTO | Detects panoramic glass roof switch AUTO signal | With panoramic glass roof switch AUTO: less than 0.2 V With panoramic glass roof switch any other than AUTO and panoramic glass roof motor-control unit is wakeup mode: about battery voltage |
