Panoramic Glass Roof Seal Removal and Installation: Installation

Front

1. Panoramic Glass Front Glass Roof Seal - Install

   Courtesy of HONDA, U.S.A., INC.

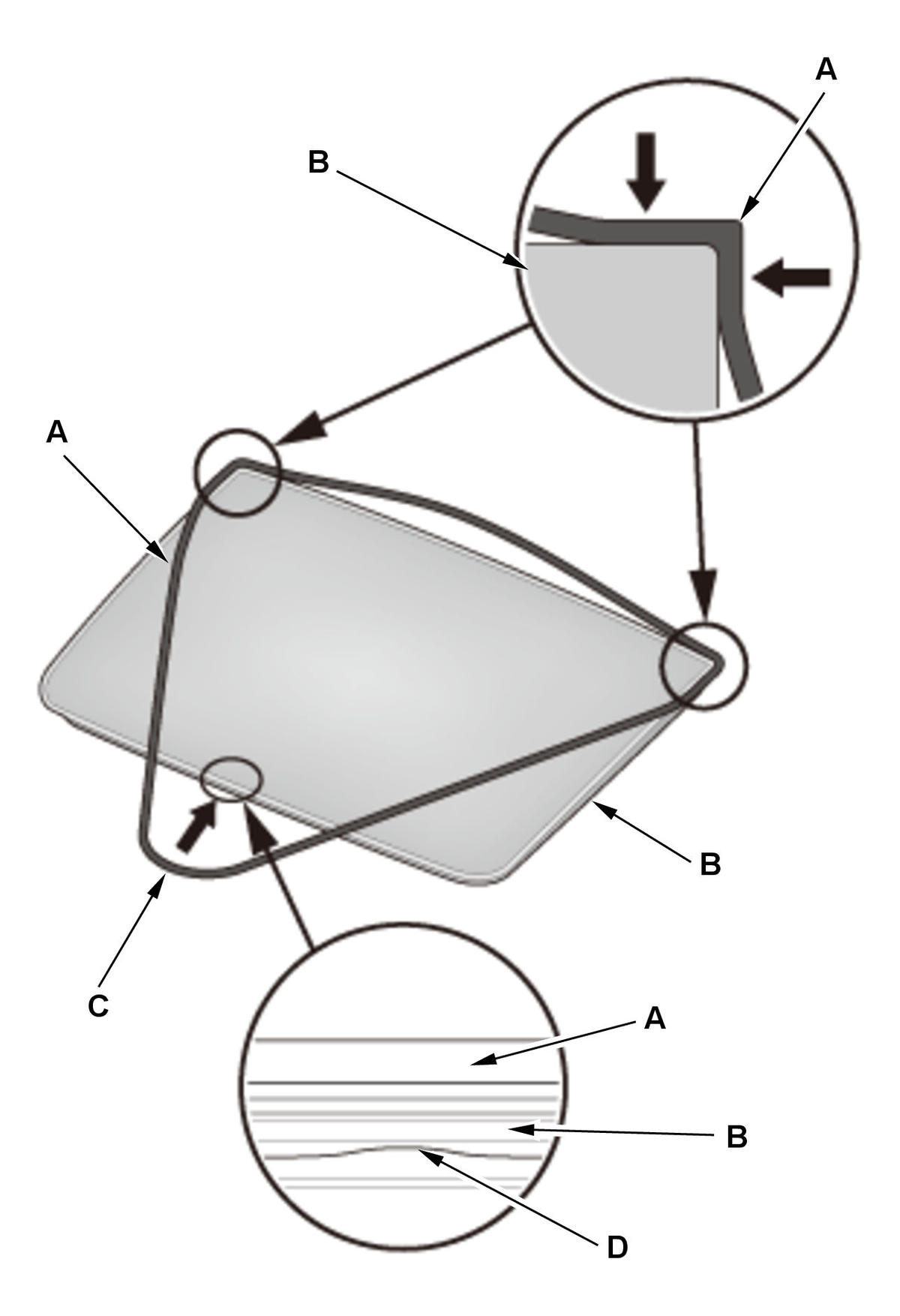

   1. Press the two ends of the font glass roof seal (A) rear corners of the front glass (B). 2. Align the midpoint (C) of the font glass roof seal to the center (D) of the front side front glass, and then install it. NOTE: Be careful not to stretch the front glass roof seal.

   Courtesy of HONDA, U.S.A., INC.

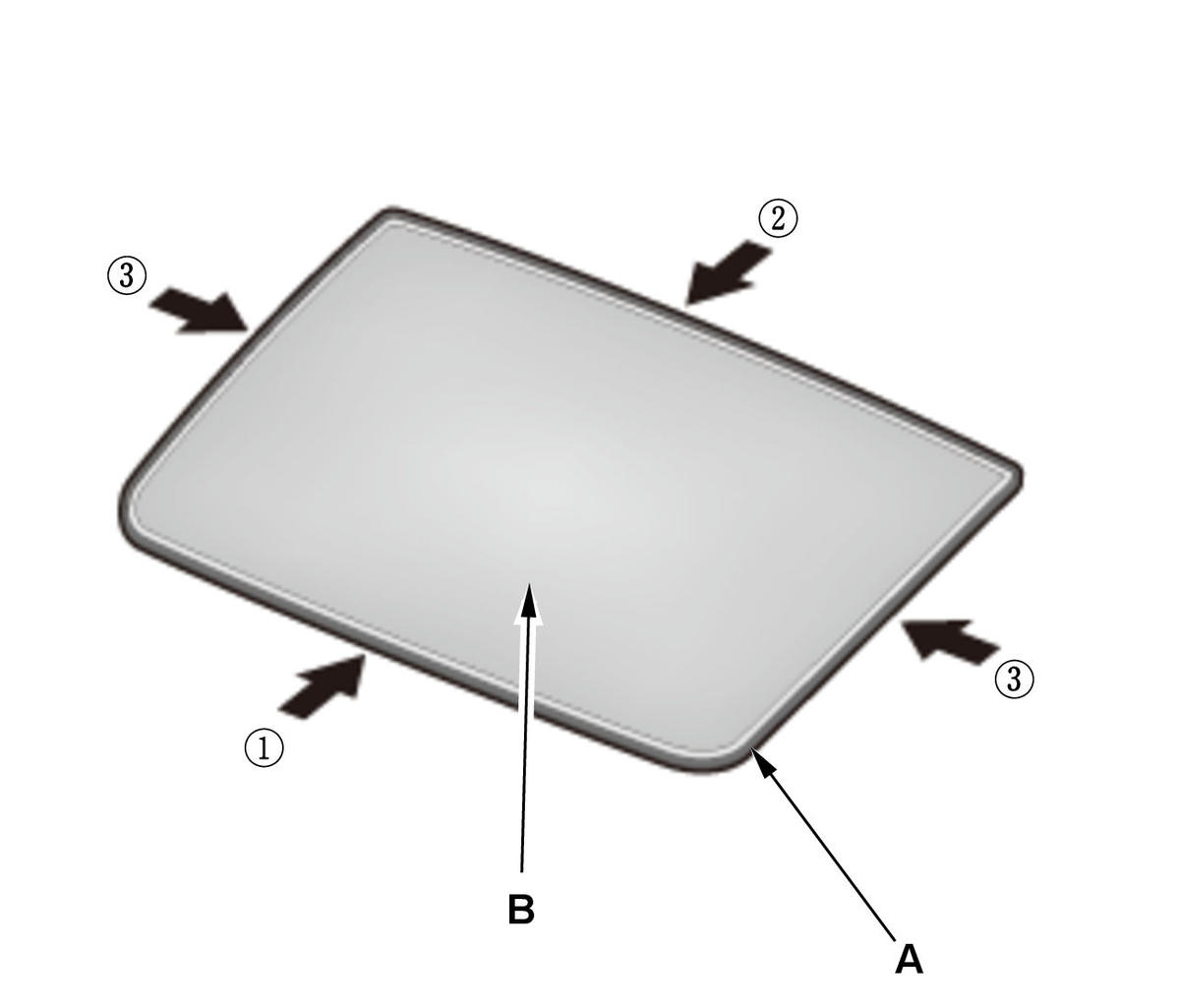

   3. Install the font glass roof seal (A) to the front glass (B) as shown. NOTE: After installation, make sure that the glass roof seal is not twisted or have any gaps.

2. Panoramic Glass Front Glass - Install
3. Panoramic Glass Glass Roof Position - Check

   Rear

4. Panoramic Glass Rear Glass Roof Seal - Install

   Courtesy of HONDA, U.S.A., INC.

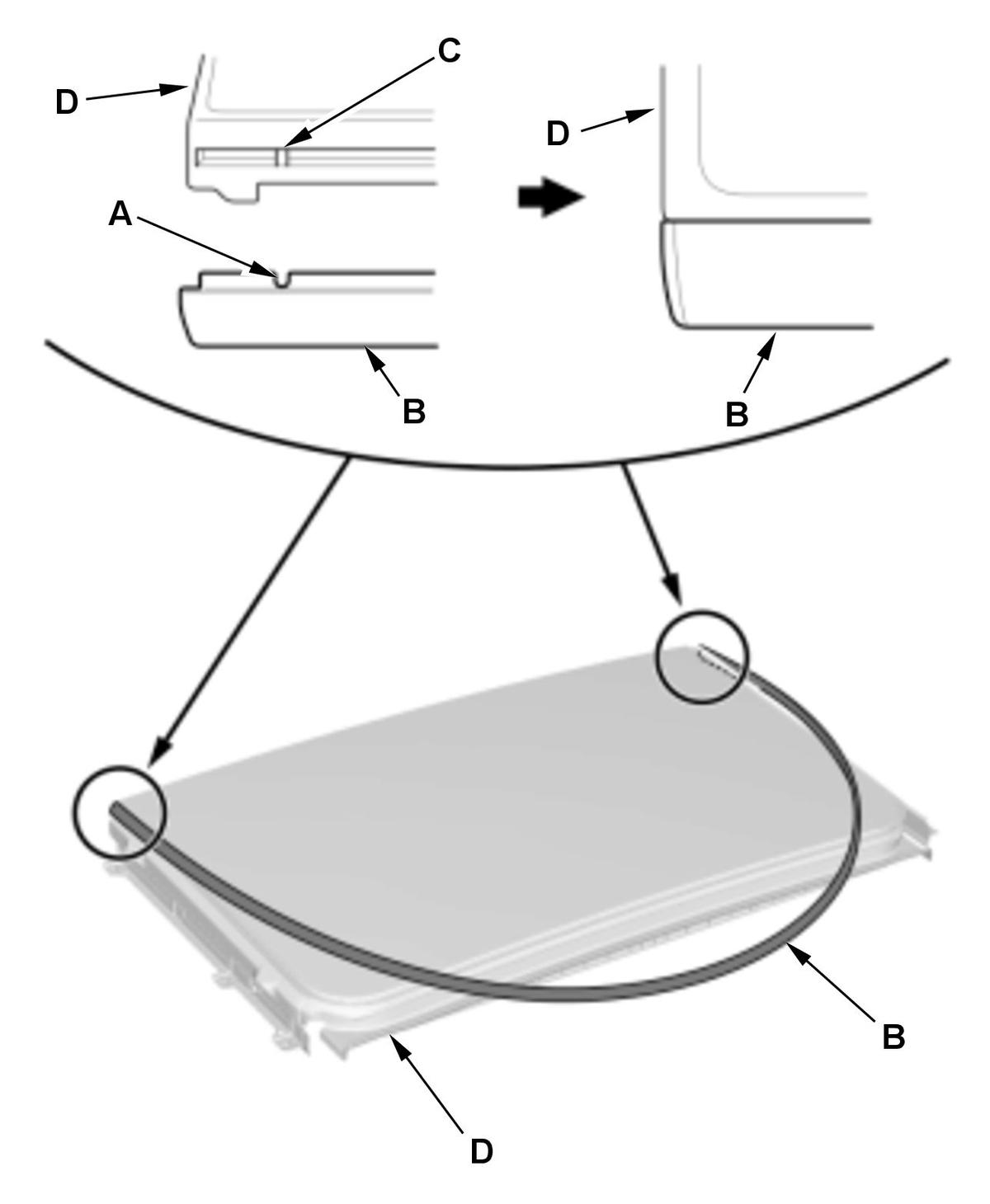

   1. Align the notch (A) of the rear glass roof seal (B) to the projection (C) of the rear glass (D), and then press the rear glass roof seal onto both sides of the front of the rear glass. NOTE: Be careful not to stretch the rear glass roof seal. Check the rear glass roof seal lines up with the edges of the rear glass as shown.

   Courtesy of HONDA, U.S.A., INC.

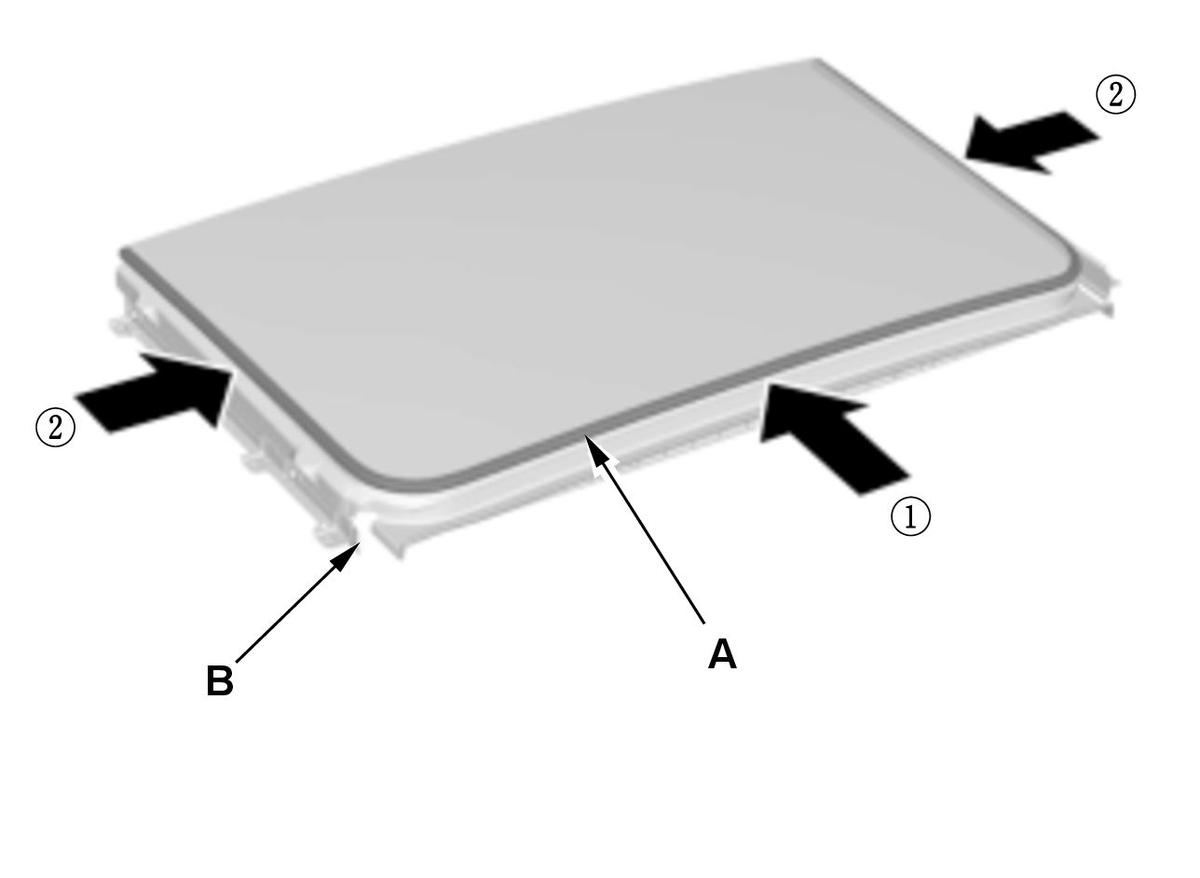

   2. Install the rear glass roof seal (A) to the rear glass (B) as shown. NOTE: After installation, make sure that the rear glass roof seal is not twisted or have any gaps.

   Courtesy of HONDA, U.S.A., INC.

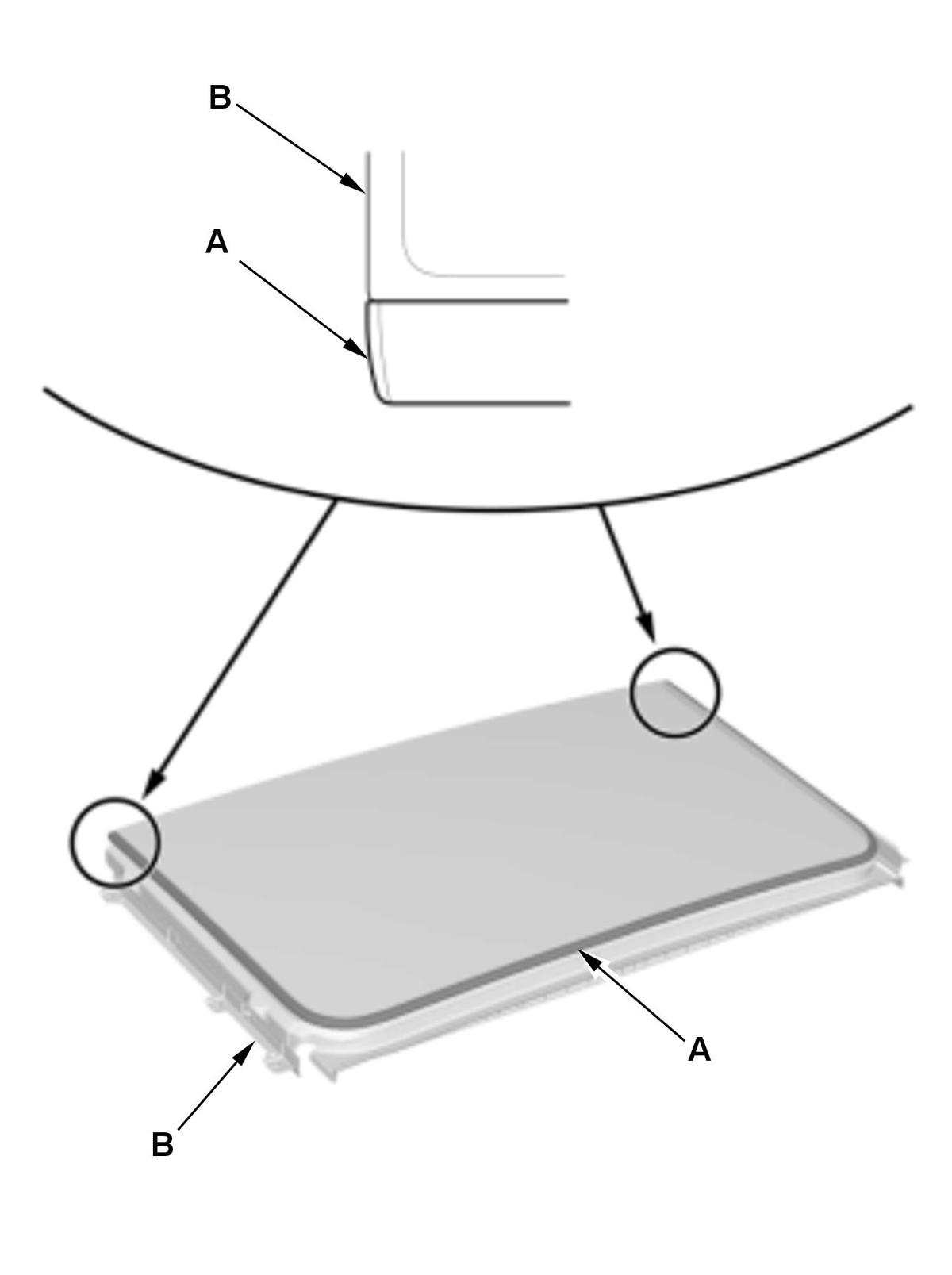

   3. Make sure the rear glass roof seal (A) line up with the edges of the rear glass (B) as shown.

5. Panoramic Glass Rear Glass - Install
6. Panoramic Glass Glass Roof Position - Check
