Removal and Installation

NOTE: How to read the torque specifications

1. Moonroof Glass - Remove

   Courtesy of HONDA, U.S.A., INC.

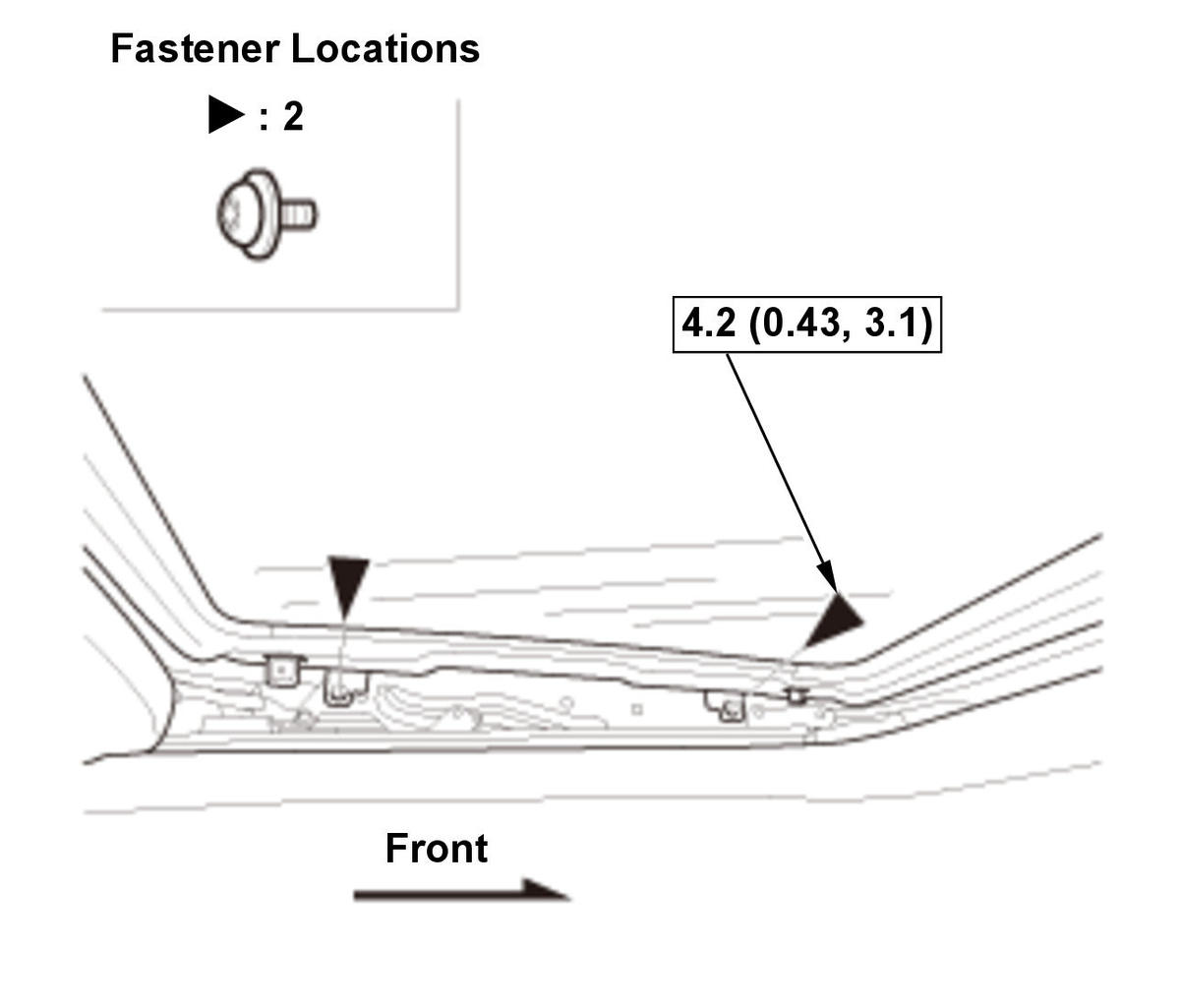

   1. Remove the bolts. 2. Repeat on the opposite side.

   Courtesy of HONDA, U.S.A., INC.

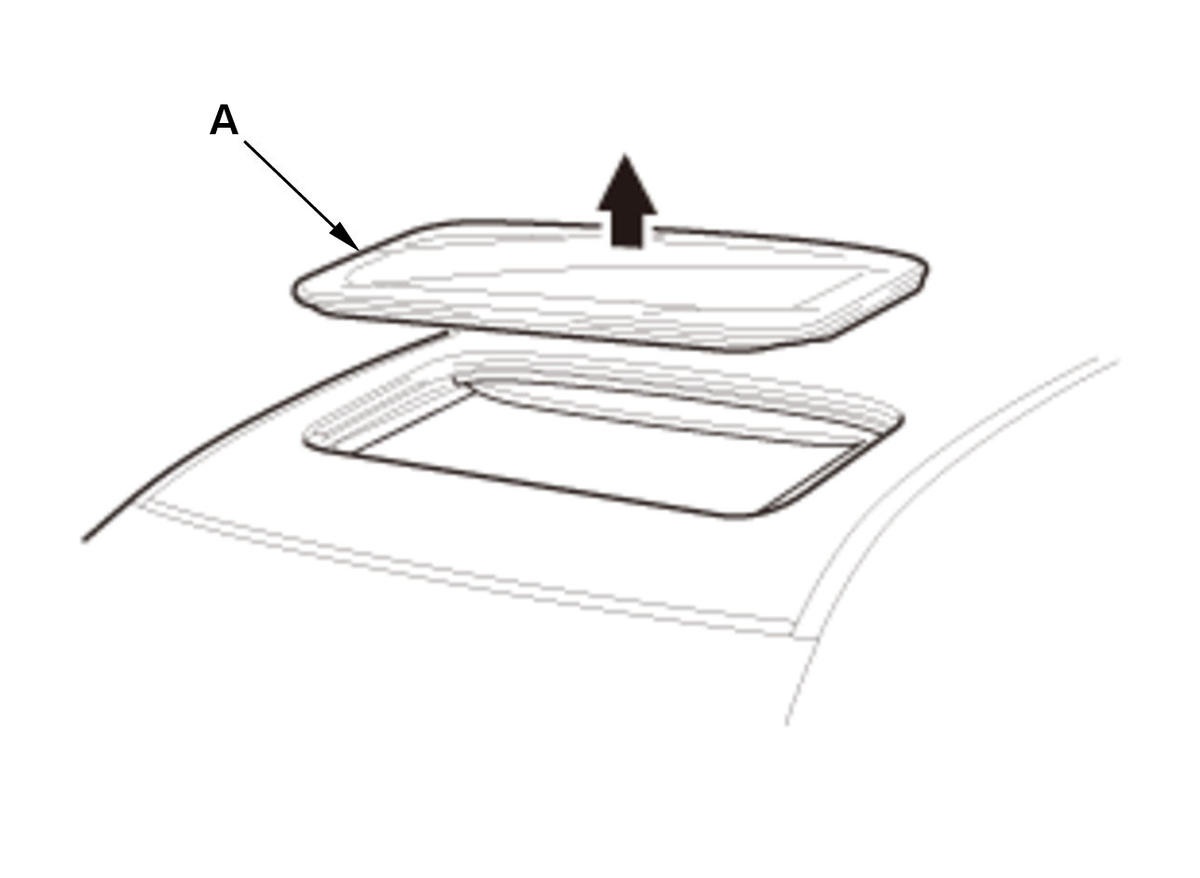

   3. Remove the glass (A) by lifting it up.

2. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

3. Moonroof Glass Position - Adjust
