Seats Component Location Index (Power Seat)

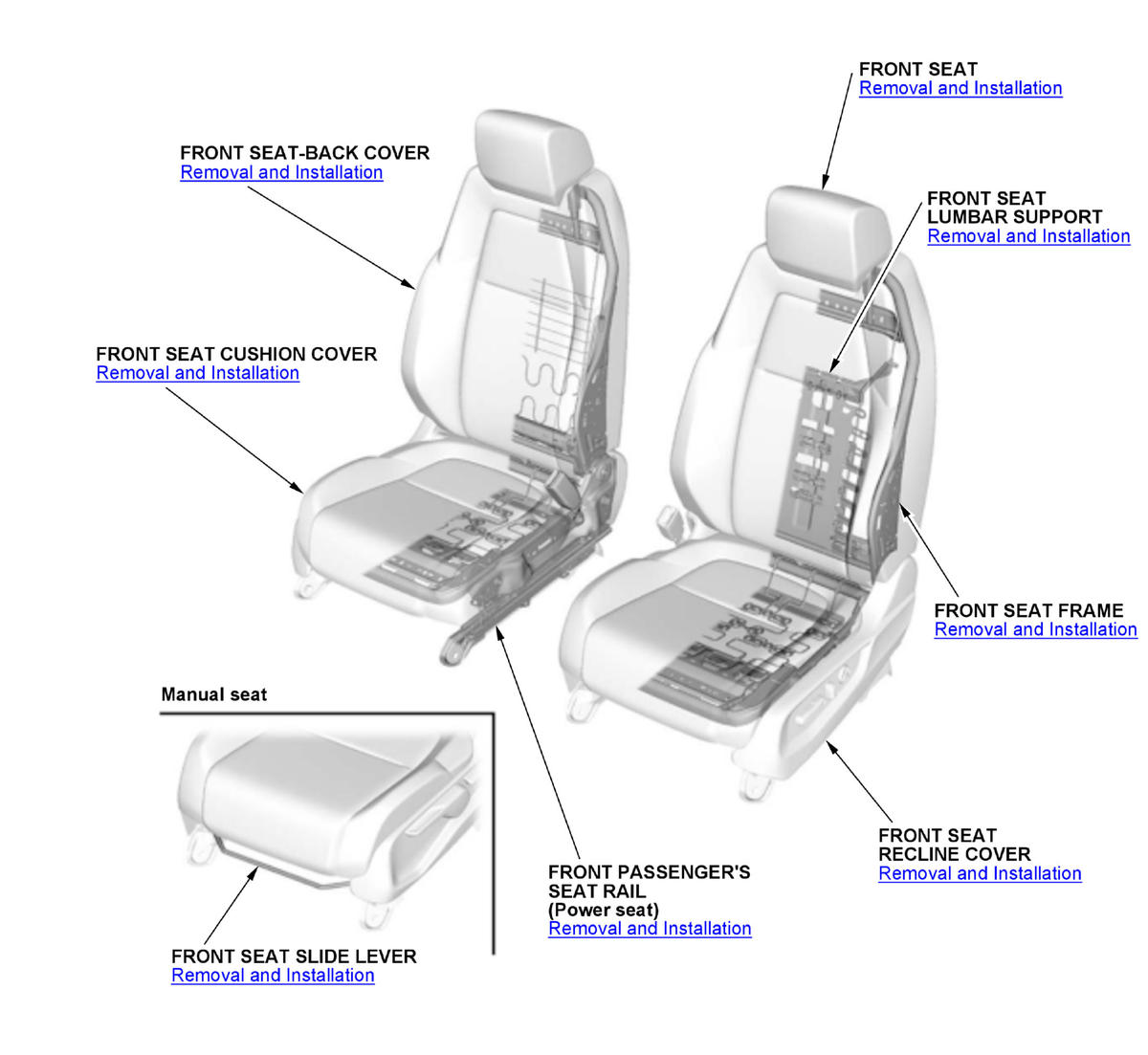

Front seat

GHH430458

Courtesy of HONDA, U.S.A., INC.

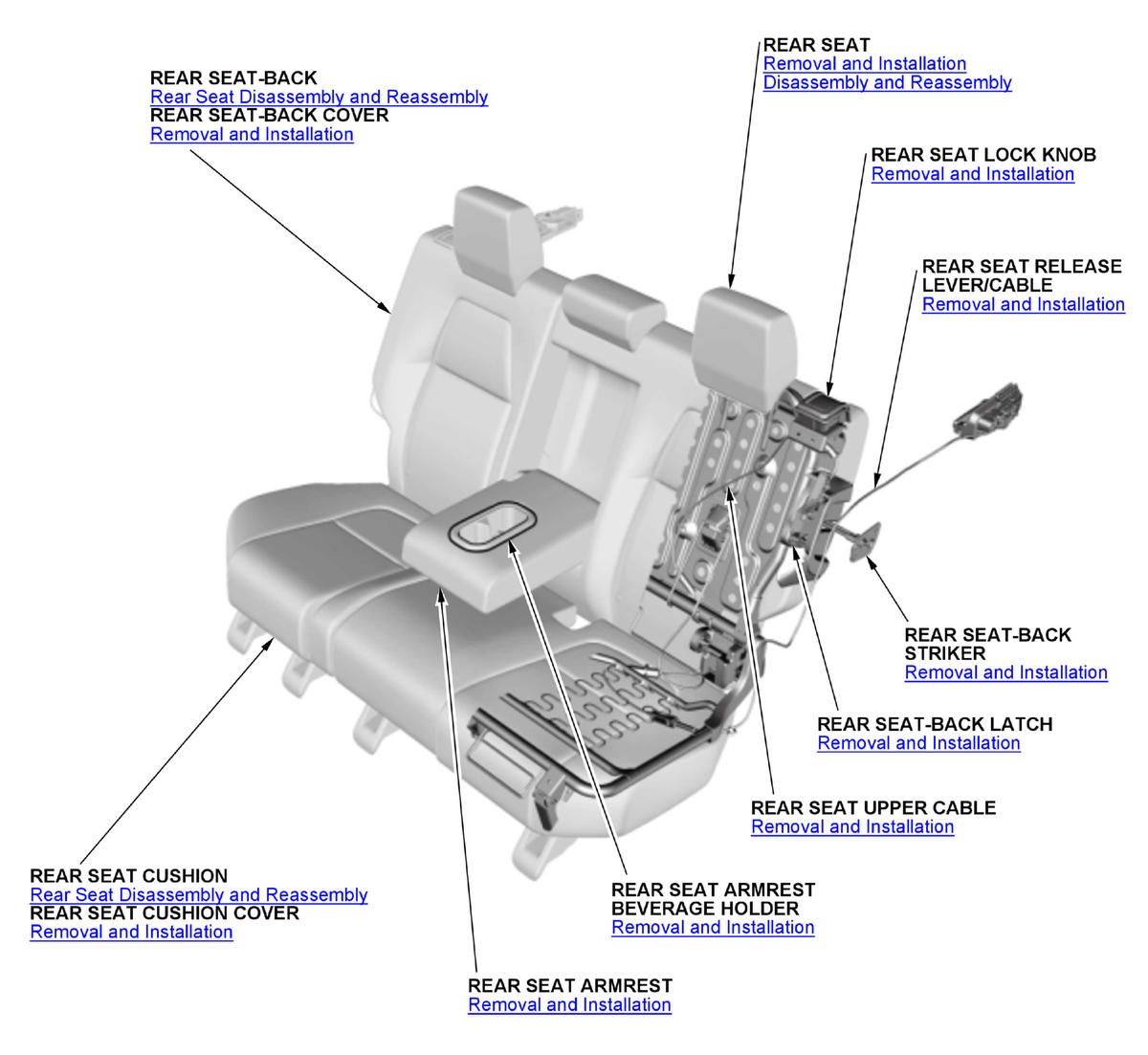

Rear seat

GHH430459

Courtesy of HONDA, U.S.A., INC.
