Seat Heaters Component Location Index

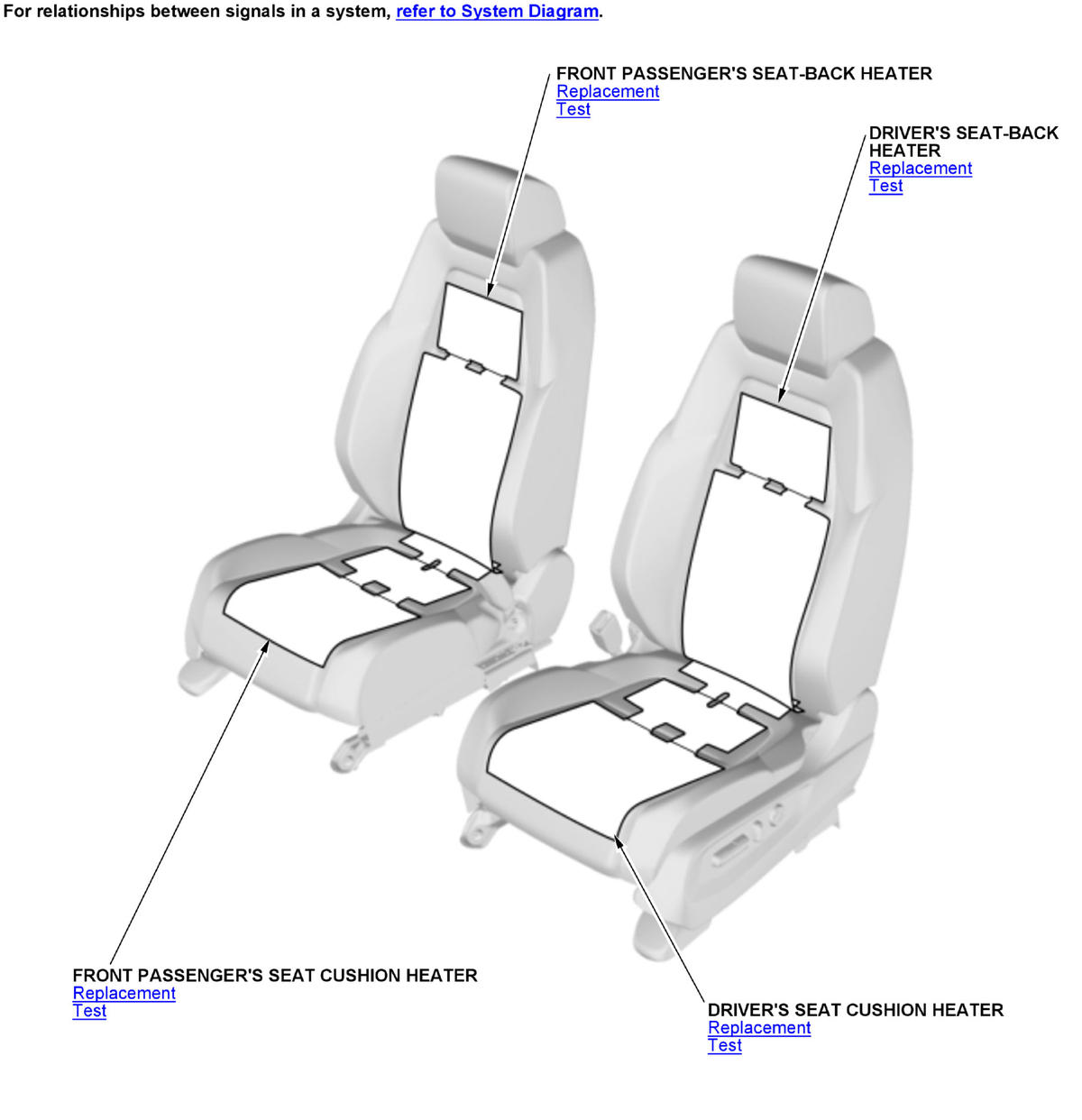

GHH430453

Courtesy of HONDA, U.S.A., INC.

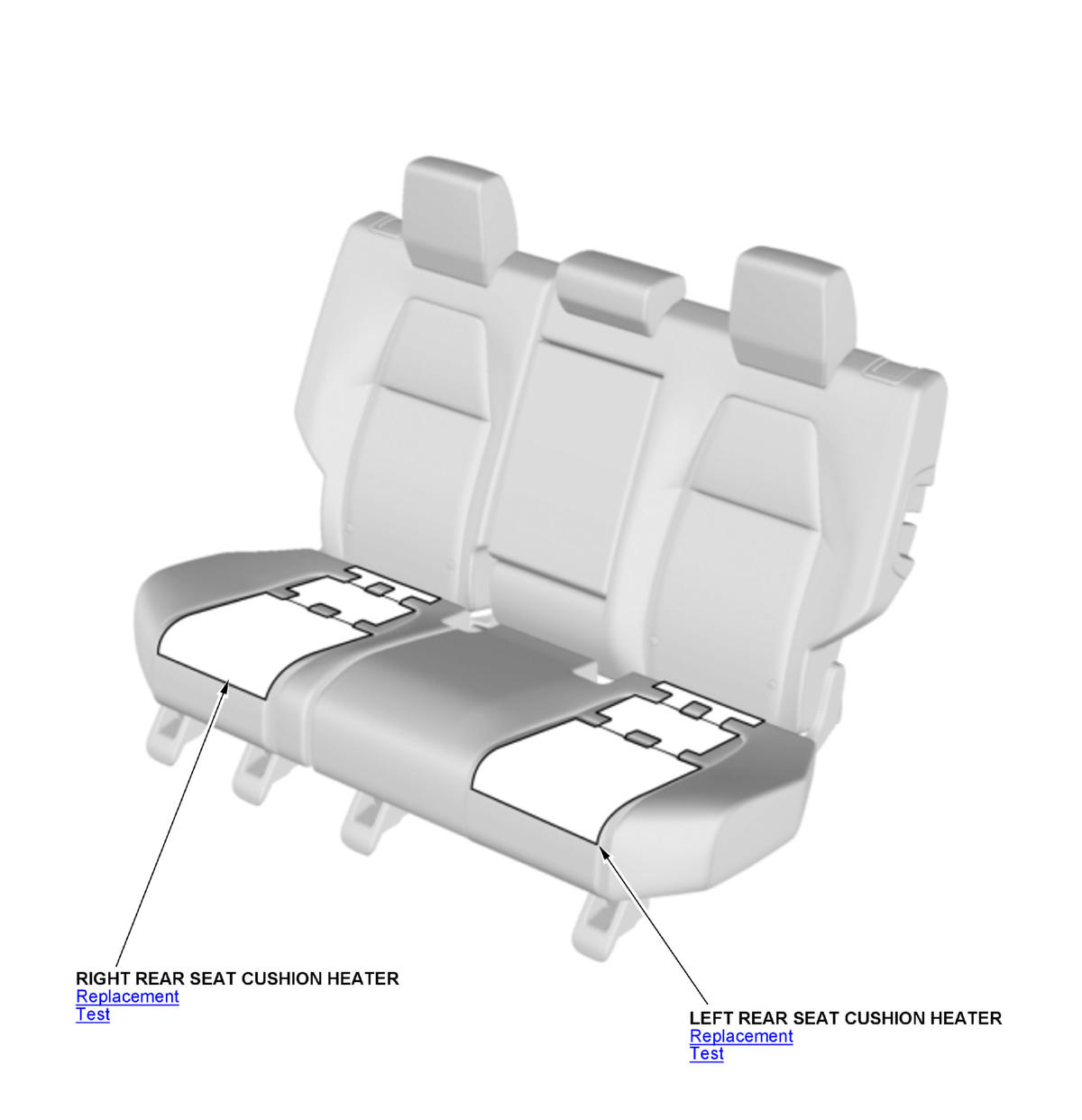

GHH430454

Courtesy of HONDA, U.S.A., INC.

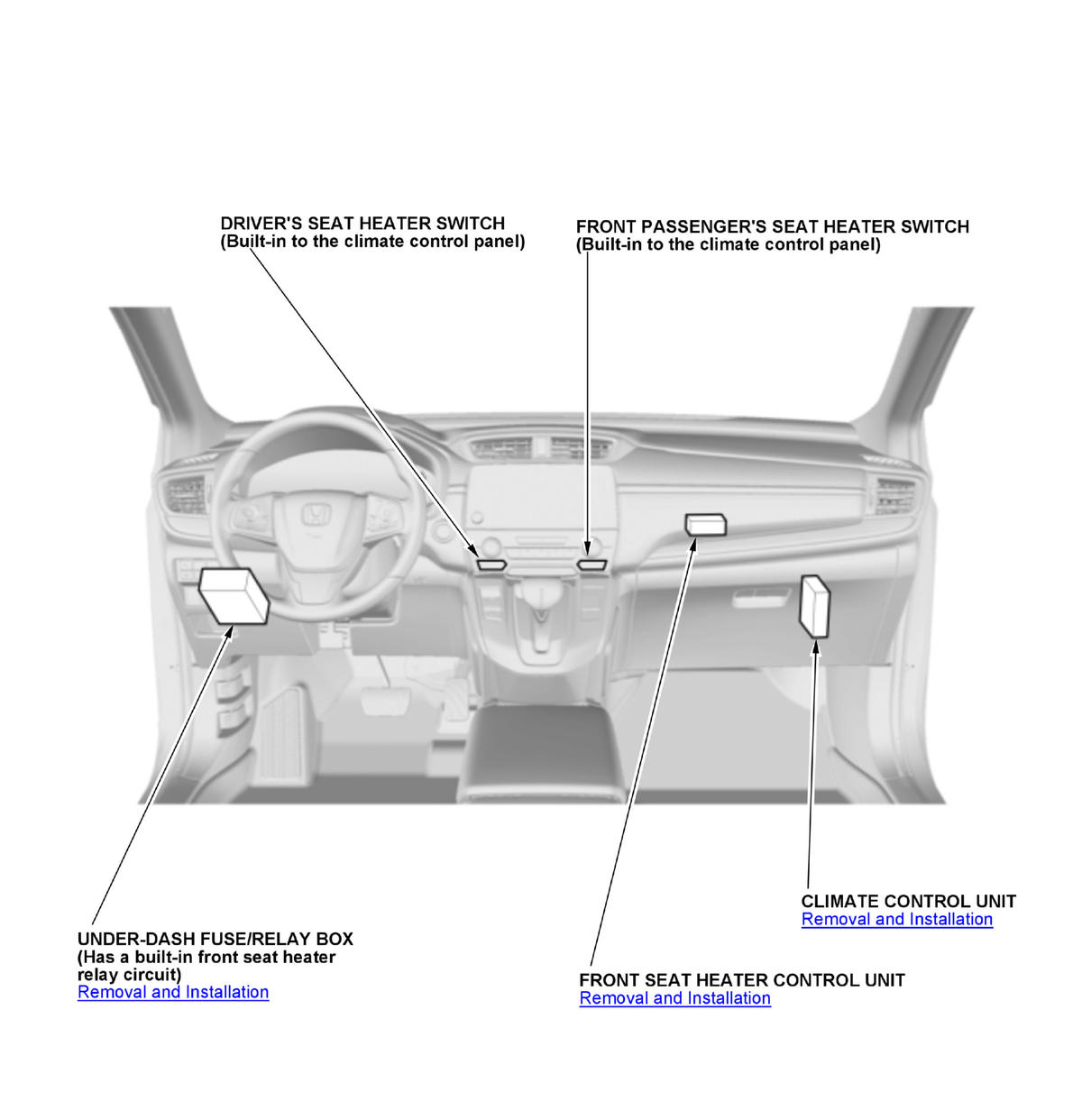

GHH430455

Courtesy of HONDA, U.S.A., INC.

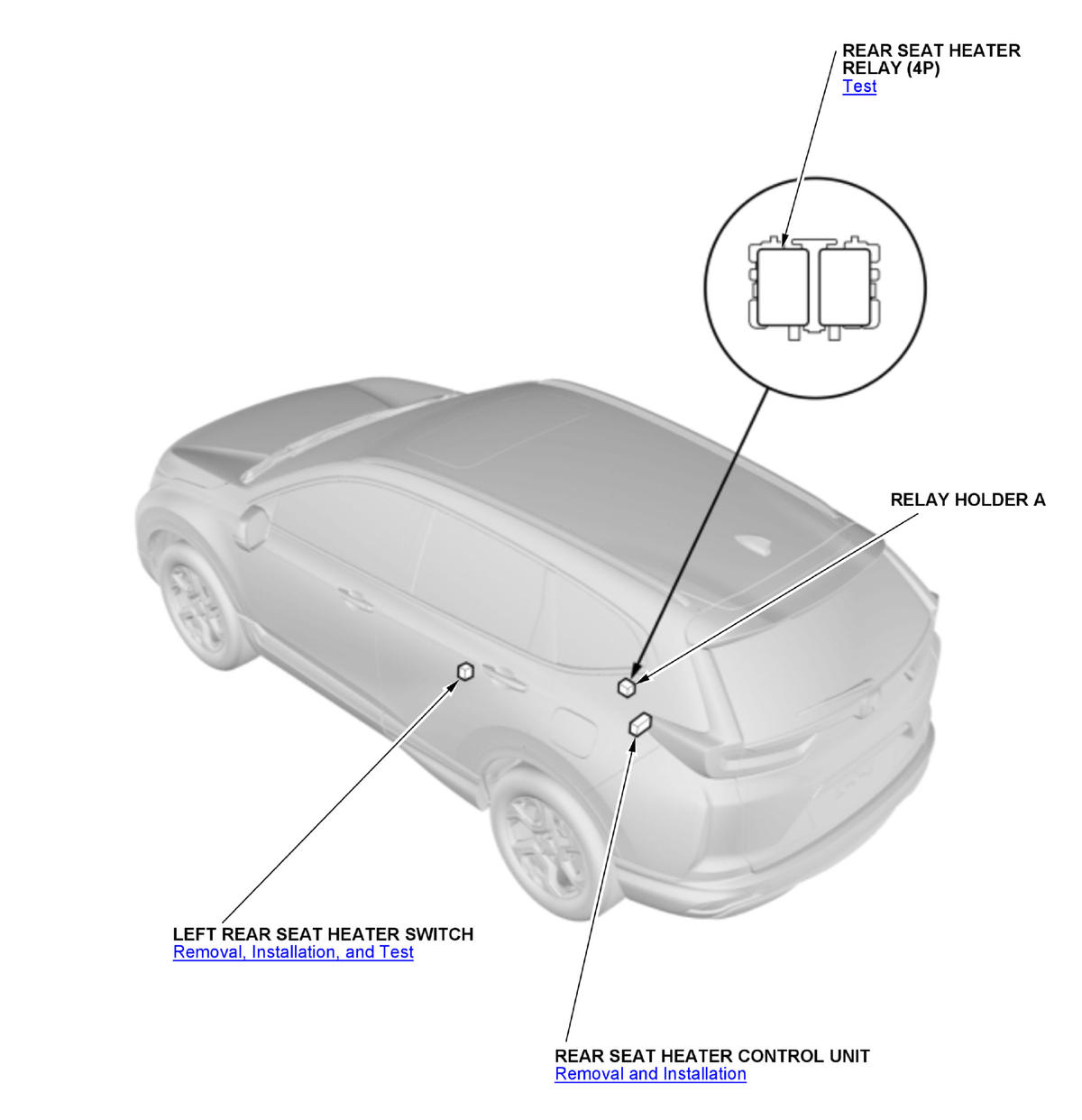

GHH430456

Courtesy of HONDA, U.S.A., INC.

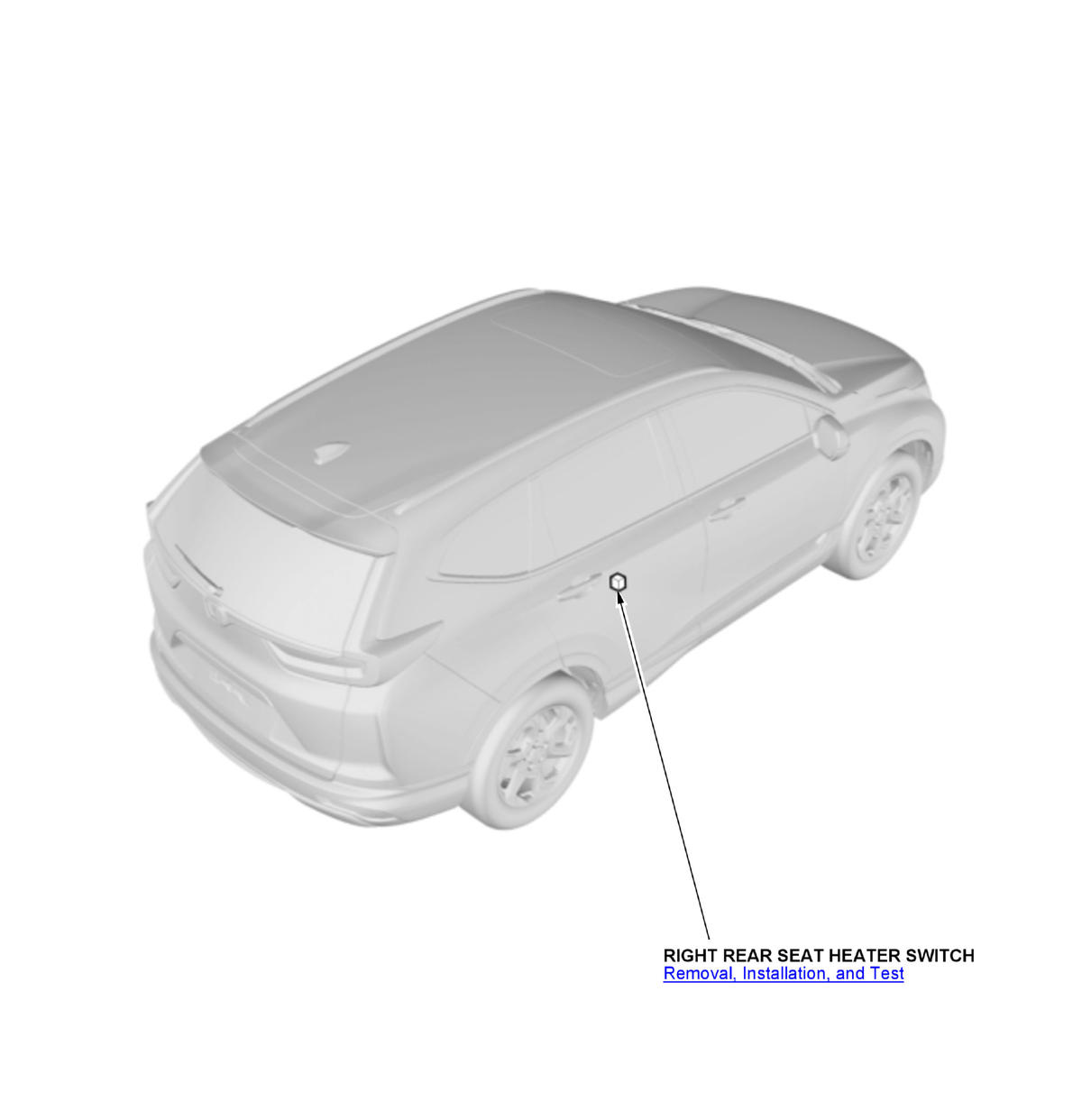

GHH430457

Courtesy of HONDA, U.S.A., INC.
