Seat Heaters Circuit Diagram

Front Seat Heater

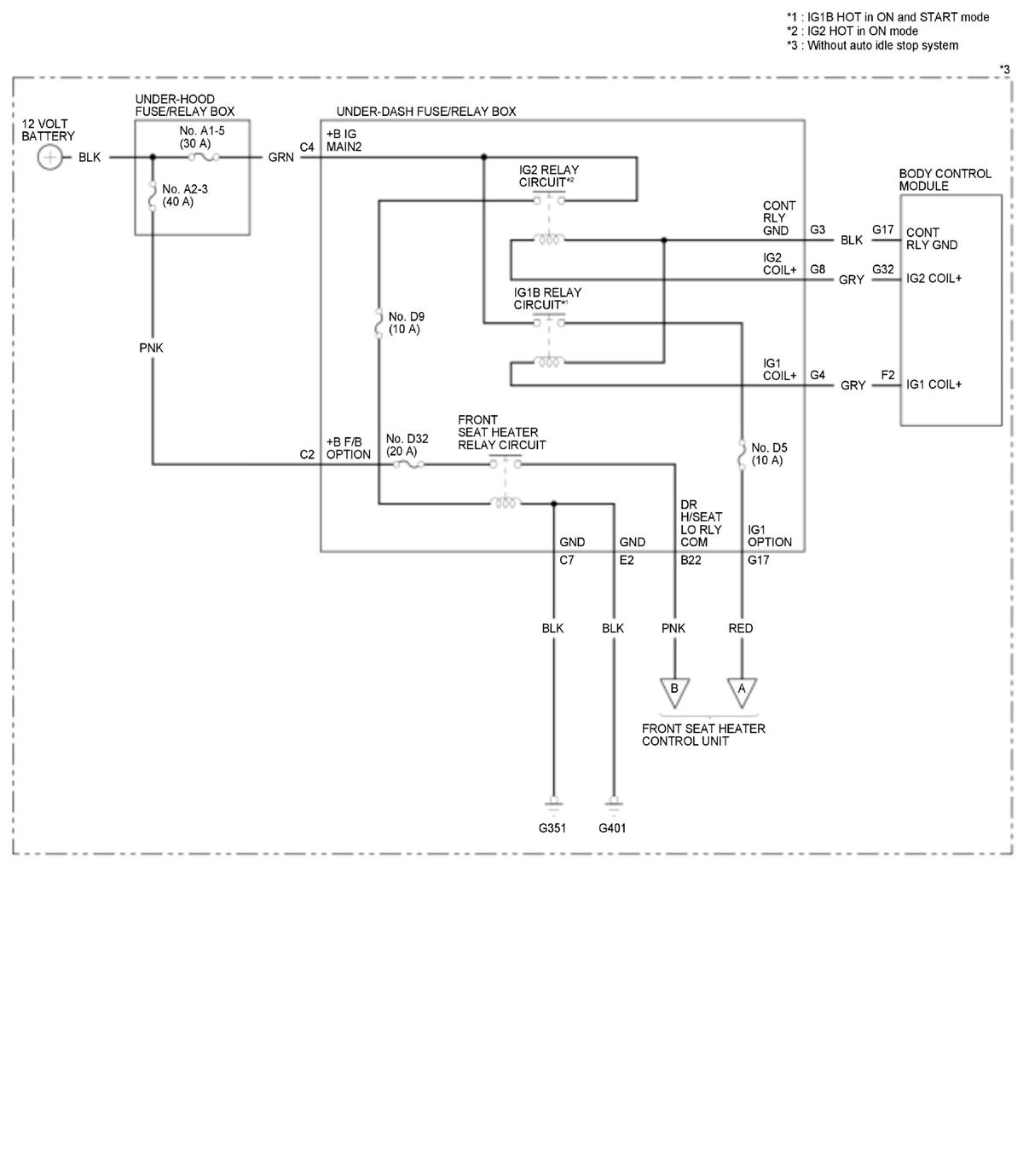

GHH430442Courtesy of HONDA, U.S.A., INC.

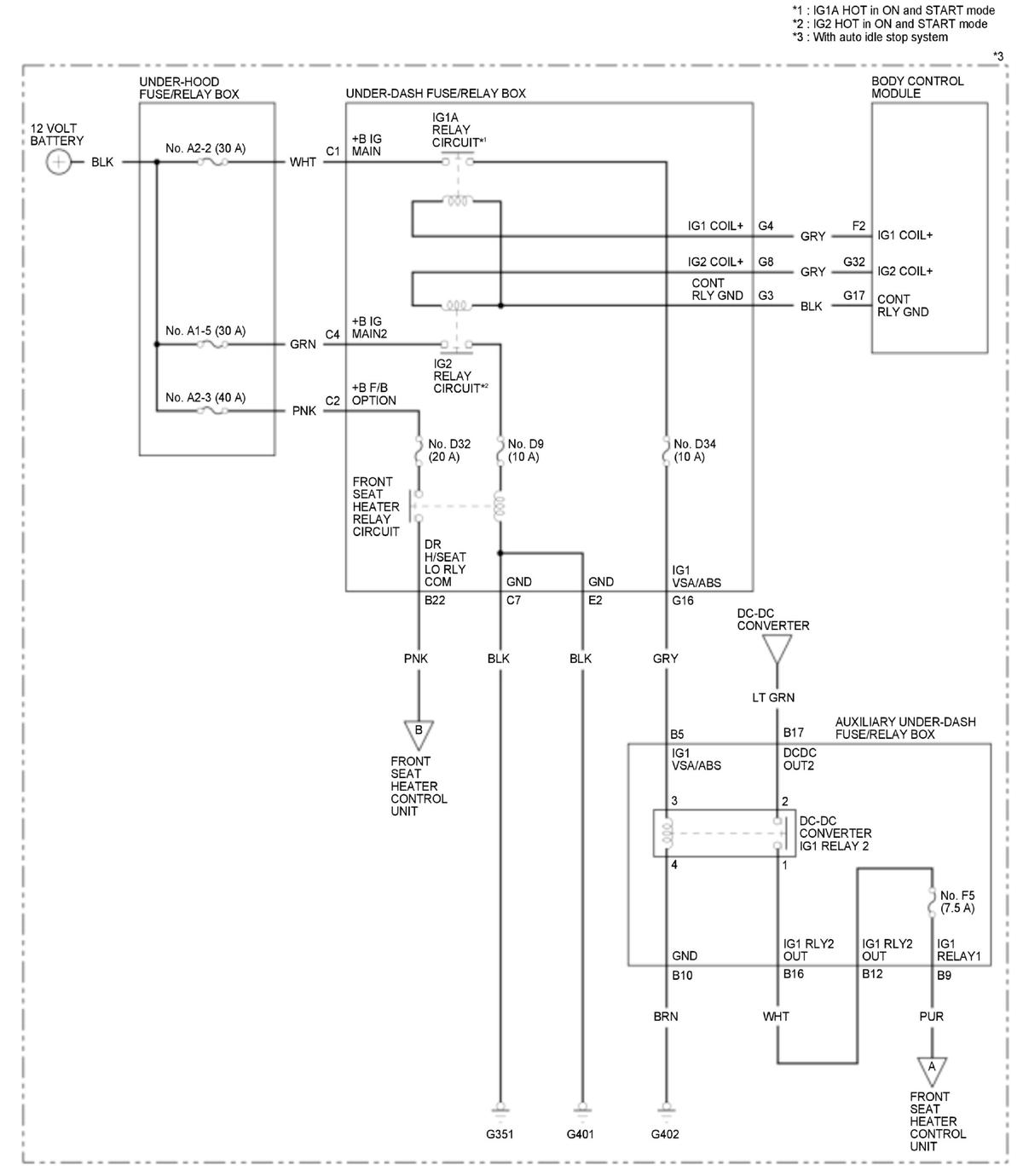

GHH430443Courtesy of HONDA, U.S.A., INC.

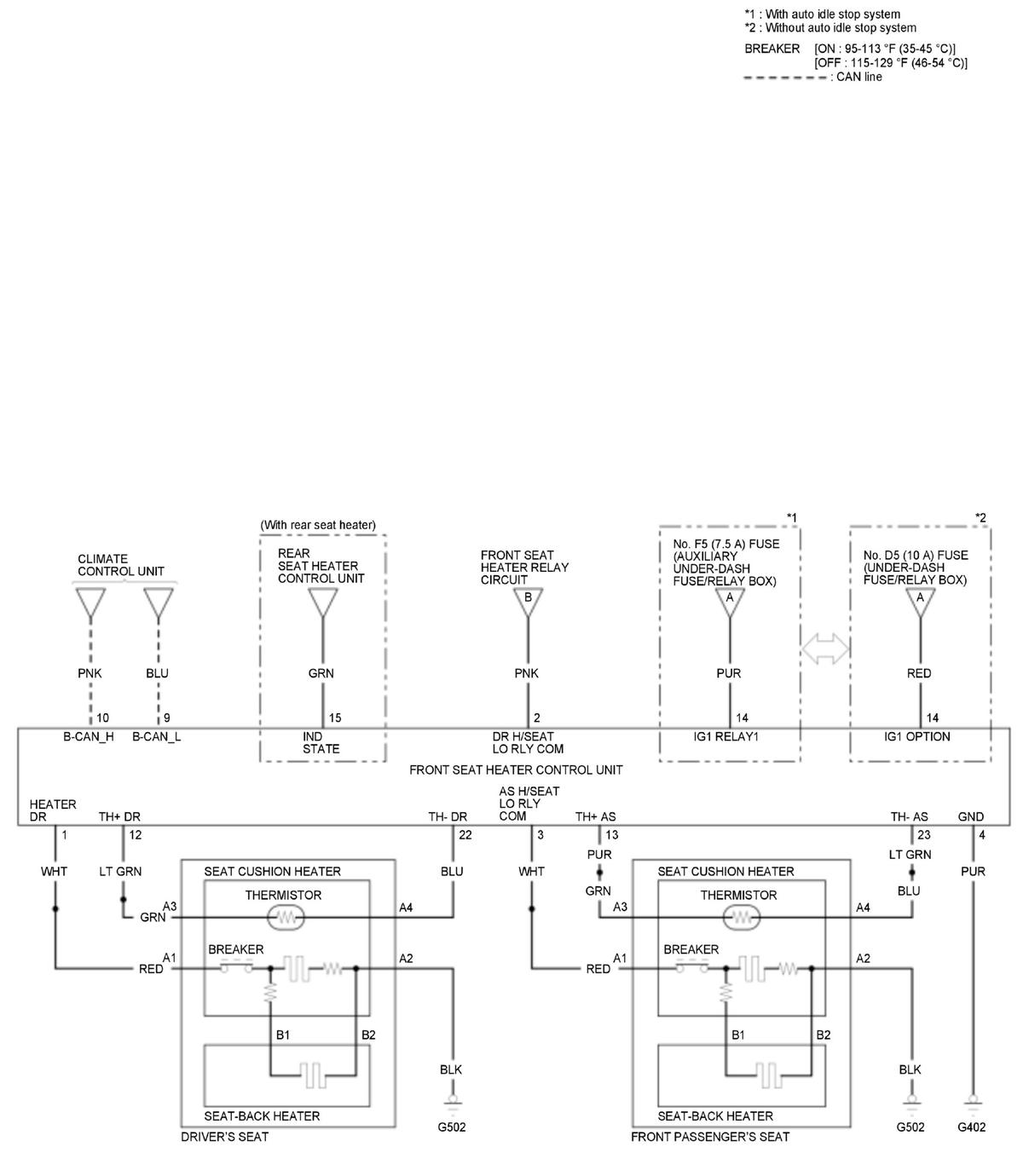

GHH430444Courtesy of HONDA, U.S.A., INC.

Rear Seat Heater

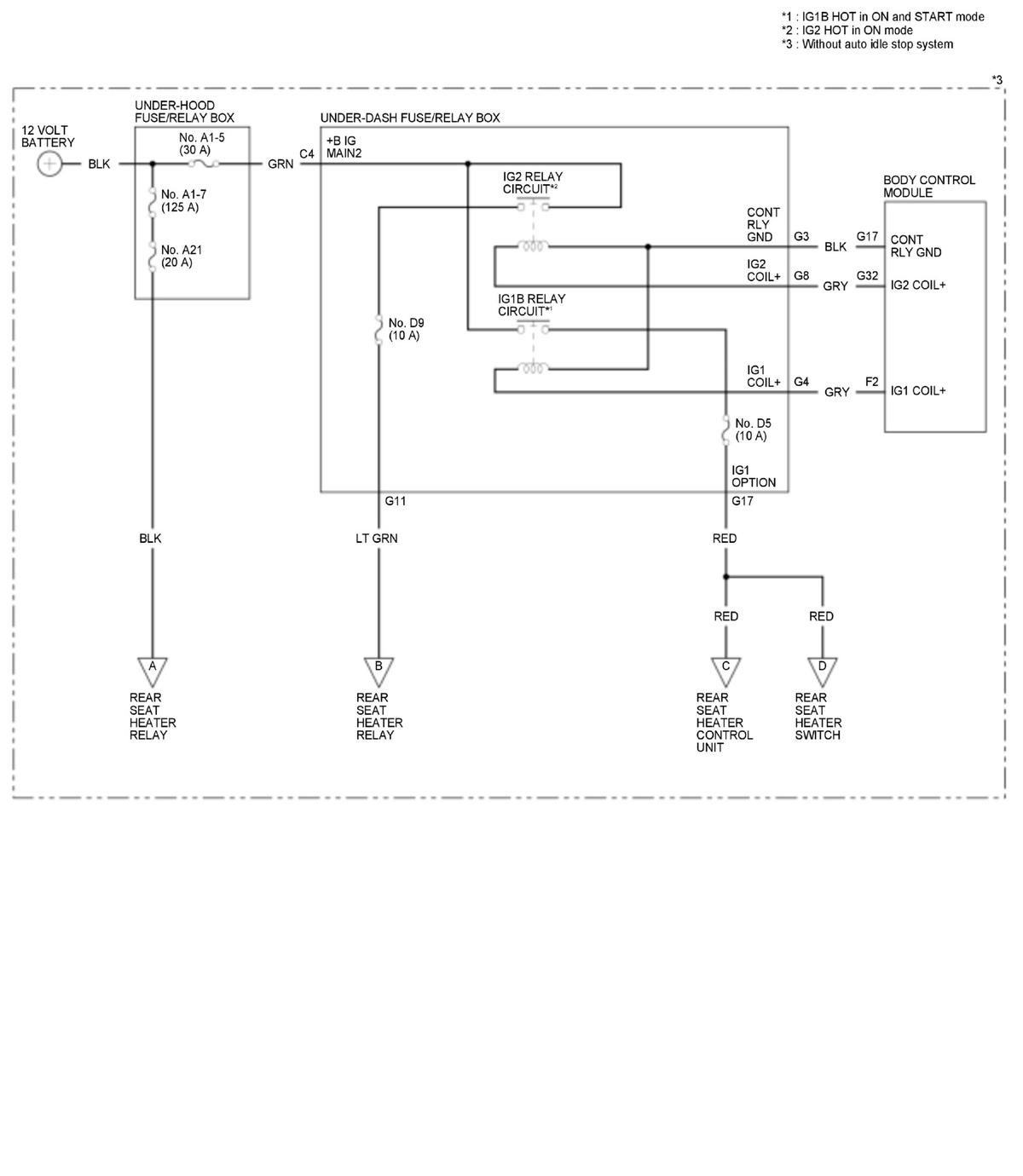

GHH430445Courtesy of HONDA, U.S.A., INC.

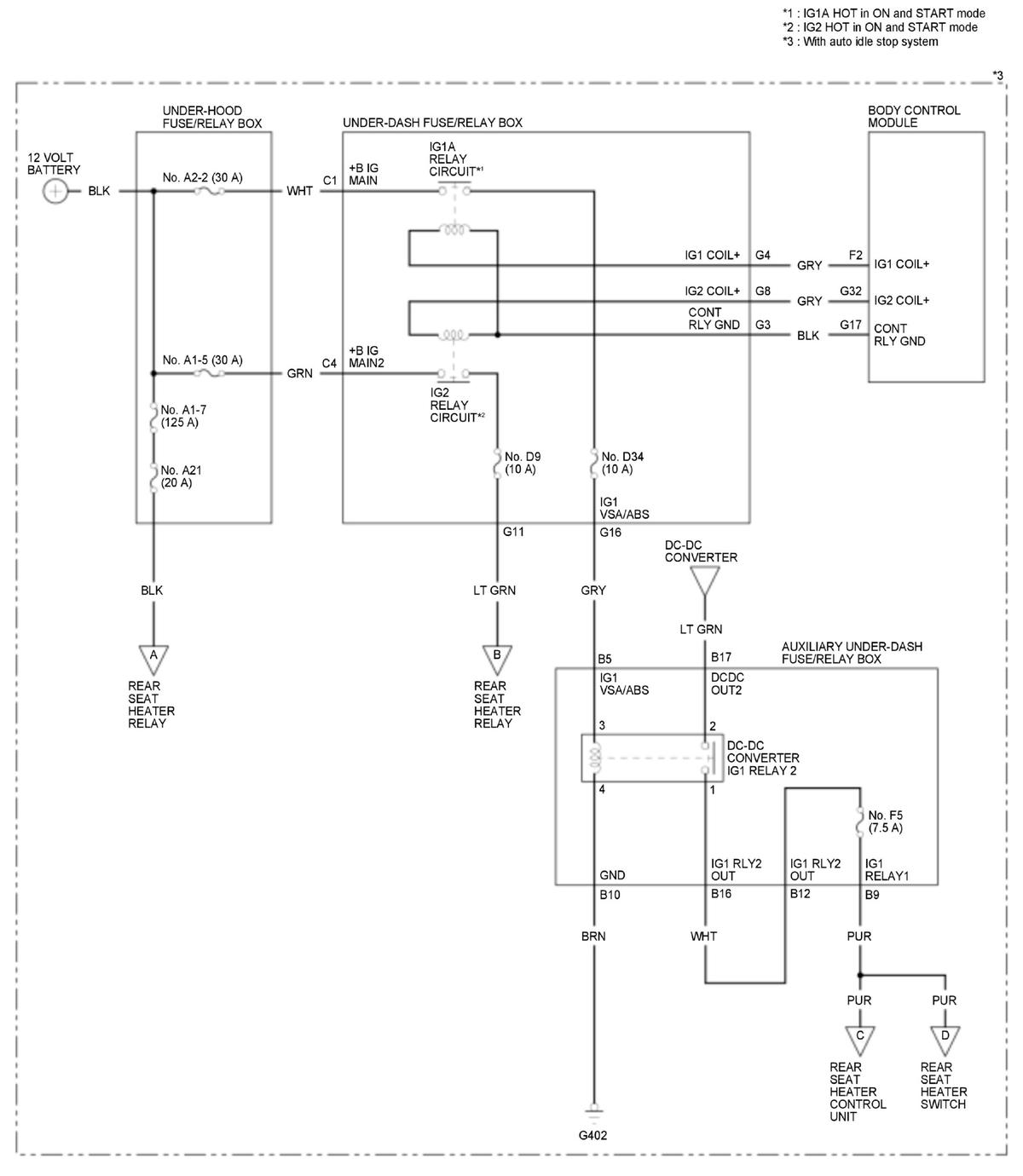

GHH430446Courtesy of HONDA, U.S.A., INC.

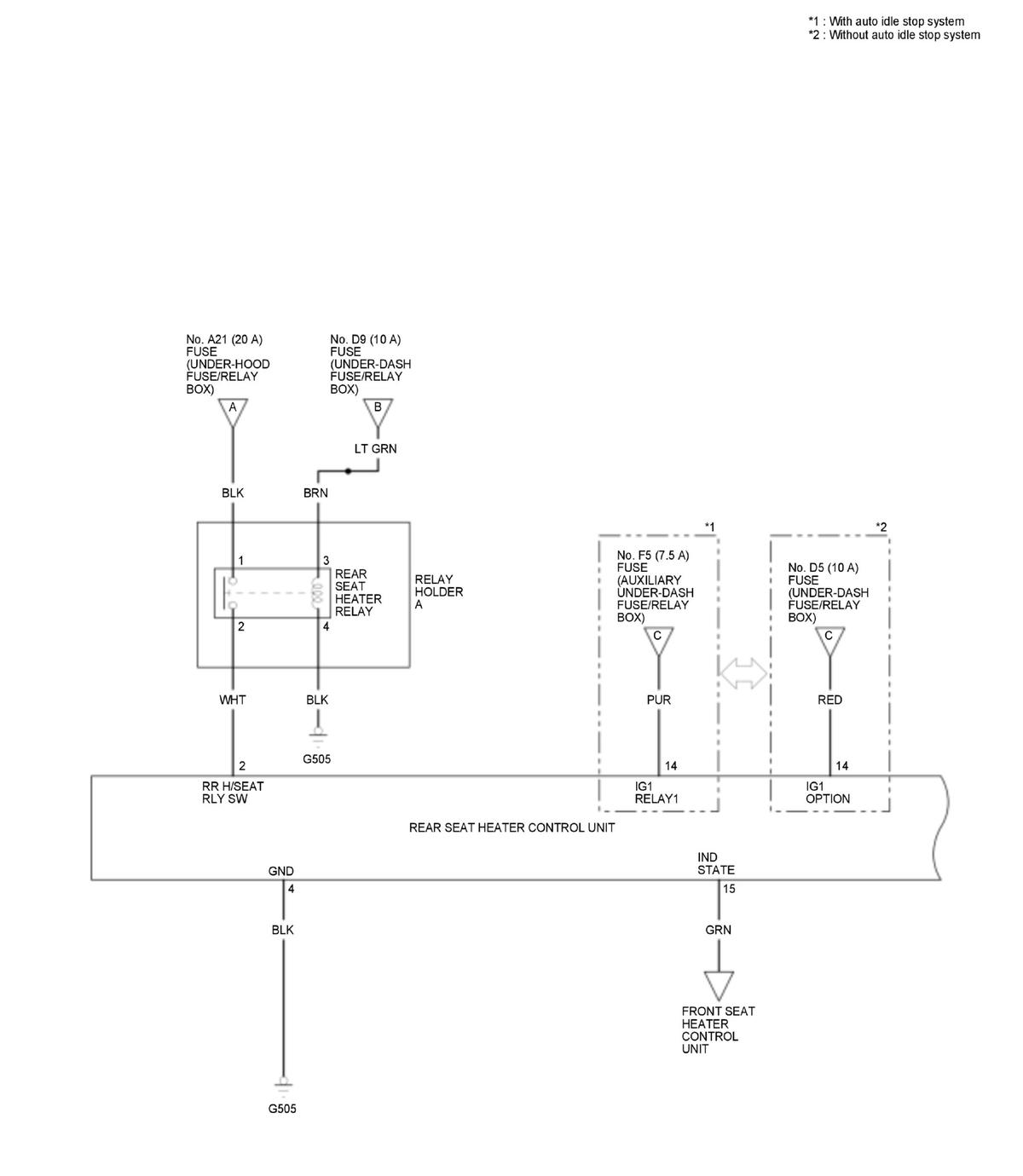

GHH430447Courtesy of HONDA, U.S.A., INC.

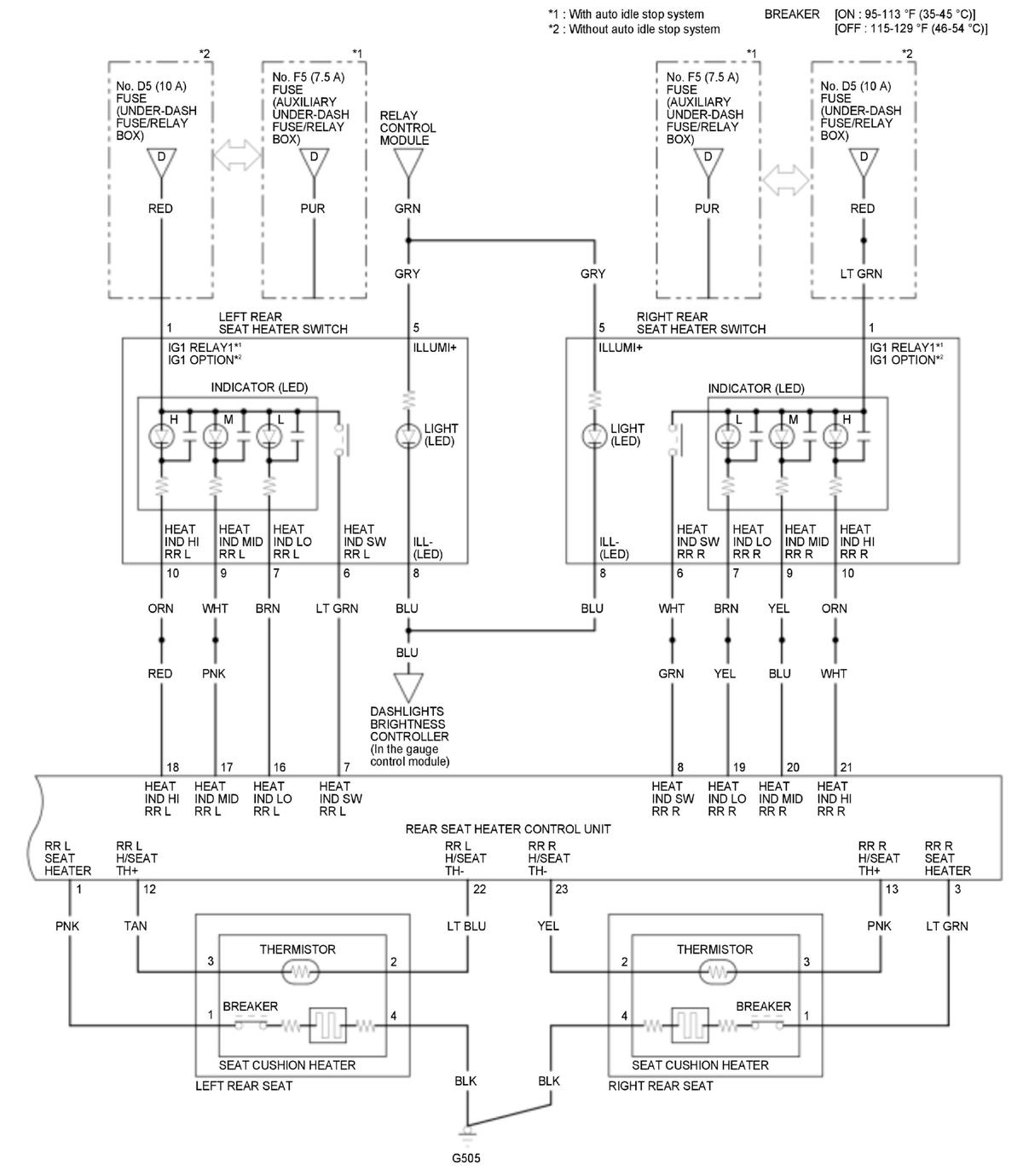

GHH430448Courtesy of HONDA, U.S.A., INC.
