Seats - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>
Power Seats Circuit Diagram
Power Seats Circuit Diagram

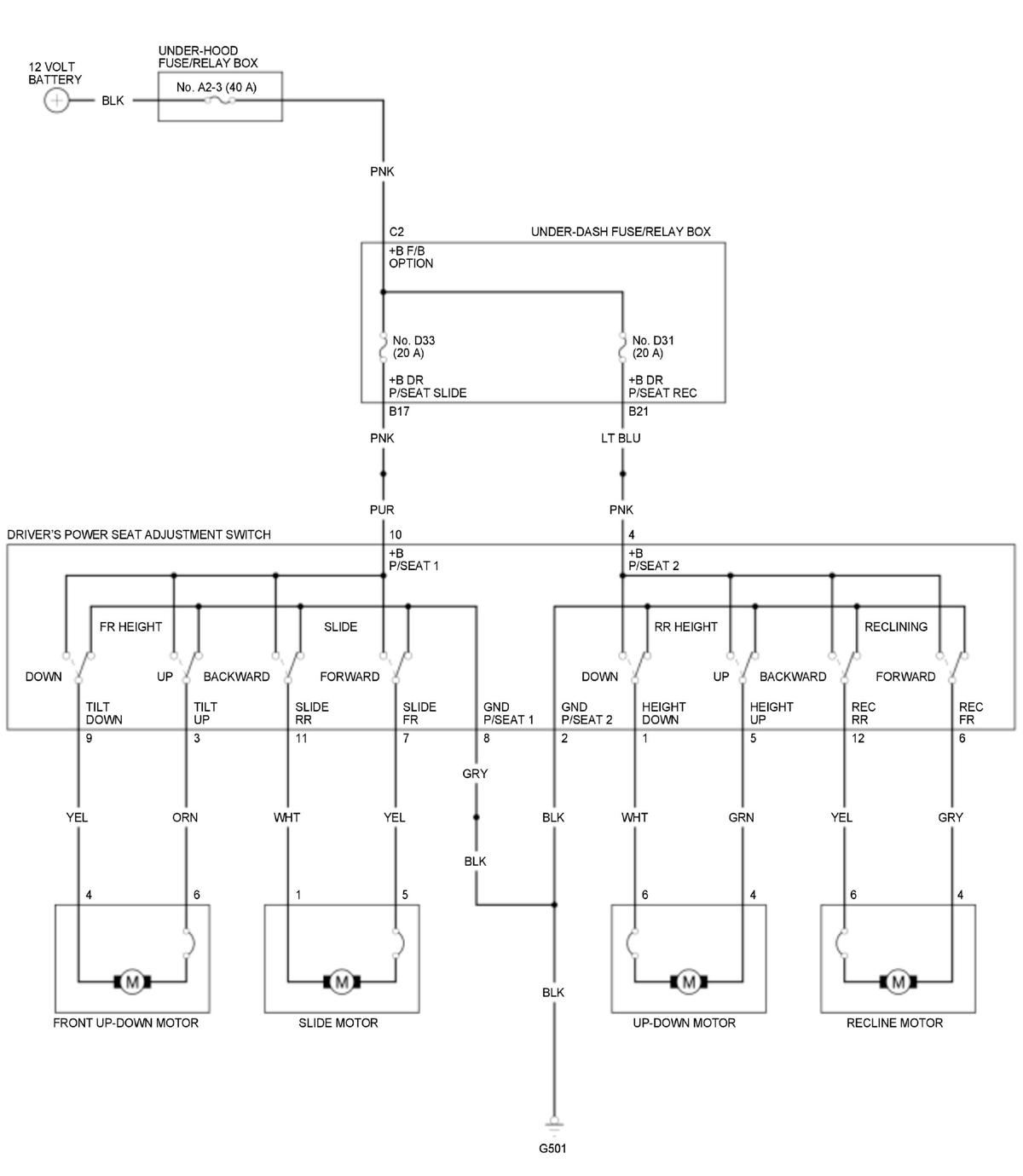

Driver's Power Seat
Courtesy of HONDA, U.S.A., INC.

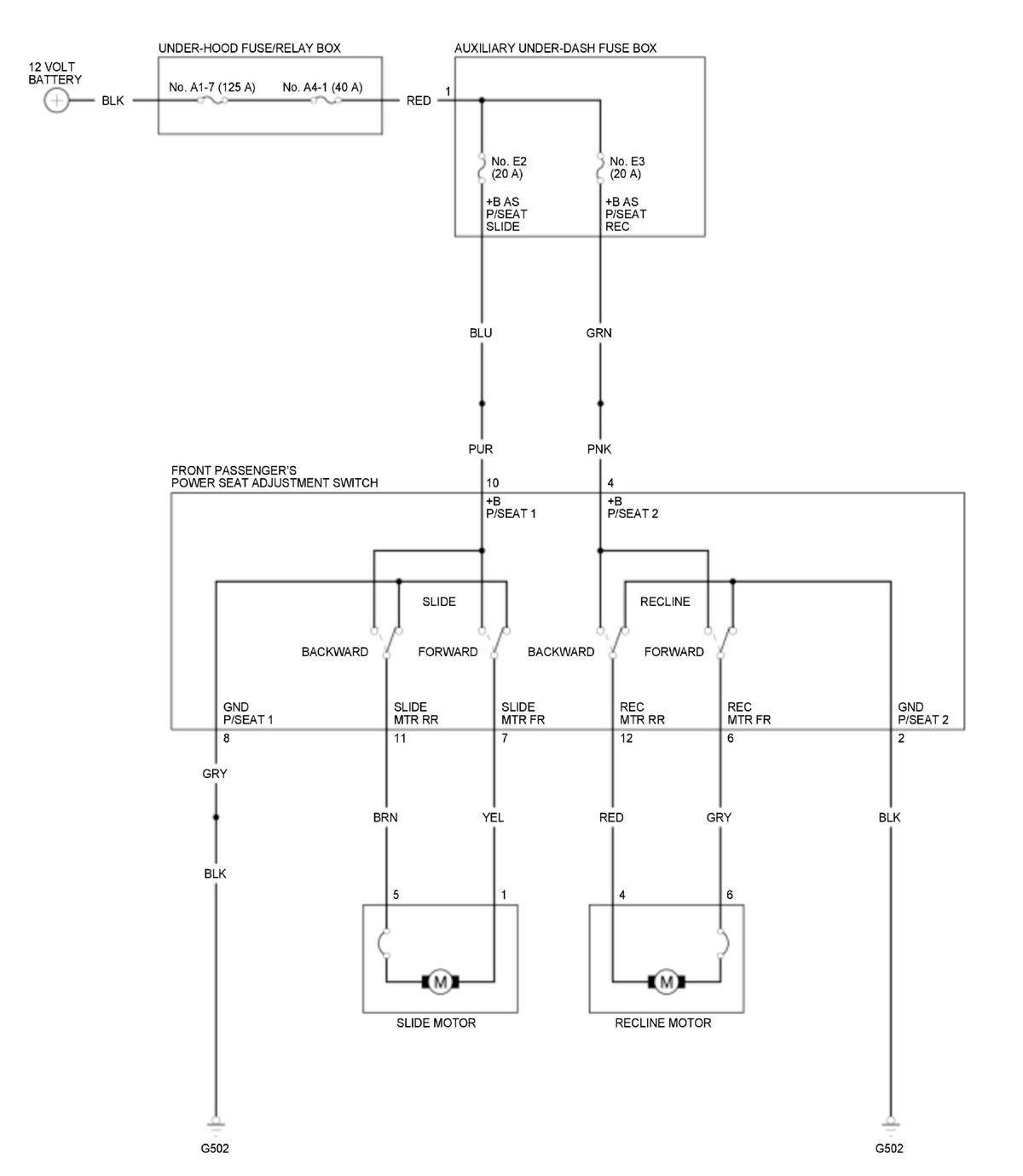

Front Passenger's Power Seat
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
