Removal and Installation

Rear Seat-Back - Remove
Rear Seat Head Restraint - Remove
Rear Seat Center Head Restraint - Remove (Left Seat-Back)
Rear Seat Lock Knob Trim - Remove
Rear Seat-Back Latch Cover - Remove
Rear Seat Armrest - Remove (Left Seat-Back)

Rear Seat-Back Cover/Pad - Remove

Courtesy of HONDA, U.S.A., INC.

1. Release the seat-back cover (A) from the hooks (B).

Courtesy of HONDA, U.S.A., INC.

2. For some models: Remove the tether anchor cover (A).

Courtesy of HONDA, U.S.A., INC.

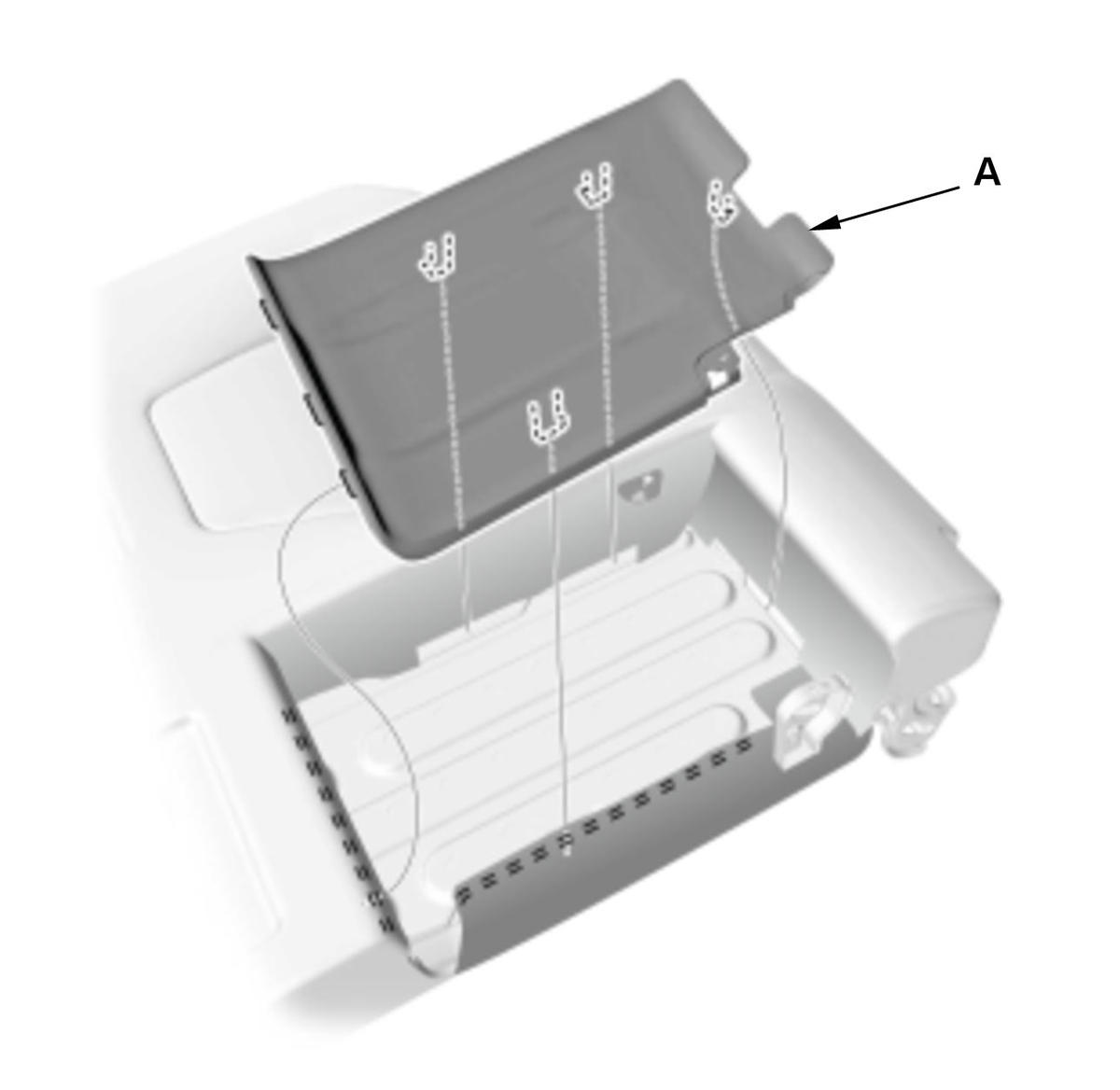

3. Left seat-back: Remove the armrest back panel (A).

Courtesy of HONDA, U.S.A., INC.

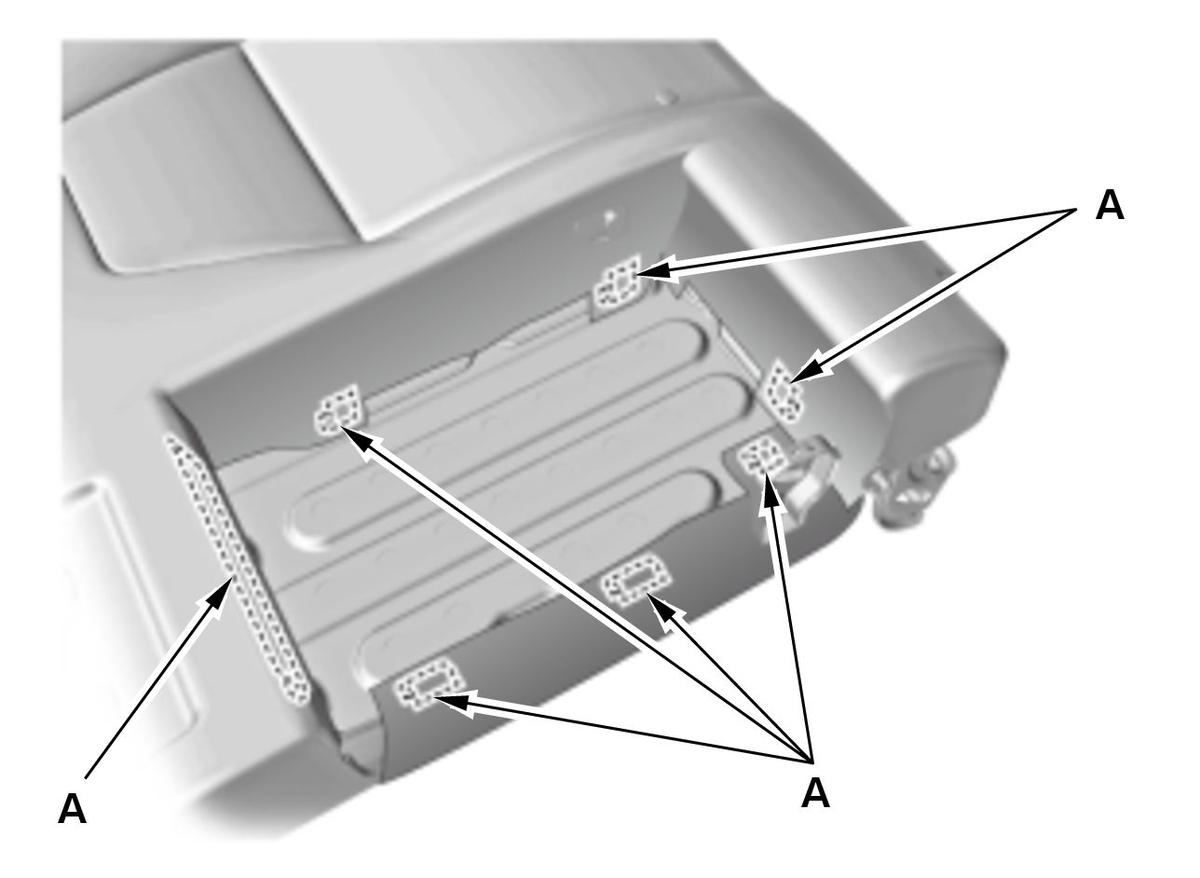

4. Left seat-back: Release the hooks (A).

Left seat-back

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Right seat-back

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

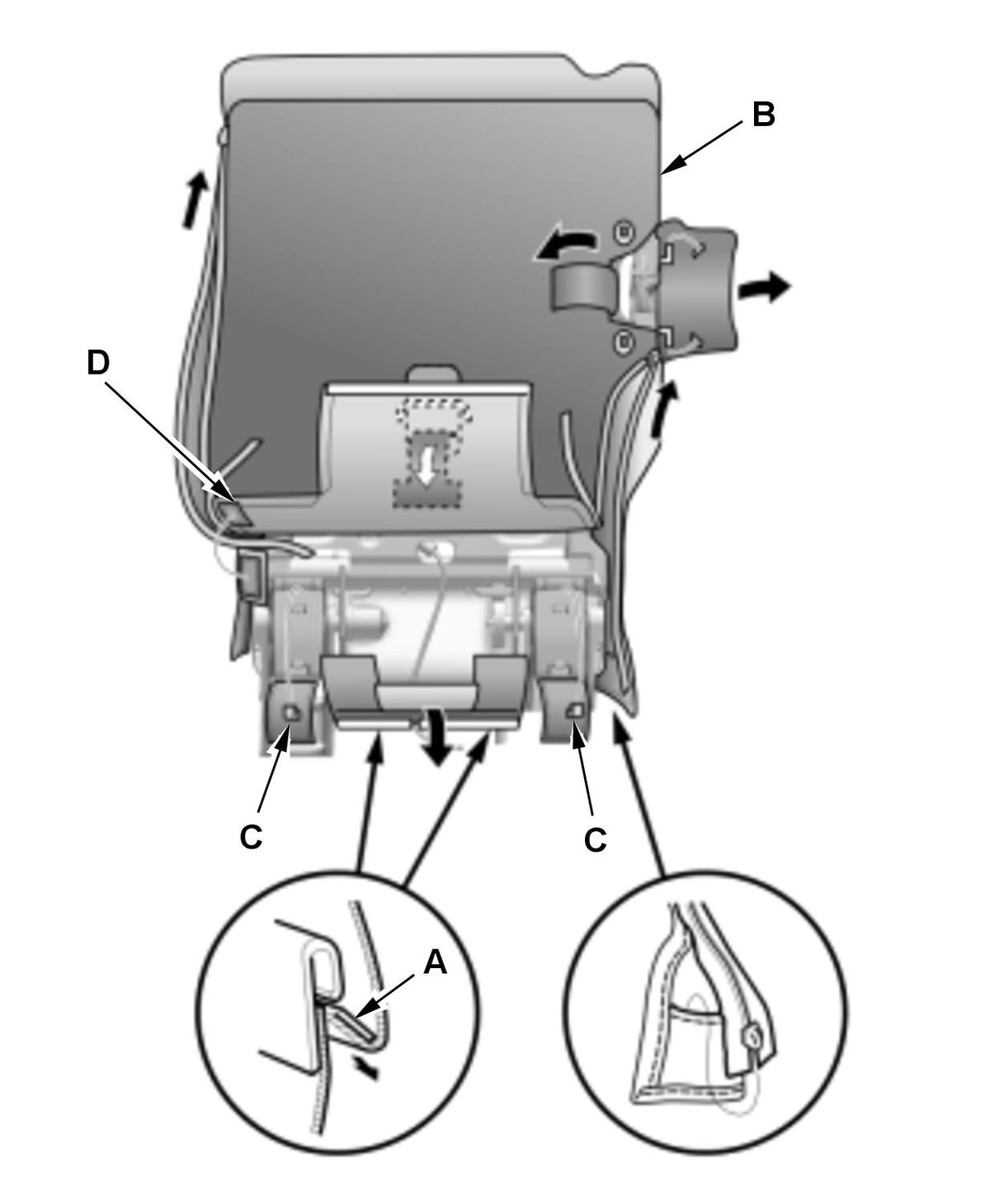

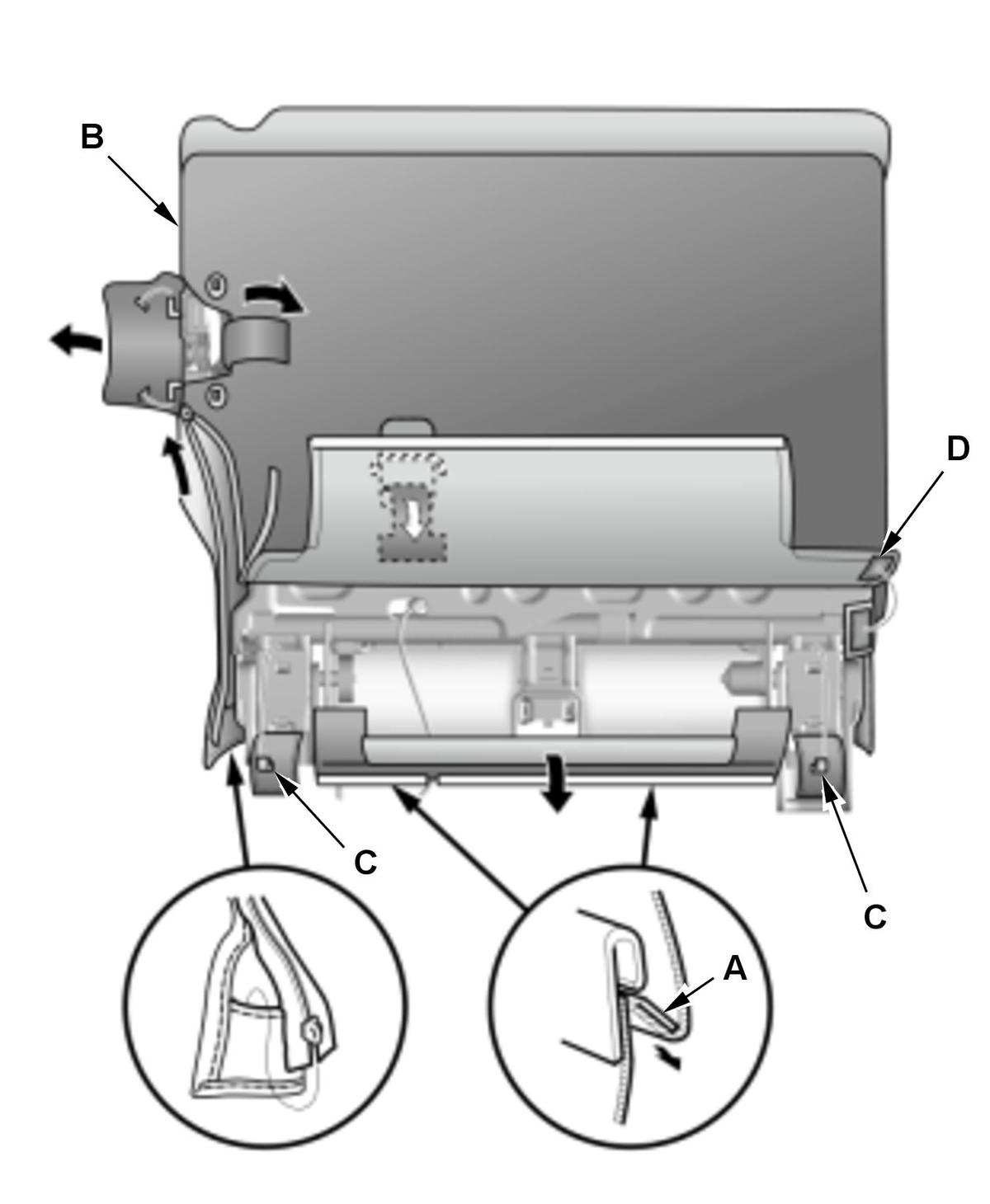

5. Release the hook strip (A).

6. Unzip the seat-back cover (B).

7. Release the hooks (C) and the hook and loop fastener (D).

Courtesy of HONDA, U.S.A., INC.

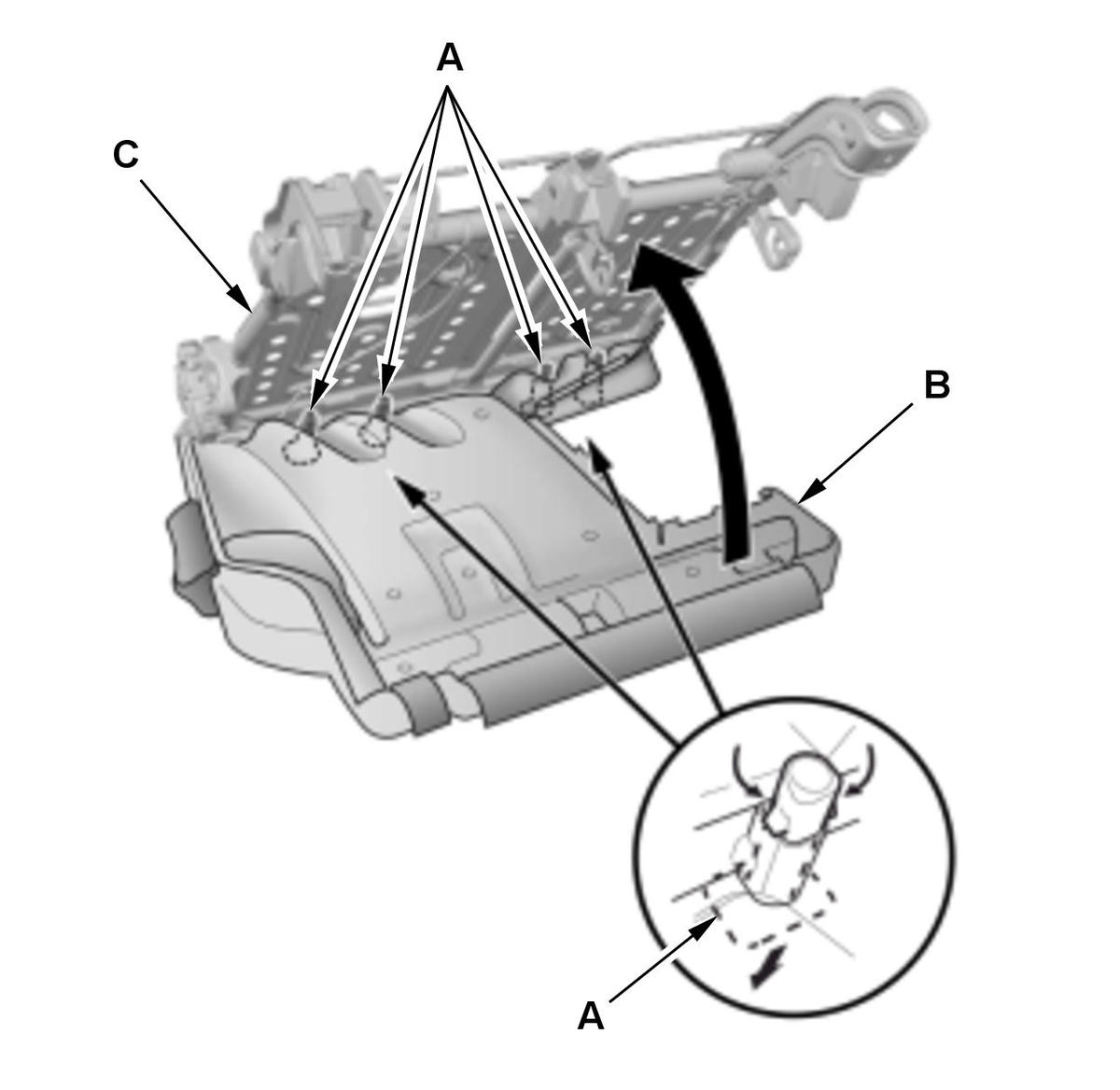

8. Remove the head restraint guides (A).

9. Remove the seat-back cover/pad (B) from the seat-back frame (C).

Rear Seat-Back Frame Covers - Remove

Courtesy of HONDA, U.S.A., INC.

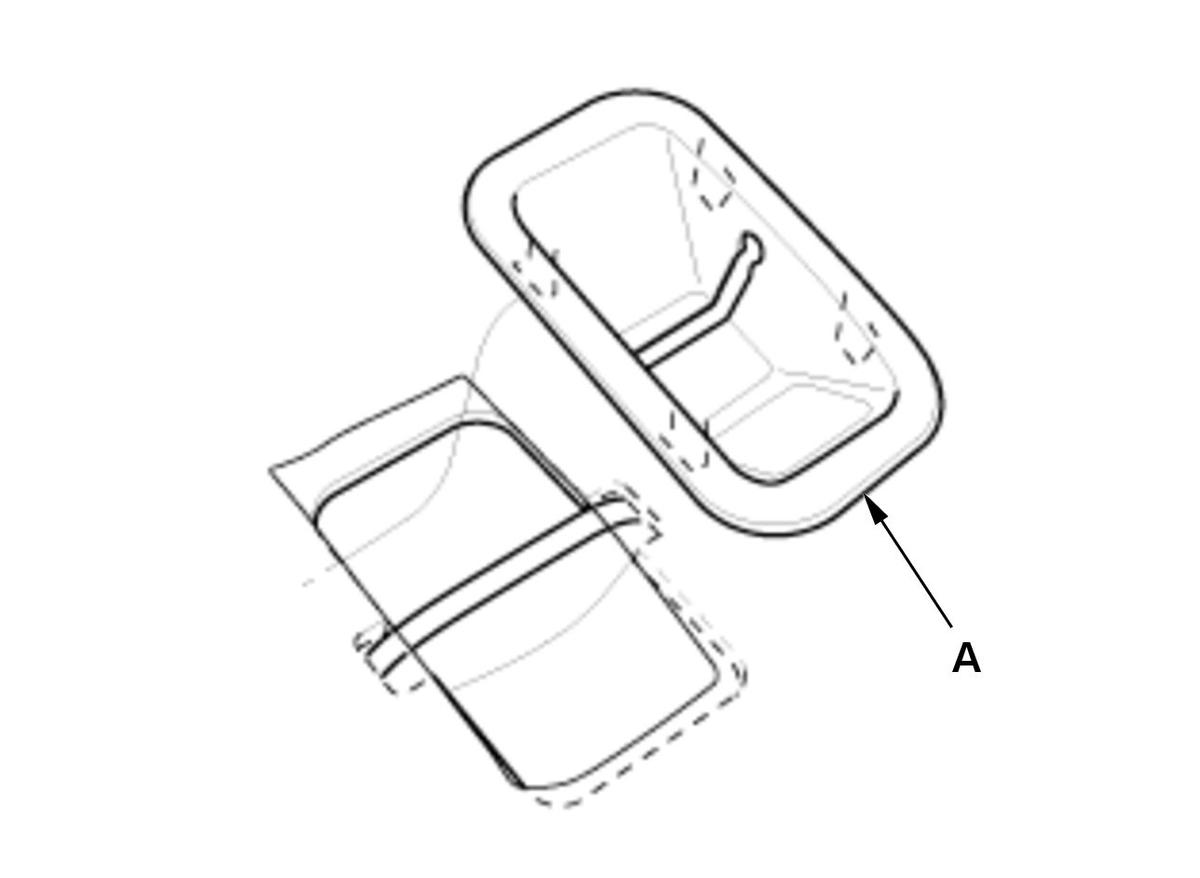

1. If necessary, remove the rear seat-back inner trim (A).

Outer bracket

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Inner bracket

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Center bracket (Left seat-back)

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

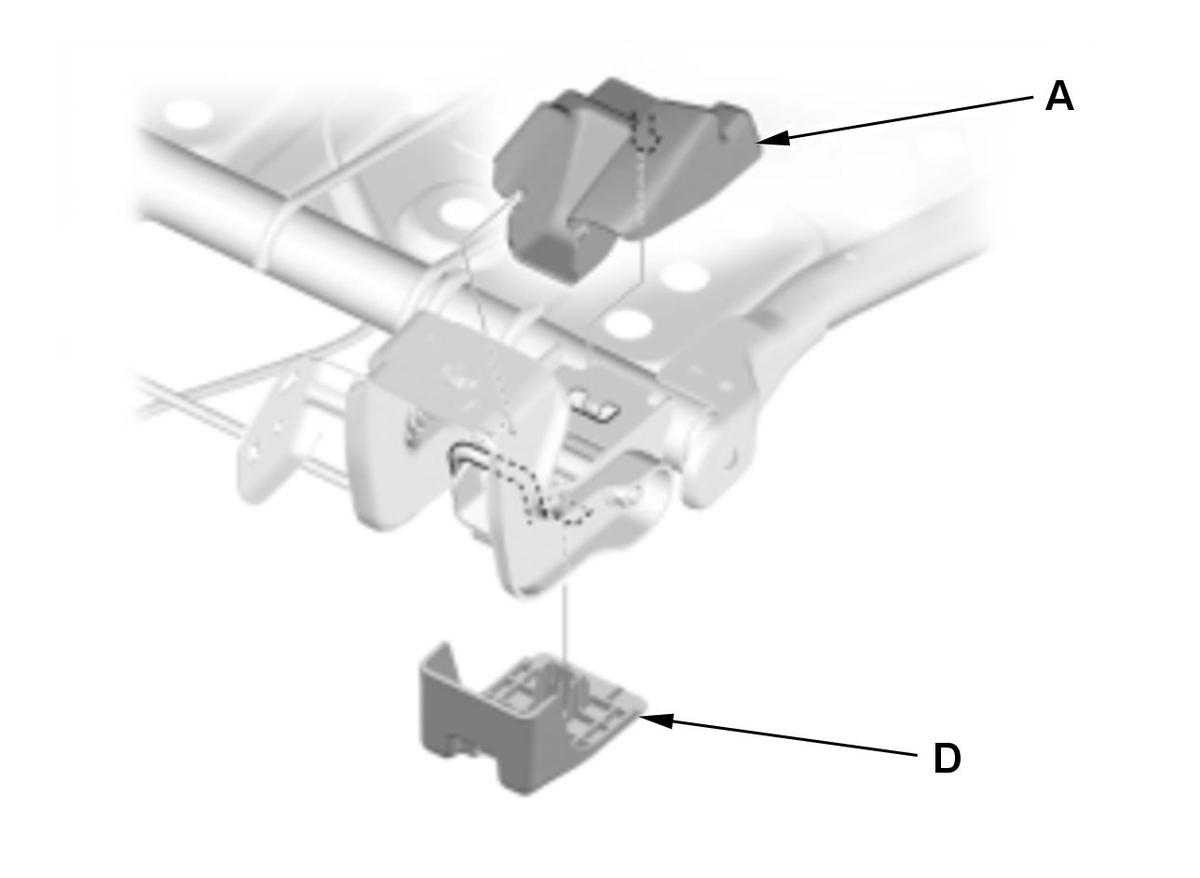

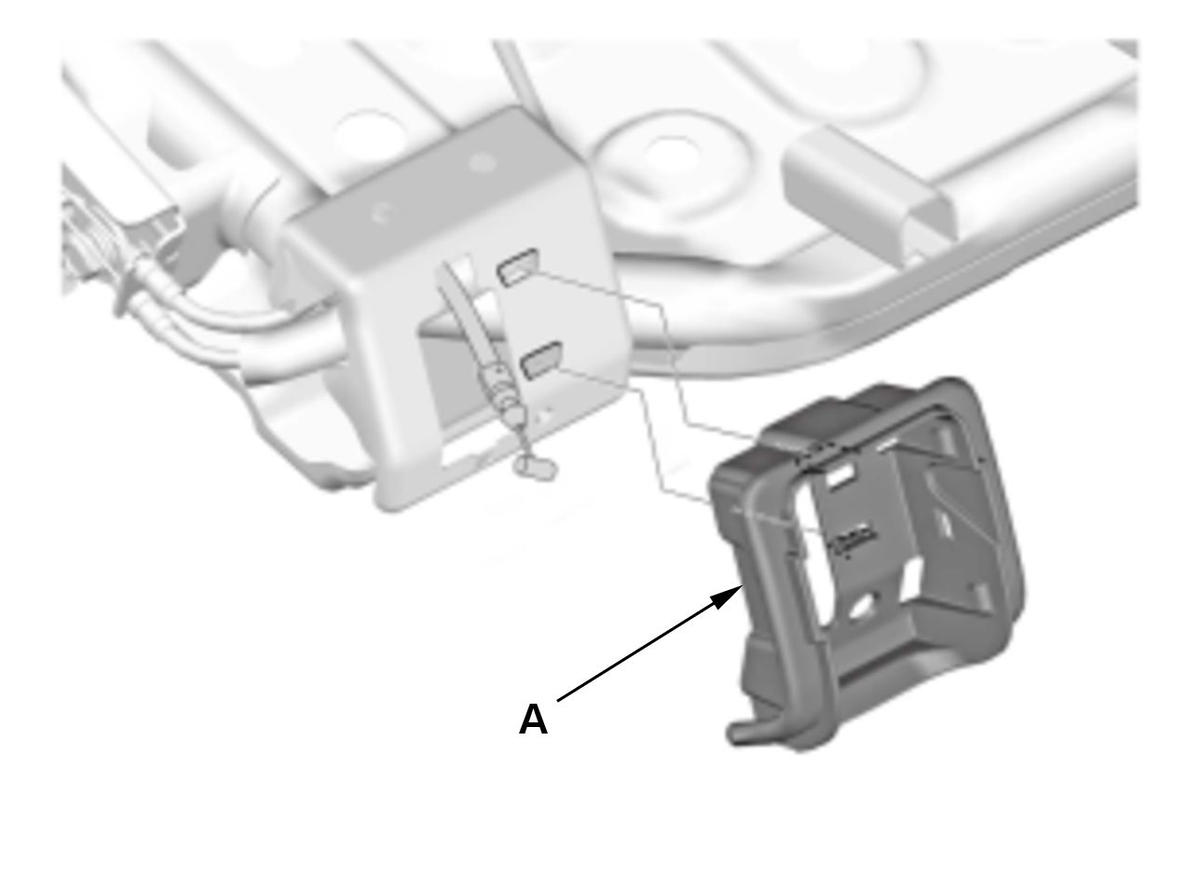

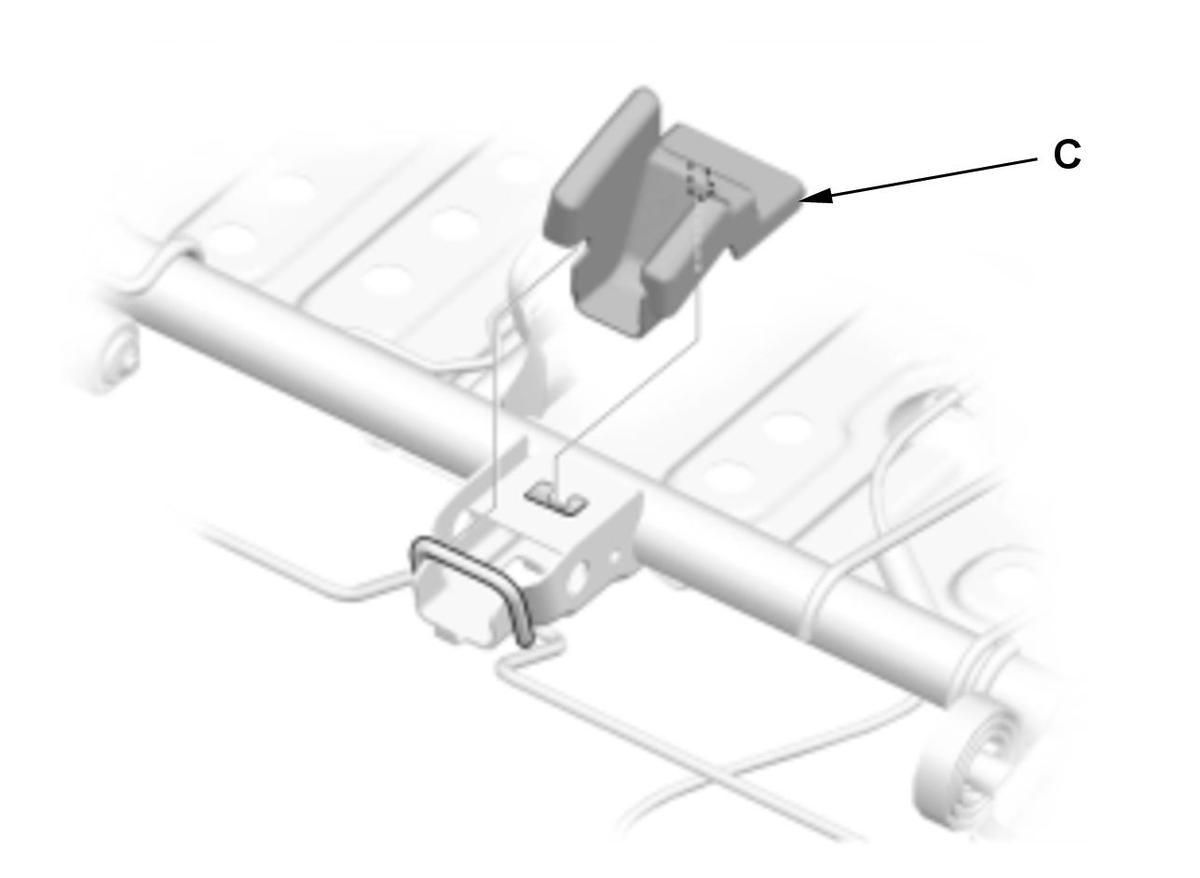

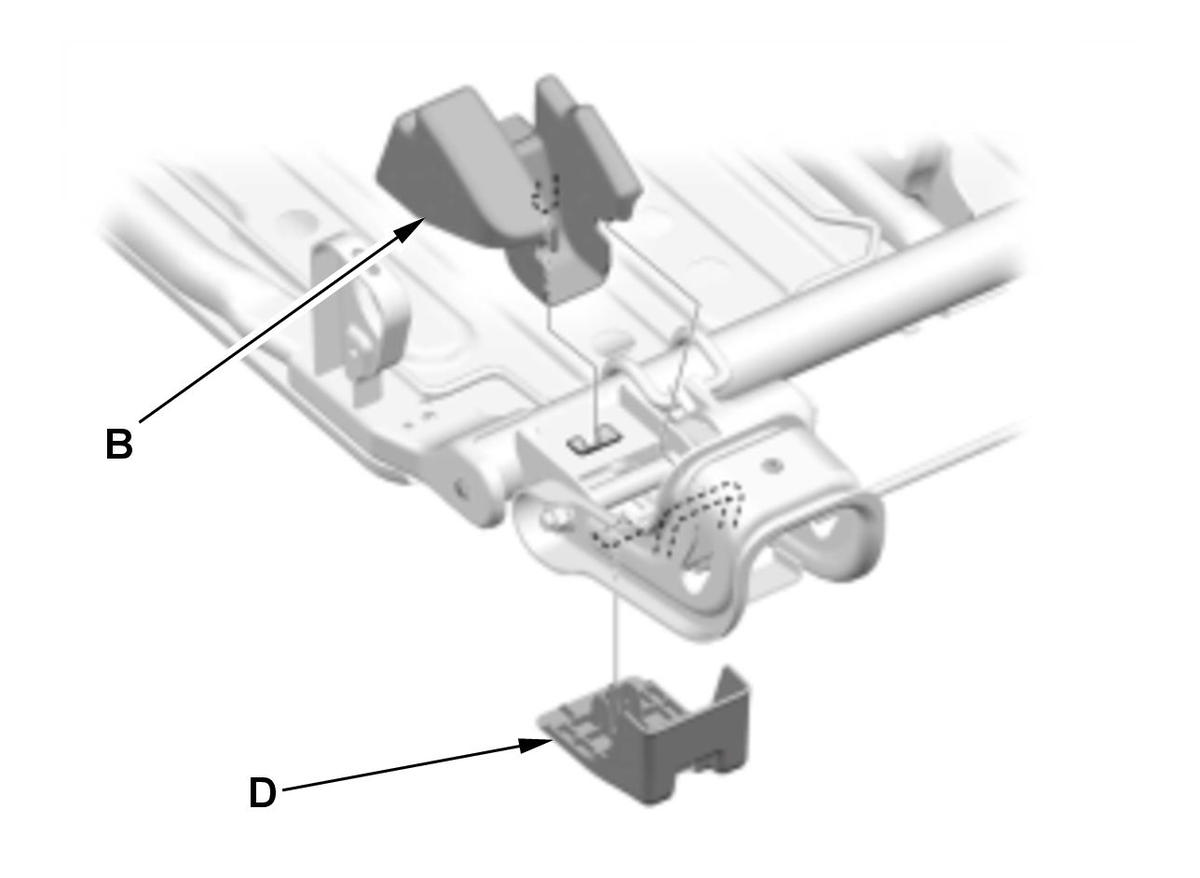

2. If necessary, remove the rear seat-back outer bracket cover (A), the inner bracket cover (B), the center bracket cover (C), and the rear seat-back lower bracket covers (D).

Rear Seat-Back Cover - Remove

Courtesy of HONDA, U.S.A., INC.

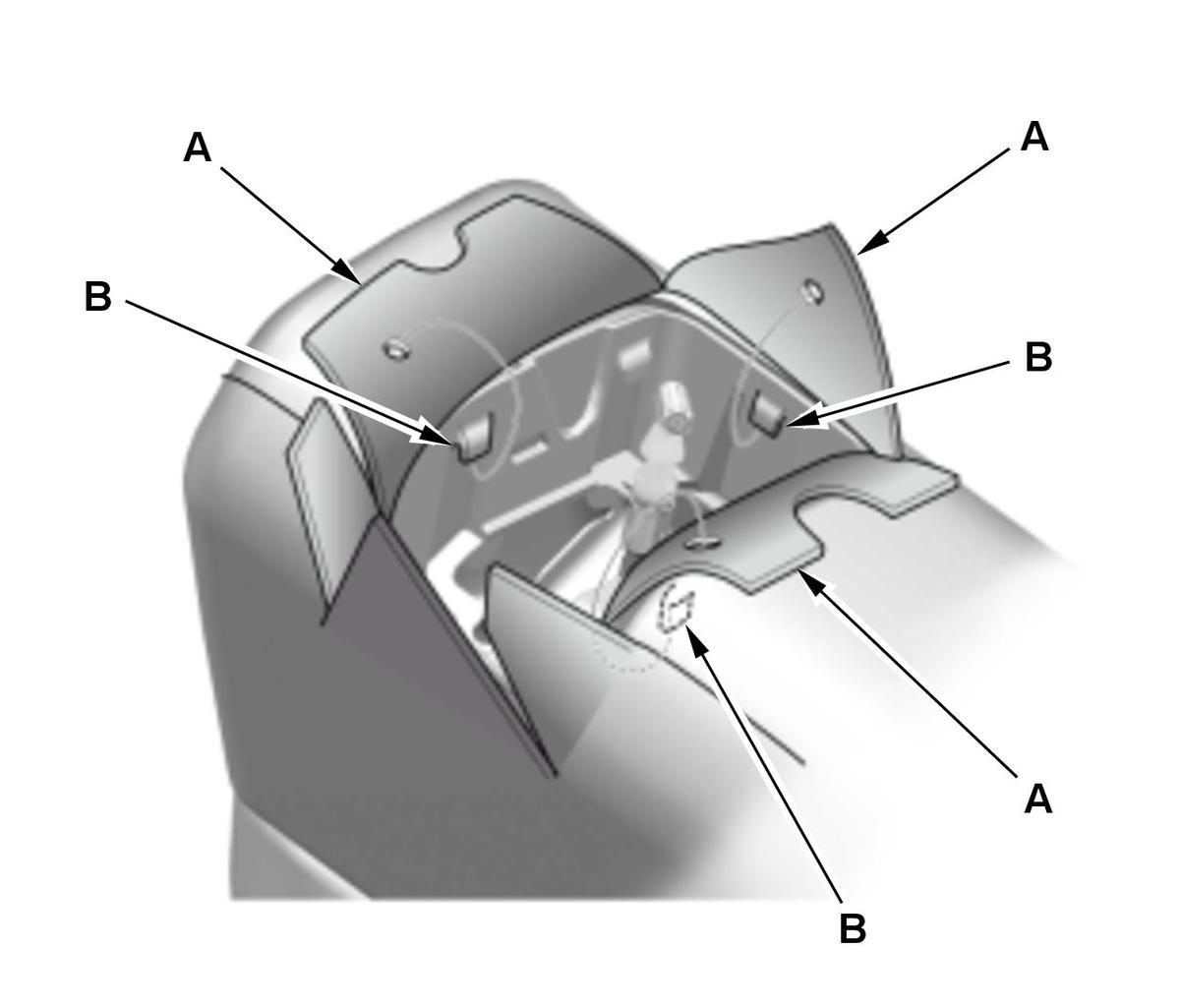

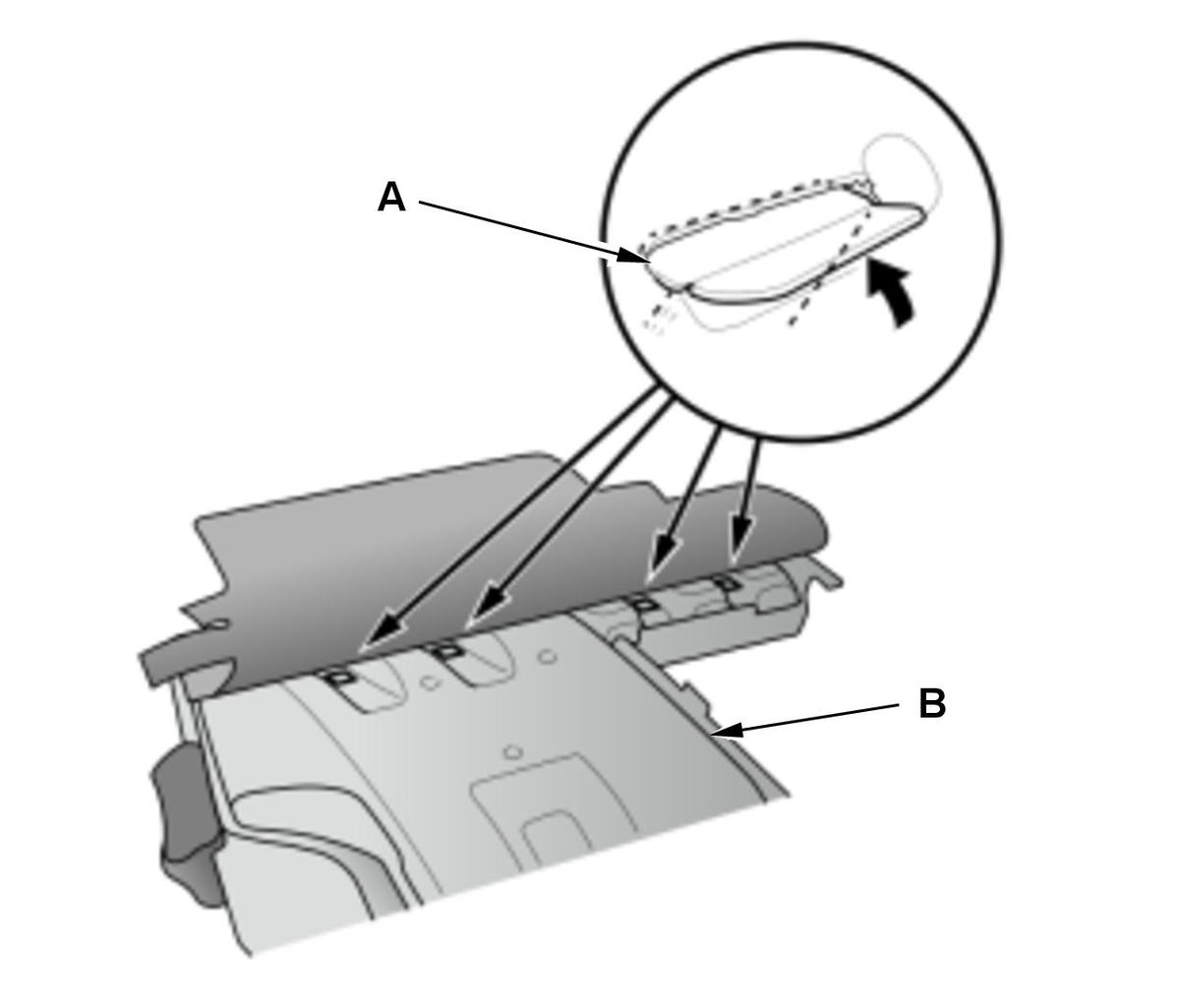

1. Pass the retainers (A) through the slots in the seat-back pad (B).

Left seat-back

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Right seat-back

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

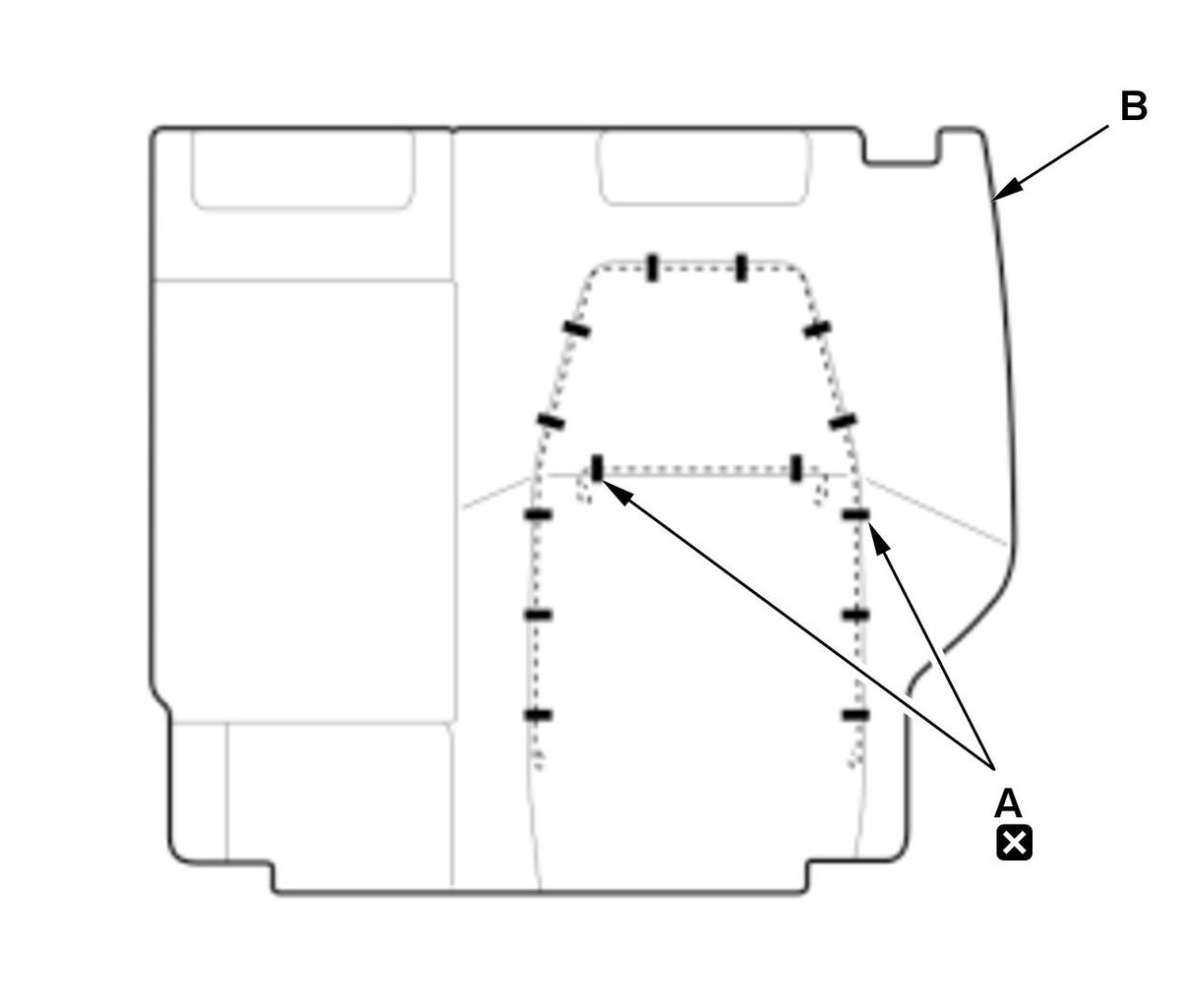

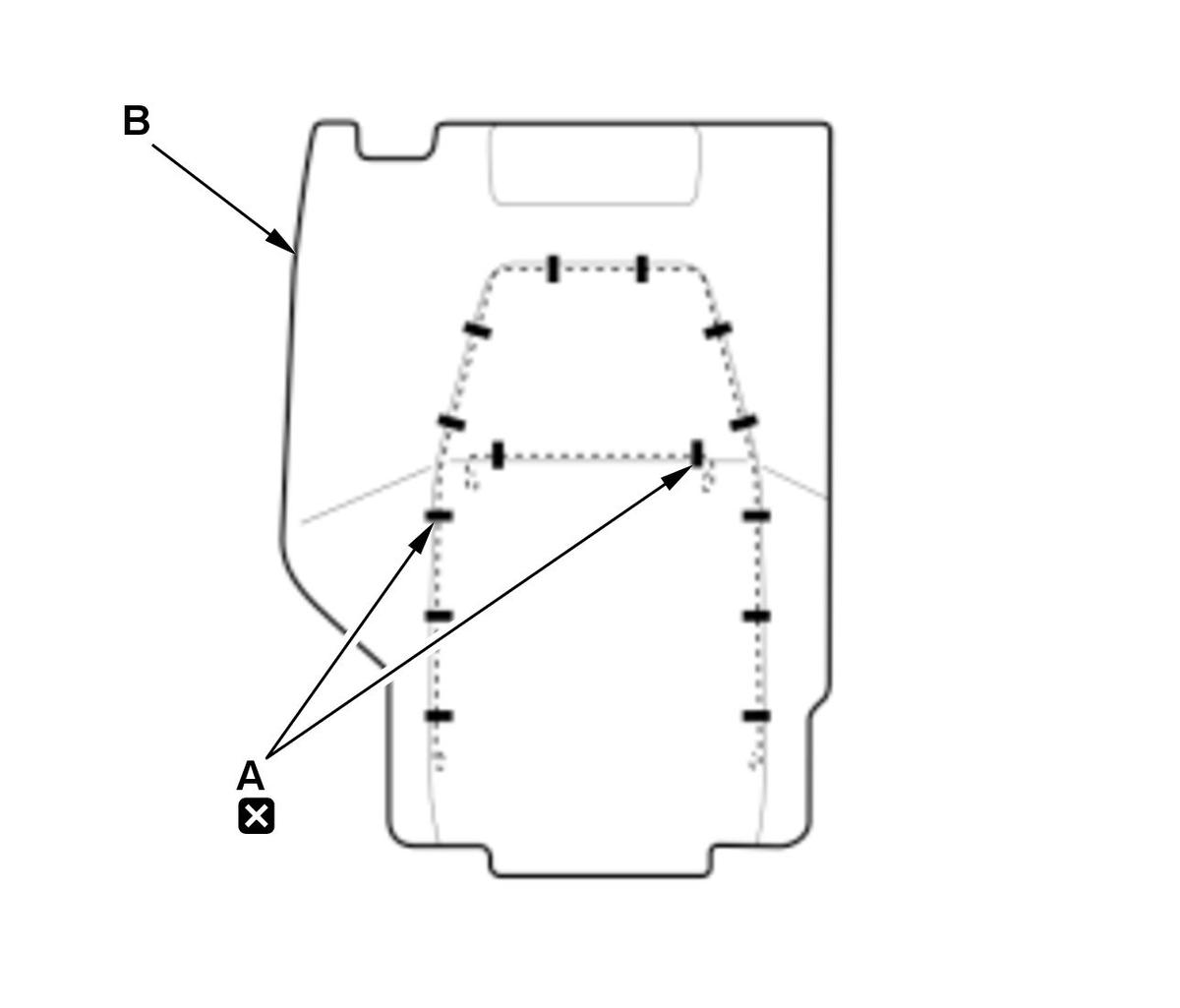

2. Remove the upholstery rings (A), and then remove the seat-back cover (B).

All Removed Parts - Install

Courtesy of HONDA, U.S.A., INC.

1. Install the parts in the reverse order of removal.

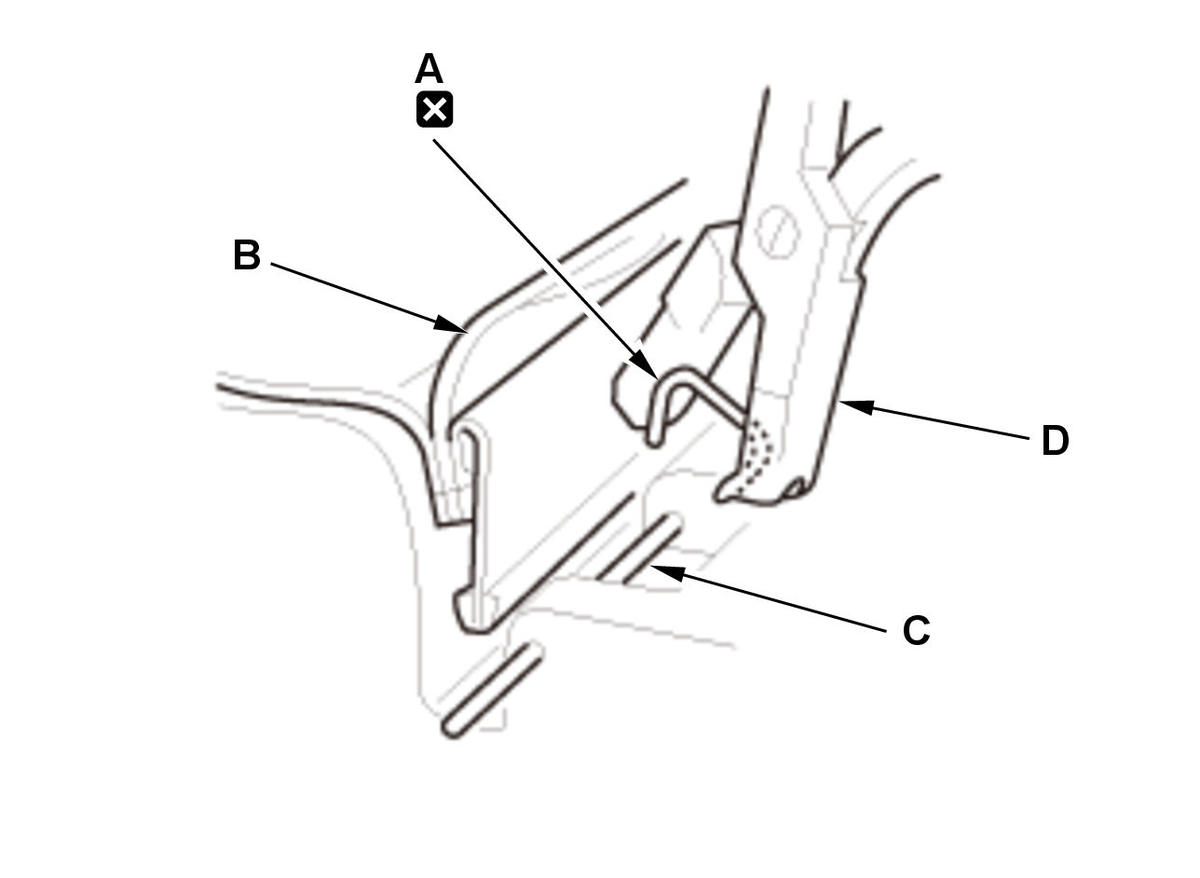

NOTE: Replace all of the upholstery rings (A) fastening the seat-back cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).
