Power Seat Adjustment Switch Removal, Installation, and Test: Test

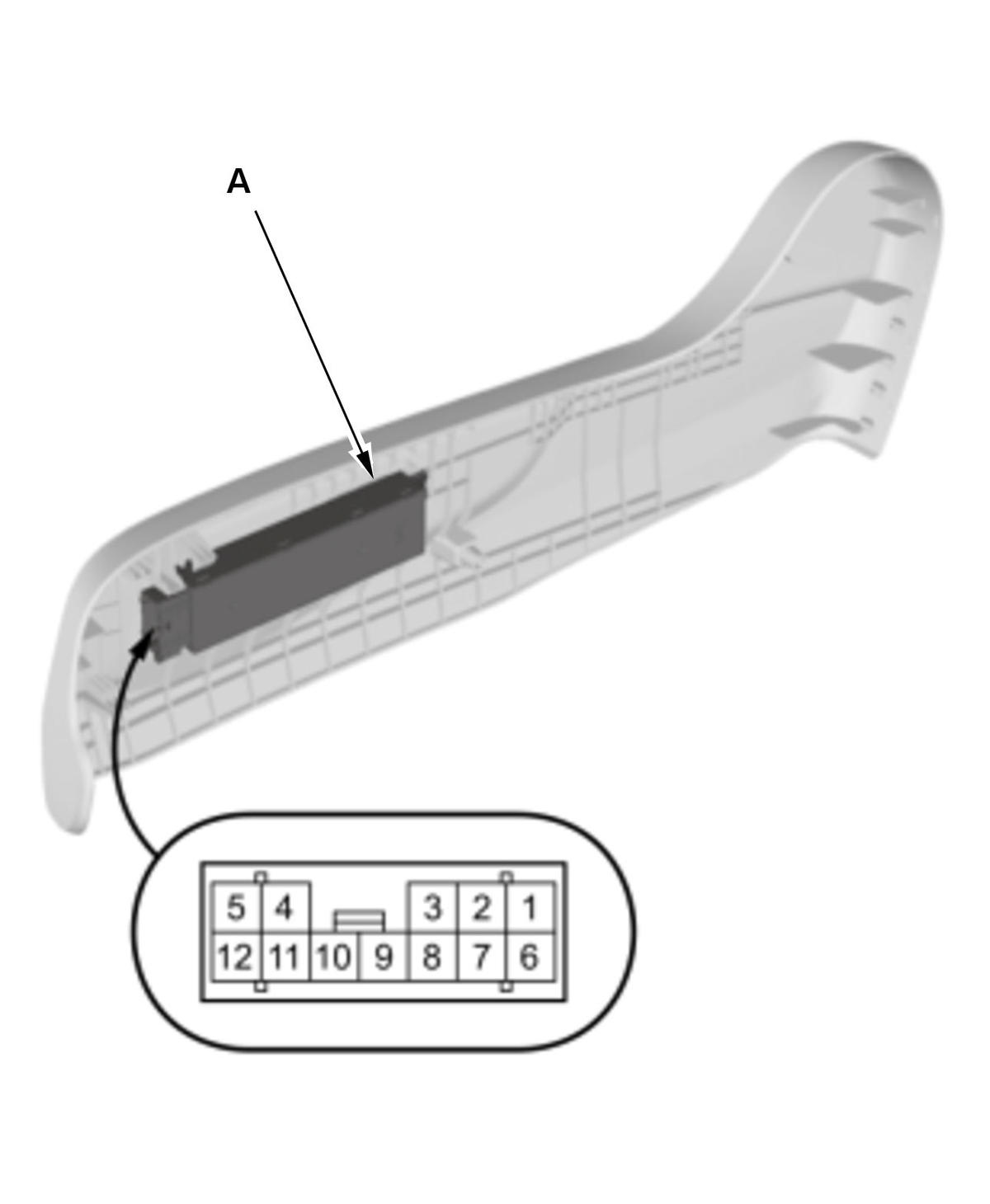

Driver's (Without DPMS)

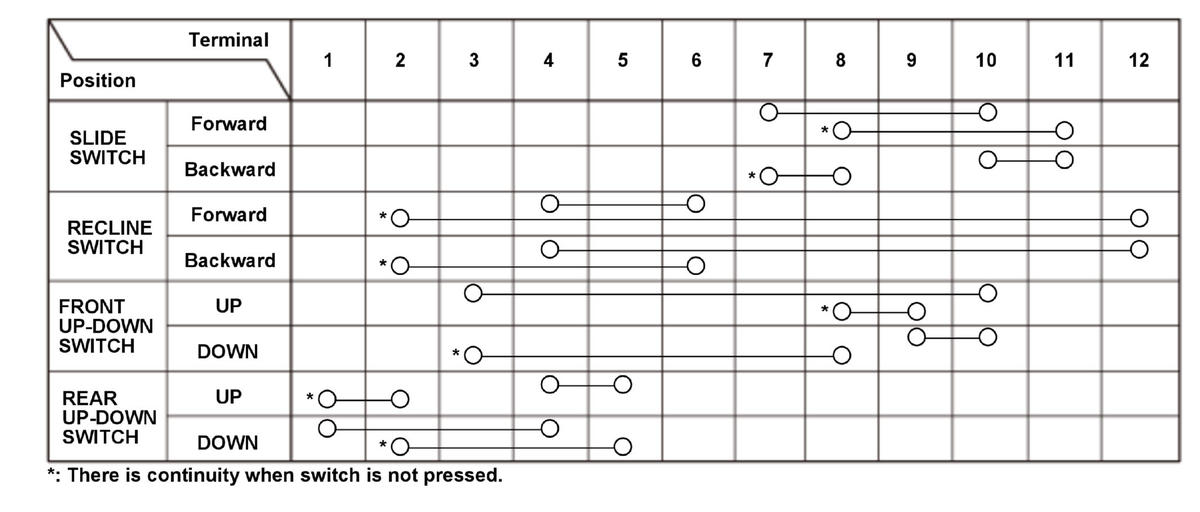

1. Check for continuity between the terminals in each switch position according to the table in illustration.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

2. If the continuity is not as specified, replace the driver's power seat adjustment switch (A).

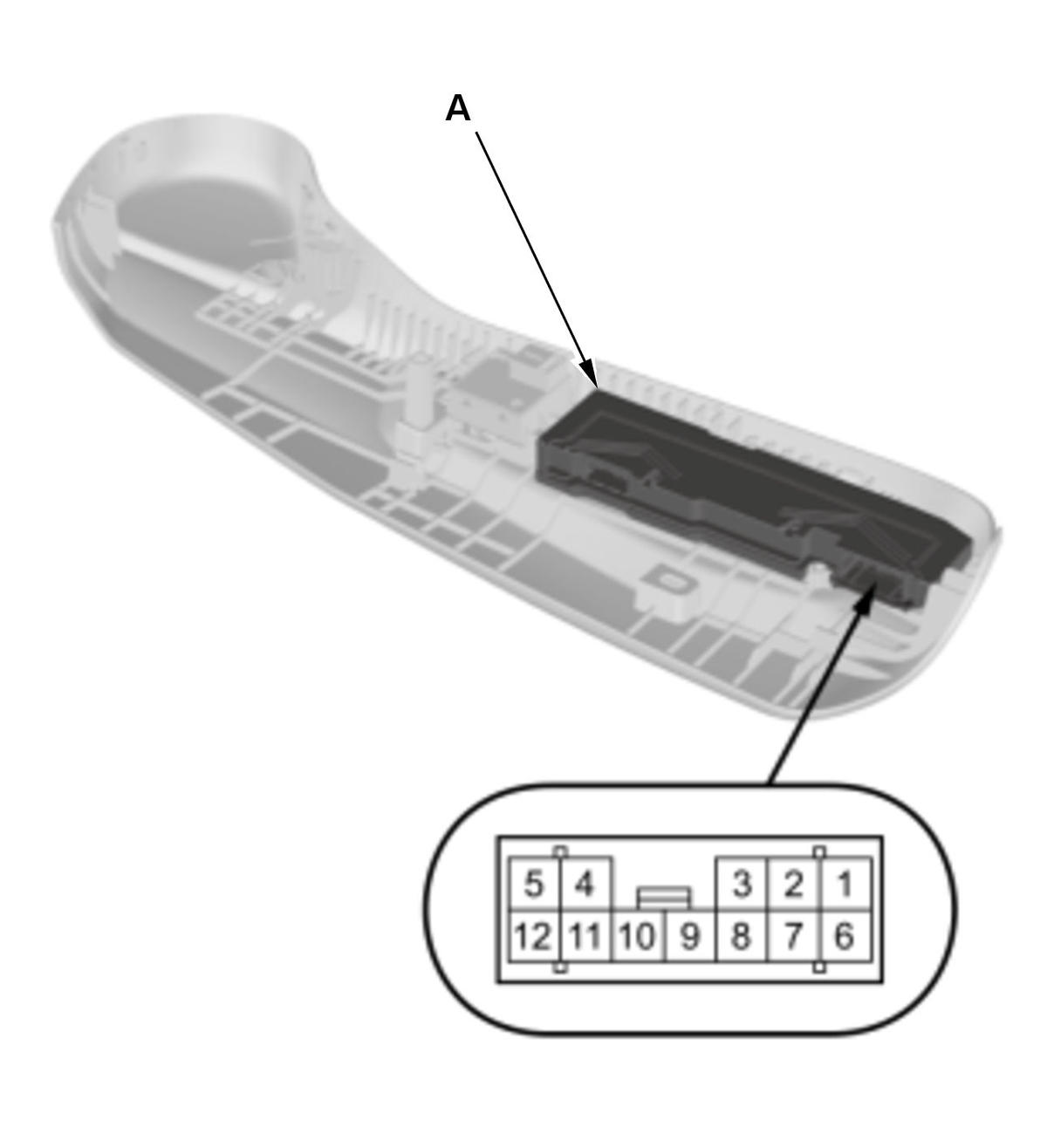

Front Passenger's

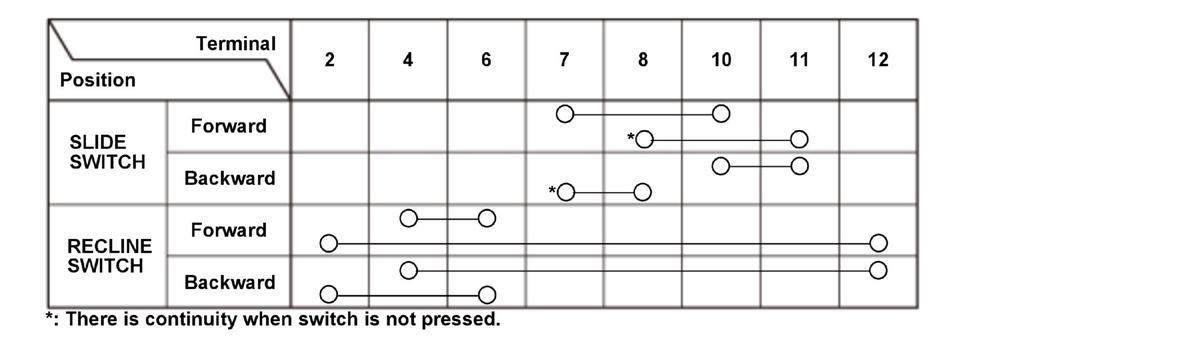

3. Check for continuity between the terminals in each switch position according to the table in illustration.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

4. If the continuity is not as specified, replace the front passenger's power seat adjustment switch (A).
