Power Lumbar Support Switch Removal, Installation, and Test: Test

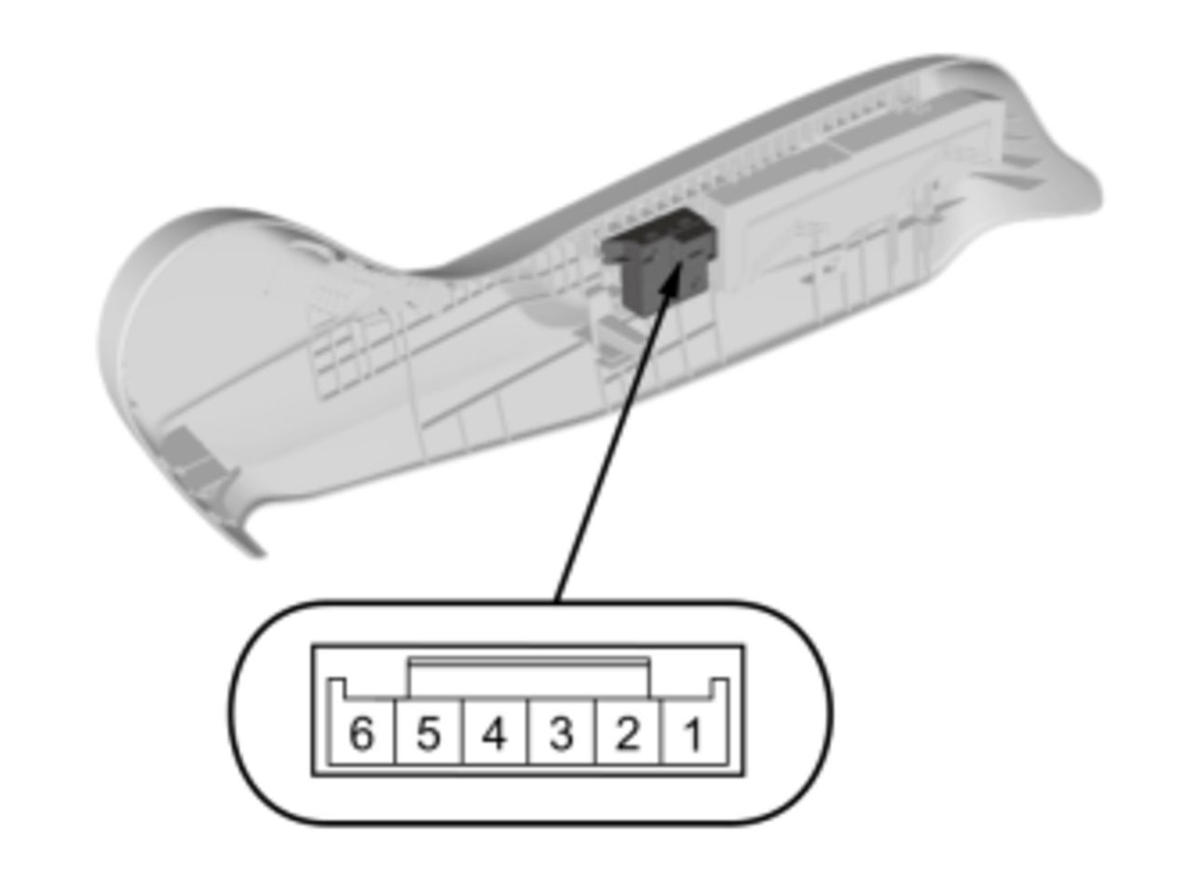

  1. Power Lumbar Support Switch - Test
    GHH430461GHH430462Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH430461GHH430462Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

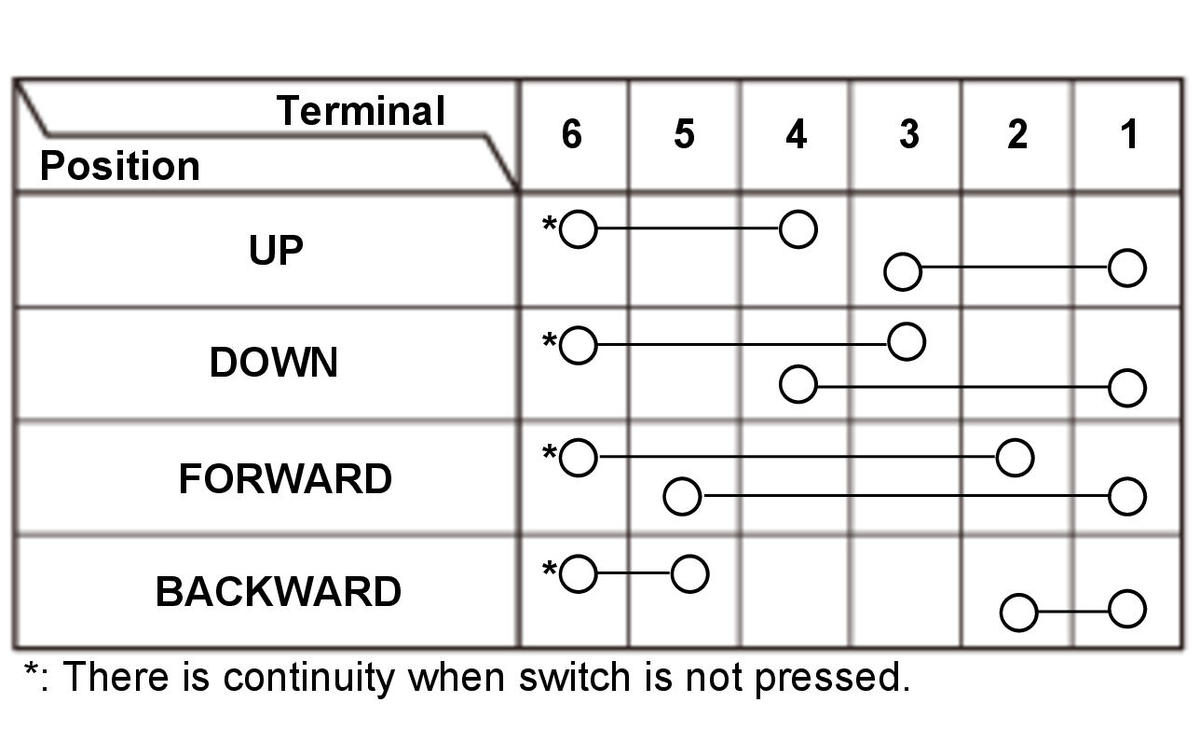

    		 1. Check for continuity between the terminals in each switch position according to the table in illustration.

    2. If the continuity is not as specified, replace the power lumbar support switch.
