Mirrors - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

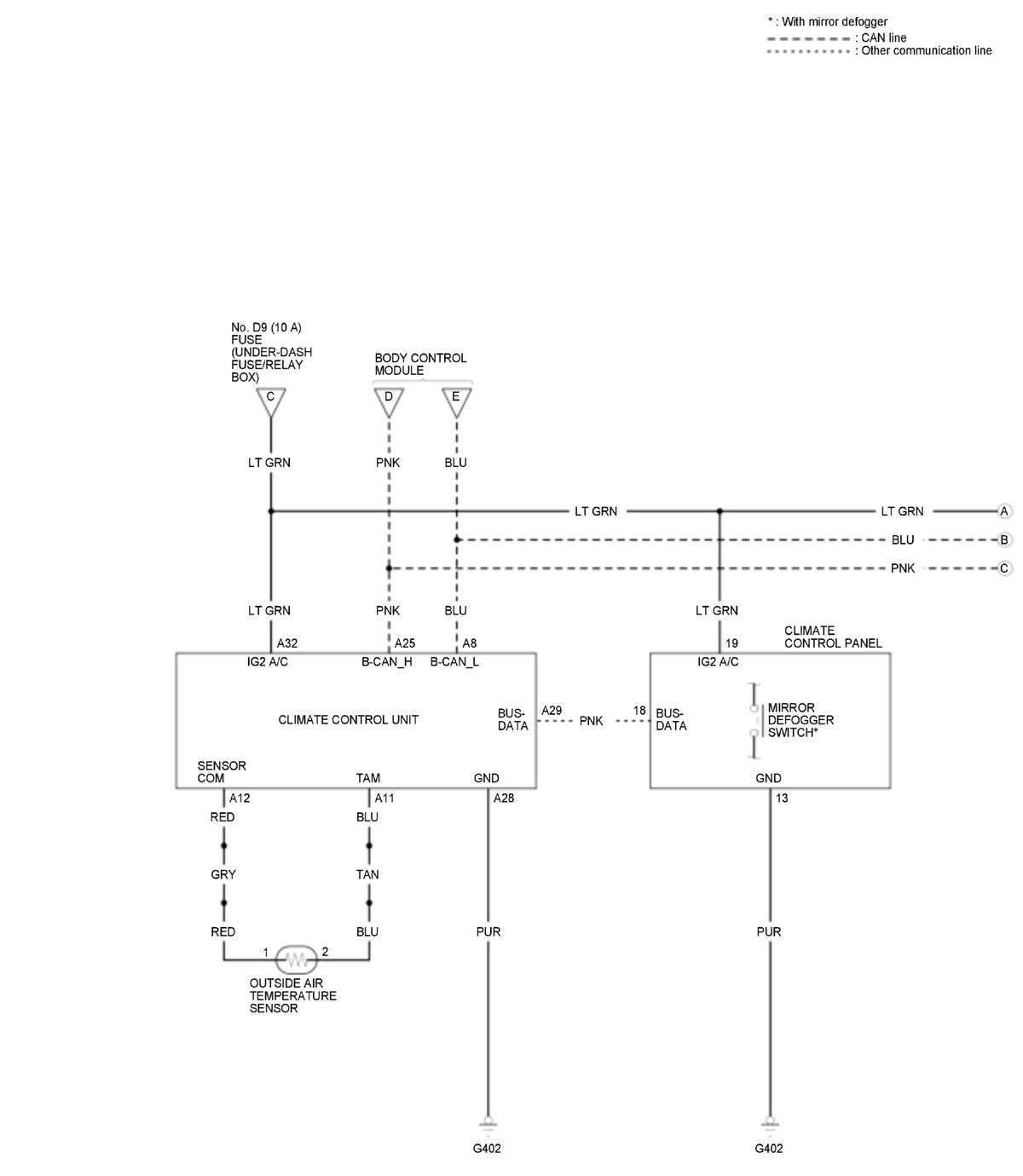

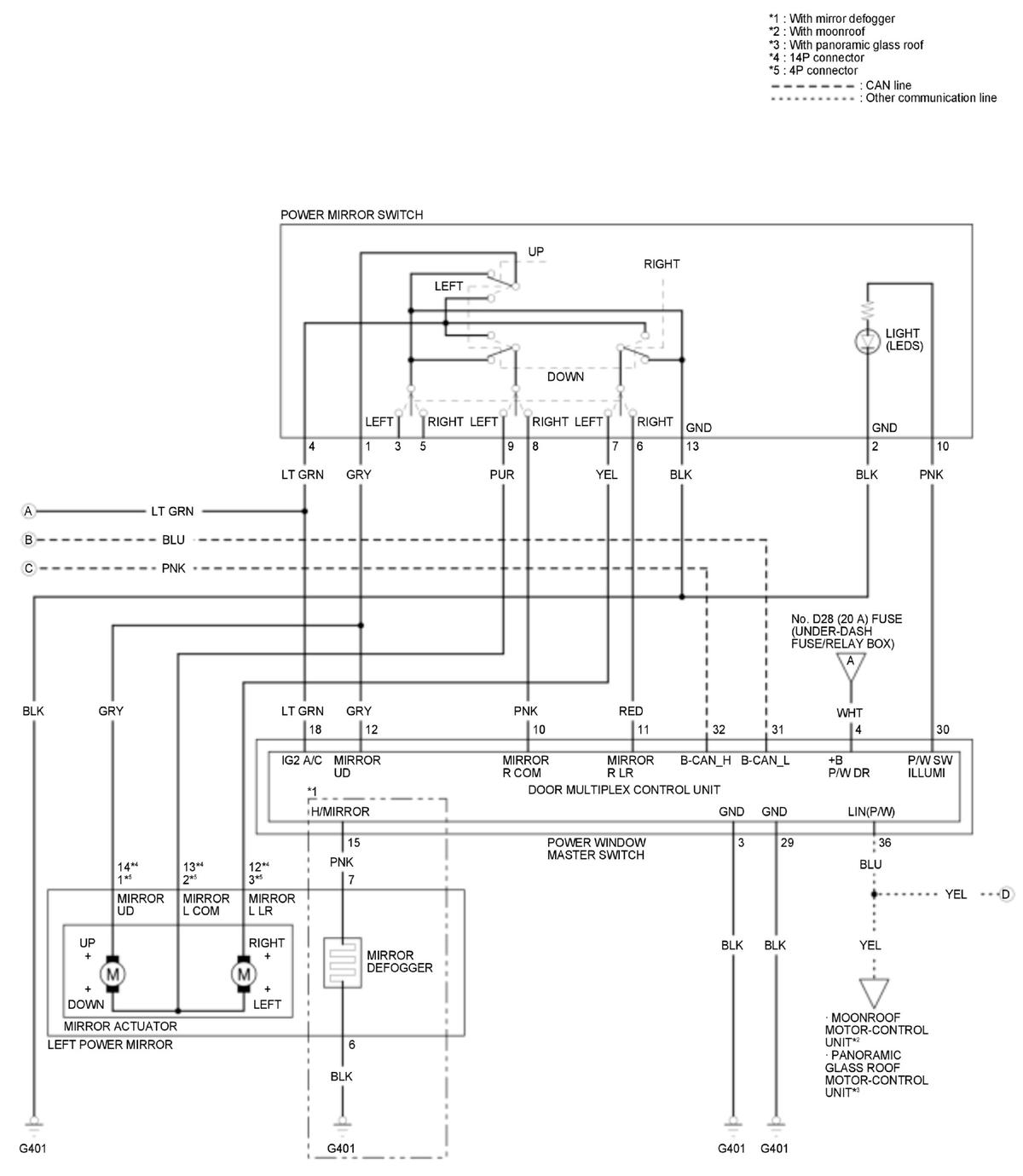

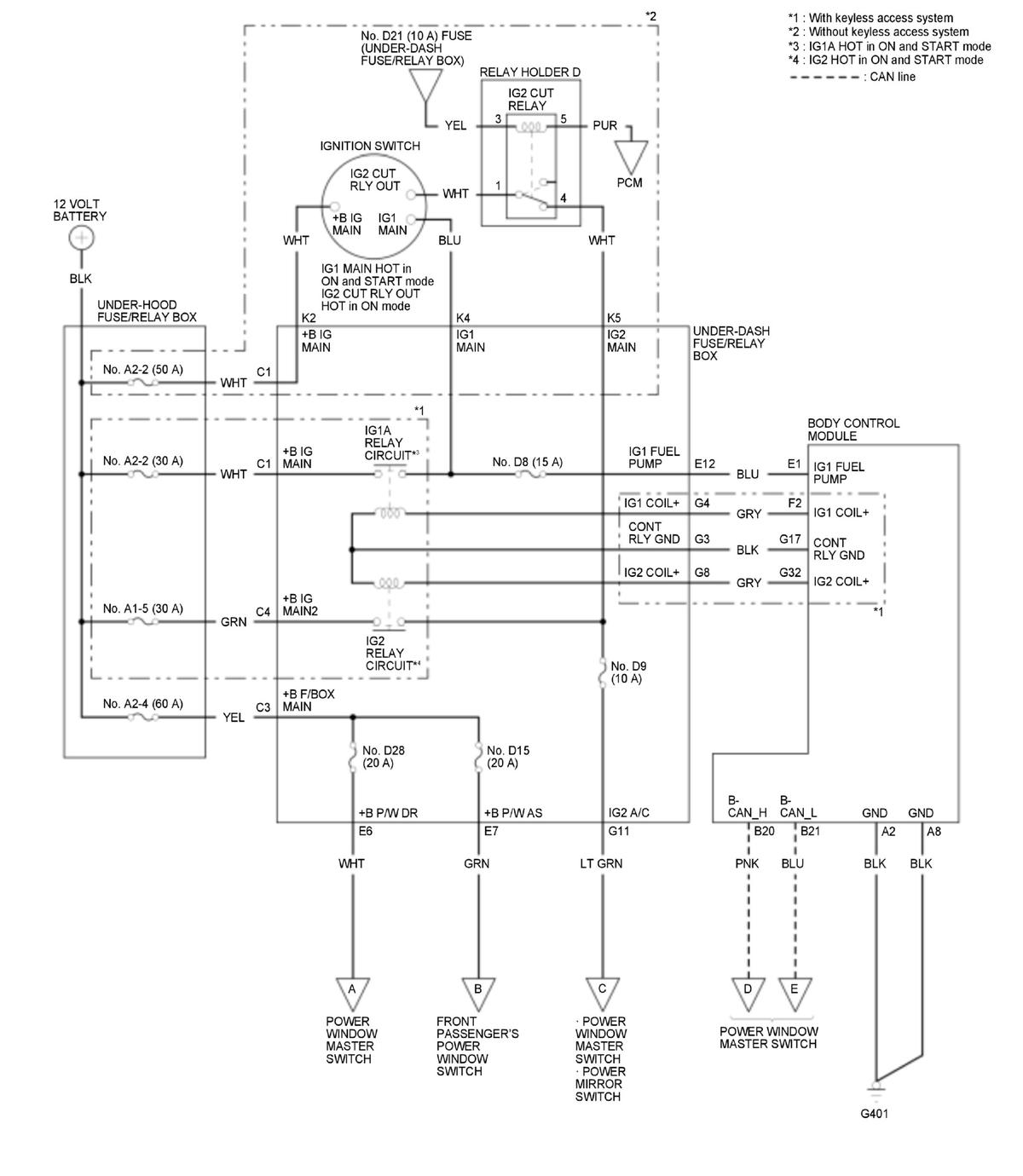

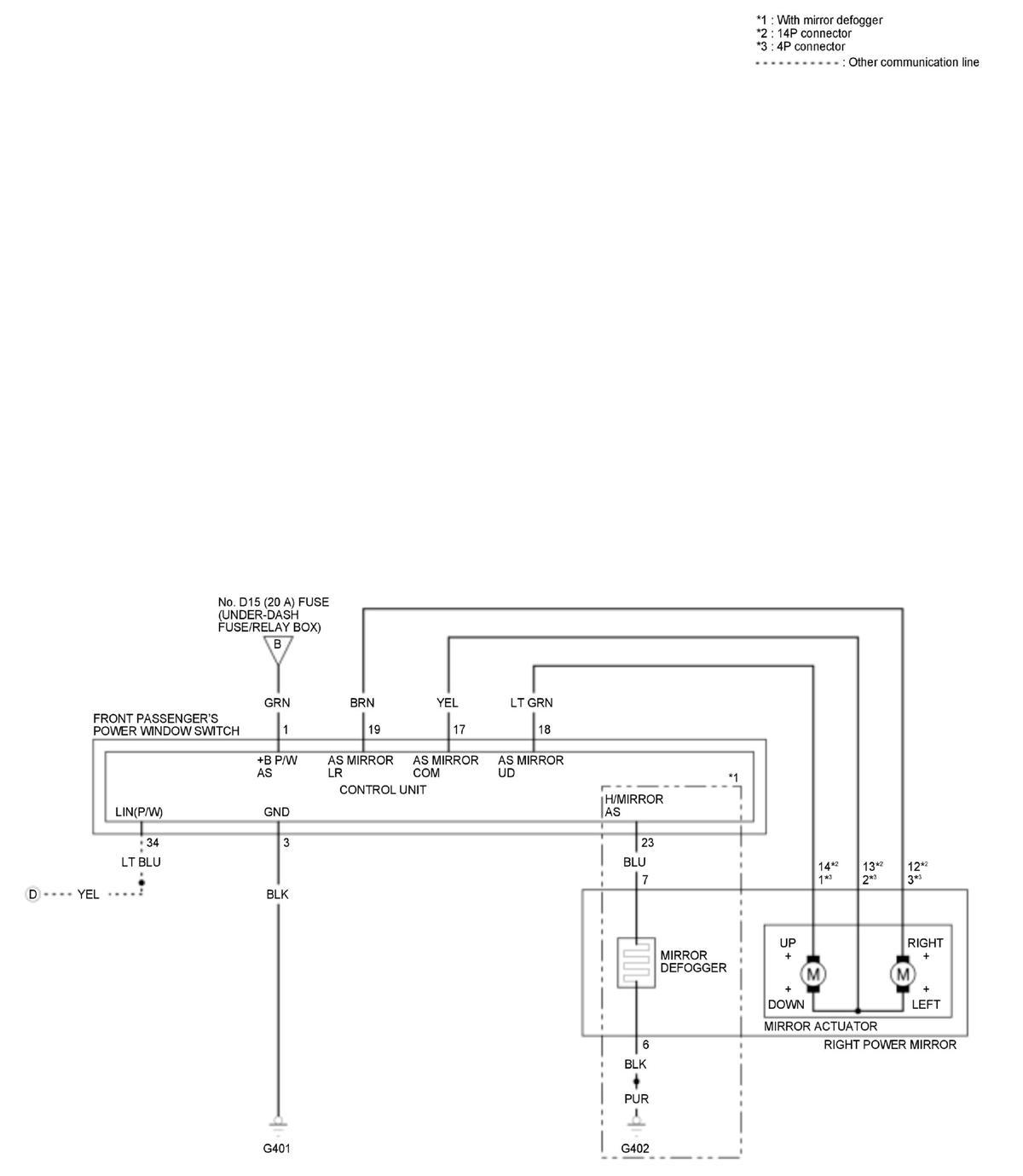

Power Mirrors Circuit Diagram
Power Mirrors Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
