Subframe Removal and Installation: Removal

NOTE: How to read the torque specifications

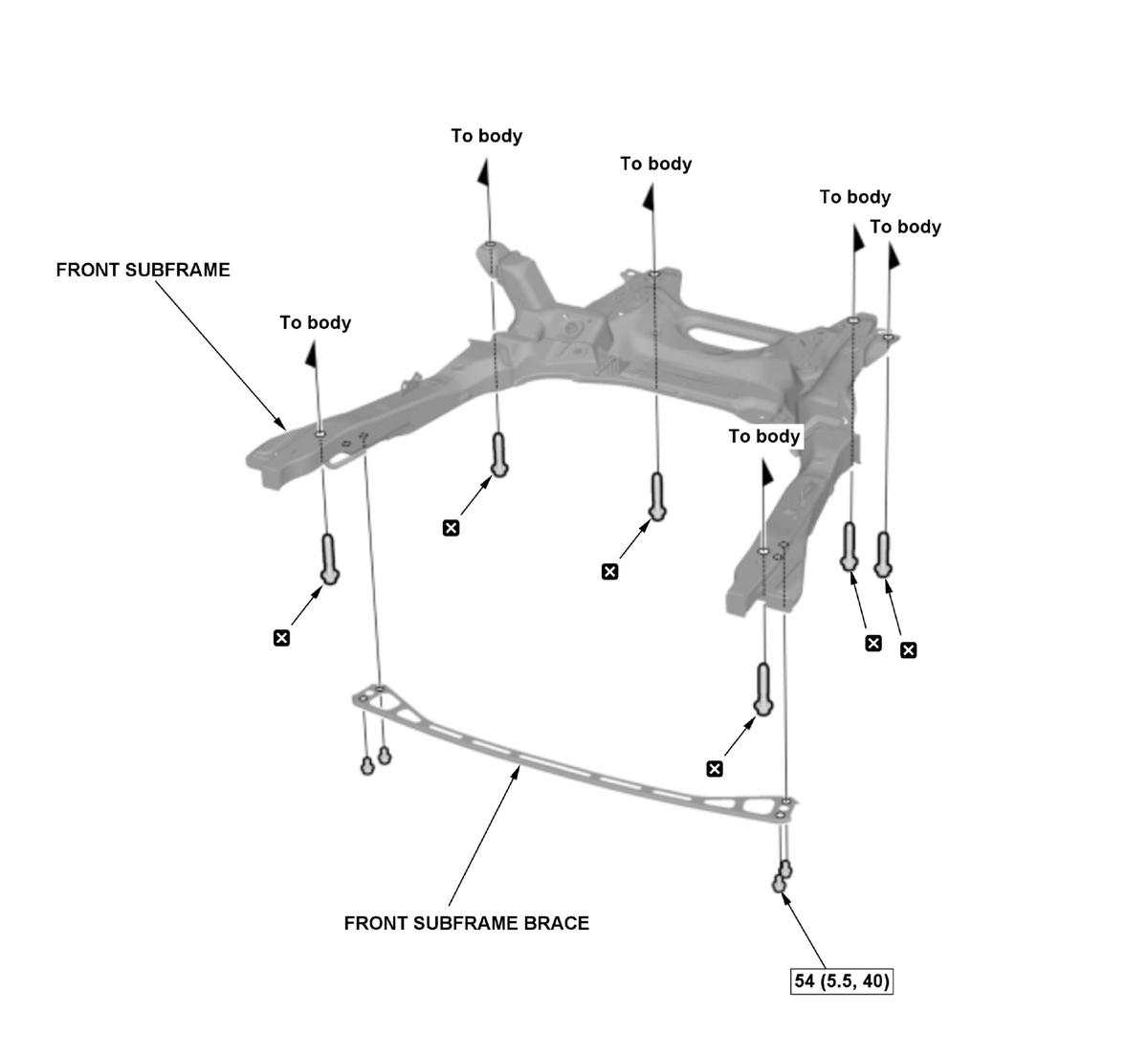

1. Front Subframe - Remove

   NOTE:  After removing the front subframe mounting bolts, be sure to replace them with new ones.

   Courtesy of HONDA, U.S.A., INC.

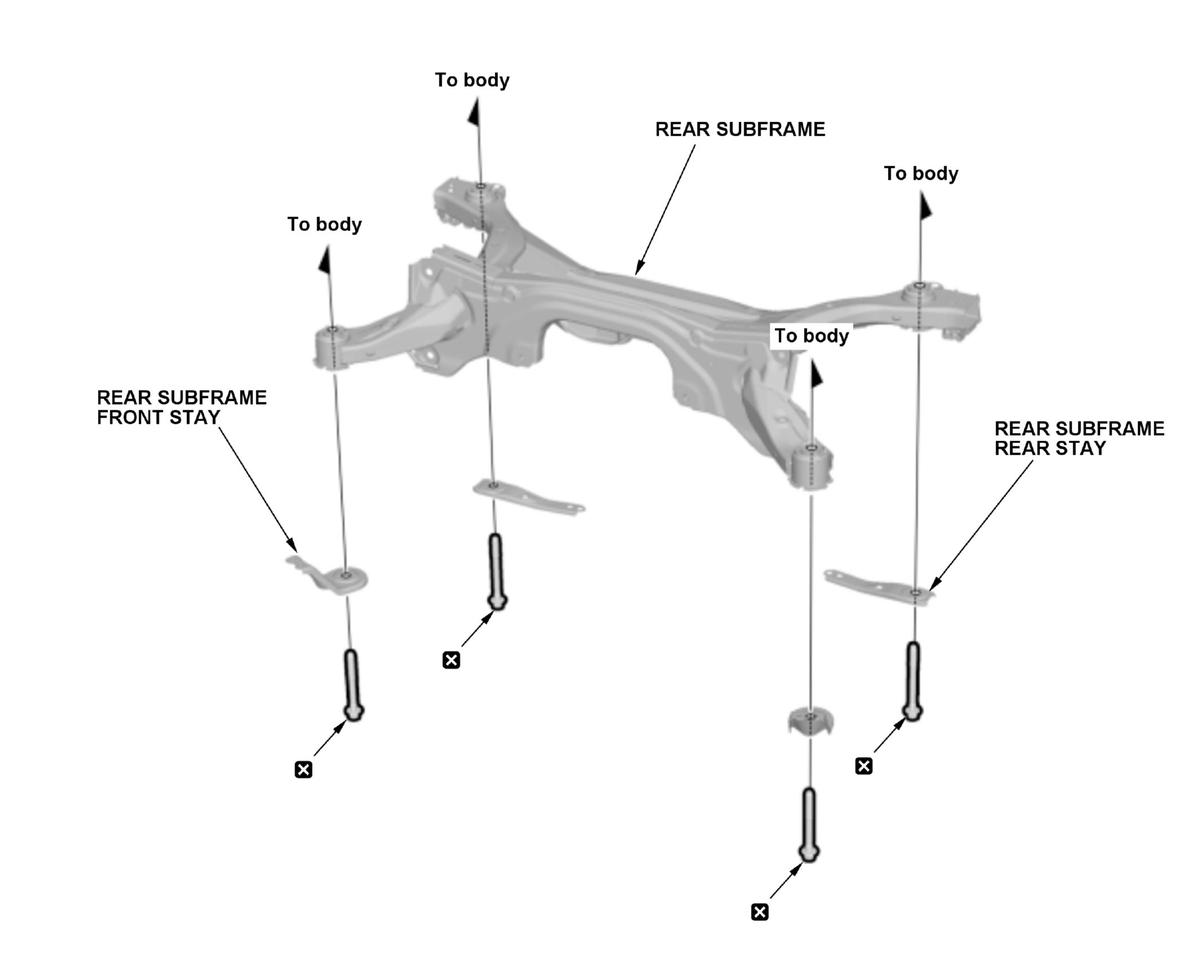

2. Rear Subframe - Remove

   NOTE:  After removing the rear subframe mounting bolts, be sure to replace them with new ones.

   Courtesy of HONDA, U.S.A., INC.
