Exploded View

1

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

2

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

3

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

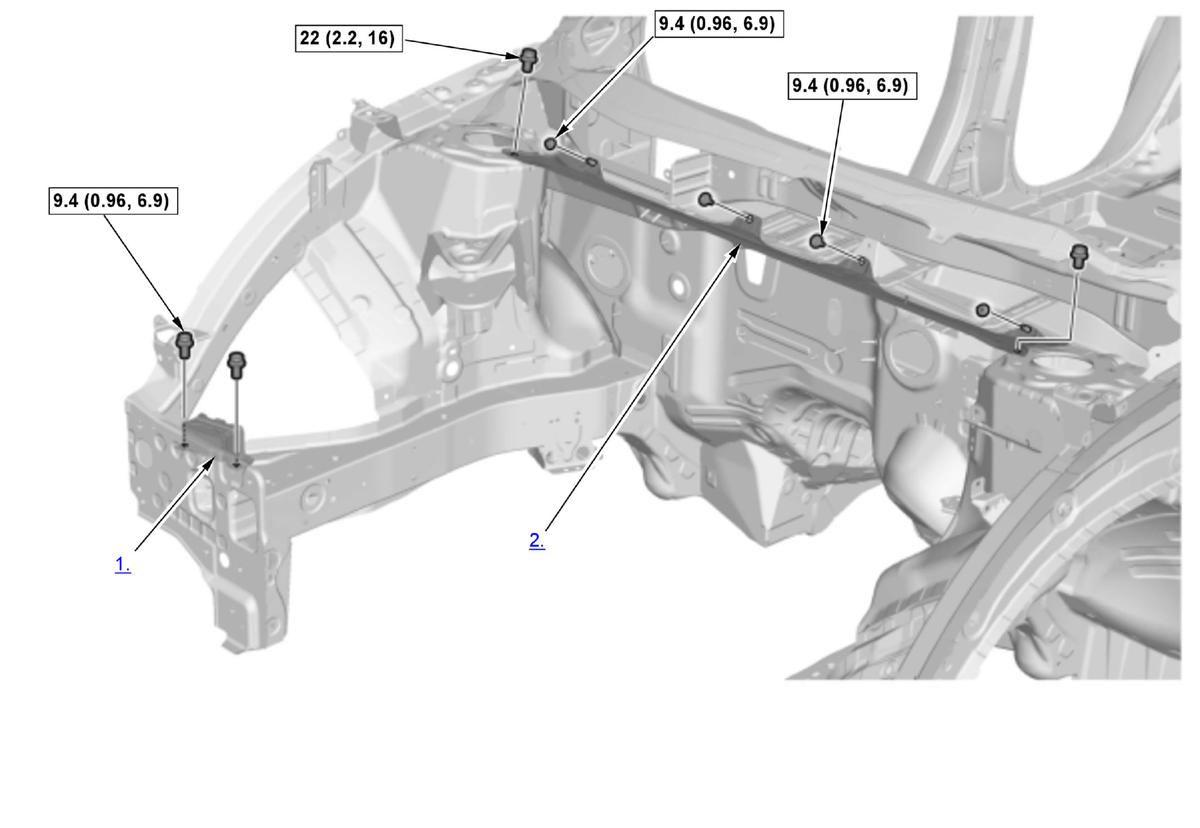

1. Front Side Frame Dynamic Damper - Remove (For Some Models)
2. Under Cowl Panel - Remove

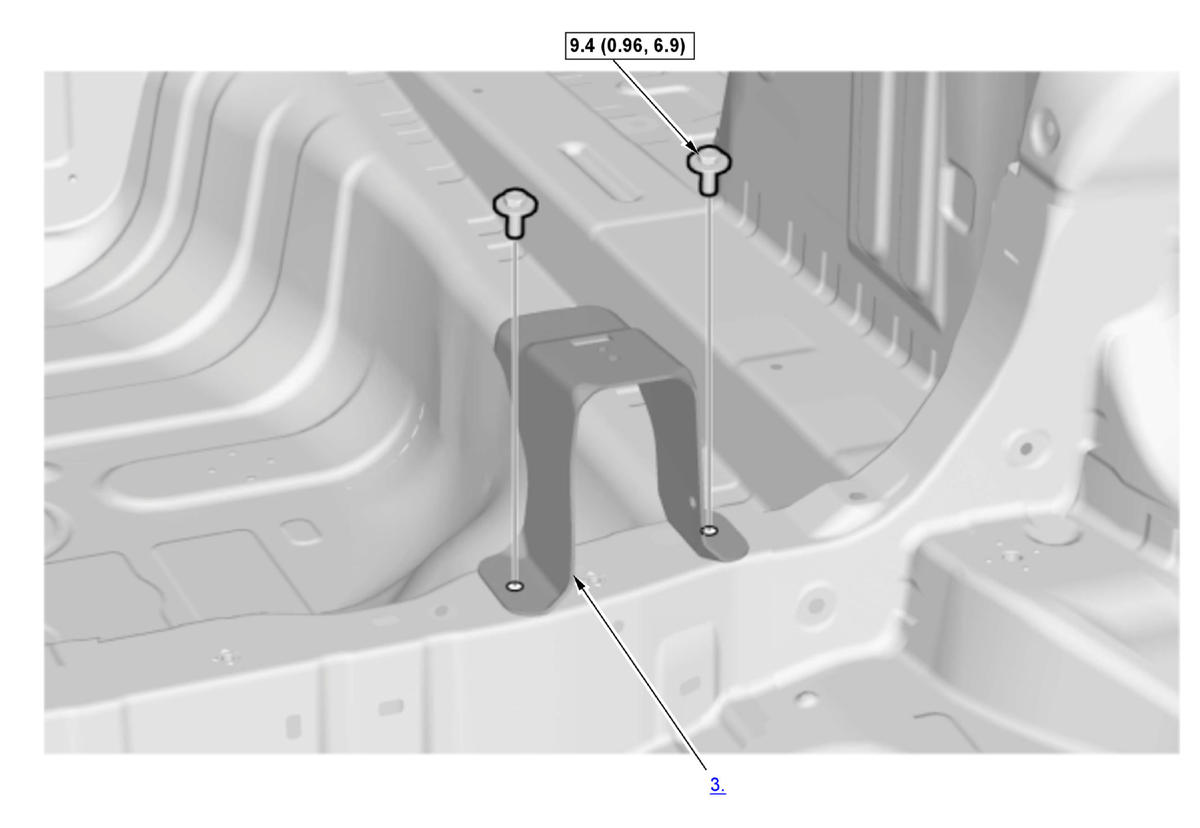

3. Rear Carpet Trim Bracket - Remove

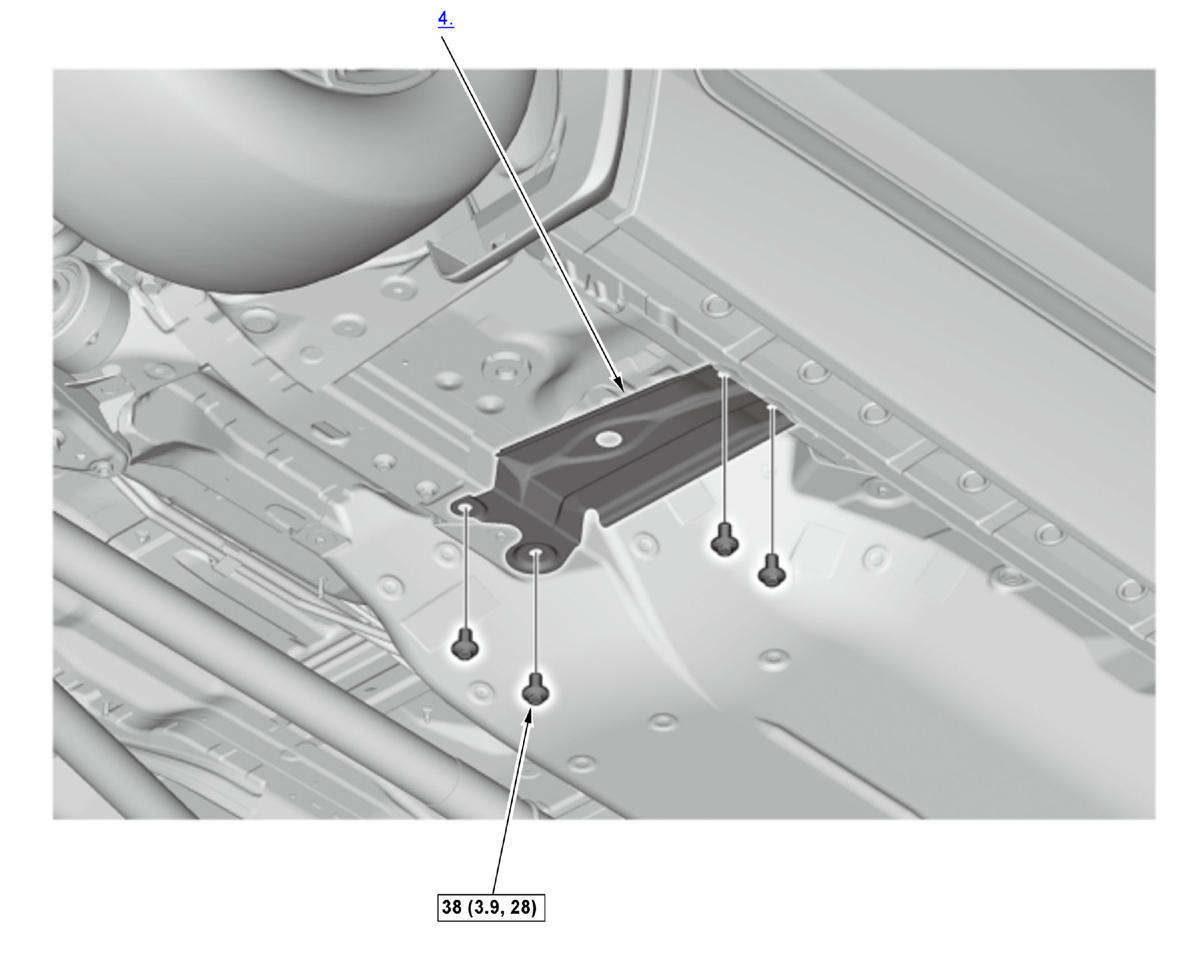

4. Front Floor Brace - Remove
