Exploded View

1

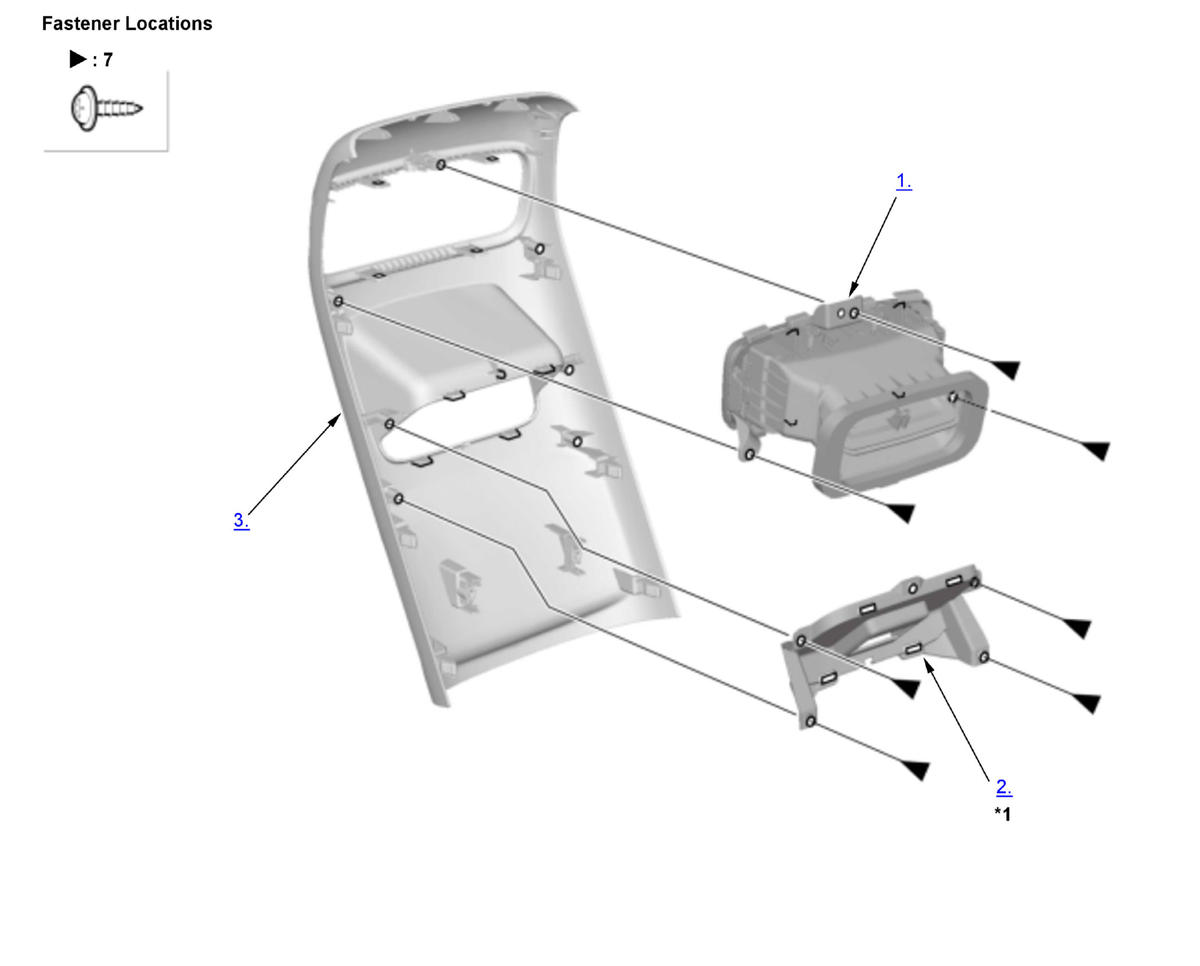

GHH429026Courtesy of HONDA, U.S.A., INC.
*1 For Some Models
  1. Center Console Outlet - Remove
  2. Center Console Rear Jack Panel - Remove
  3. Center Console Rear Trim - Remove
  4. All Disassembled Parts - Reassemble
    1. Reassemble the parts in the reverse order of disassembly.
