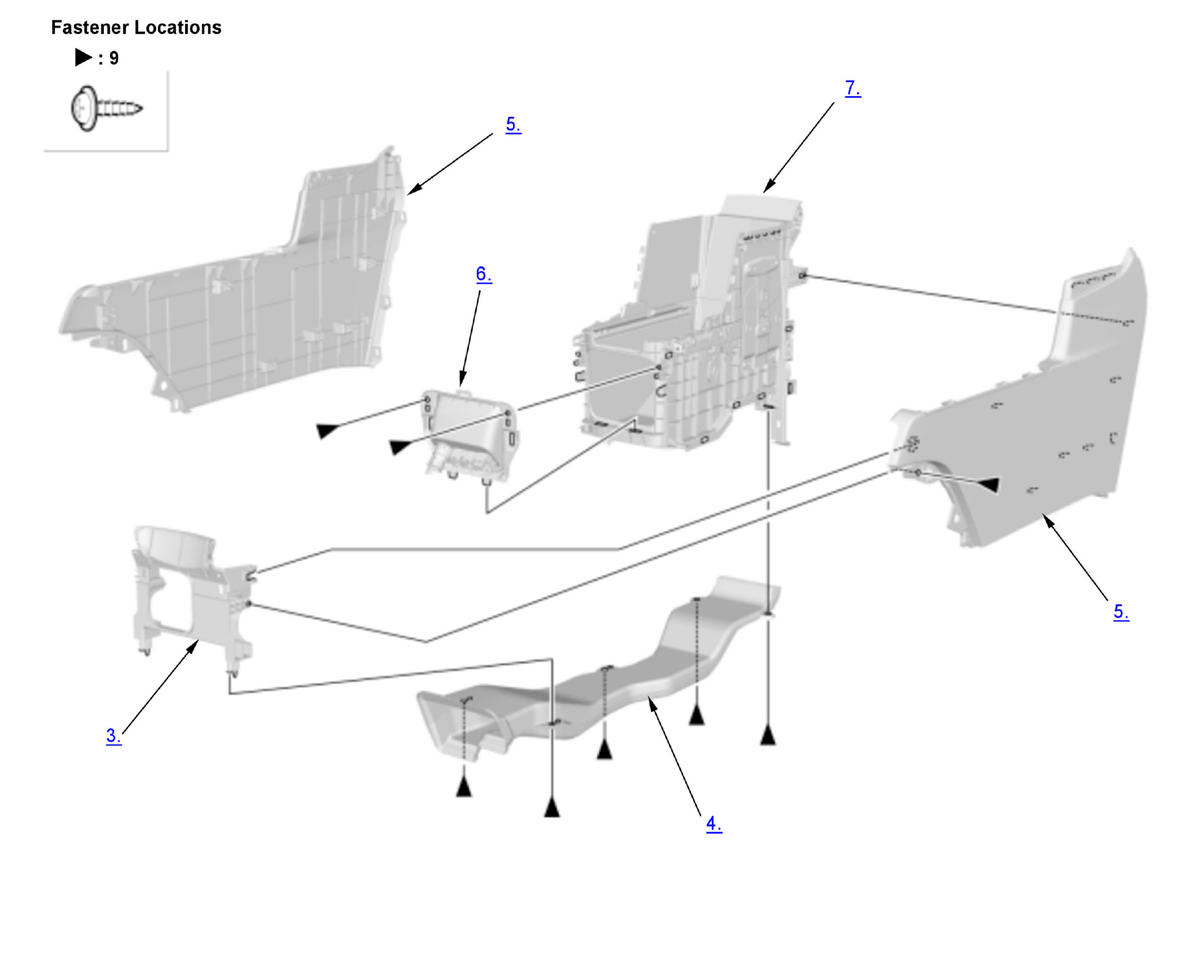

Exploded View

1

GHH429025Courtesy of HONDA, U.S.A., INC.
  1. Center Console - Remove
  2. Center Console Armrest - Remove
  3. Center Console Front Bracket - Remove
  4. Center Console Front Duct - Remove
  5. Center Console Side Panel - Remove
  6. Center Console Box Jack Panel - Remove
  7. Center Console Box - Remove
  8. All Disassembled Parts - Reassemble
    1. Reassemble the parts in the reverse order of disassembly.
