Power Tailgate Closer Motor Test: Test

  1. Tailgate Lower Trim Panel - Remove
  2. Power Tailgate Closer Motor - Test

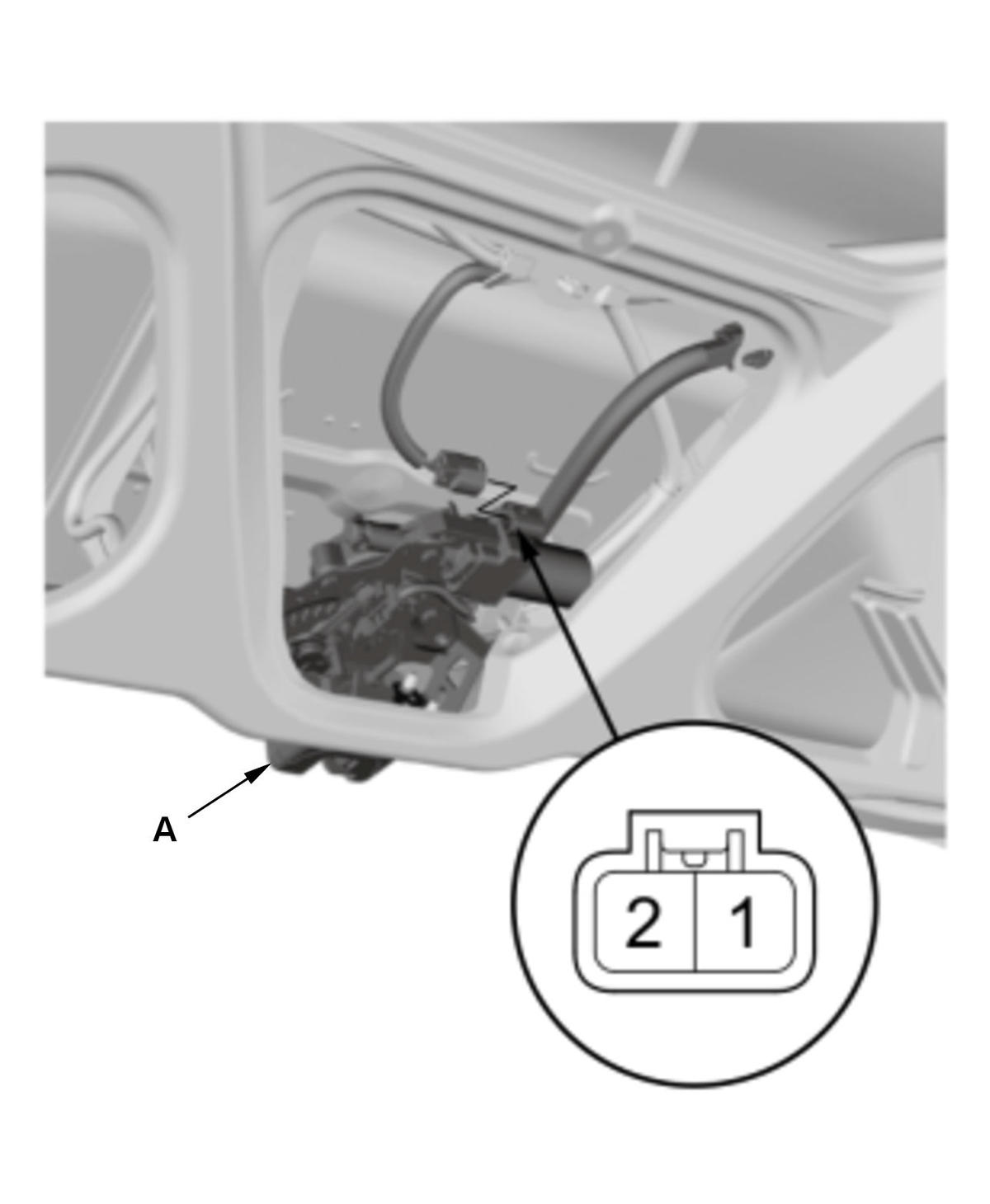

    GHH427677Courtesy of HONDA, U.S.A., INC.
    		 1. Test the power tailgate closer motor operation by connecting battery power to the terminal No. 2 and ground to the terminal No. 1. To prevent damage to the power tailgate closer motor, apply battery voltage only momentarily. The power tailgate closer motor should run.

    2. If the power tailgate closer motor does not run or fails to run smoothly, the power tailgate closer motor is faulty; replace the tailgate latch assembly

    (A).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
