Heated Windshield Wiper Area System Description

The Timer Function

The heated windshield wiper area provides the timer control function that is managed by the body control module.

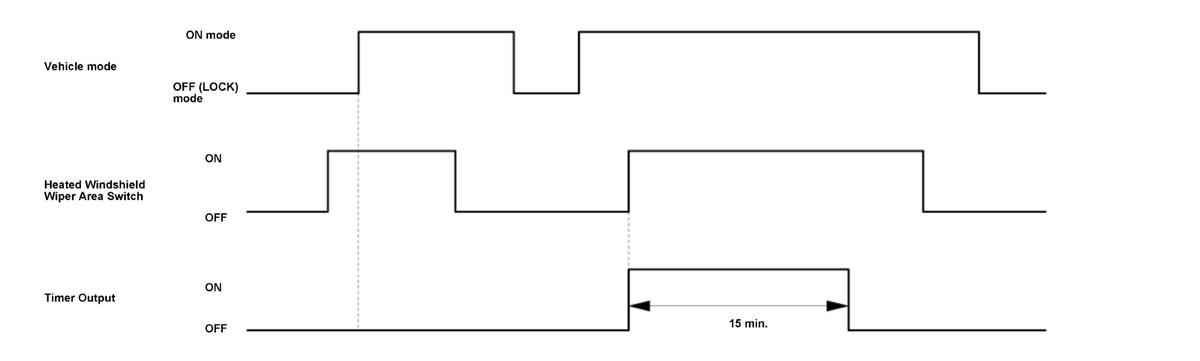

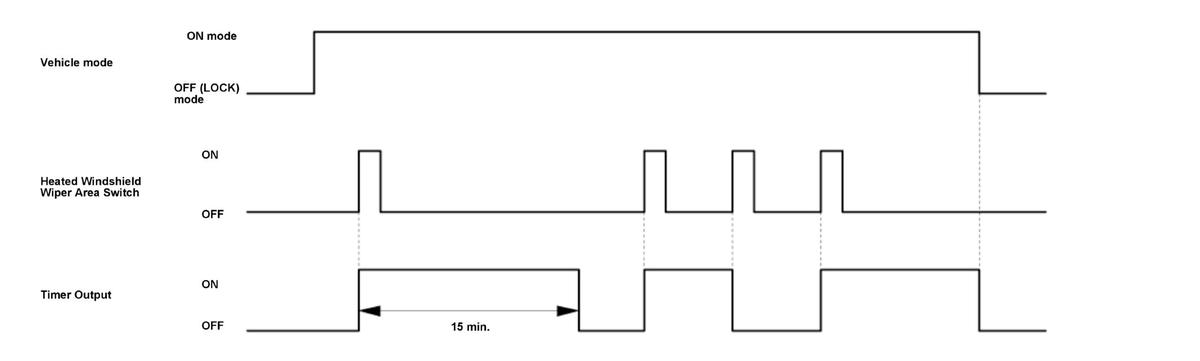

• The timer control is operated by turning the vehicle to the ON mode, and turning the heated windshield wiper area switch ON. The timer operating time is about 15 minutes. If the heated windshield wiper area switch is turned on when the timer is active, it toggles between ON and OFF every time the switch is pressed.

Courtesy of HONDA, U.S.A., INC.

• When the heated windshield wiper area switch is ON before turning the vehicle to the ON mode, the timer control does not operate. When the heated windshield wiper area switch input signal remain ON for more than 15 minutes, the timer output will turn OFF for about 15 minutes.

Courtesy of HONDA, U.S.A., INC.
