Wipers/Washers Component Location Index

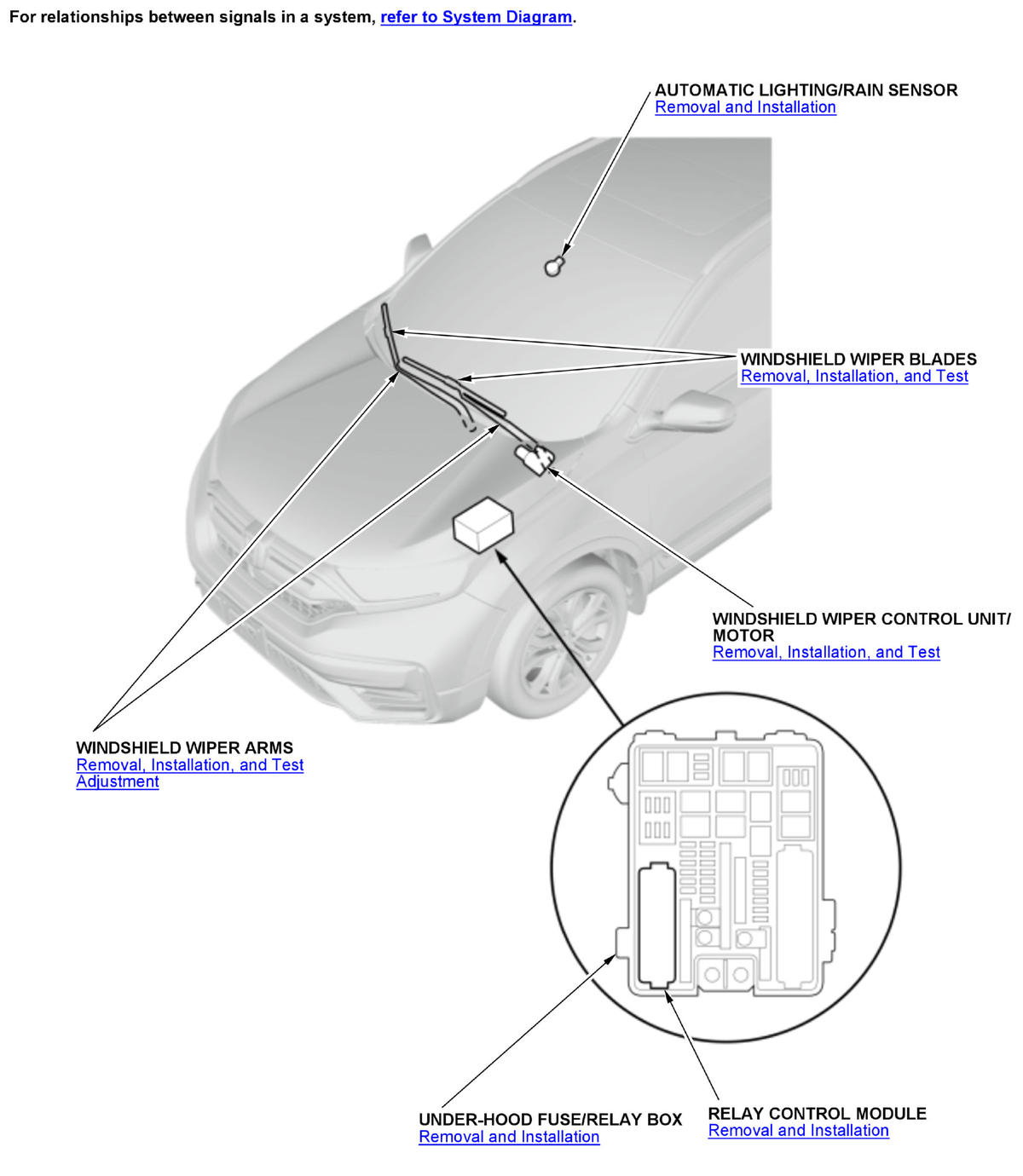

GHH427711

Courtesy of HONDA, U.S.A., INC.

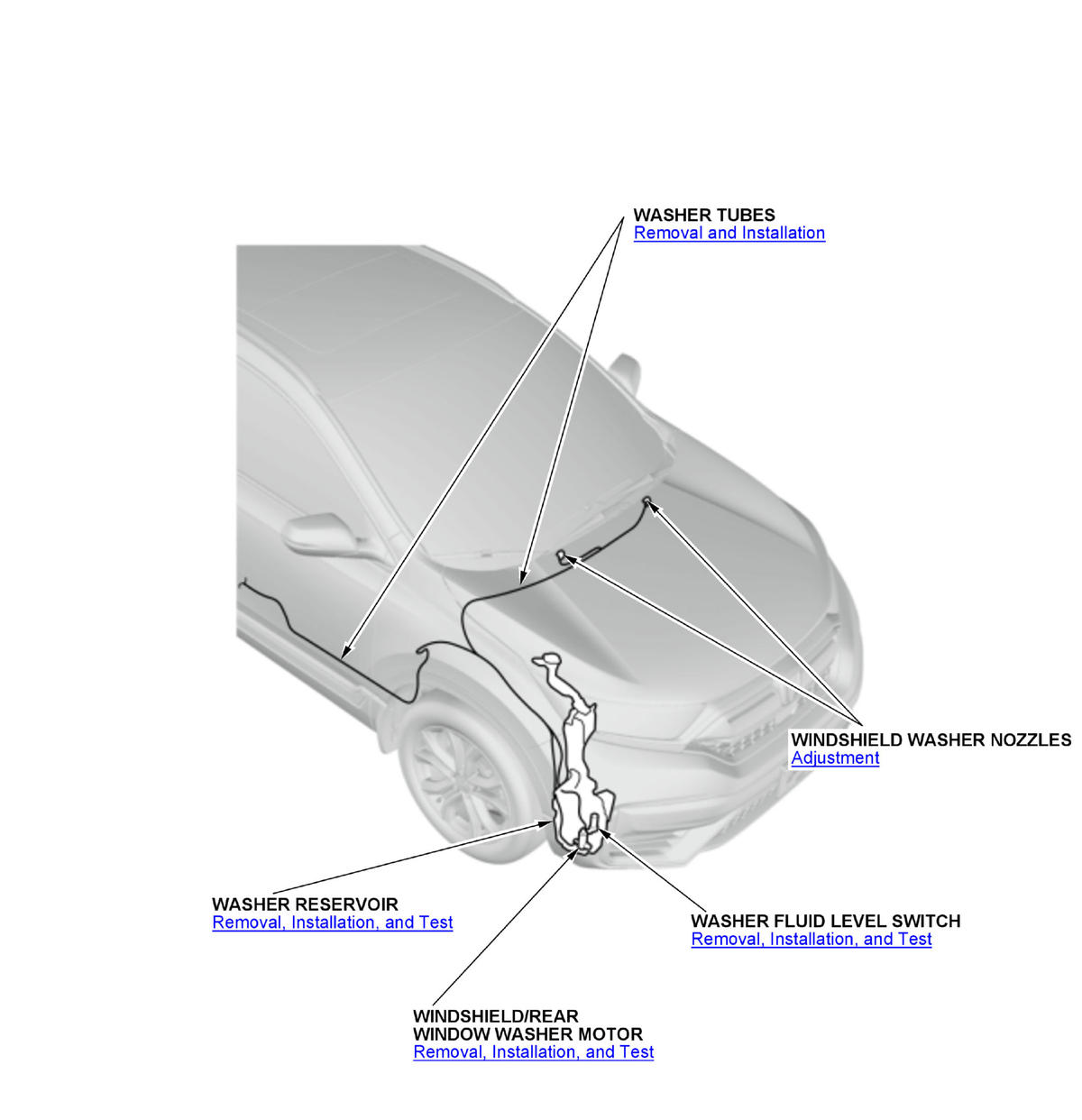

GHH427712

Courtesy of HONDA, U.S.A., INC.

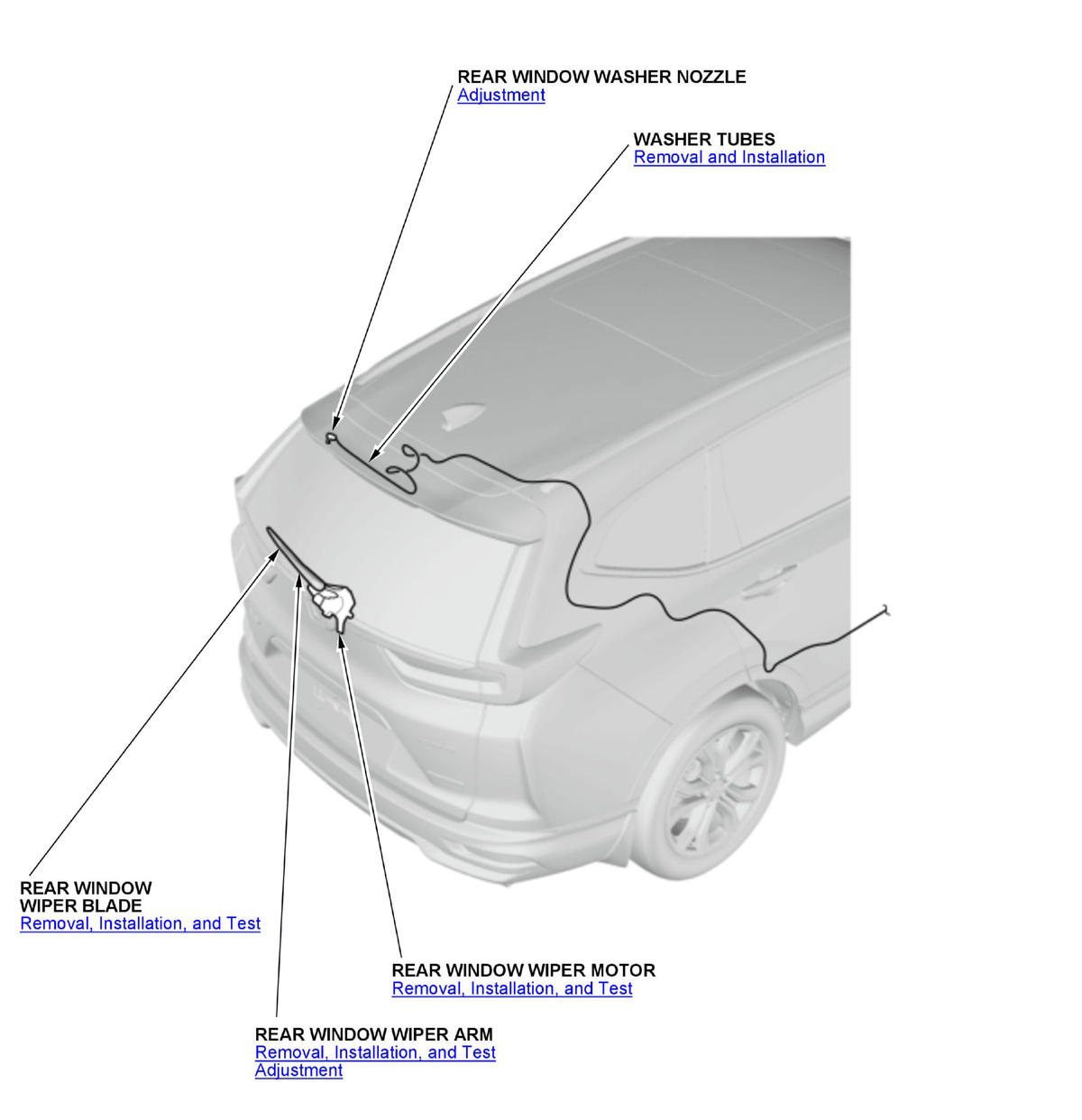

GHH427713

Courtesy of HONDA, U.S.A., INC.

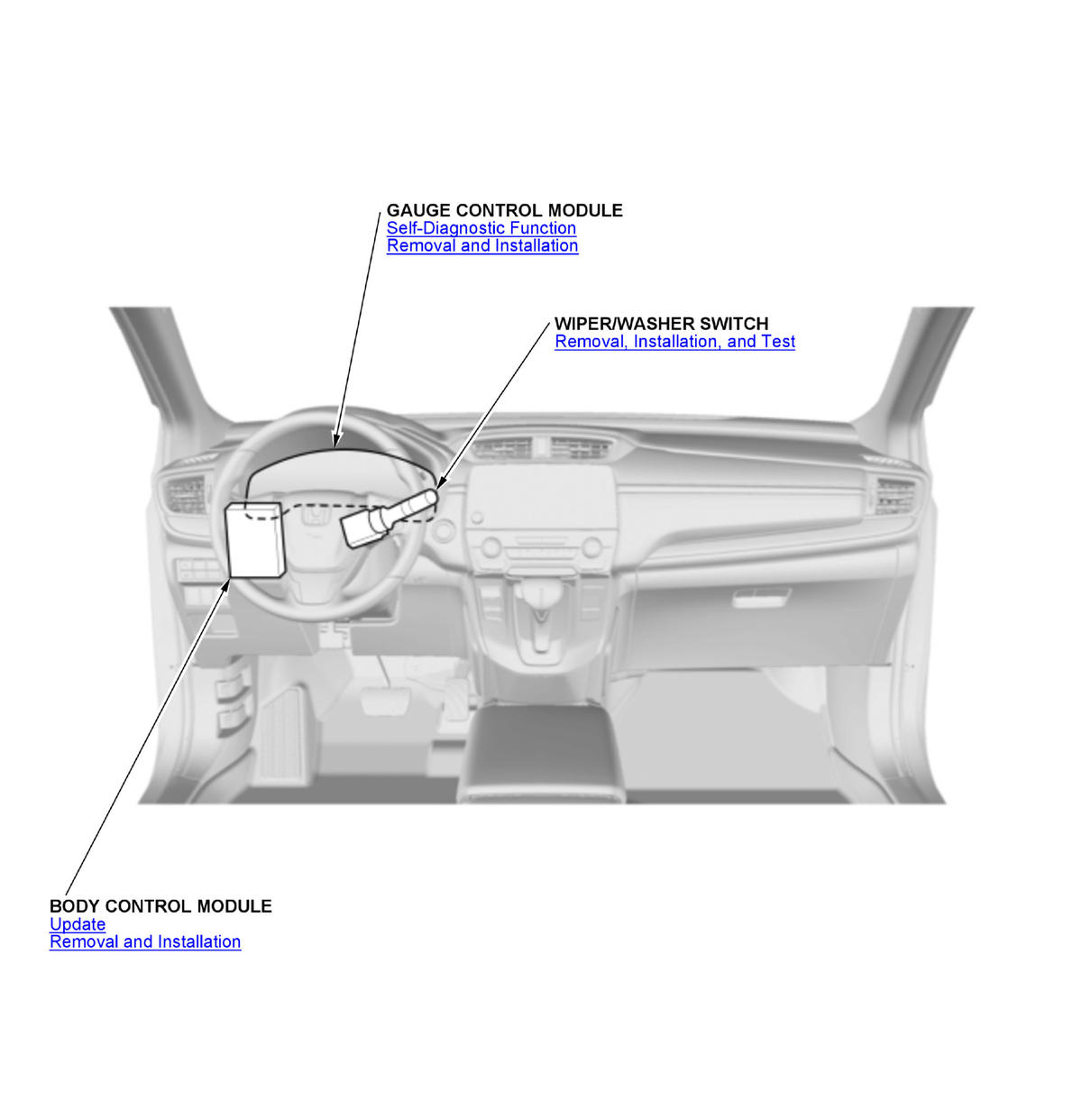

GHH427714

Courtesy of HONDA, U.S.A., INC.
