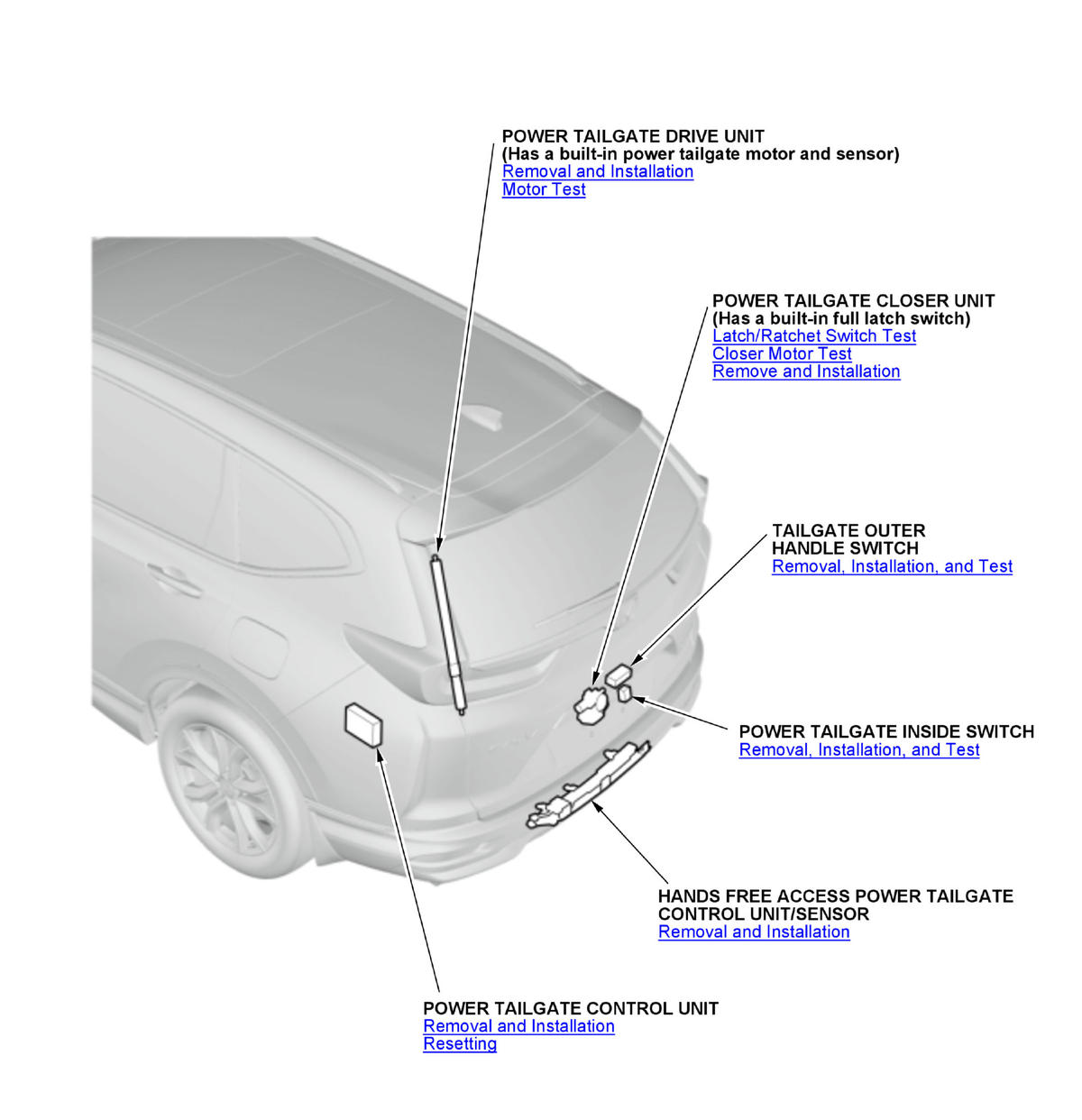

Power Tailgate Component Location Index

For relationships between signals in a system,

refer to System Diagram .Without remote engine start

Courtesy of HONDA, U.S.A., INC.

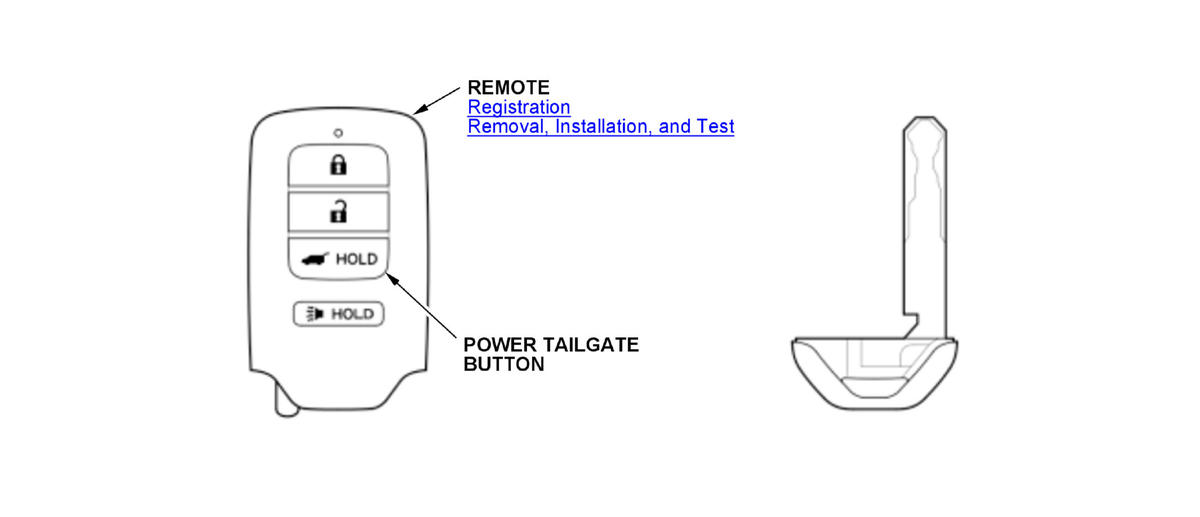

With remote engine start

Courtesy of HONDA, U.S.A., INC.

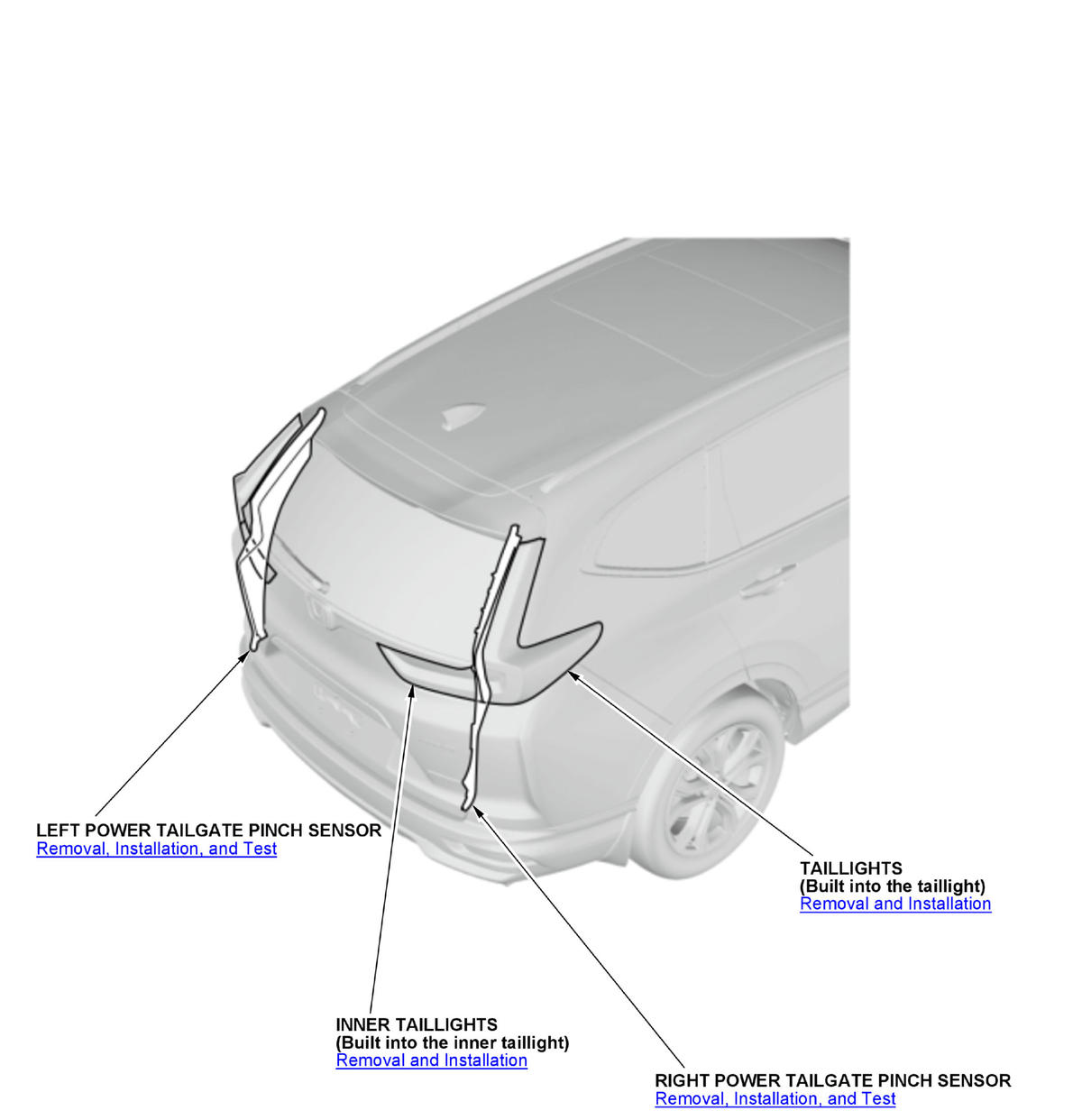

Courtesy of HONDA, U.S.A., INC.

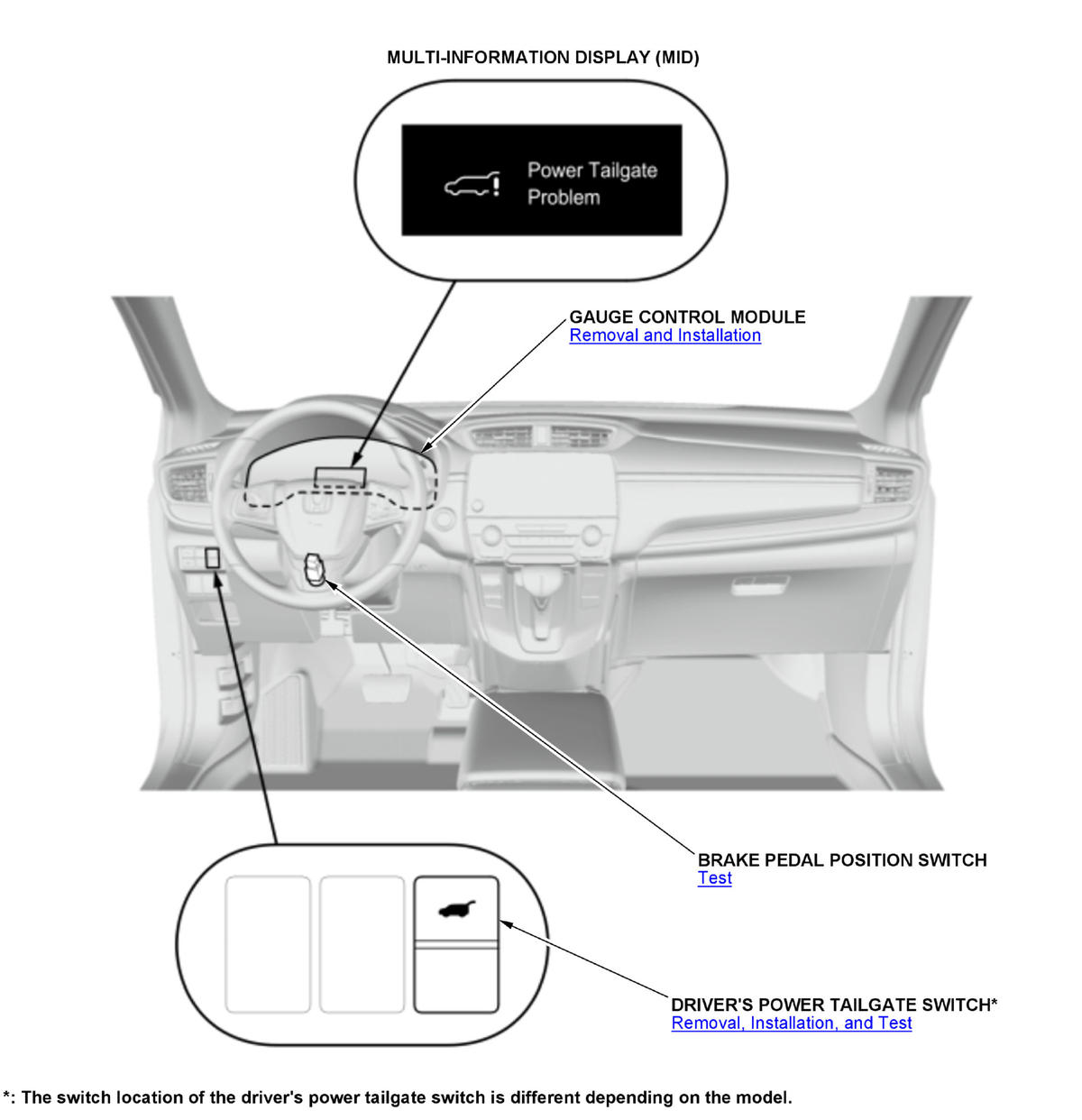

Courtesy of HONDA, U.S.A., INC.

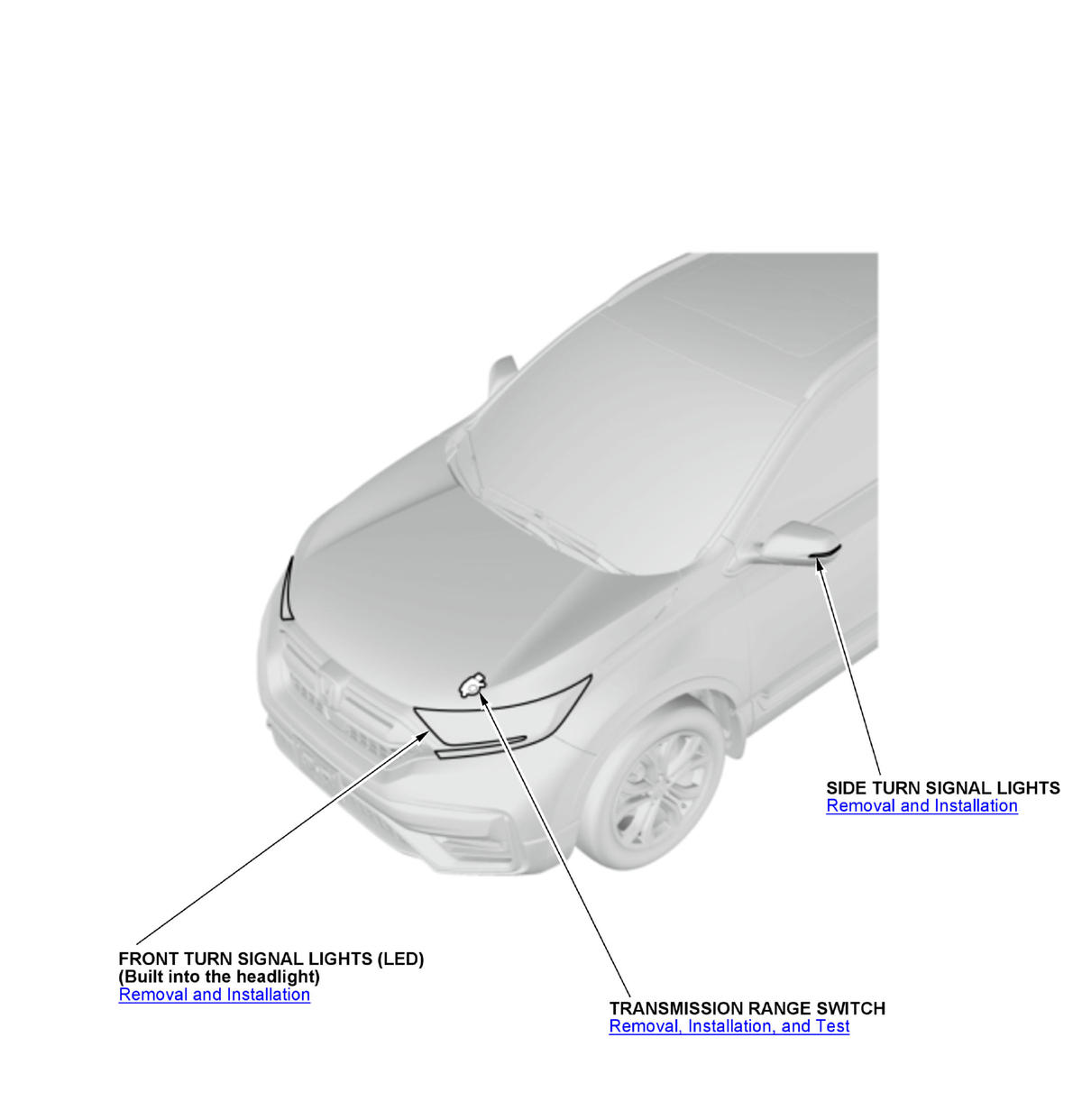

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
