Circuit Diagram
>>
Wipers/Washers Circuit Diagram

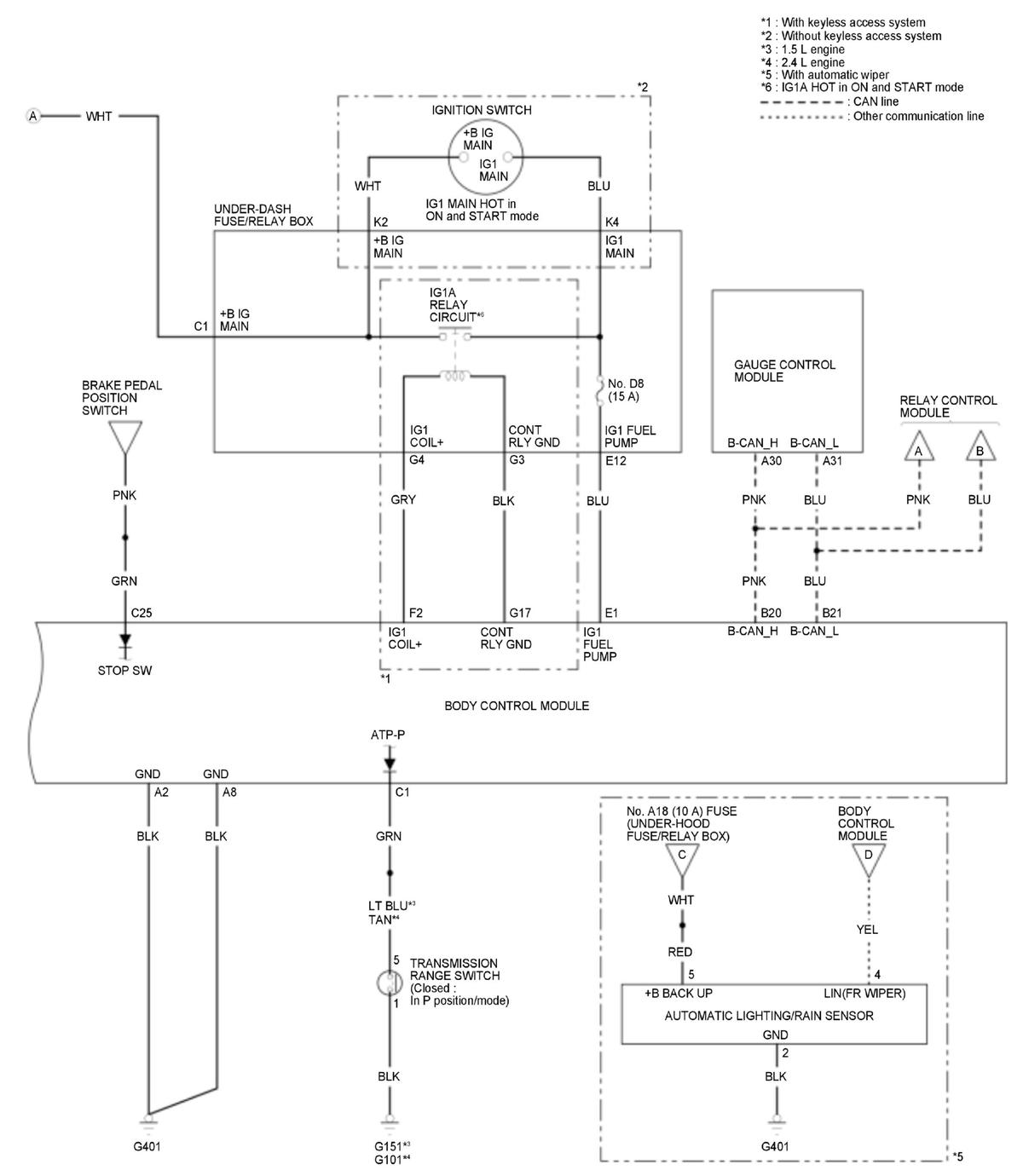

Wipers/Washers Circuit Diagram

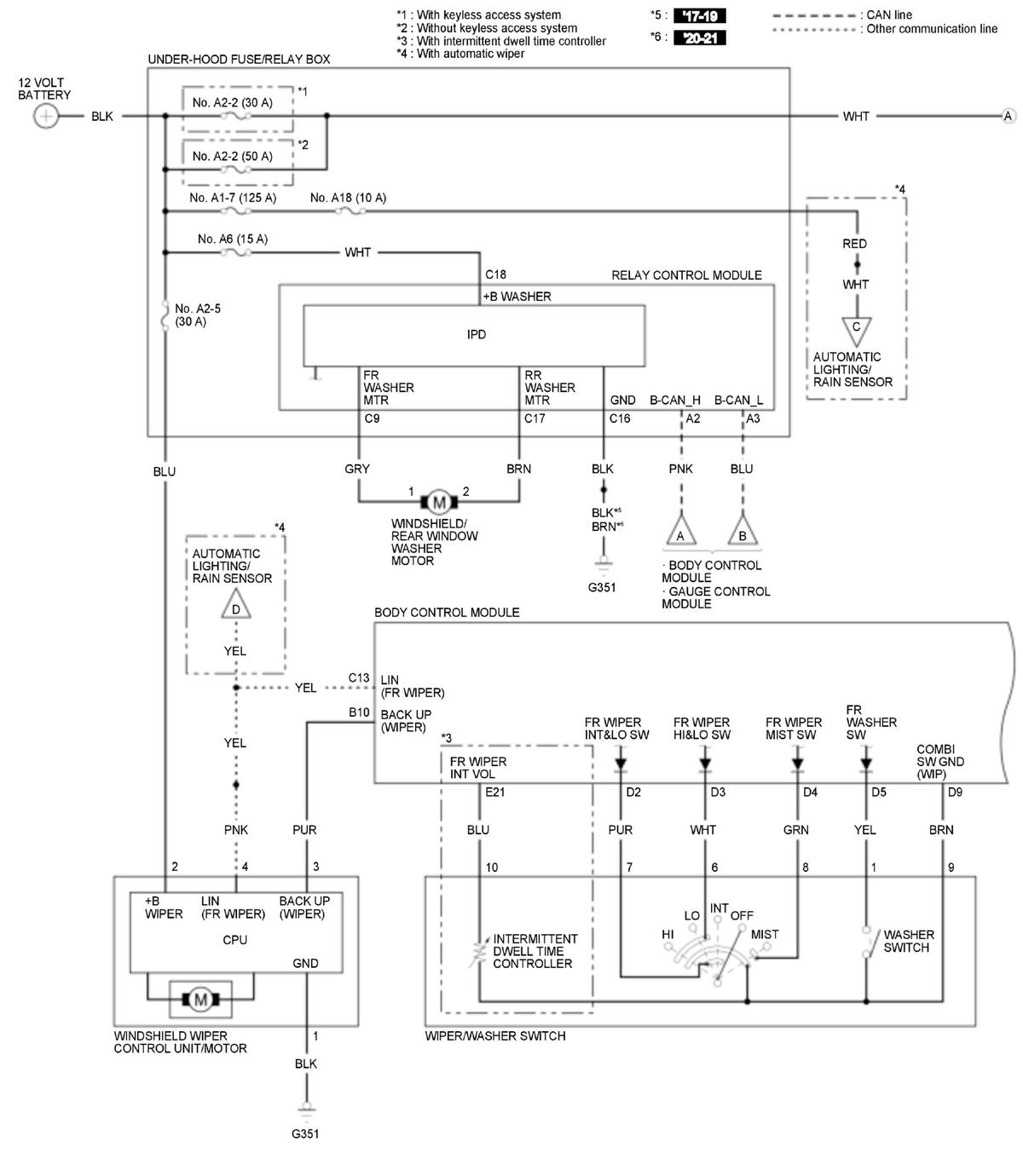

Windshield
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.

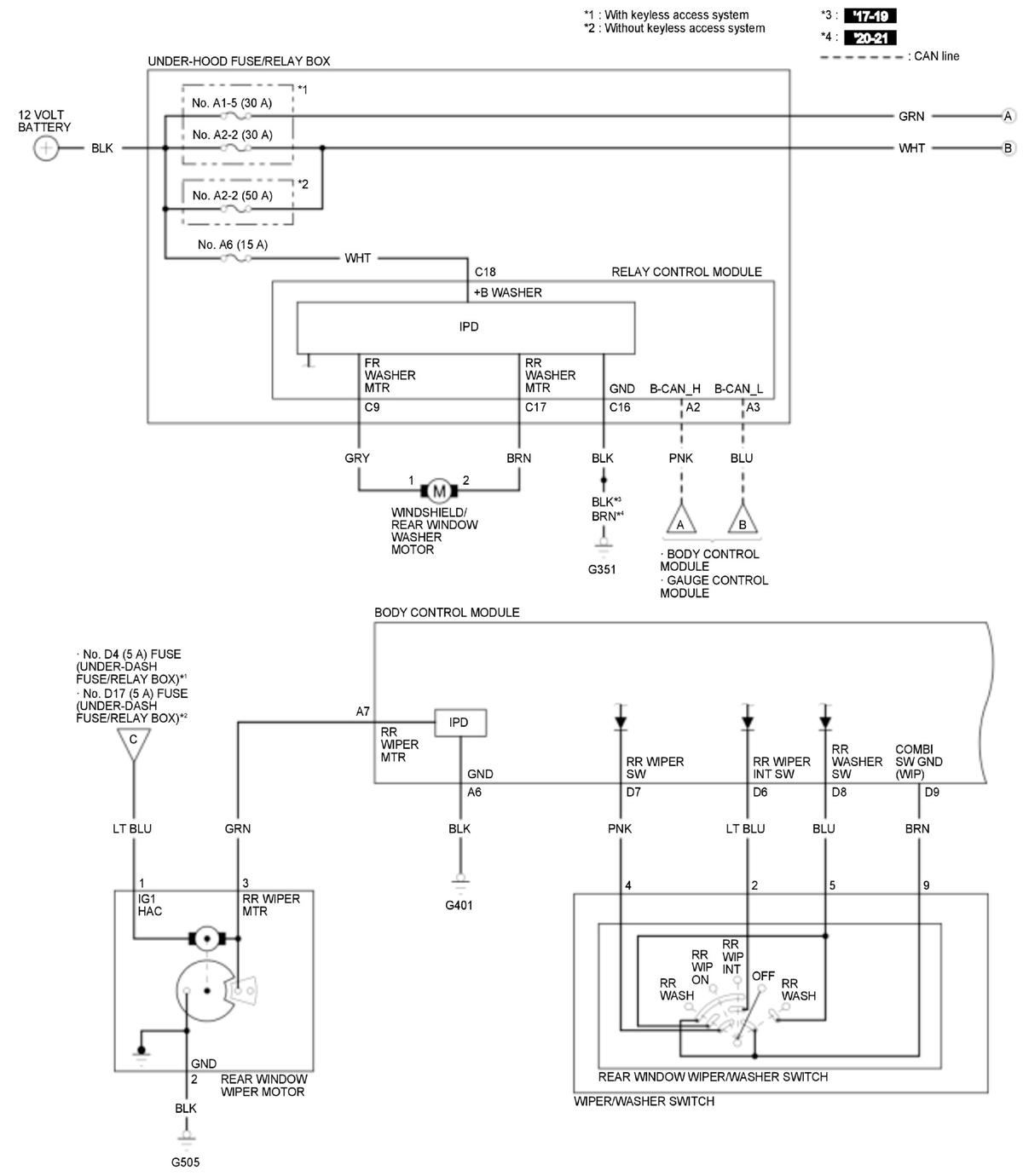

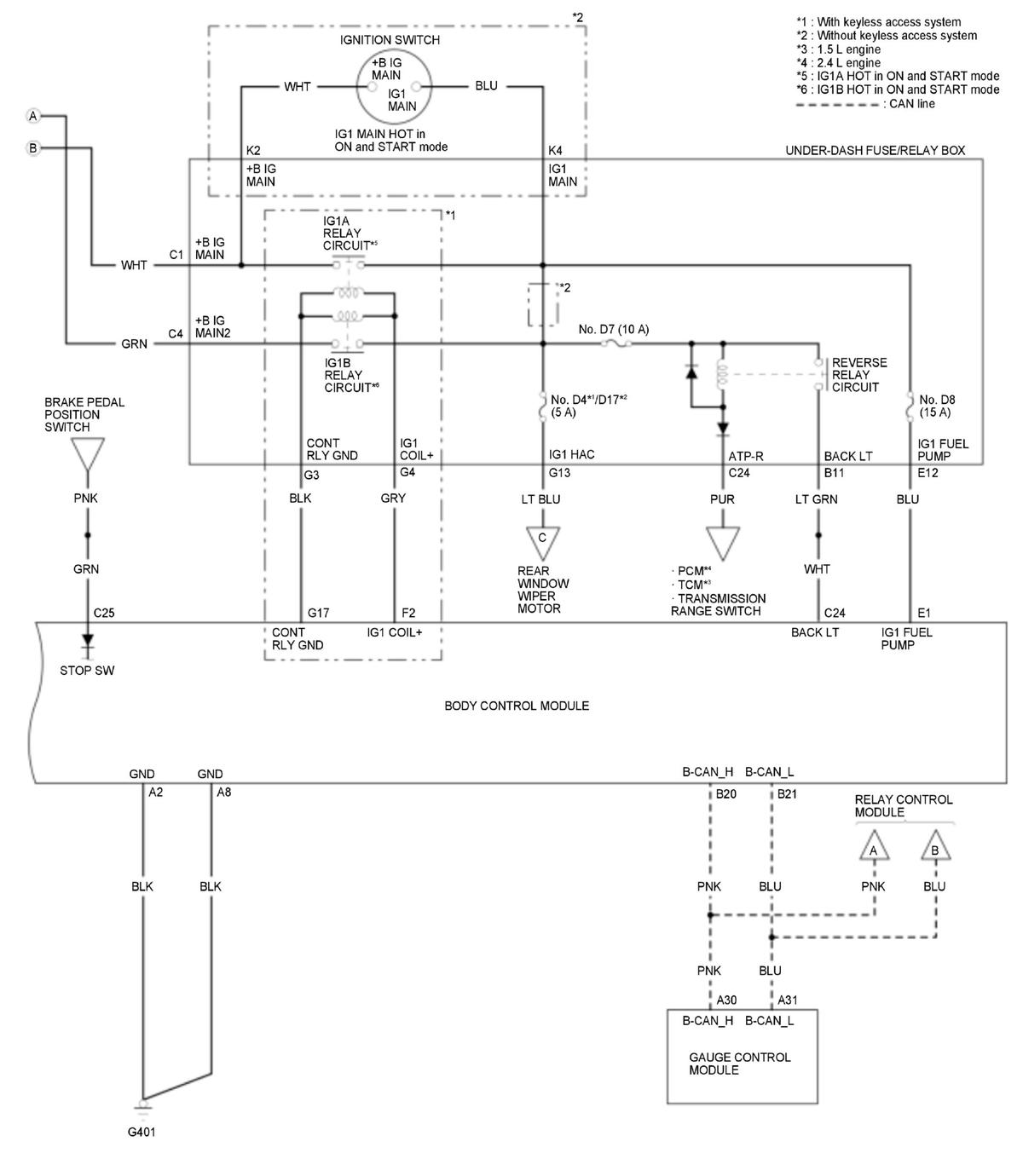

Rear Window
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
