Security System / Keyless Entry System - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

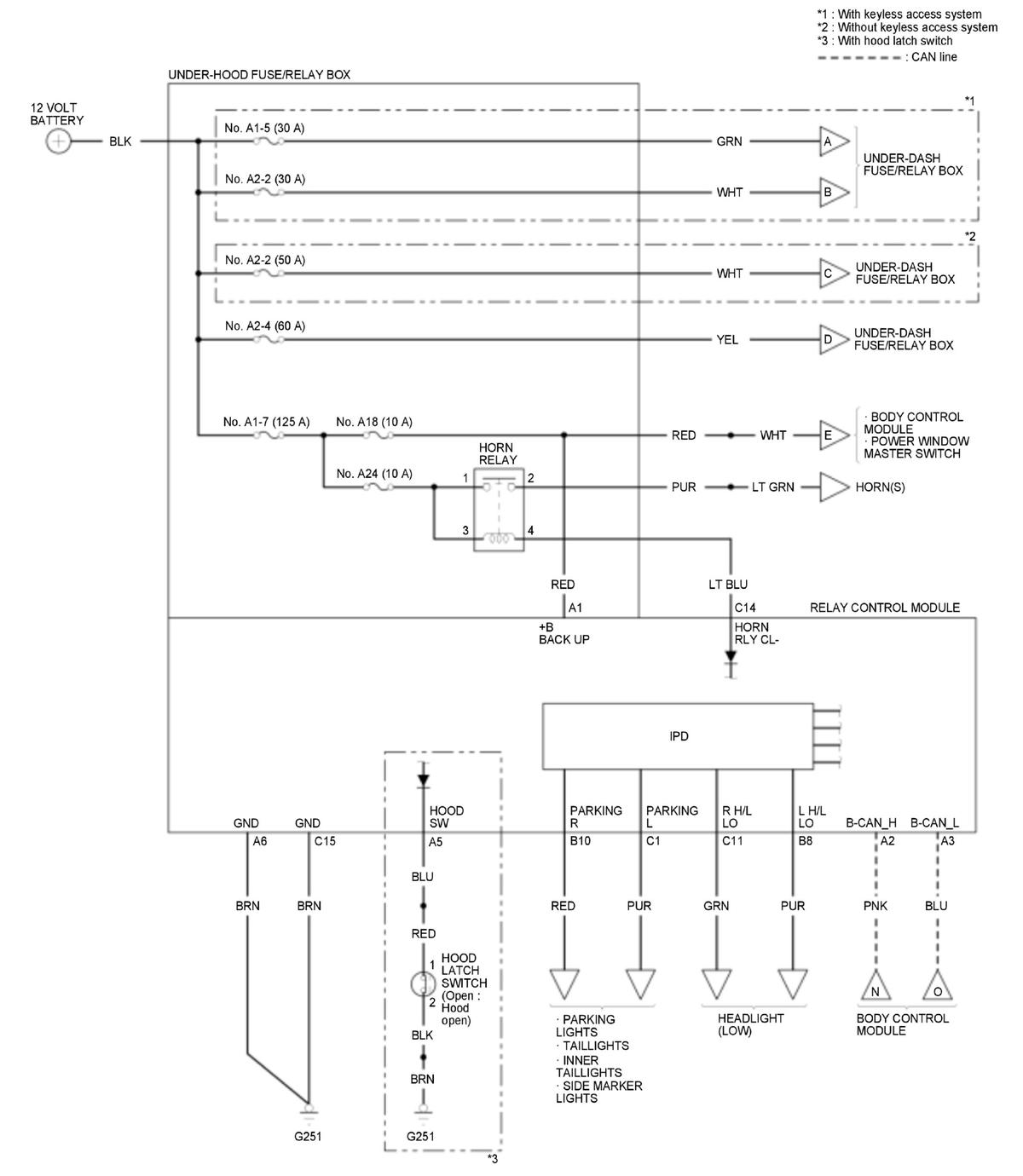

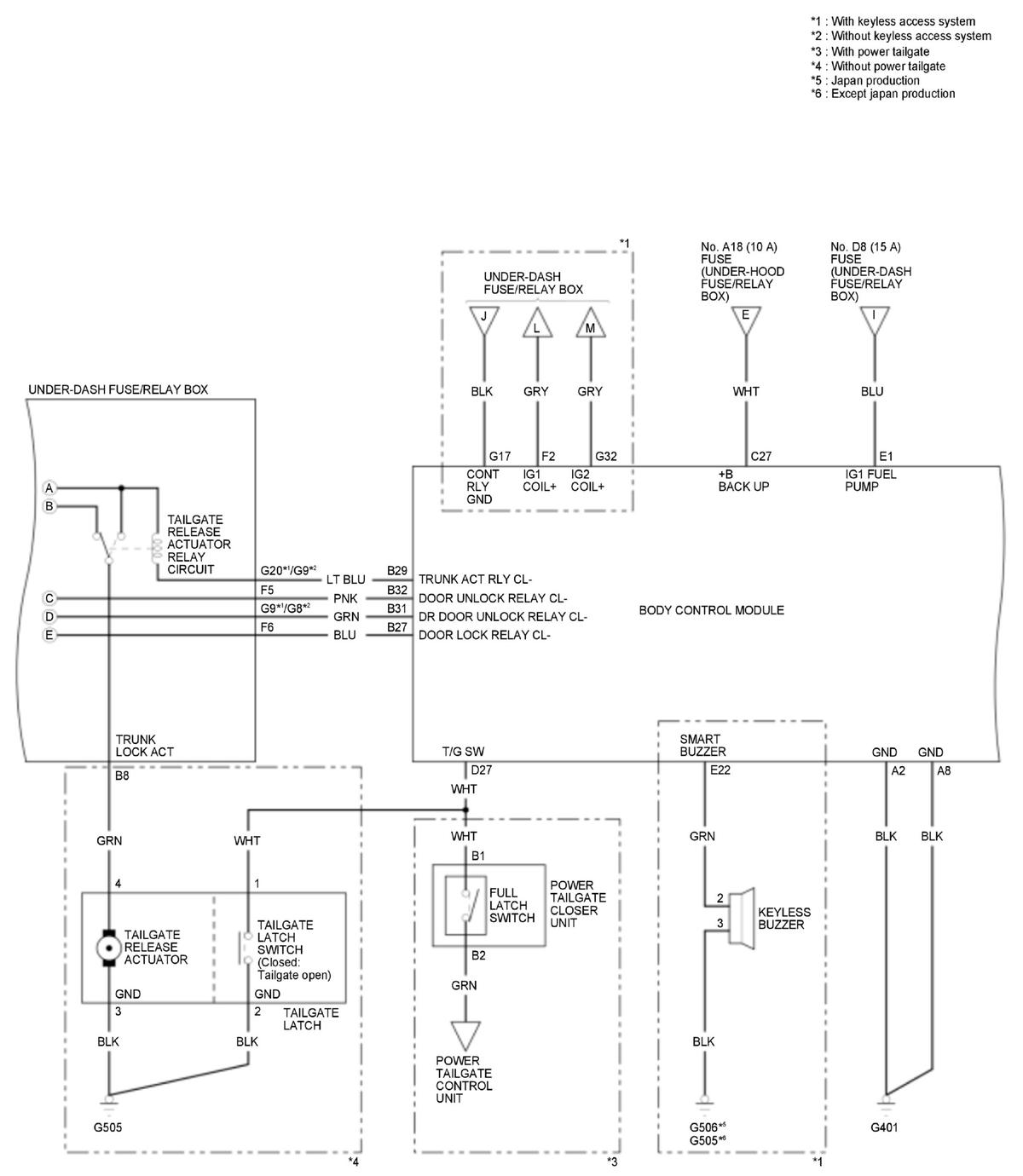

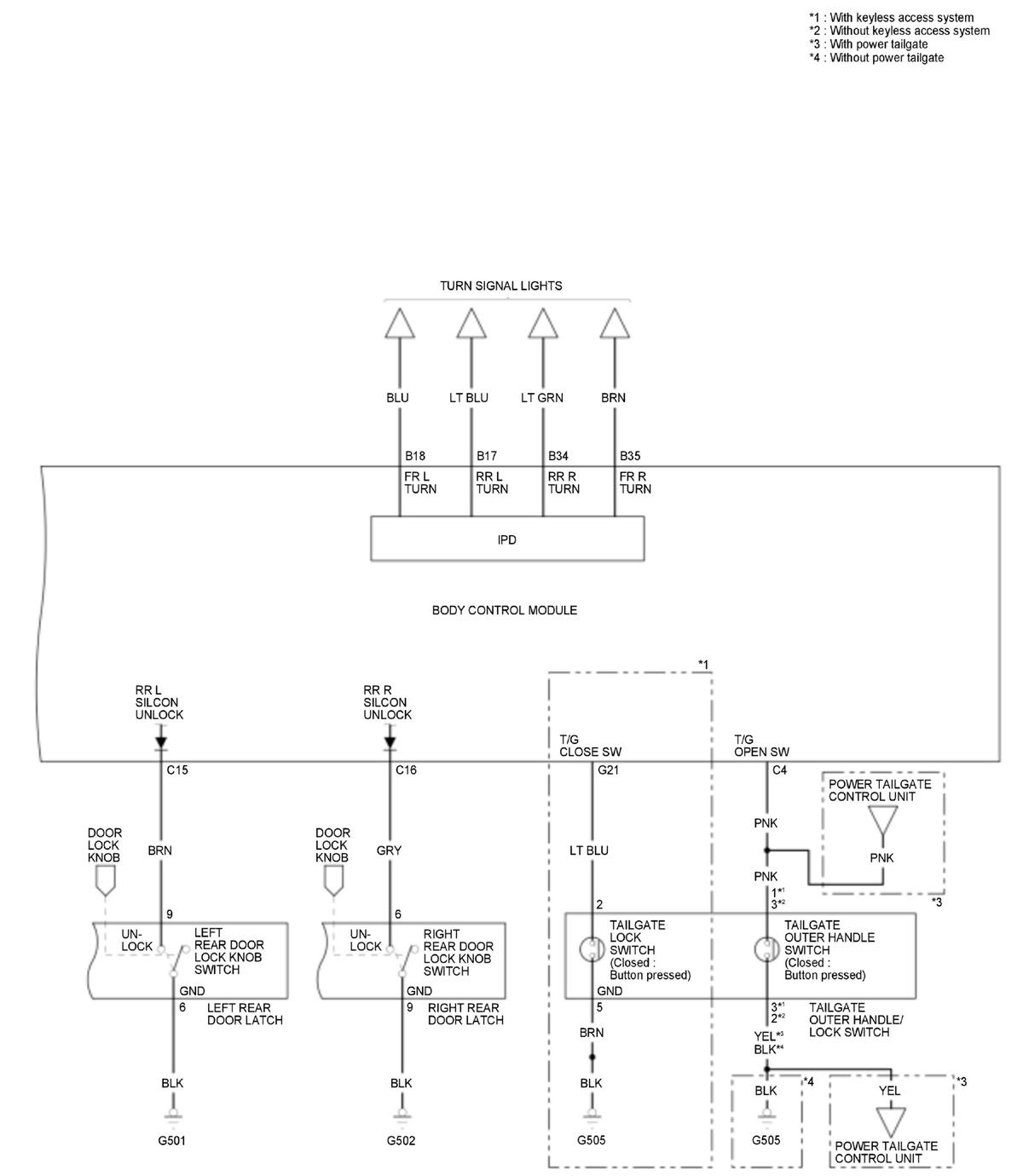

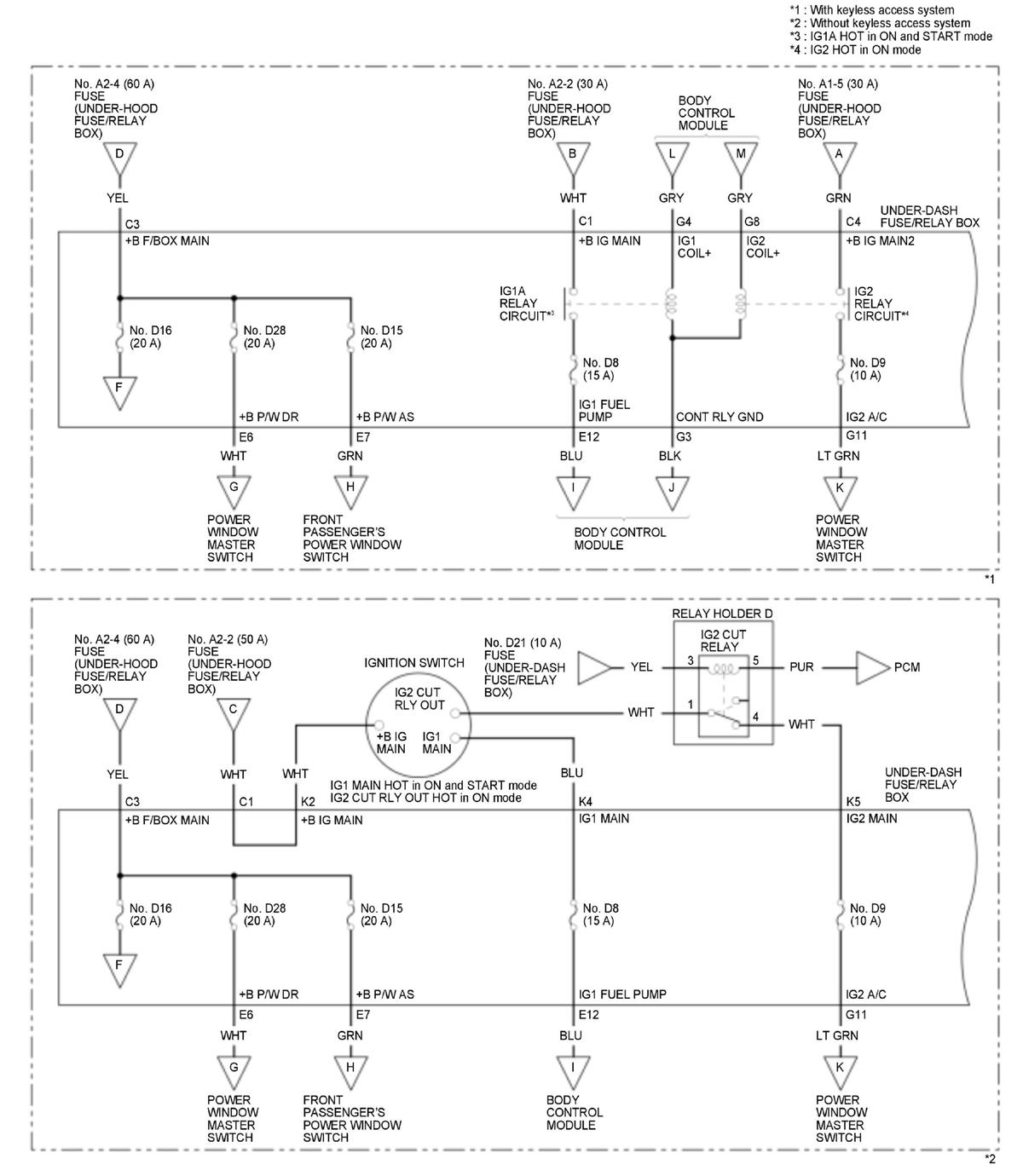

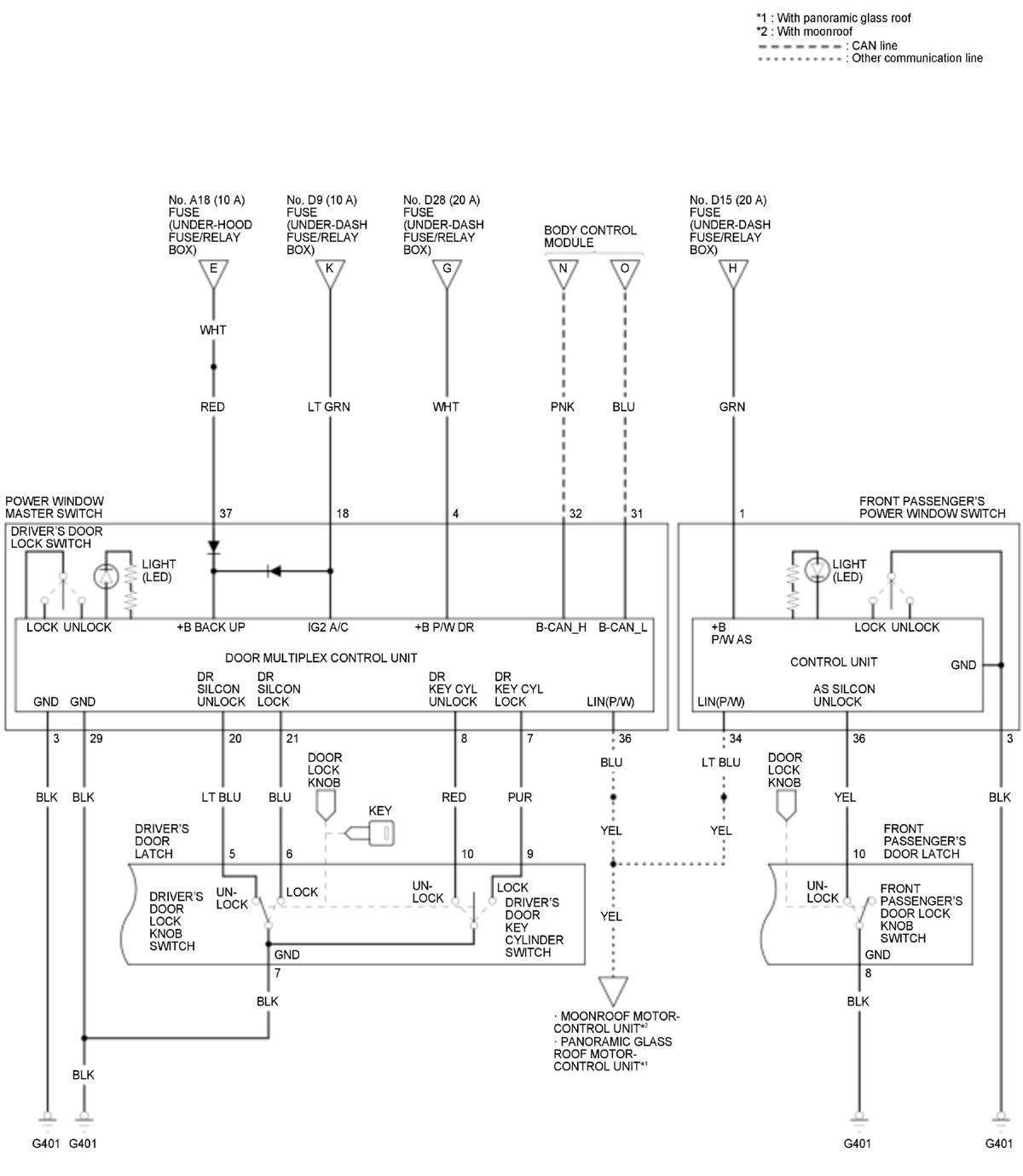

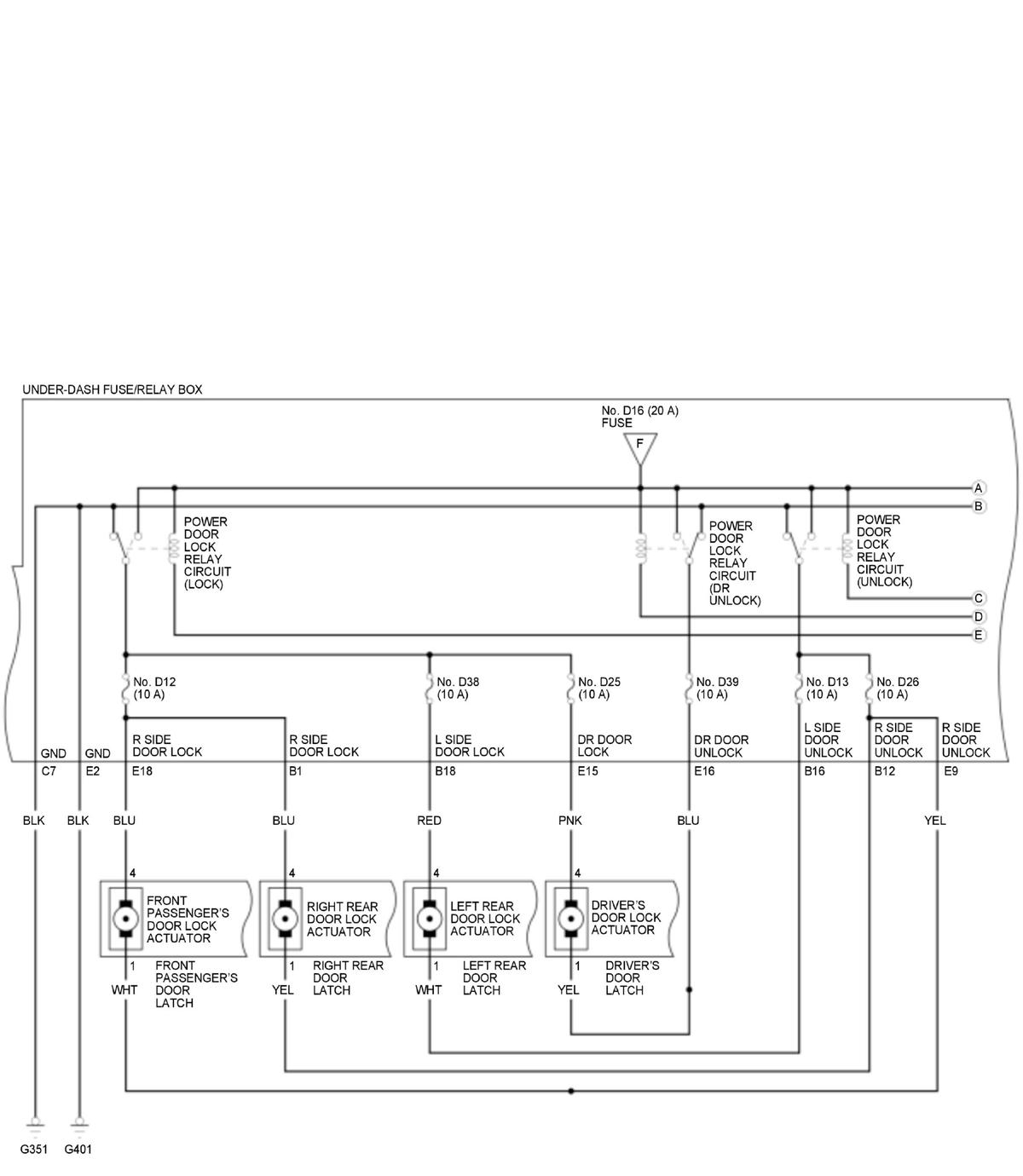

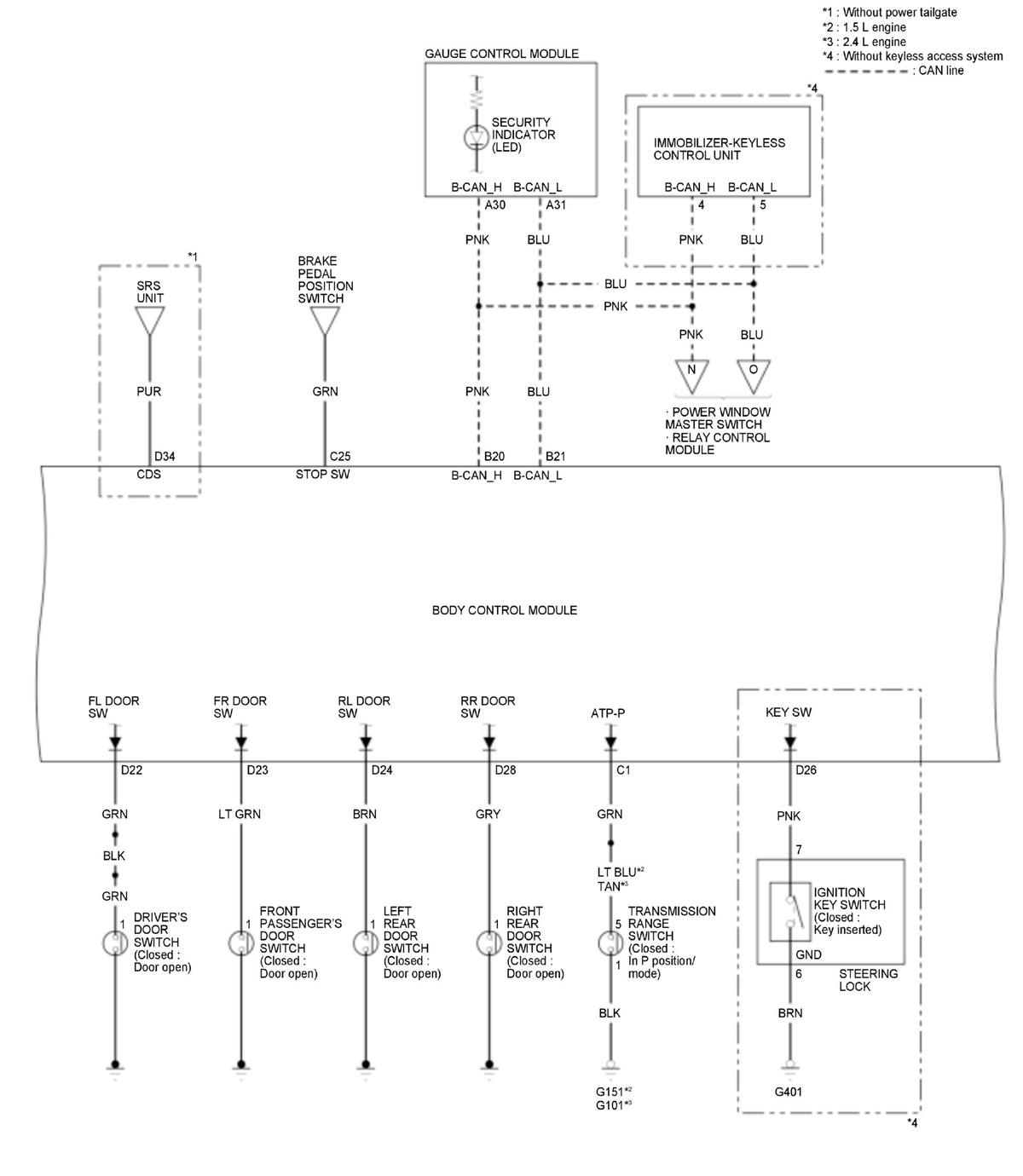

Keyless/Power Door Locks/Security System Circuit Diagram
Keyless/Power Door Locks/Security System Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
