Keyless Access System Circuit Diagram

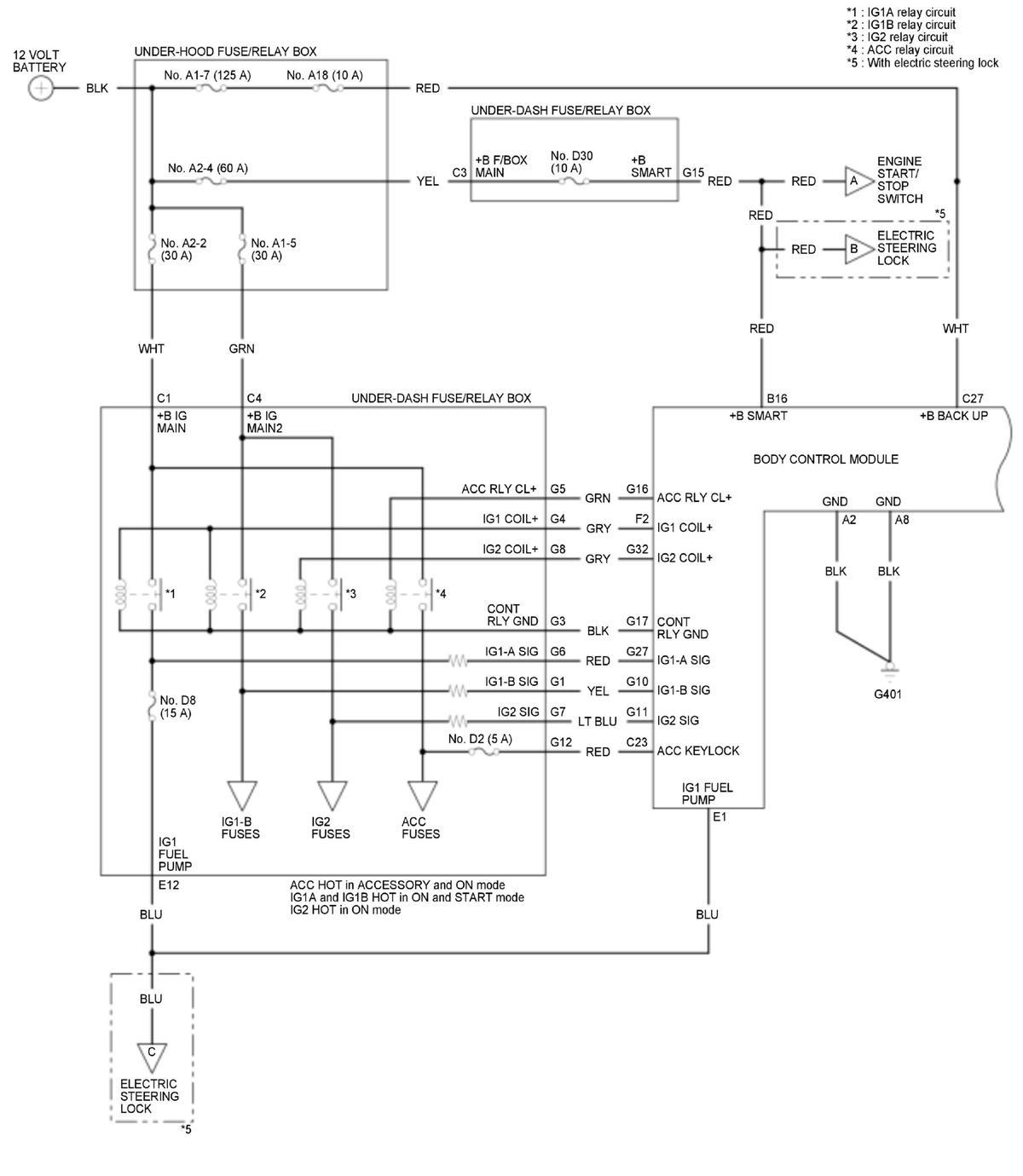

GHH430684

Courtesy of HONDA, U.S.A., INC.

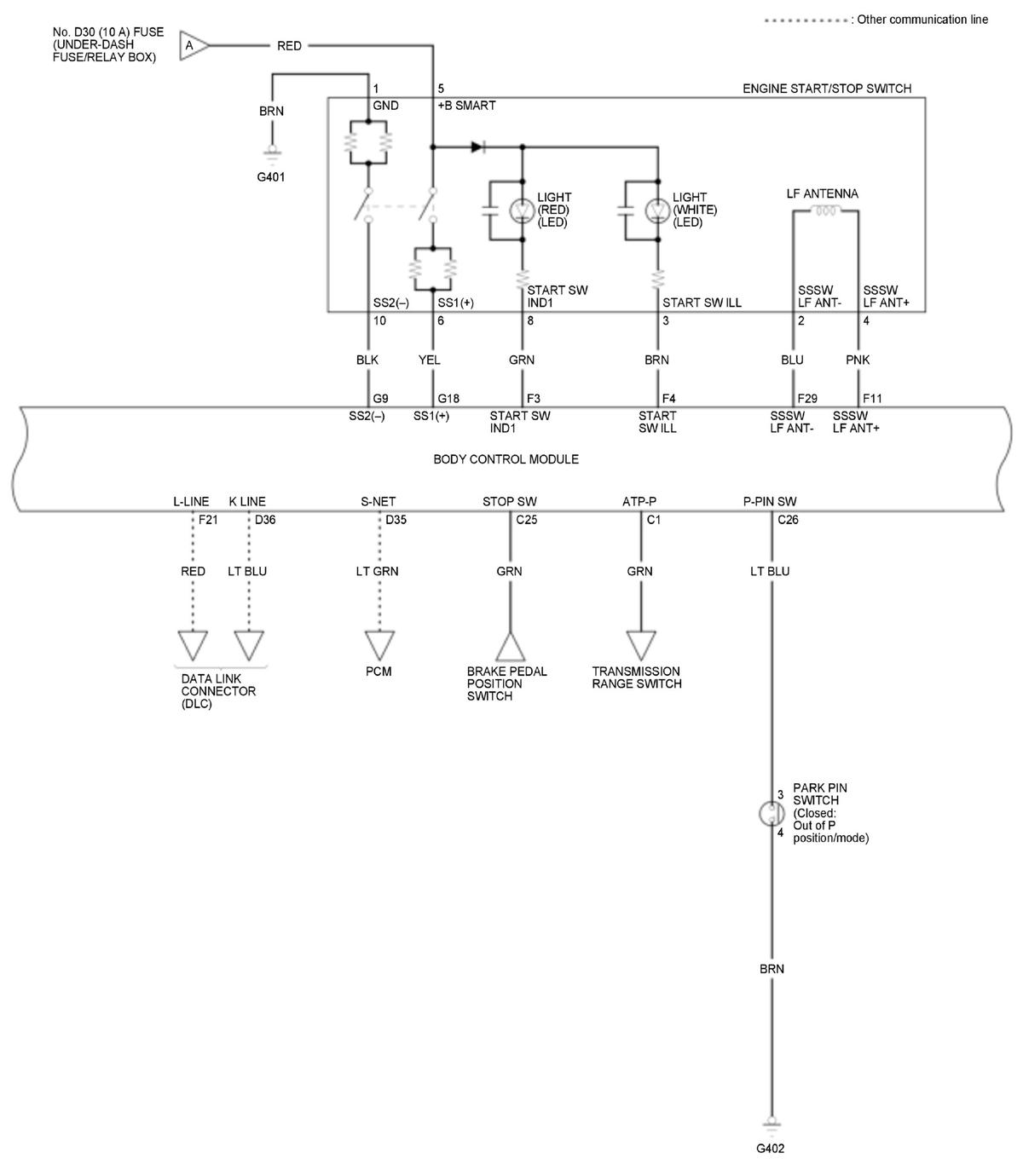

GHH430685

Courtesy of HONDA, U.S.A., INC.

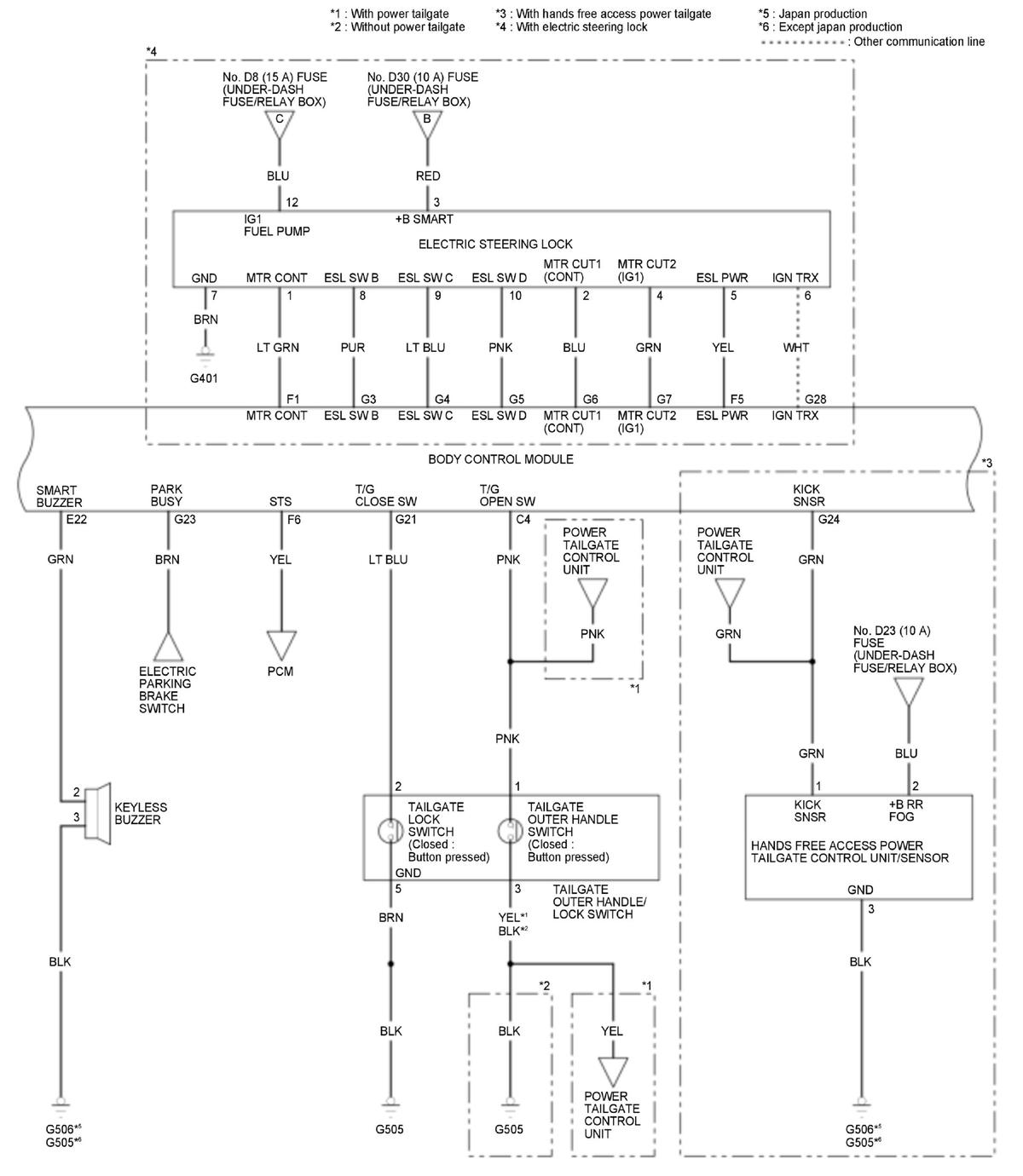

GHH430686

Courtesy of HONDA, U.S.A., INC.

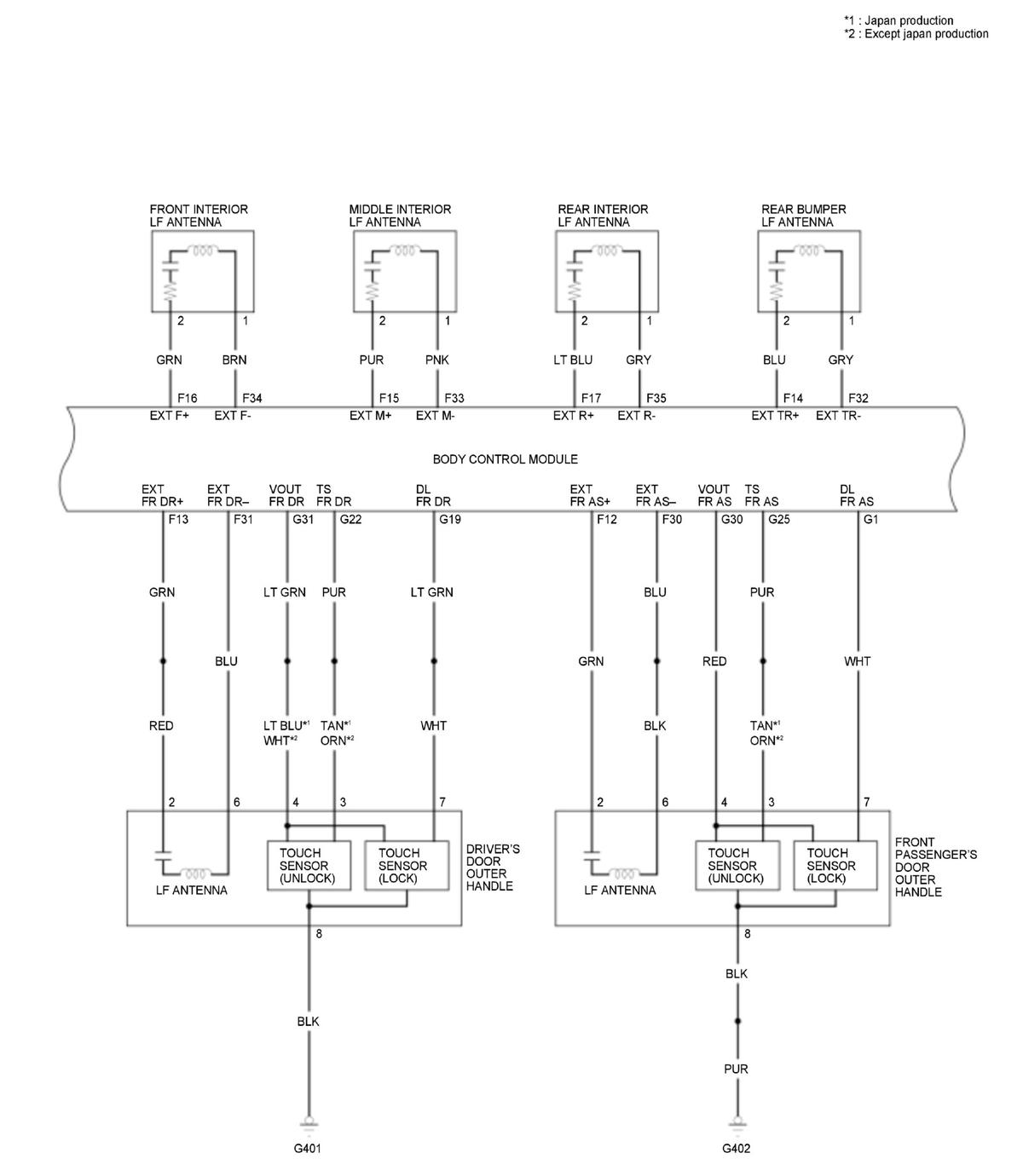

GHH430687

Courtesy of HONDA, U.S.A., INC.

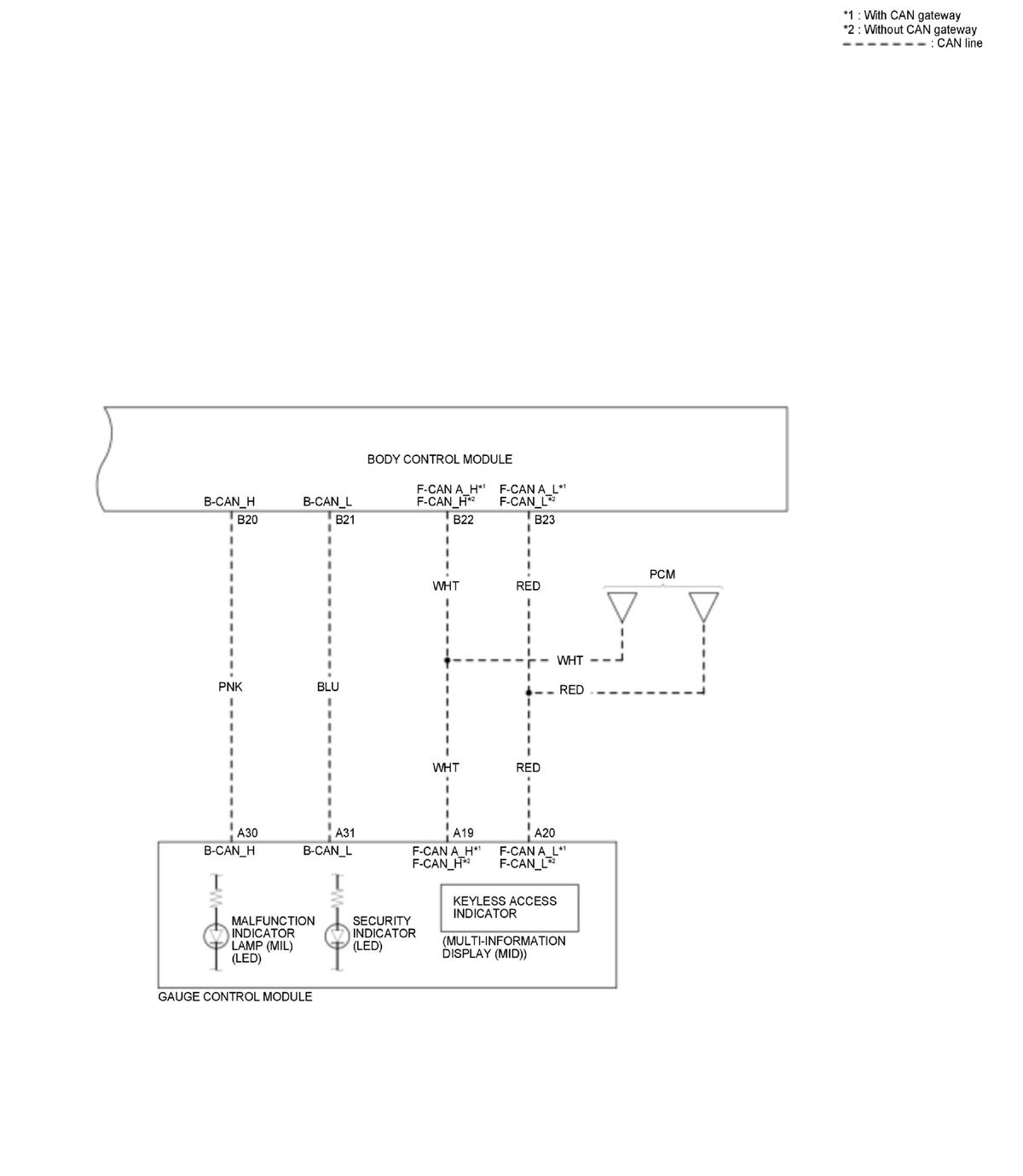

GHH430688

Courtesy of HONDA, U.S.A., INC.
