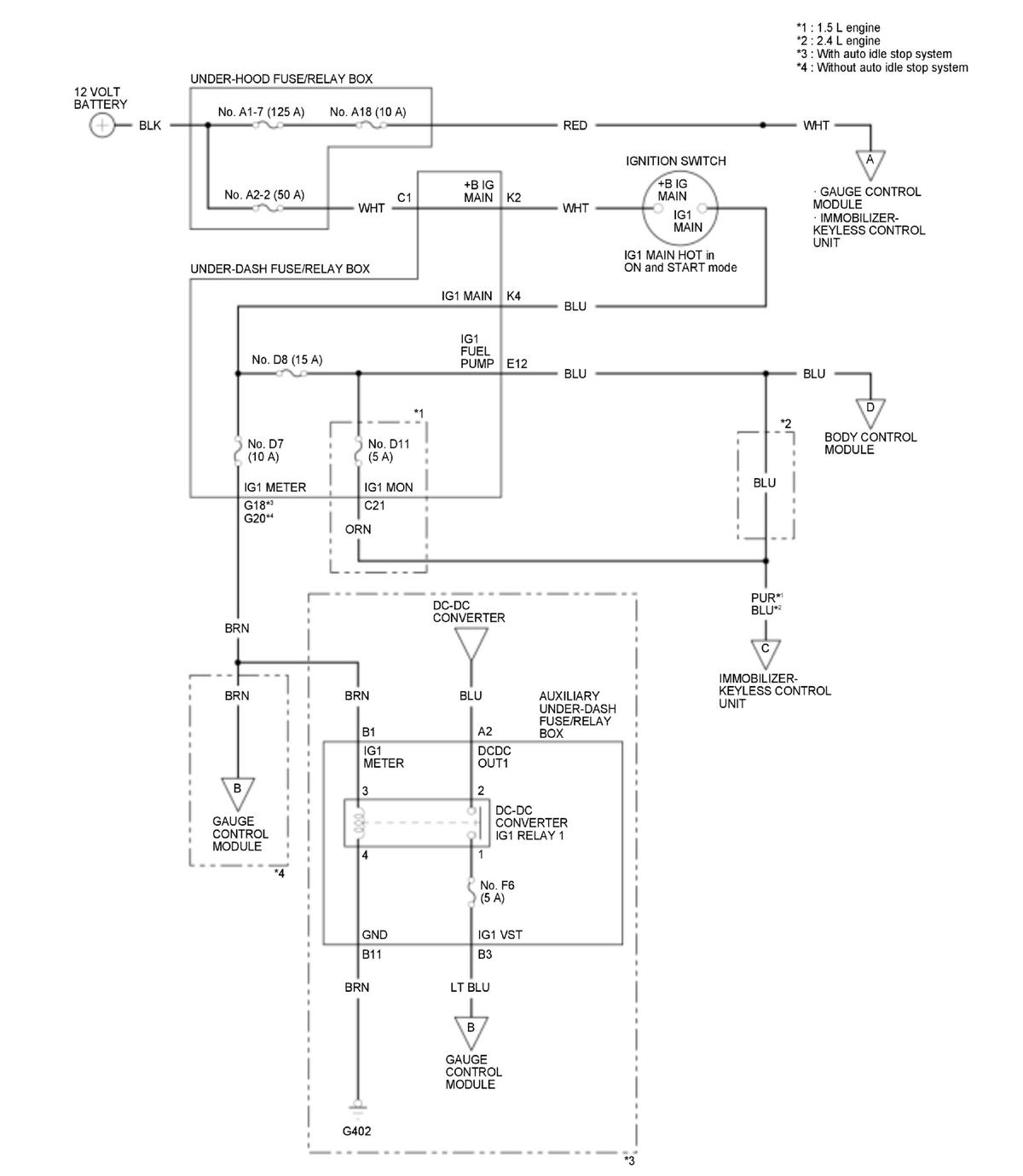

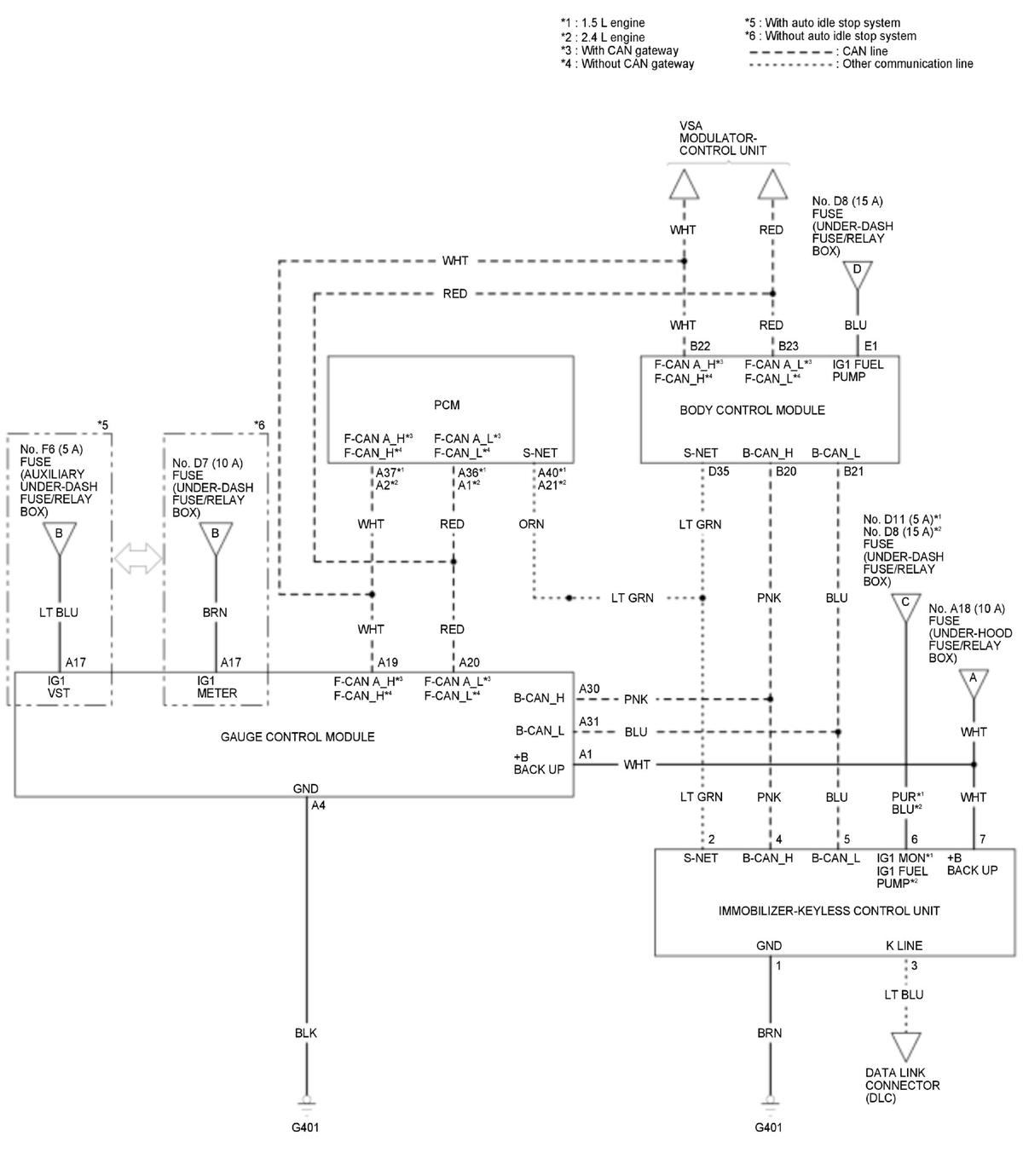

Home >> Honda >> 2021 >> CR-V EX-L, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security System / Keyless Entry System - Testing & Troubleshooting (Except Hybrid) >> Circuit Diagram >> Immobilizer System Circuit Diagram
