Security System / Keyless Entry System - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>
HomeLink Remote Control System Circuit Diagram
HomeLink Remote Control System Circuit Diagram

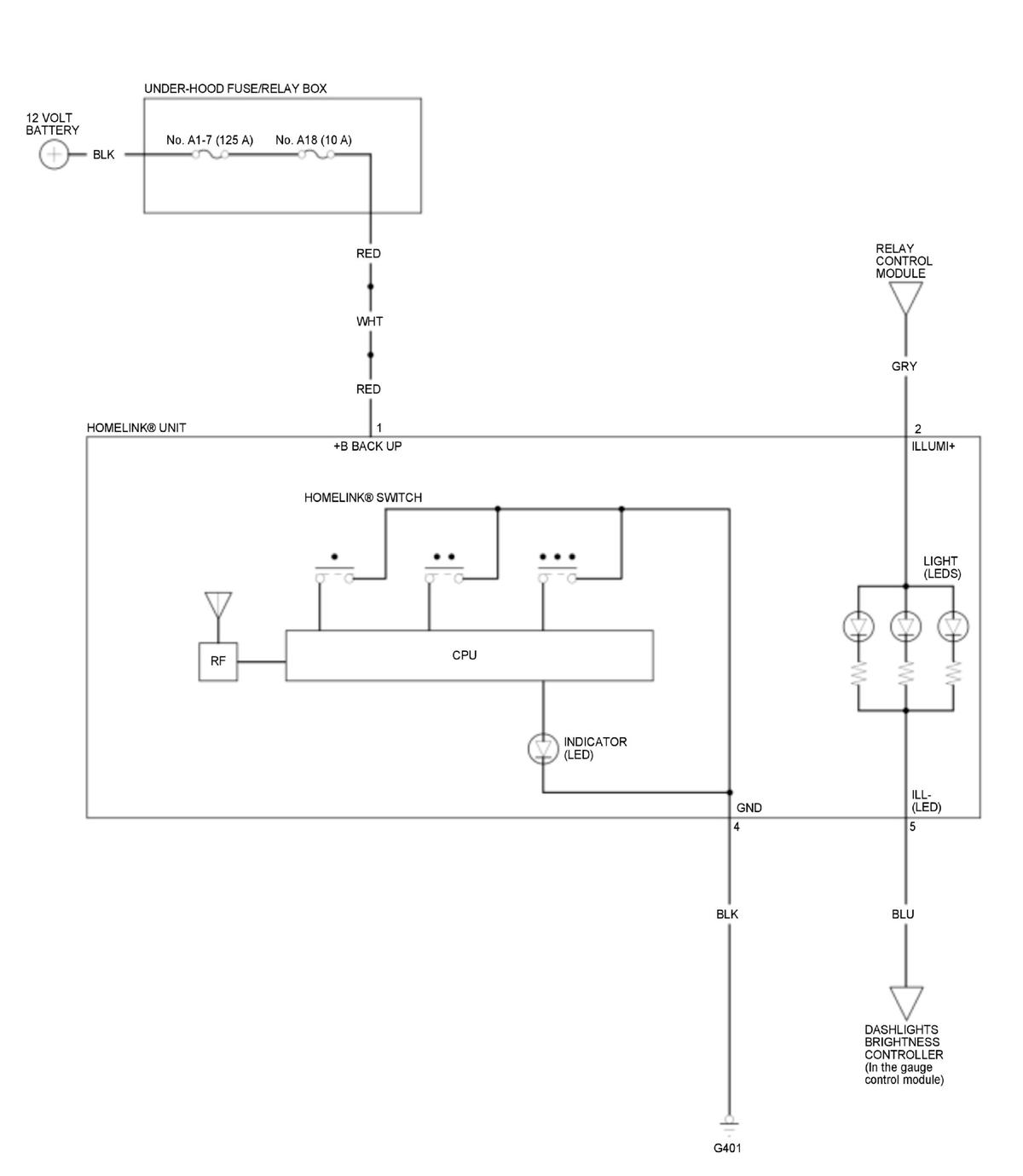

With panoramic glass roof
Courtesy of HONDA, U.S.A., INC.

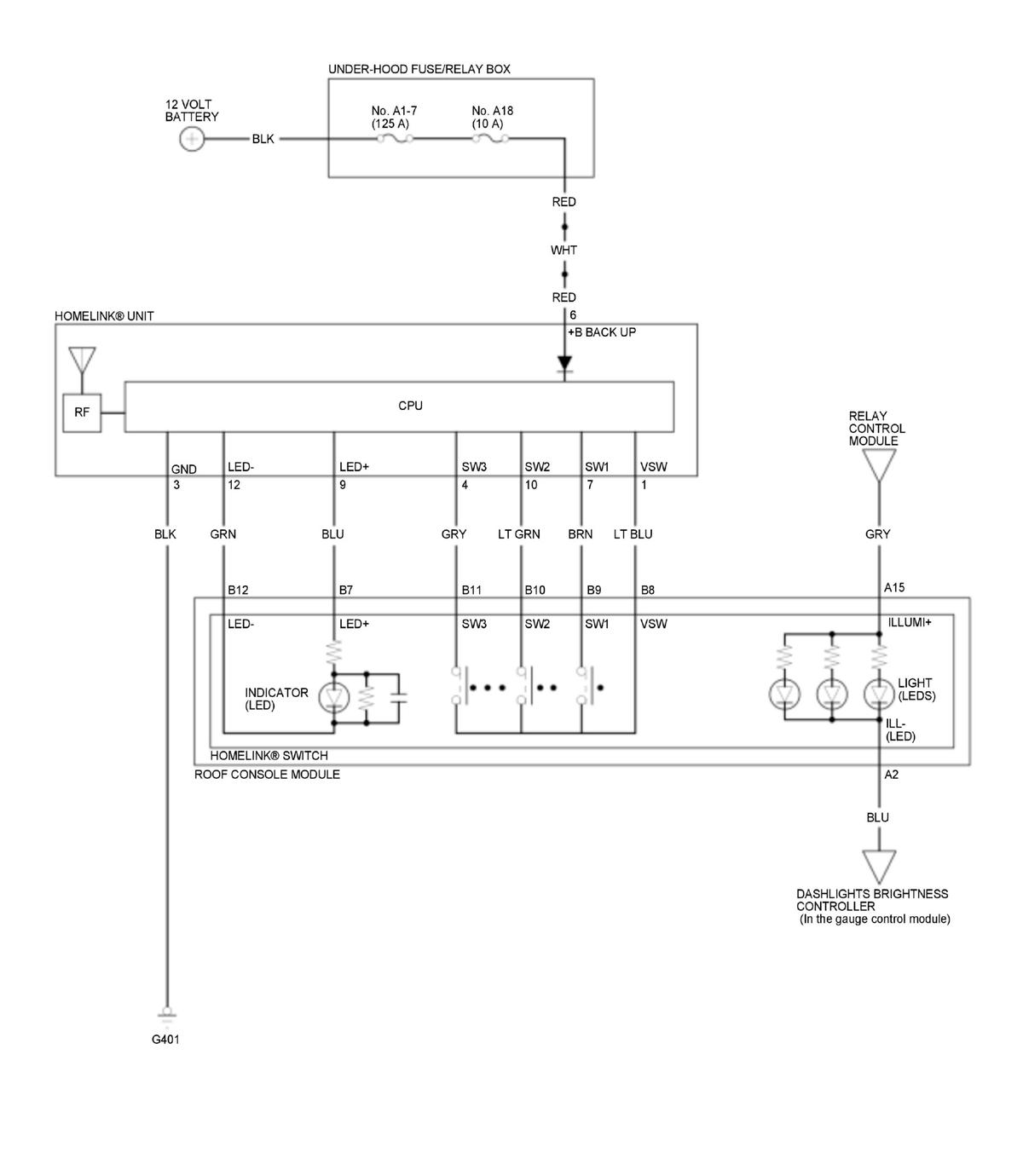

Without panoramic glass roof
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
