Removal and Installation

1

Front Interior (Type A)

Courtesy of HONDA, U.S.A., INC.

2

Front Interior (Type B)

Courtesy of HONDA, U.S.A., INC.

3

Middle Interior

Courtesy of HONDA, U.S.A., INC.

4

Rear Interior

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

5

Rear Bumper

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

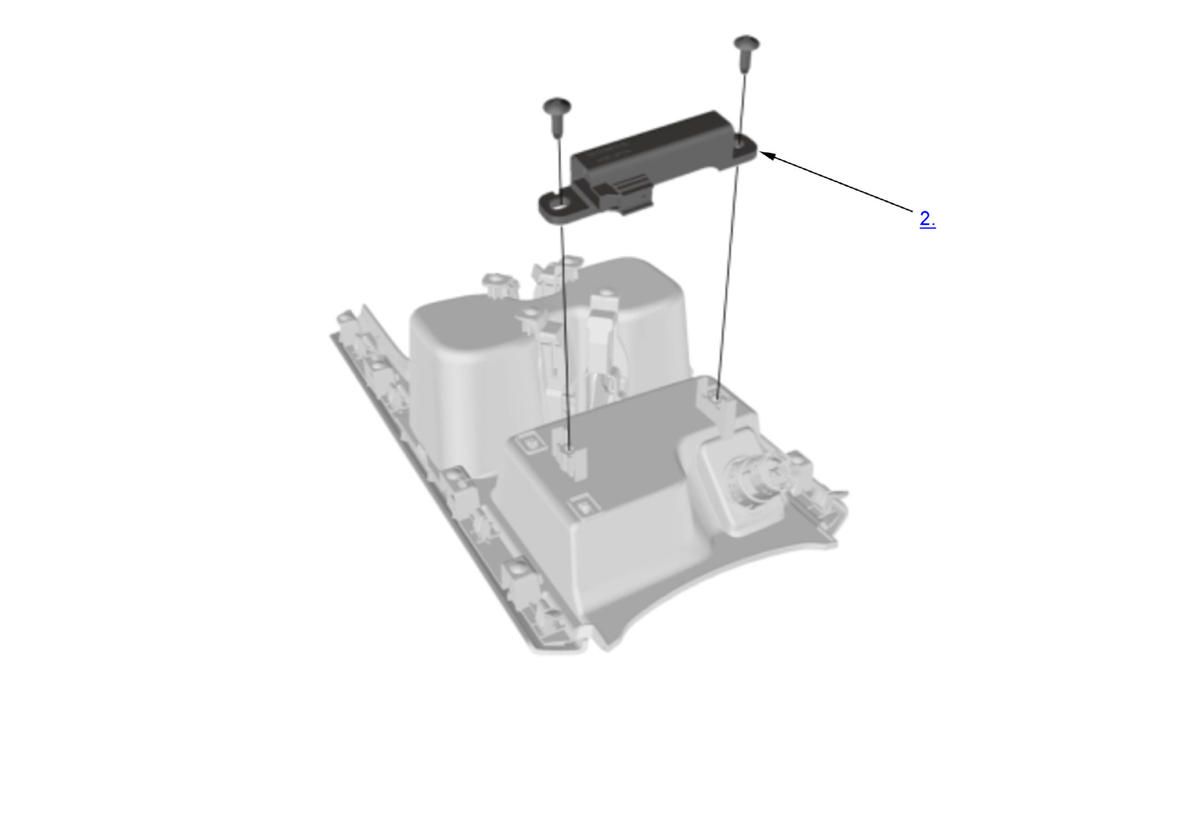

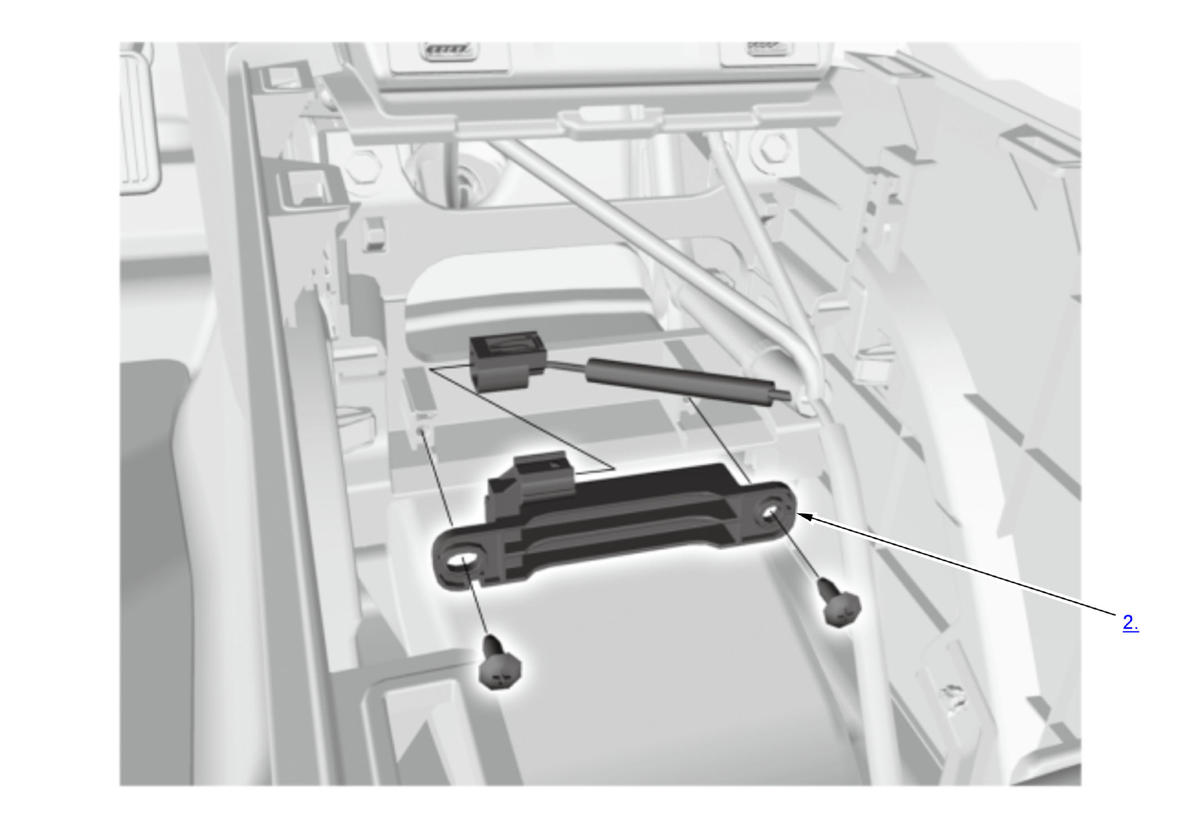

Front Interior LF Antenna

1. Center Console Panel - Remove
2. Front Interior LF Antenna - Remove
3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

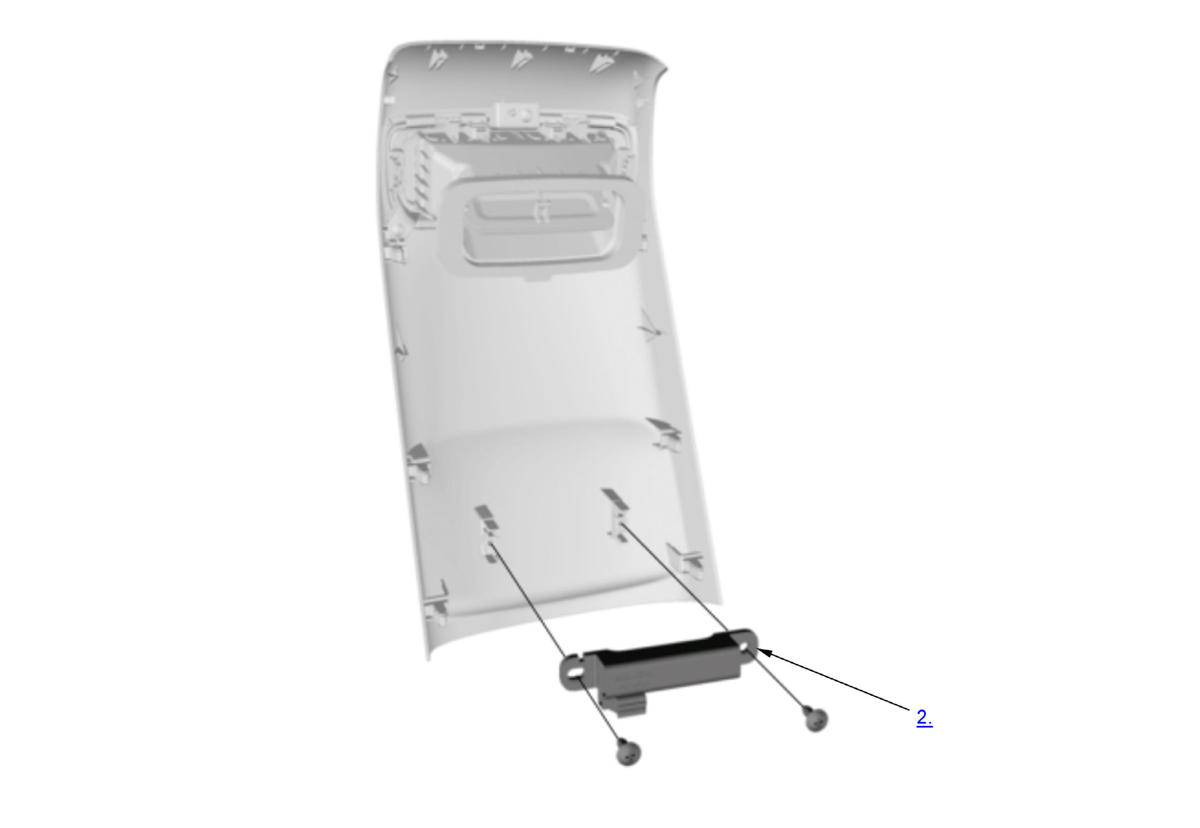

   Middle Interior LF Antenna

4. Center Console Rear Trim - Remove
5. Middle Interior LF Antenna - Remove
6. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

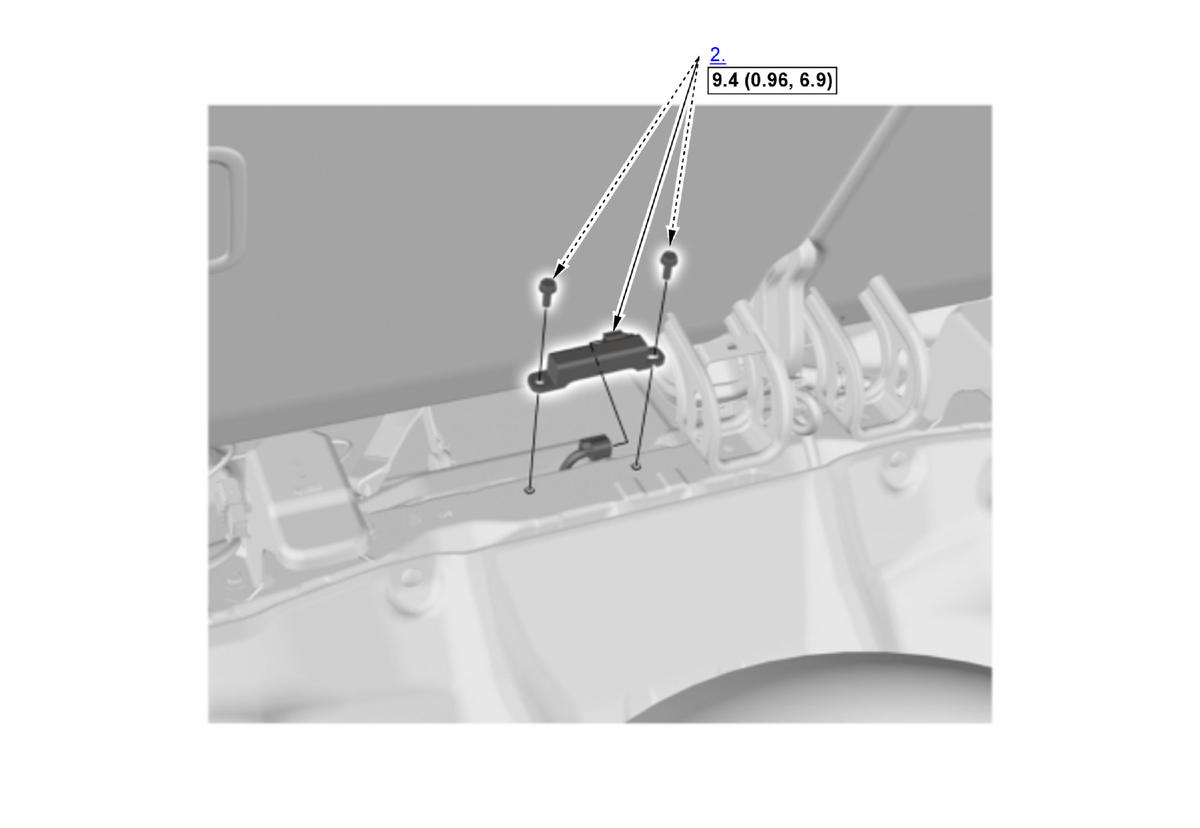

   Rear Interior LF Antenna

7. Rear Carpet Trim - Remove
8. Rear Interior LF Antenna - Remove
9. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

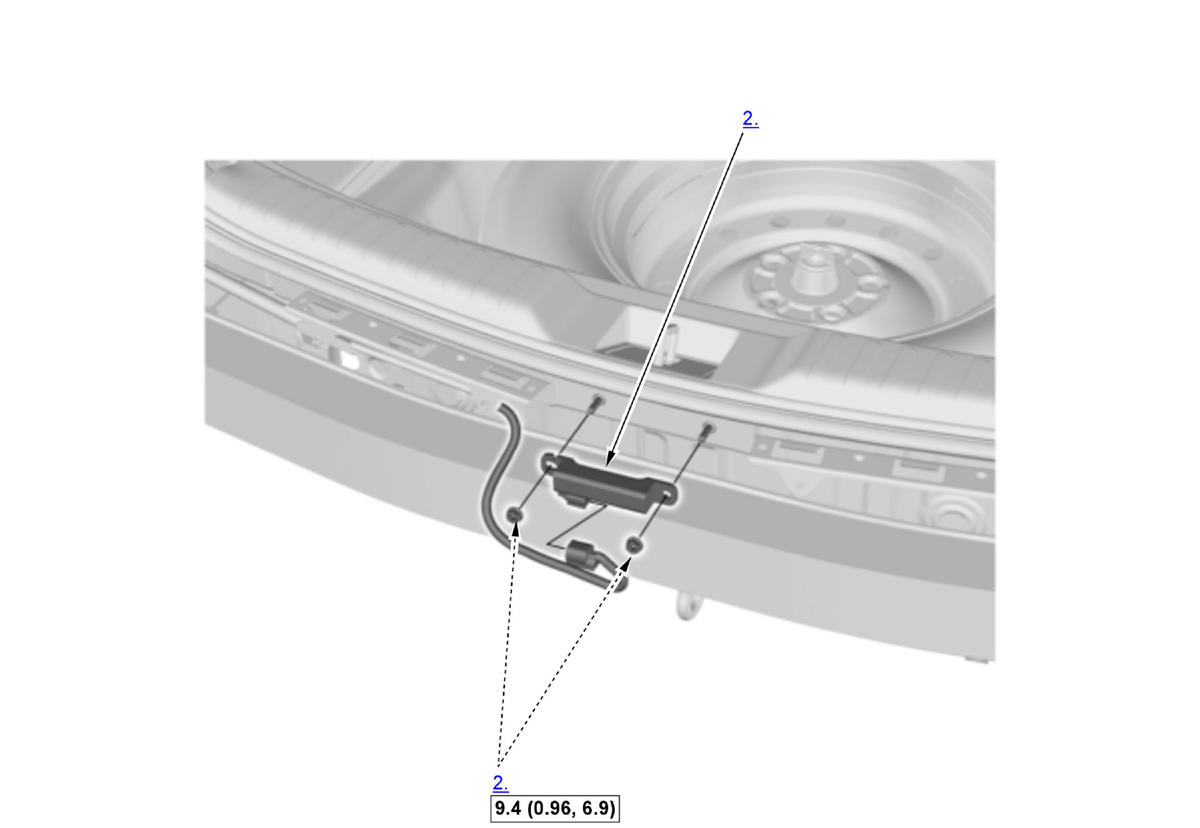

   Rear Bumper LF Antenna

10. Rear Bumper - Remove
11. Rear Bumper LF Antenna - Remove
12. All Removed Parts - Install

    1. Install the parts in the reverse order of removal.
