Removal and Installation

1

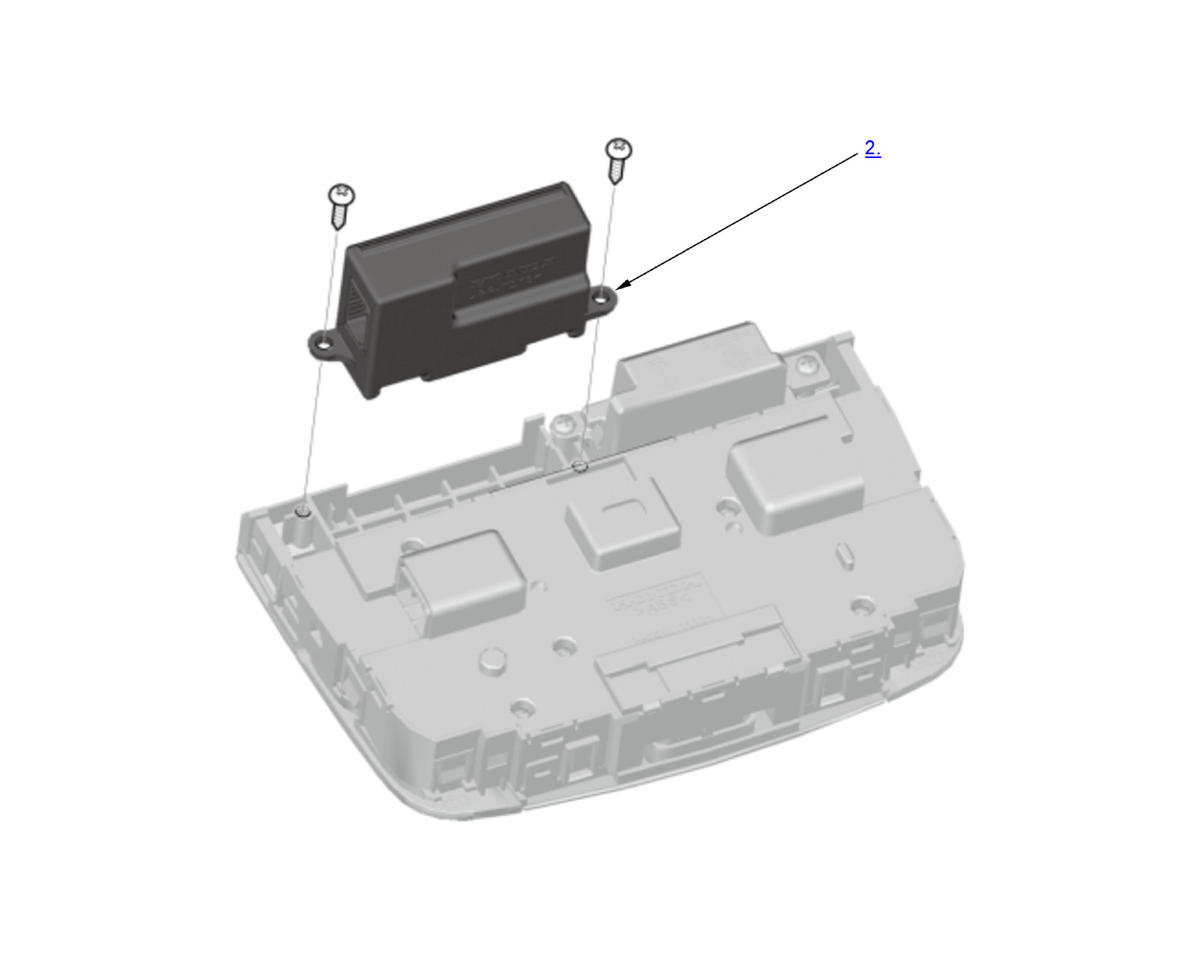

GHH430915Courtesy of HONDA, U.S.A., INC.
  1. Roof Console Module - Remove
  2. HomeLink Unit - Remove
  3. All Parts Removed - Install
    1. Install the parts in the reverse order of removal.
