DTC B12E1

DTC B12E1  : Electric Steering Lock Motor Internal Error

NOTE:

• If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .
• Make sure aftermarket accessories are not installed.

DTC (Keyless Access Power Control Unit)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Do this procedure ten times: Press the engine start/stop switch to select the OFF (LOCK), ACCESSORY, ON, and OFF (LOCK) mode.

   -3. Check for DTCs with the HDS.

   DTC Description	DTC
   B12E1 Electric Steering Lock Motor Internal Error

   Is DTC B12E1 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. Open wire check (+B SMART line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

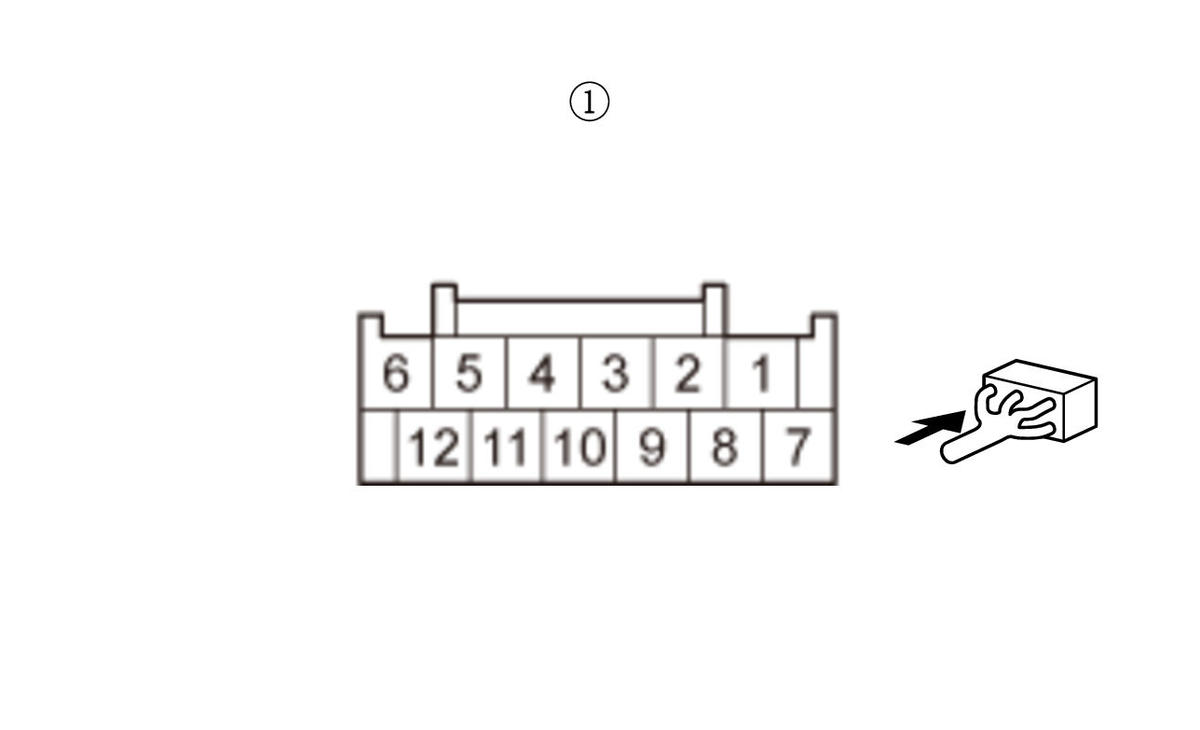

   Electric steering lock 12P connector

   -3. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected
   Test point 1	Electric steering lock 12P connector (female terminals) No. 3:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The +B SMART wire is OK. Go to step 3.

   NO

   Repair an open or high resistance in the wire.

3. Open wire check (GND line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected
   Test point 1	Electric steering lock 12P connector (female terminals) No. 7:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The GND wire is OK. Go to step 4.

   NO

   Repair an open or high resistance in the ground wire or poor ground (G401).

4. Open wire check (IG1 FUEL PUMP line)

   -1. Turn the vehicle to the ON mode.

   -2. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode Electric steering lock 12P connector: disconnected
   Test point 1	Electric steering lock 12P connector (female terminals) No. 12:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The IG1 FUEL PUMP wire is OK. Go to step 5.

   NO

   Repair an open or high resistance in the wire.

5. Open wire check (MTR CONT line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Body control module connector F (36P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected Body control module connector F (36P): disconnected
   Test point 1	Electric steering lock 12P connector (female terminals) No. 1:

   Test point 2

   Body control module connector F (36P) No. 1

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The MTR CONT wire is OK. Go to step 6.

   NO

   Repair an open or high resistance in the wire.

6. Shorted wire check (MTR CUT1(CONT), MTR CUT2(IG1) lines)

   -1. Disconnect the following connector.

   Body control module connector G (32P)

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected Body control module connector F (36P): disconnected Body control module connector G (32P): disconnected
   Test point 1	Electric steering lock 12P connector (female terminals) No. 2:
   Test point 2	Body ground

   Test point 1	Electric steering lock 12P connector (female terminals) No. 4:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short to ground in the wire.

   NO

   The MTR CUT1(CONT) and MTR CUT2(IG1) wires are not shorted. Go to step 7.

7. Open wire check (MTR CUT1(CONT), MTR CUT2(IG1) lines)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected Body control module connector F (36P): disconnected Body control module connector G (32P): disconnected
   Test point 1	Body control module connector G (32P) No. 6
   Test point 2	Electric steering lock 12P connector (female terminals) No. 2:

   Test point 1	Body control module connector G (32P) No. 7
   Test point 2	Electric steering lock 12P connector (female terminals) No. 4:

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The MTR CUT1(CONT) and MTR CUT2(IG1) wires are OK. Replace the electric steering lock . If the DTC is still present, replace the body control module .

   NO

   Repair an open or high resistance in the wire.
