DTC B12C5

DTC B12C5  : Engine Start/Stop Switch Failure

NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .

DTC (Keyless Access Power Control Unit)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Press the engine start/stop switch at least twenty times, then wait for at least 20 seconds.

   -3. Check for DTCs with the HDS.

   DTC Description	DTC
   B12C5 Engine Start/Stop Switch Failure

   Is DTC B12C5 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. Determine possible failure area (+B SMART line, GND line, other)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Engine start/stop switch 10P connector

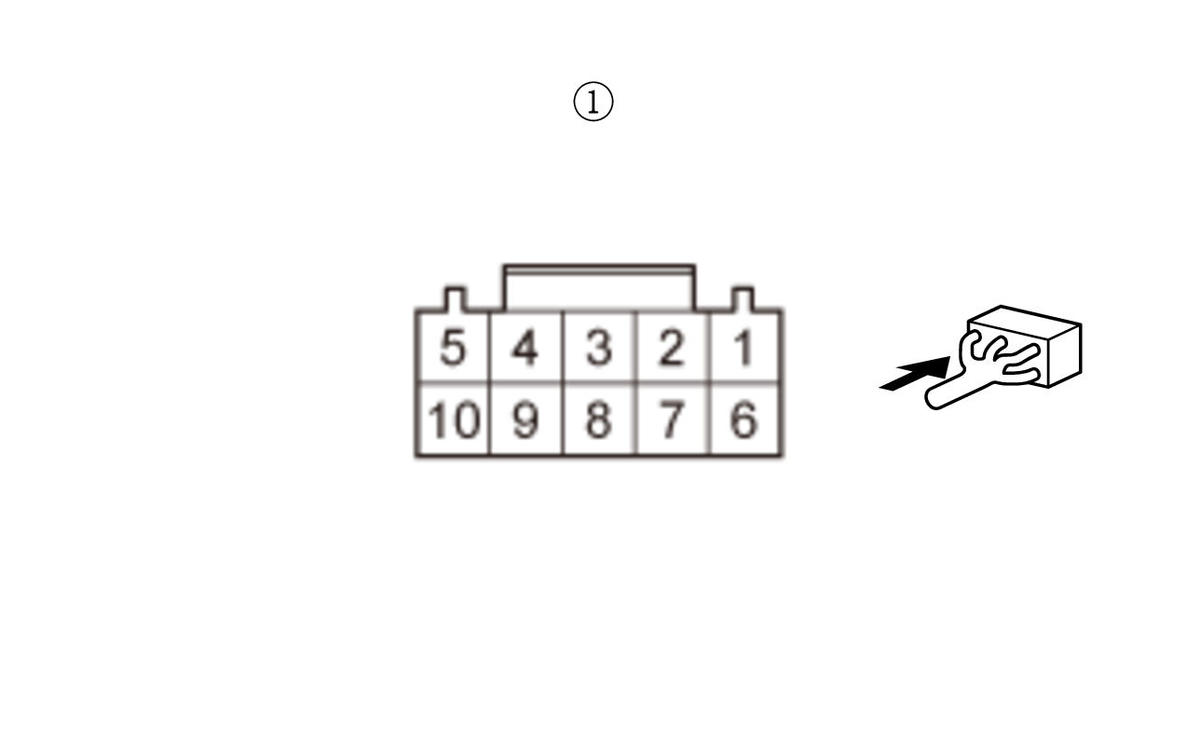

   -3. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Engine start/stop switch 10P connector: disconnected
   Test point 1	Engine start/stop switch 10P connector (female terminals) No. 5:
   Test point 2	Engine start/stop switch 10P connector (female terminals) No. 1:

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The +B SMART and GND wires are OK. Go to step 3.

   NO

   Go to step 6.

3. Shorted wire check (SS1 (+), SS2 (-) lines)

   -1. Disconnect the following connector.

   Body control module connector G (32P)

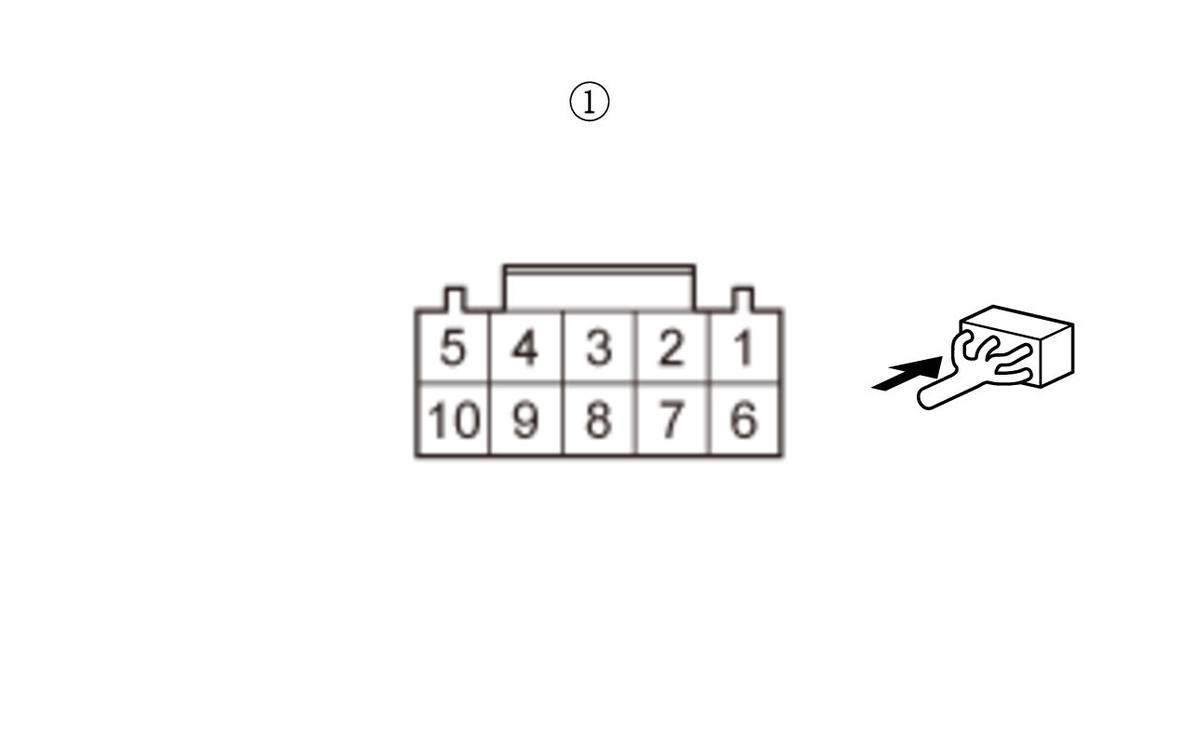

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Engine start/stop switch 10P connector: disconnected Body control module connector G (32P): disconnected
   Test point 1	Engine start/stop switch 10P connector (female terminals) No. 6:
   Test point 2	Body ground

   Test point 1	Engine start/stop switch 10P connector (female terminals) No. 10:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair short to ground in the wire.

   NO

   The SS1 (+) and SS2 (-) wires are not shorted. Go to step 4.

4. Open wire check (SS1 (+), SS2 (-) lines)

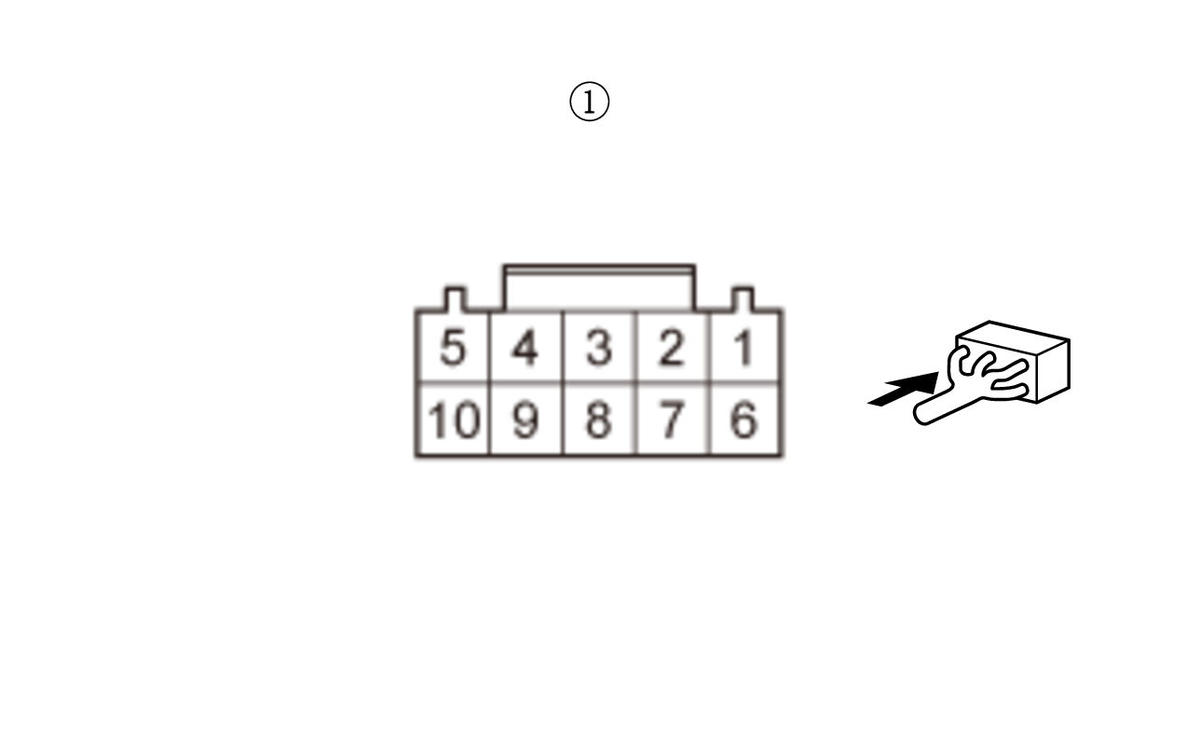

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Engine start/stop switch 10P connector: disconnected Body control module connector G (32P): disconnected
   Test point 1	Engine start/stop switch 10P connector (female terminals) No. 6:
   Test point 2	Body control module connector G (32P) No. 18

   Test point 1	Engine start/stop switch 10P connector (female terminals) No. 10:
   Test point 2	Body control module connector G (32P) No. 9

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The SS1 (+) and SS2 (-) wires are OK. Go to step 5.

   NO

   Repair an open or high resistance in the wire.

5. Engine start/stop switch check

   -1. Do the engine start/stop switch test .

   Is the engine start/stop switch OK?

   YES

   Replace the body control module .

   NO

   Replace the engine start/stop switch .

6. Open wire check (+B SMART line)

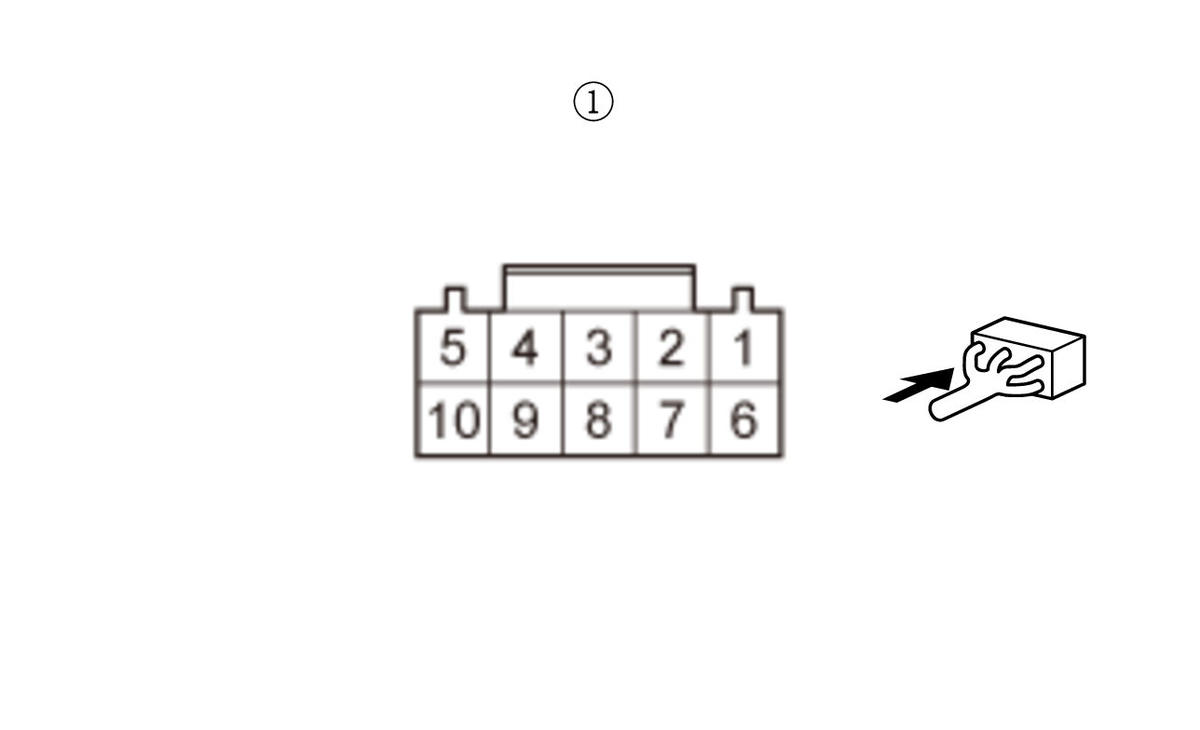

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Engine start/stop switch 10P connector: disconnected Body control module connector G (32P): disconnected
   Test point 1	Engine start/stop switch 10P connector (female terminals) No. 5:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Repair an open or high resistance in the GND wire.

   NO

   Repair an open or high resistance in the +B SMART wire.
