Interior Lights Circuit Diagram

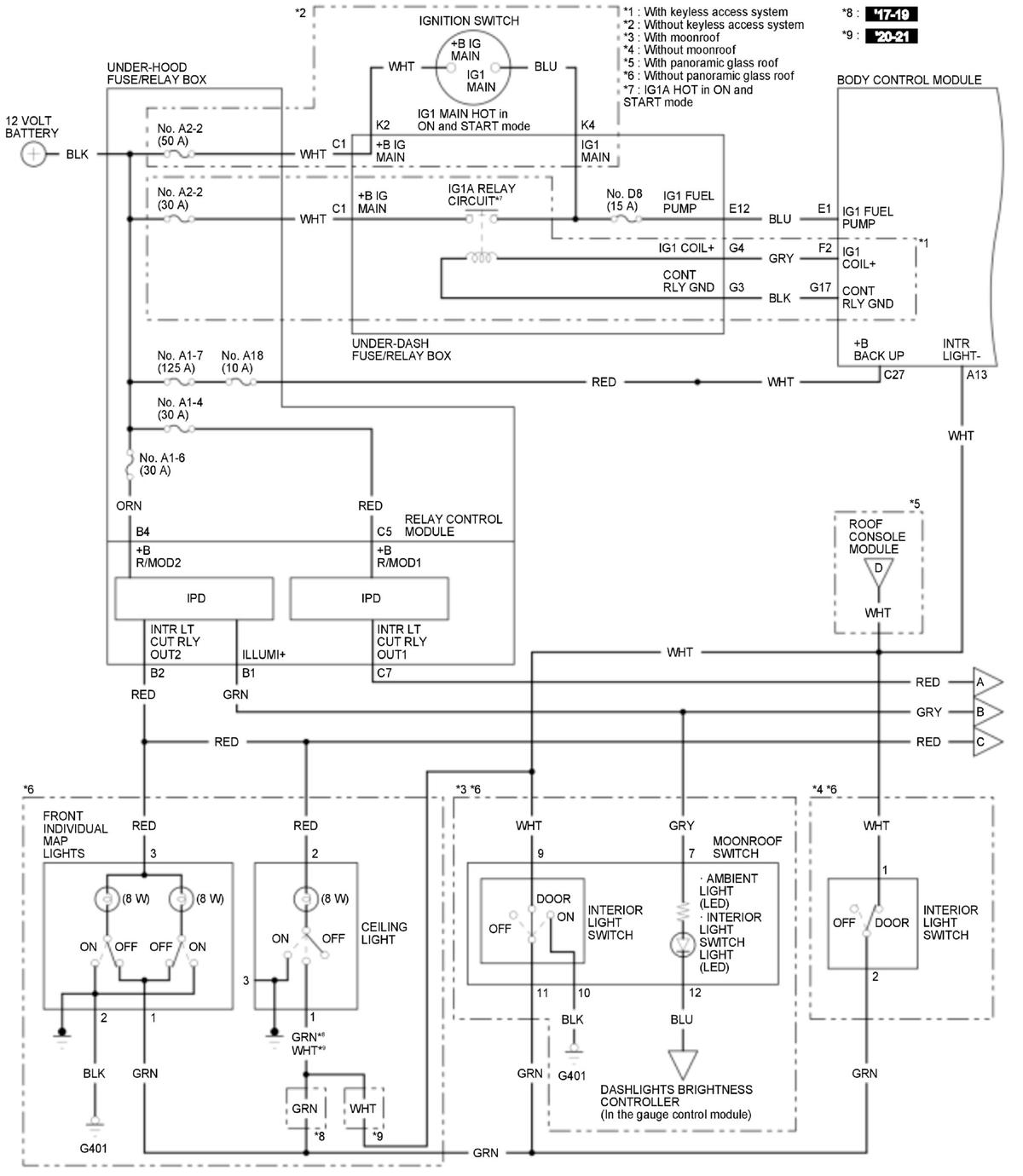

GHH428970

Courtesy of HONDA, U.S.A., INC.

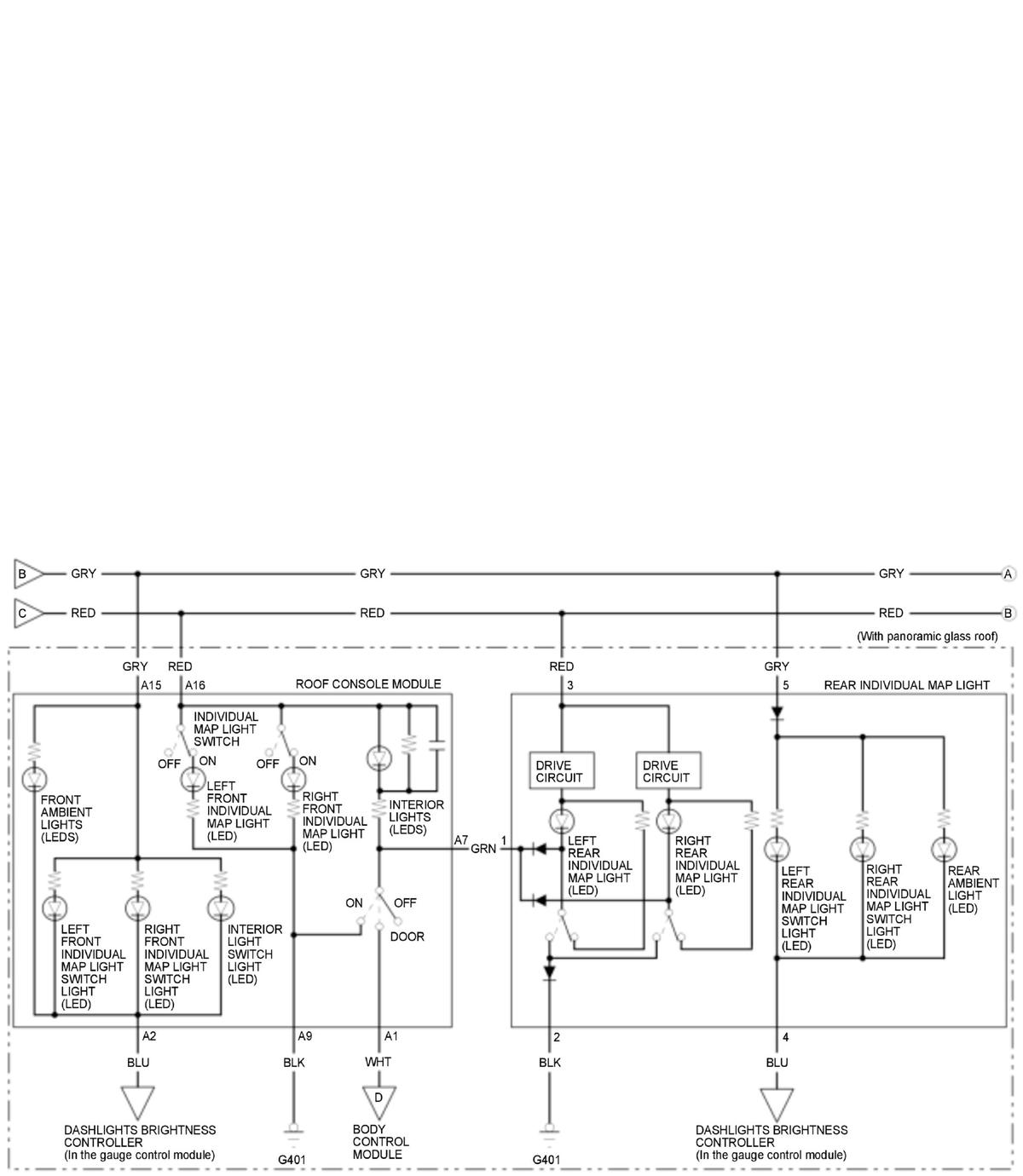

GHH428971

Courtesy of HONDA, U.S.A., INC.

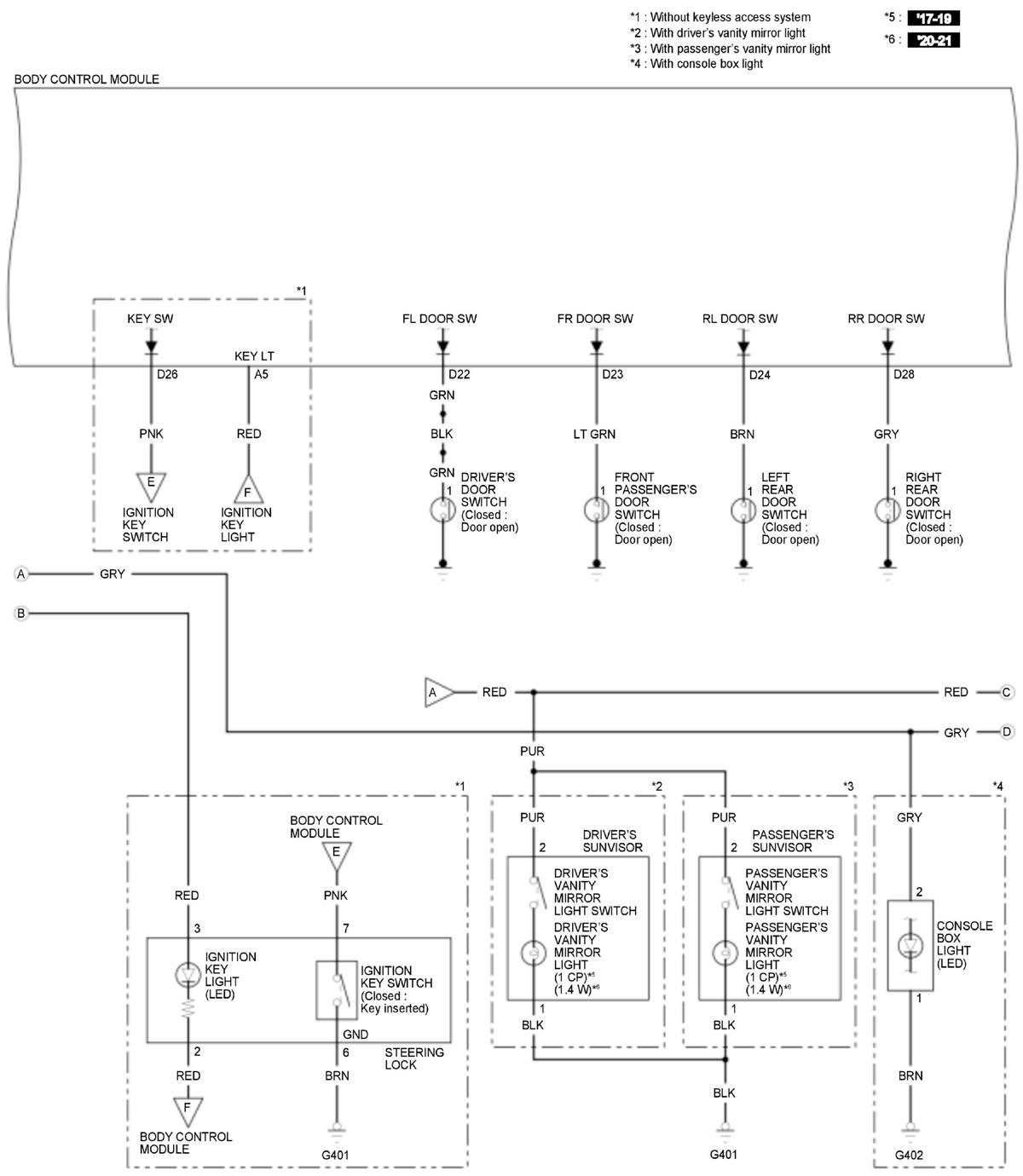

GHH428972

Courtesy of HONDA, U.S.A., INC.

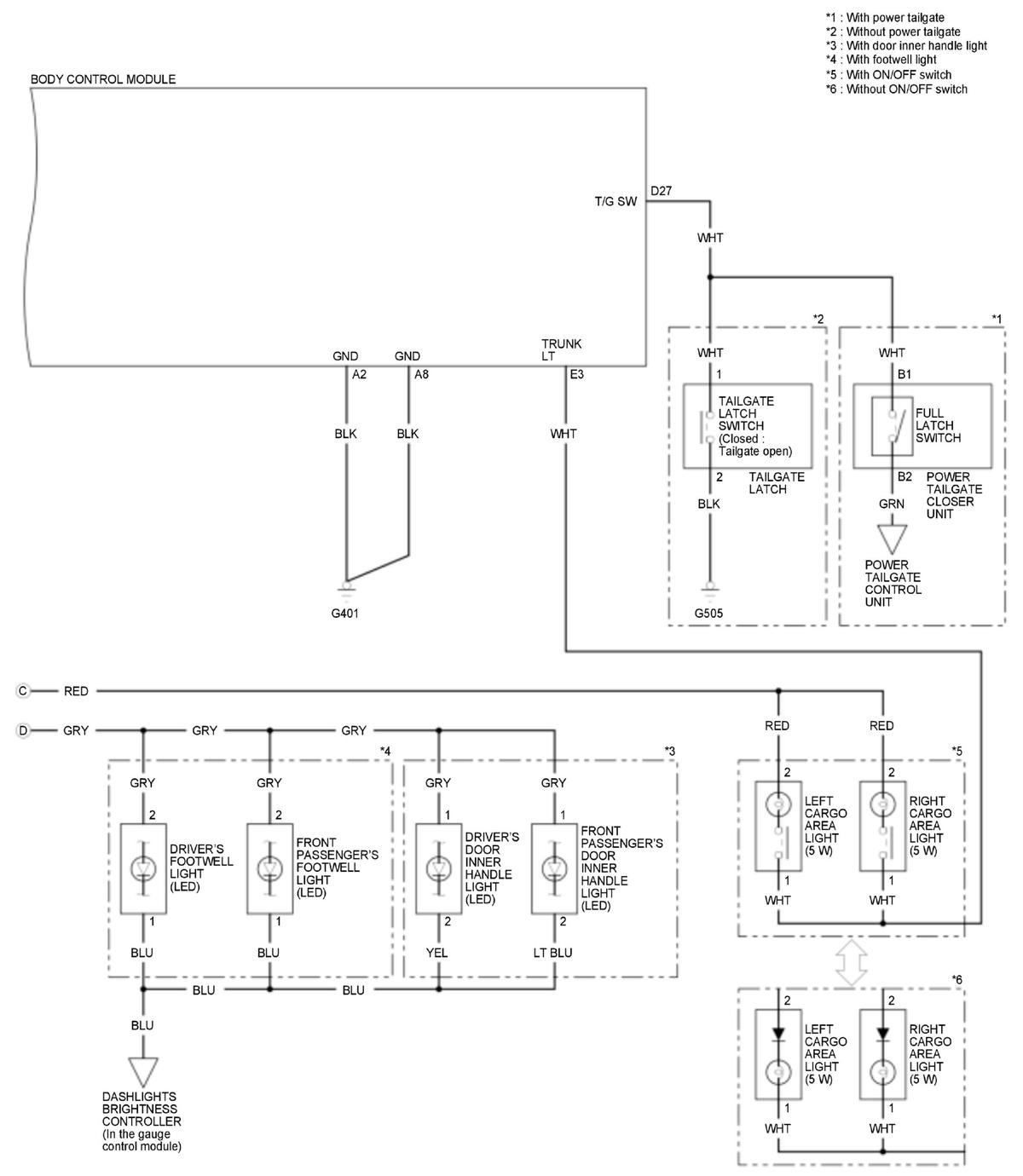

GHH428973

Courtesy of HONDA, U.S.A., INC.
