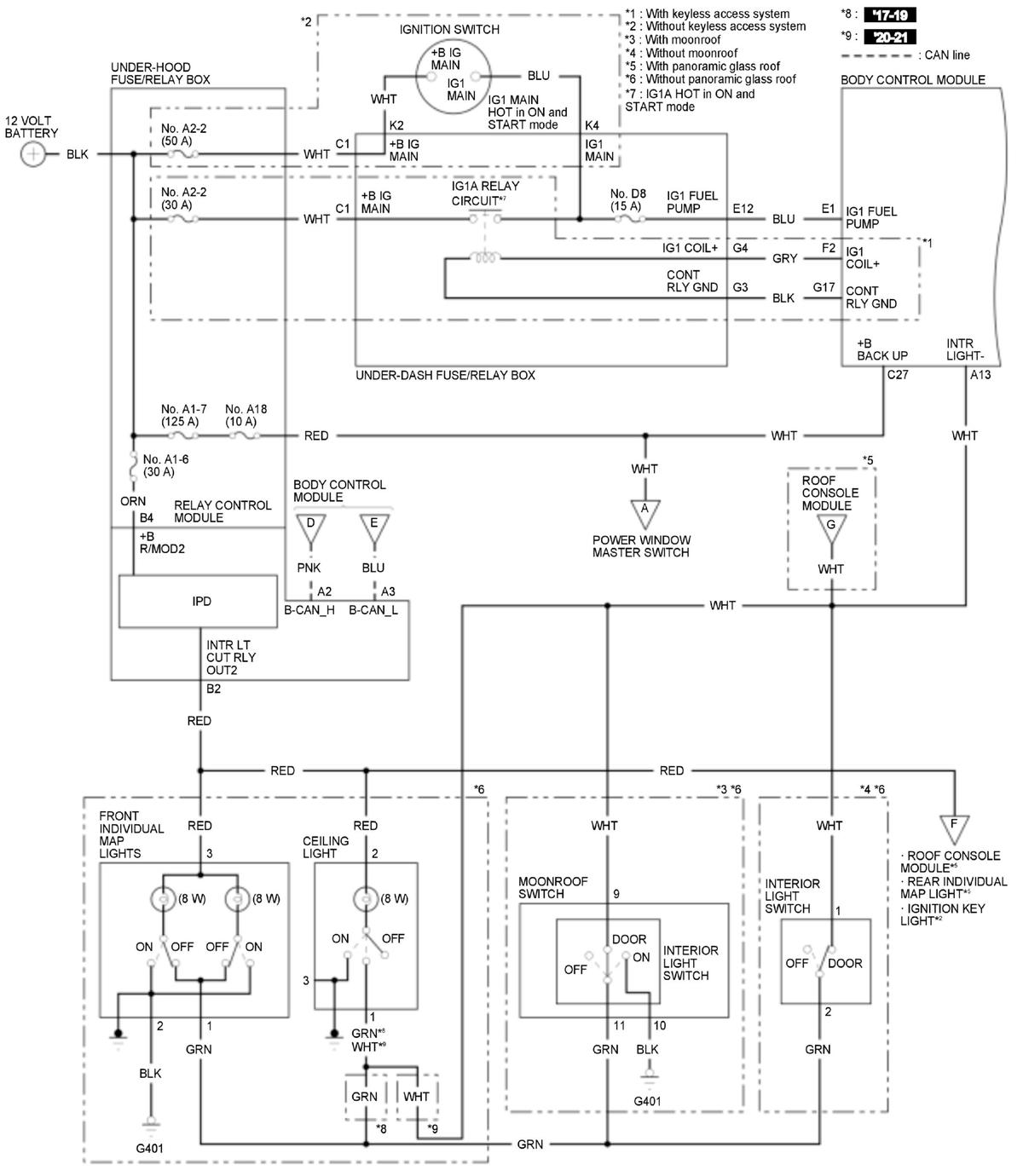

Entry Lights Control System Circuit Diagram

GHH428966

Courtesy of HONDA, U.S.A., INC.

GHH428967

Courtesy of HONDA, U.S.A., INC.

GHH428968

Courtesy of HONDA, U.S.A., INC.

GHH428969

Courtesy of HONDA, U.S.A., INC.
