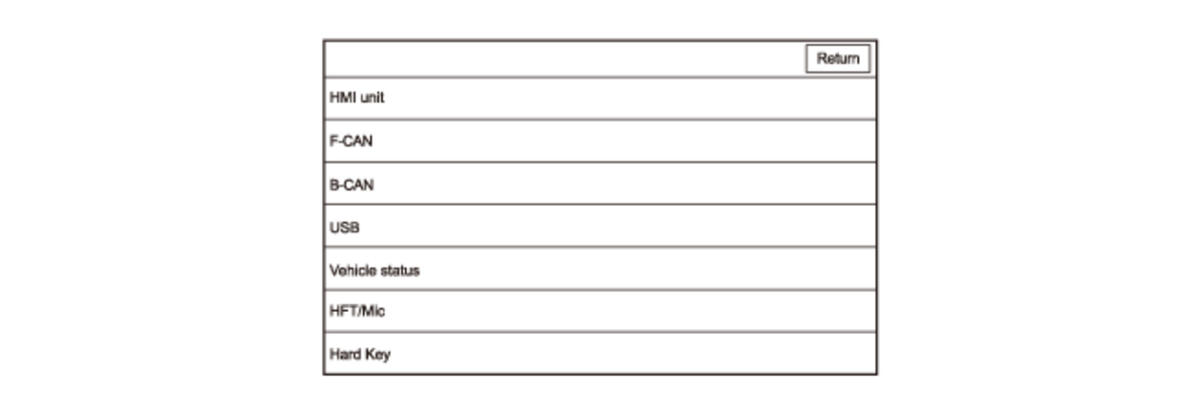

Unit Check (Quick Check)

These screens allow you to diagnose the audio-navigation unit and related units. Some of the tests and screens that are displayed under the Unit Check are same as the checks listed under the Detail Information and Setting.

To start the test, select the item you want to check.

NOTE: These items describe in indication order. Swipe the screen to check the next items.

HMI unit
F-CAN
B-CAN
USB
Vehicle status
HFL/Mic
Hard Key
Error history
Rear wide camera
Front Camera (not supported)
LaneWatch
Remote tuner
AMP
XM Ant.
CD (not supported)
Center display
iPhone
Meter Display
GPS antenna
HD Traffic
Gyro Sensor
A/C
Telematics Diag (not supported)
MirrorLink

Courtesy of HONDA, U.S.A., INC.

HMI Unit

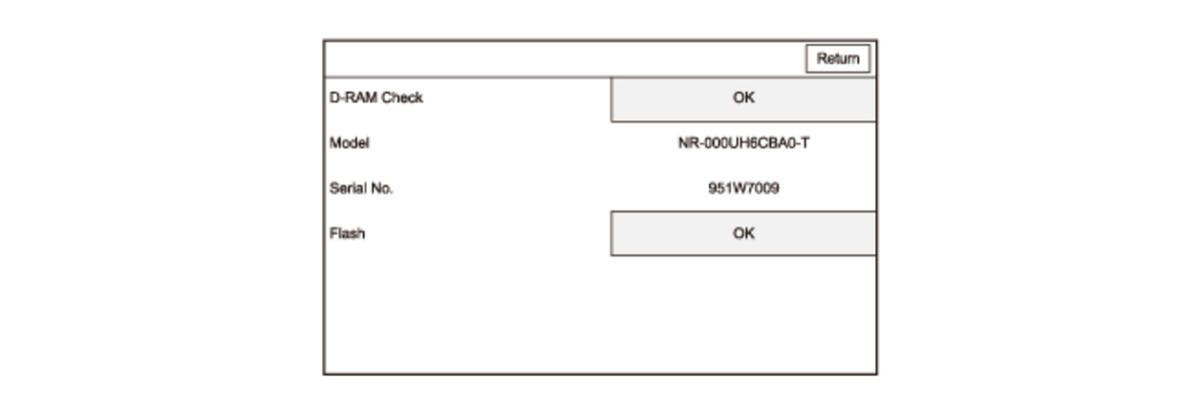

This diagnosis checks for problems in the audio-navigation unit processor. When you start this diagnosis, the audio-navigation unit may freeze or delay up to a minute while the diagnosis runs.

D-RAM: Displays the result of the access to the D-RAM (OK/NG). If NG, check for hard error codes .
Model: Displays the audio-navigation unit manufacture's model number.
Serial No. : Displays the audio-navigation unit serial number. That should be the same as the serial number found on the upper side of the audio-navigation unit.
Flash: Displays the result of the access to the flash memory (OK/NG). If NG, replace the audio-navigation unit .

Courtesy of HONDA, U.S.A., INC.

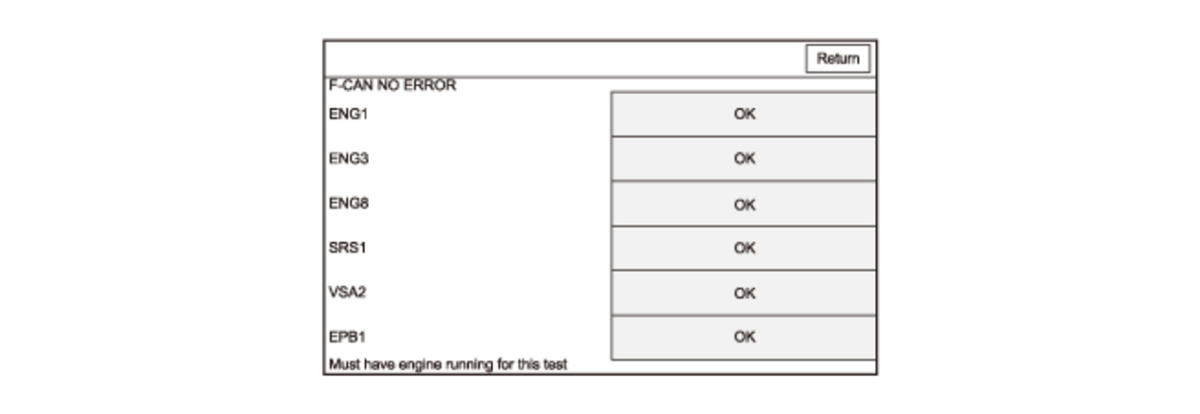

F-CAN

NOTE:

This diagnosis must have the engine running.
Swipe the screen to check the next items.

This diagnosis checks whether the audio-navigation unit has received specific F-CAN data. If F-CAN shows NO ERROR, an error is not detected between the F-CAN bus and the audio-navigation unit.

If F-CAN shows RX ERROR, replace the audio-navigation unit .
If F-CAN shows TIME OUT, There is a possibility that some items are NG (red icon). When all the items from each transmitting unit is NG, check for F-CAN DTCs with the HDS. If DTCs not detected, check for continuity in the F-CAN lines between the audio-navigation unit and the transmitting unit.

Courtesy of HONDA, U.S.A., INC.

B-CAN

NOTE:

This diagnosis must have the engine running.
Swipe the screen to check the next items.

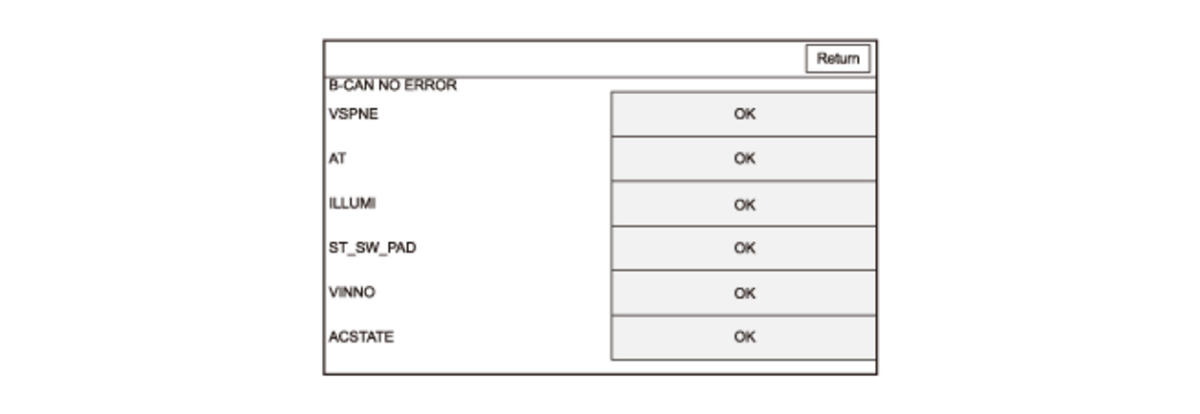

This diagnosis checks whether the audio-navigation unit has received specific B-CAN data. If B-CAN shows NO ERROR, an error is not detected between the B-CAN bus and the audio-navigation unit.

If B-CAN shows RX ERROR, replace the audio-navigation unit .
If B-CAN shows TIME OUT, There is a possibility that some items are NG (red icon). When all the items from each transmitting unit is NG, check for B-CAN DTCs with the HDS. If DTCs not detected, check for continuity in the B-CAN lines between the audio-navigation unit and the transmitting unit.

Item	Transmitting Unit
VSPNE, AT, ILLUMI, ST_SW_PAD, VINNO, STRG_ANG, ODO_TRIP, TRICOM1 - 4, METER_RMD	Gauge control module

Courtesy of HONDA, U.S.A., INC.

USB

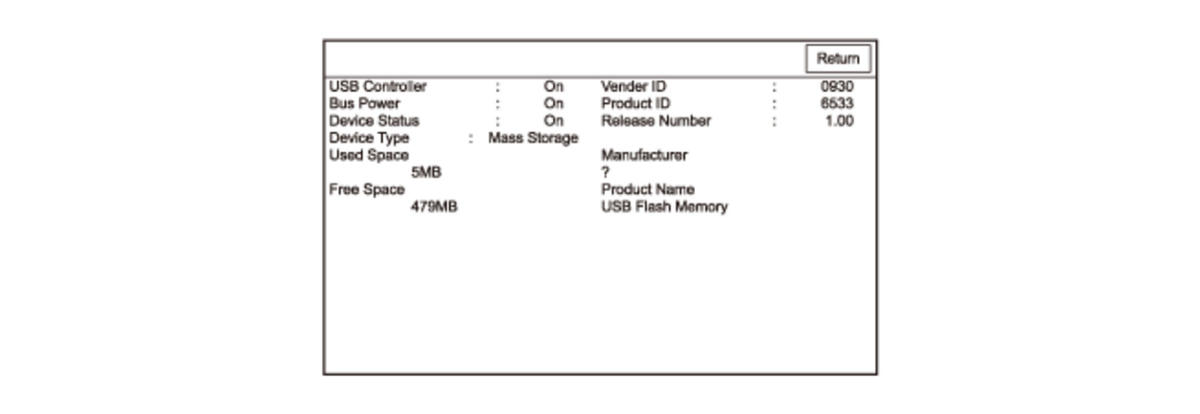

This diagnosis displays the USB device status that is connected to the audio-navigation unit.

If the USB memory device is connected to the USB port A or B, the screen displays the USB controller status, the Bus power status, and the device status.

When you connect a USB mass storage device, you can see the capacity used and the amount of free space available.

Courtesy of HONDA, U.S.A., INC.

Vehicle Status

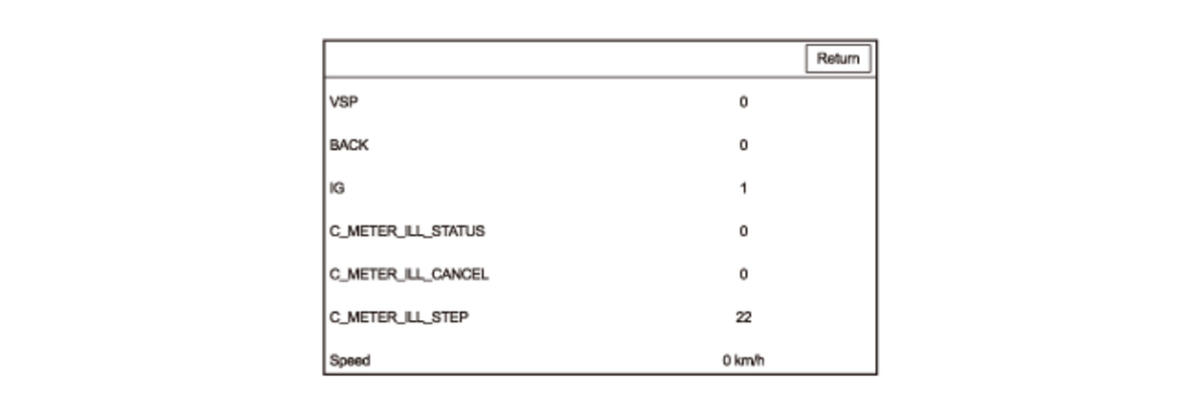

Use this screen to confirm that the audio-navigation unit is properly receiving input signals. The displayed value changes each time according to the state of input signal.

NOTE: These items describe in indication order. Swipe the screen to check the next items.

Item	Input	Description
VSP	VSP line	1: When the vehicle speed pulse is received from the PCM or the TCM 0: When the vehicle speed pulse is not received from the PCM or the TCM

Item	Input	Description
BACK	BACK LT line	1: When the transmission is shifted to R position/mode 0: When the transmission is shifted to any position/mode other than R position/mode
IG	B-CAN lines	1: When the vehicle is in the ON mode 0: When vehicle is in the ACCESSORY mode
C_METER_ILL_STATUS	B-CAN lines	1: When position lights, or headlights are on 0: When position lights, or headlights are off
C_METER_ILL_CANCEL	B-CAN lines	1: When the dashlights brightness control knob is more than 90 % brightness with the position lights turned on 0: When the dashlights brightness control knob is less than 90 % brightness with the position lights turned on
C_METER_ILL_STEP	B-CAN lines	With the position lights on, use the dashlights brightness control knob to dim and brighten the gauge. The value changes from 1 (max low) to 22 (max high).
Speed	B-CAN lines	This item indicates the vehicle speed (km/h).
TV-PARK	B-CAN lines	1: When the parking brake is applied 0: When the parking brake is not applied
NAVI-PARK	B-CAN lines	1: When the parking brake is applied 0: When the parking brake is not applied
Current received VIN	B-CAN lines	This item indicates the VIN that received from the PCM.
Initial registered VIN	B-CAN lines	This item indicates the initial registration VIN (10 is added to the beginning of indicated VIN) that is saved in the audio-navigation unit.
Last registered VIN	B-CAN lines	This item indicates the additional registration VIN (11 is added to the beginning of indicated VIN) when the audio-navigation unit is substituted into another vehicle, or when a PCM is substituted or replaced into this vehicle.

Courtesy of HONDA, U.S.A., INC.

HFL/Mic

This diagnosis allows you to independently test the Bluetooth module and the microphone. The Bluetooth module is built into the audio-navigation unit. To properly check the microphones, make sure you are sitting in the driver's seat.

NOTE: Before this diagnosis, check the response of the TALK button on the audio remote-HFL switch by the Hard Key diagnosis.

If the Bluetooth Connection Diagnosis shows NG, replace the audio-navigation unit .

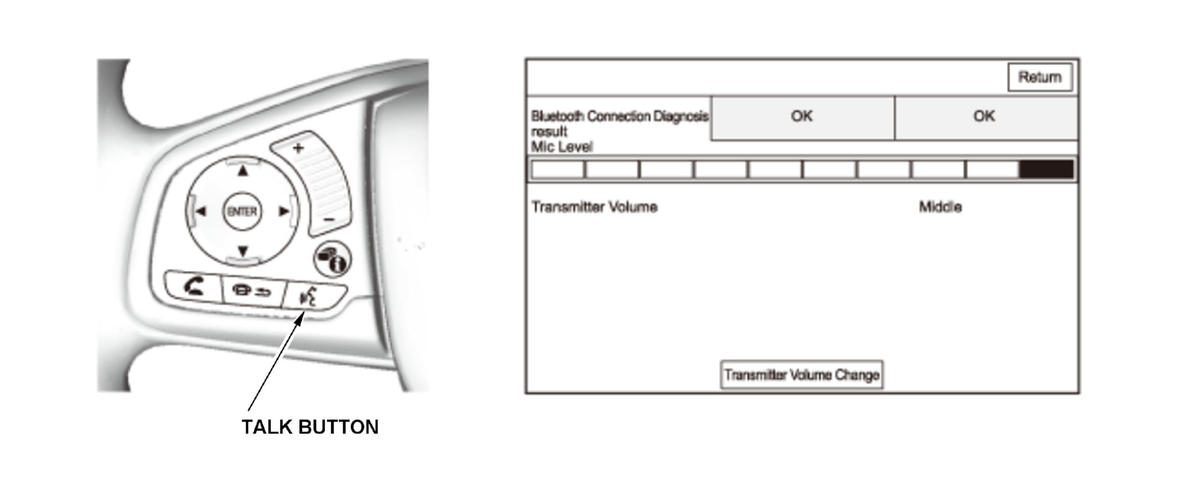

Press the TALK button, and within 5 seconds in a normal voice say ' 'testing' ' toward the microphone in the roof console. The Mic Level indicator on the screen should momentarily turn green. The test is set to OK by indicating green more than 6 steps. If there is no Mic Level movement when you speak, go to HFL does not work properly troubleshooting .

Courtesy of HONDA, U.S.A., INC.

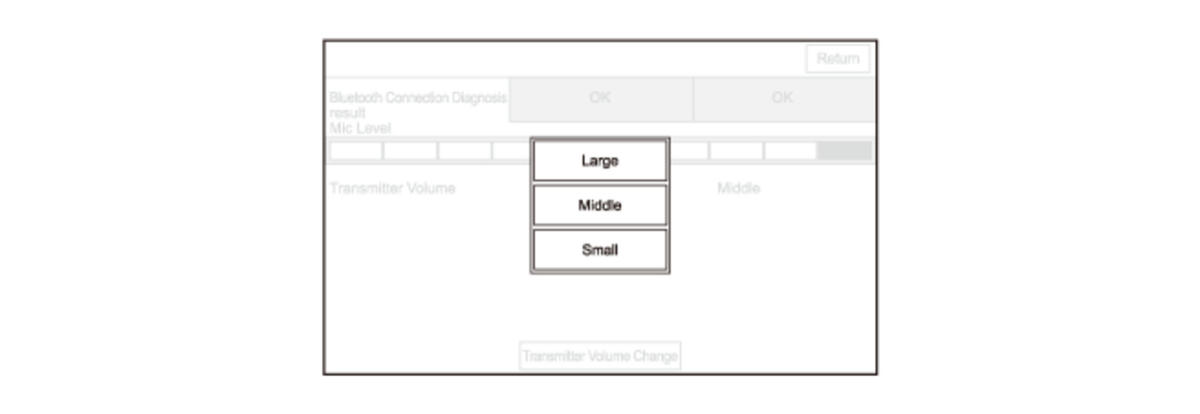

If you select the Transmitter Volume Change icon, the transmitter volume can be selected from three selection (Large, Middle, Small).

Courtesy of HONDA, U.S.A., INC.

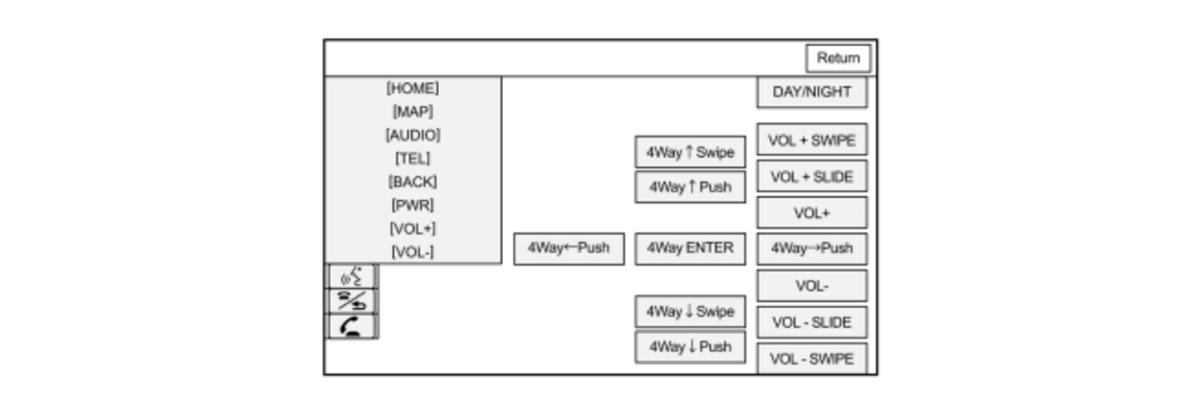

Hard Key

This diagnosis checks the center display unit face buttons, the audio remote-HFL switch. For this model, the audio remote-HFL switch buttons use the data bus via the gauge control module for communications.

To complete the test, press each buttons. As each function is tested, the corresponding button on the display should highlight. If the test cannot be completed, the corresponding icon on the Hard Key menu screen shows red.

If any button of the center display unit does not respond, replace the center display unit .
If any button of the audio remote-HFL switch does not respond, replace the audio remote-HFL switch .
If all buttons of the audio remote-HFL switch do not respond, go to Audio remote-HFL switch does not work properly (audio-navigation unit buttons work) troubleshooting .

Courtesy of HONDA, U.S.A., INC.

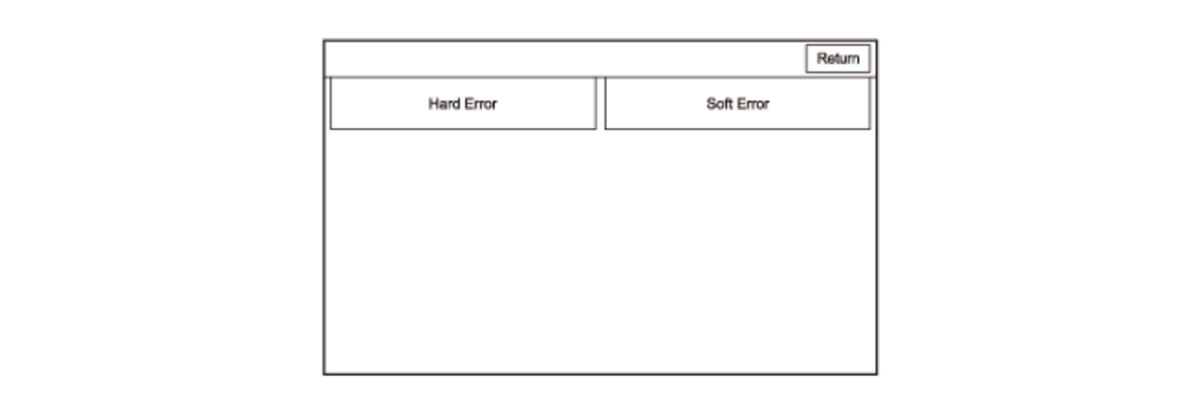

Error History

If you select Hard Error or Soft Error, you can see the error information. Refer to How to Check for Error History to use this diagnosis .

Courtesy of HONDA, U.S.A., INC.

Rear Wide Camera

This diagnosis checks the rearview camera connection.

If Connection shows NG, check for hard error codes .
If Connection shows OK, press the HOME button to display the rearview camera image. To return to the previous screen, press the HOME button again.

Courtesy of HONDA, U.S.A., INC.

LaneWatch

This diagnosis checks the LaneWatch camera connection.

If Connection shows NG, check for hard error codes .
If Connection shows OK, press the HOME button to display the LaneWatch camera image. To return to the previous screen, press the HOME button again.

Courtesy of HONDA, U.S.A., INC.

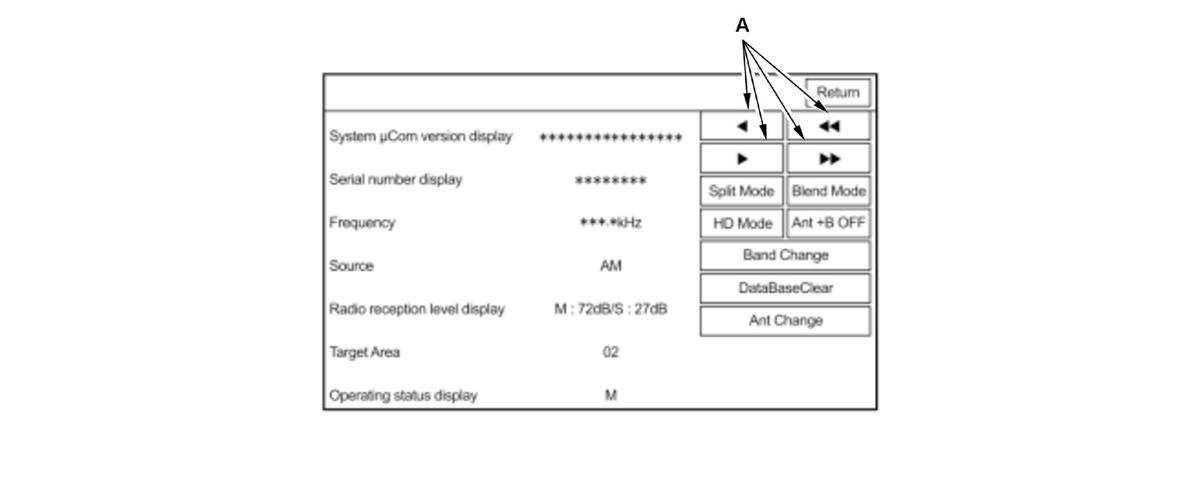

Remote Tuner

NOTE:

For factory use only. Do not alter any settings unless directed.
These items describe in indication order. Swipe the screen to check the next items.

This diagnosis displays the external AM/FM radio tuner (tuner unit) status.

System 'com version display: Displays the tuner unit processor version.
Serial number display: Displays the tuner unit serial number. That should be the same as the serial number found on the upper side of the tuner unit.
Frequency: Displays frequency of the radio station which is being received. Frequency can be changed by selecting each icon (A).
Source can be changed in this order: Radio sources by selecting the Band Change icon.
Radio reception level display: Displays radio reception level (dB). The AM/FM antenna power status can be changed to on or off by selecting the Ant +B OFF icon.
Target Area: Displays the destination of the tuner unit at 2 digits.
Operating status display: If the vehicle has diversity antenna, you can select the radio antenna function from M (Main), S (Sub), or P (Diversity).
RBDS BER display: Displays the RBDS bit error ratio.
SNR display: Displays the Sound/Noise ratio about the AM or FM.
Total preset number: Displays number of radio station preset about the AM or FM.
HD functions ON/OFF: Displays the HD function is available (YES) or not available (NO).
VOL: Displays the current volume level.
Split Mode: Displays the split mode on or off. That can be changed by selecting the Split Mode icon.
Blend Mode: Displays the blend mode which is being received. The blend mode can be changed to AUTO/ANALOG/DIGITAL by selecting the Blend Mode icon.
HD Mode: Displays the HD mode status (ON: HD, OFF: analog) at frequency of the radio station which is being received. That can be changed by selecting the HD Mode icon.

Courtesy of HONDA, U.S.A., INC.

AMP

This diagnosis checks the digital bus (RS485) connection between the audio-navigation unit and the stereo amplifier.

If Connection shows NG, go to No sound is heard from all the speakers (display is normal) troubleshooting .

Courtesy of HONDA, U.S.A., INC.

XM Ant.

This diagnosis checks the XM antenna connection between the audio-navigation unit and the roof antenna. The XM radio tuner is built into the audio-navigation unit.

If Connection shows NG, check for hard error codes .

Courtesy of HONDA, U.S.A., INC.

Center display

These items describe in indication order. Swipe the screen to check the next items.

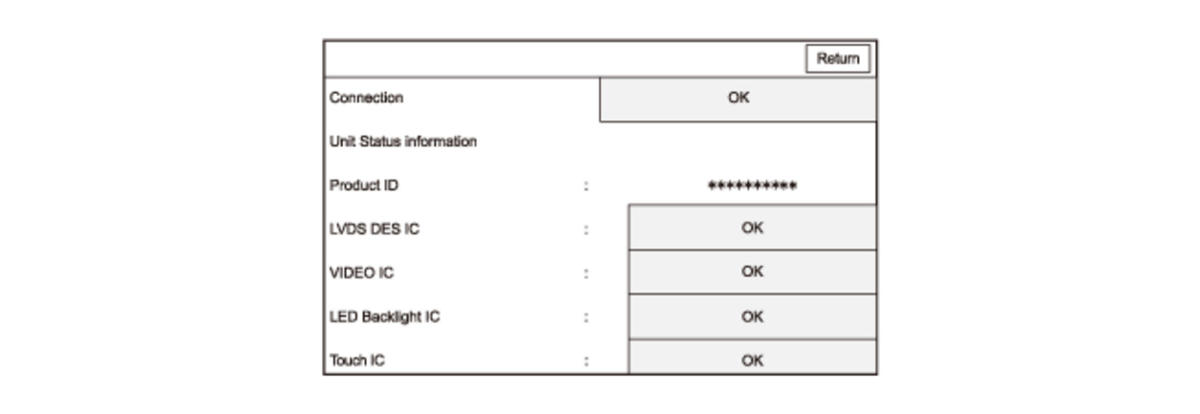

This diagnosis checks the digital bus (LVDS1) connection between the audio-navigation unit and the center display unit, and displays the center display unit status.

Connection: Checks the digital bus (LVDS1) between the audio-navigation unit and the center display unit. This item should indicate OK.
Unit Status Information: Indicates the center display unit processor status. If any of the status indicates NG, turn the vehicle to the OFF (LOCK) mode then the ON mode, and recheck the status. If the status still indicates NG, replace the center display unit .
Unit Version Information: Displays the center display unit various version number.

Courtesy of HONDA, U.S.A., INC.

iPhone

This screen shows the information about the connected iPhone ® by App Mode.

Meter Display

This diagnosis checks the digital bus (LVDS2) between the audio-navigation unit and the gauge control module.

If Connection shows NG, go to The MID does not display the audio-navigation unit information troubleshooting .

Courtesy of HONDA, U.S.A., INC.

GPS Antenna

This diagnosis checks the GPS antenna connection.

If Antenna shows NG, the GPS antenna may be failure. Check for hard error codes .

Select Information to see the GPS satellite details.

Courtesy of HONDA, U.S.A., INC.

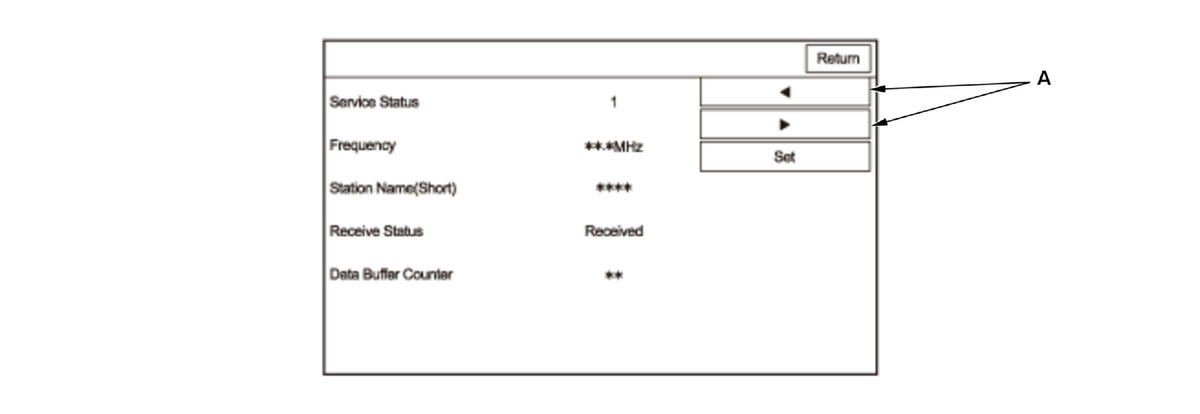

HD Traffic

This diagnosis displays the HD traffic status.

Service Status: Displays the HD traffic service status on (1) or off (except 1).
Frequency can be changed by selecting each icon (A).
Station Name: Displays the call sign of the receiving HD traffic station.
Receive Status: Displays the reception status of HD traffic.
Data Buffer Counter: If the unit receives the data from the HD traffic station, displays the number of buffering data.

Courtesy of HONDA, U.S.A., INC.

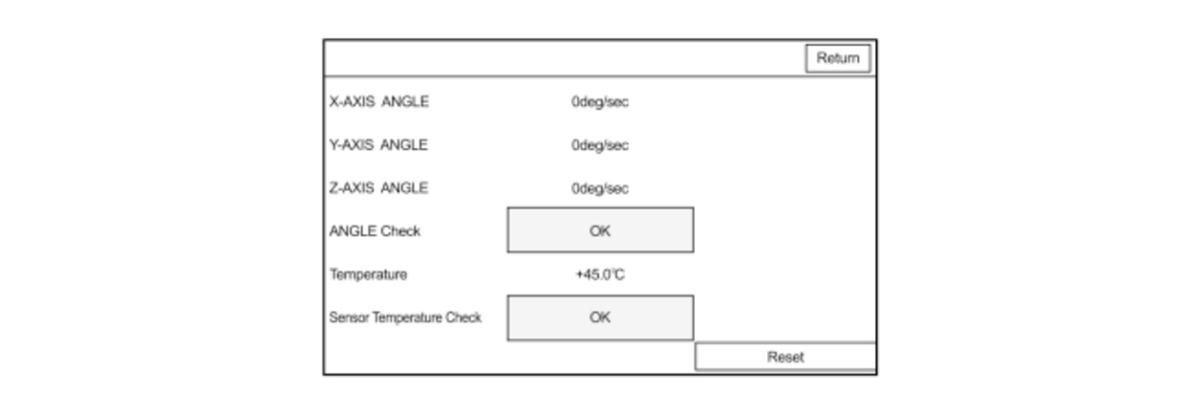

Gyro Sensor

This diagnosis checks the gyro sensor in the audio-navigation unit. This devices detect how the vehicle moves, and repositions the vehicle position icon on the map screen. Select the GYRO Sensor.

Courtesy of HONDA, U.S.A., INC.

X/Y/Z AXIS ANGLE: Indicates the angular speed of the gyro sensor.
ANGLE Check: The audio-navigation unit checks if the angular speed is in range of threshold value.
Temperature: Indicates the temperature of the gyro sensor.
Sensor Temperature Check: The audio-navigation unit checks if the gyro sensor temperature is in range of threshold value.
Reset: All values can be reset to the factory specification.

Courtesy of HONDA, U.S.A., INC.

A/C

This diagnosis detects if the vehicle is in the ON mode using information provided over the F-CAN bus, then it tests the climate control signal via the B-CAN bus between the audio-navigation unit and the climate control unit. Make sure the engine is running for this test.

If Connection shows NG, check for hard error codes .

Courtesy of HONDA, U.S.A., INC.

MirrorLink

This screen shows the information about the connected smartphone by MirrorLink.
