Start-Up Procedure and Diagnostic Menu

1. Turn the vehicle to the ON mode. If needed, start the engine.

2. Press and hold the PHONE button, the DISPLAY MODE button, and the AUDIO POWER button until the Select Diagnosis Items menu screen is displayed:

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

NOTE:  The buttons needs to be pressed together simultaneously.

• Self-Diagnosis Mode (runs the automatic diagnosis of the navigation system)
• Detail Information and Setting (allows you to manually diagnose the navigation system)

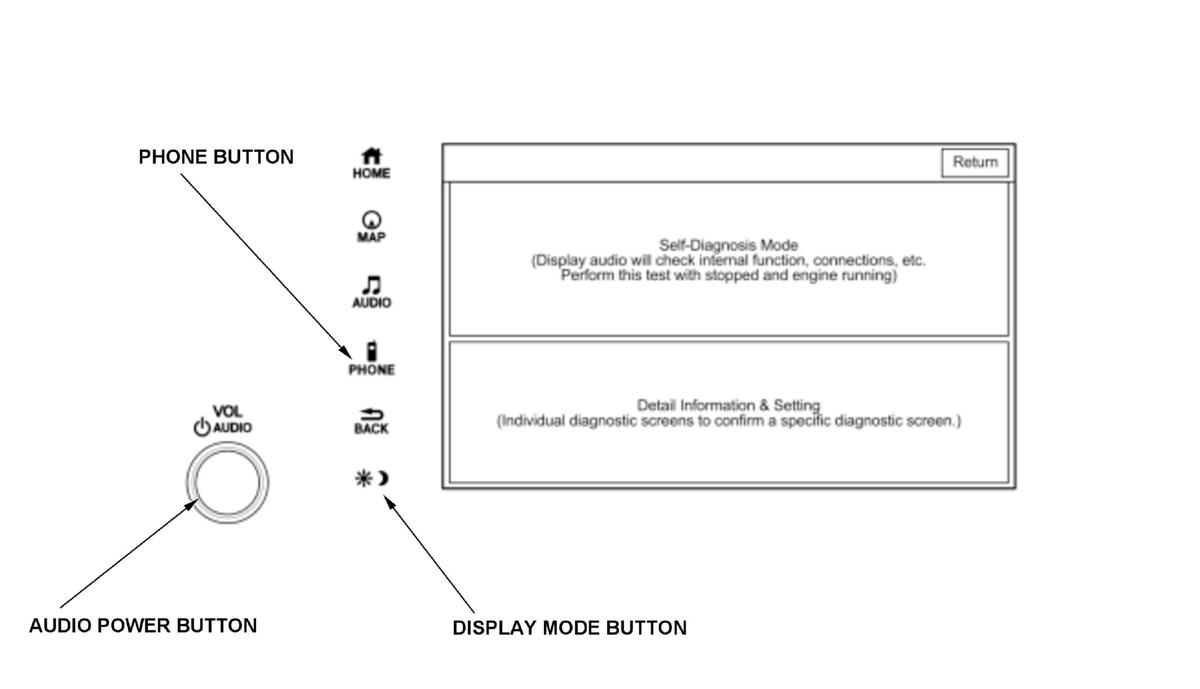

Displaying Select Diagnosis Items Menu Screen

Courtesy of HONDA, U.S.A., INC.
