Forced Completing of In Line Diag and Linking

Follow these steps to prevent the screen from appearing in the future:

1. While displaying the In Line Diag screen, press and hold the PHONE button, the DISPLAY MODE button, and the AUDIO POWER button until the Select Diagnosis Items menu screen is displayed.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

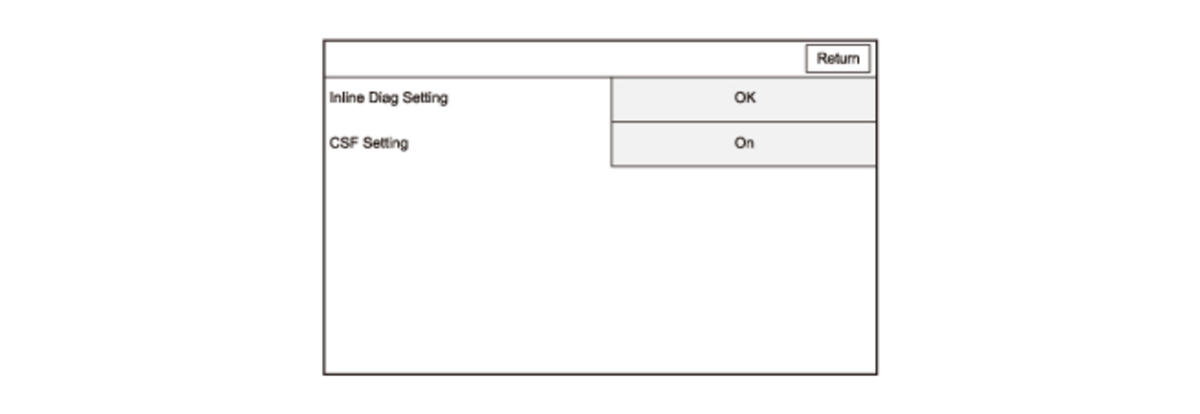

2. While displaying the Select Diagnosis Items menu screen, press and hold the HOME button until the In Line Diag setting screen is displayed.

Courtesy of HONDA, U.S.A., INC.

3. Set the Inline Diag Setting to OK (complete). The system restarts and a normal start-up process occurs. The In Line Diag should not appear again.
