HandsFreeLink System Component Location Index

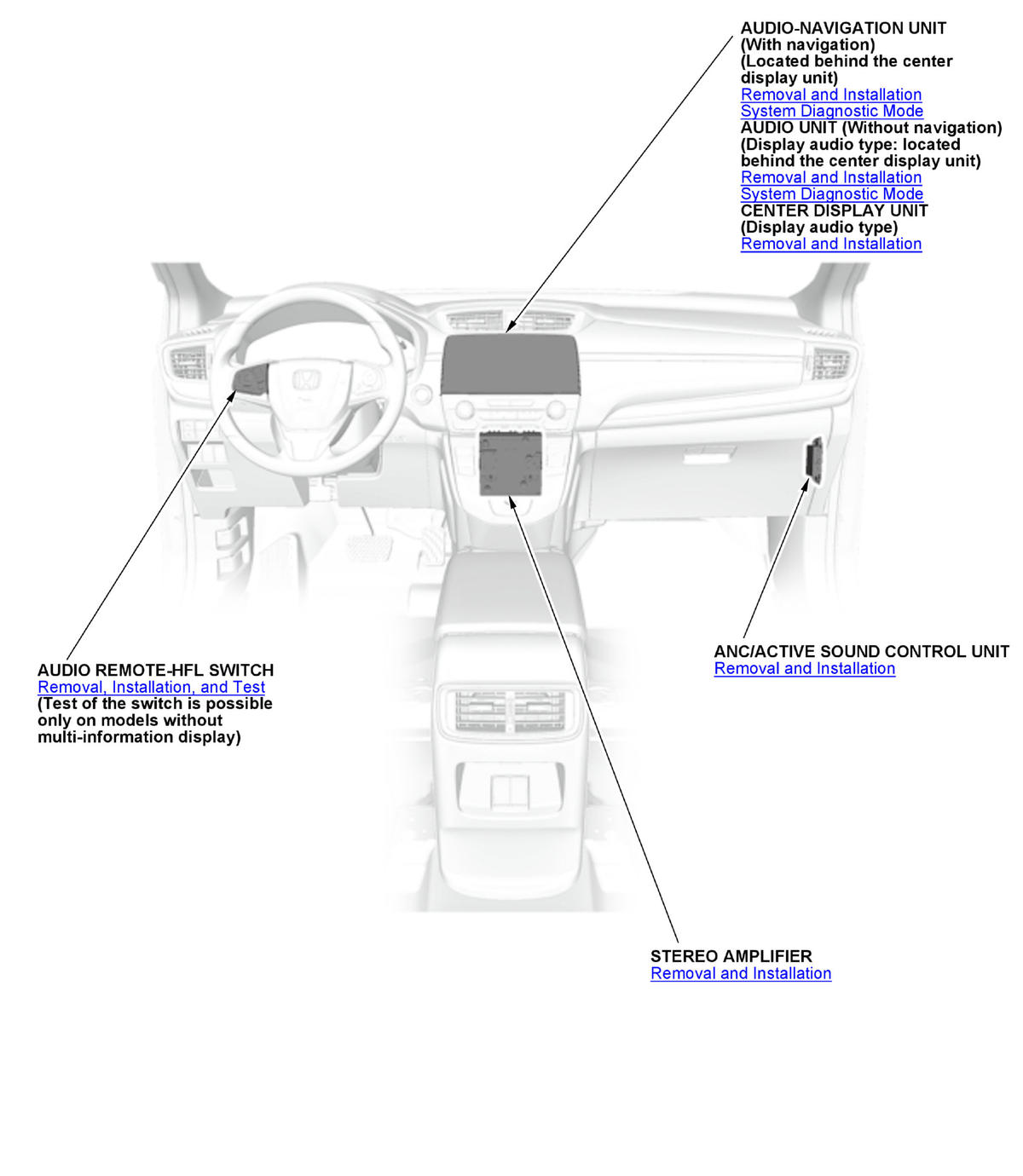

GHH428910

Courtesy of HONDA, U.S.A., INC.

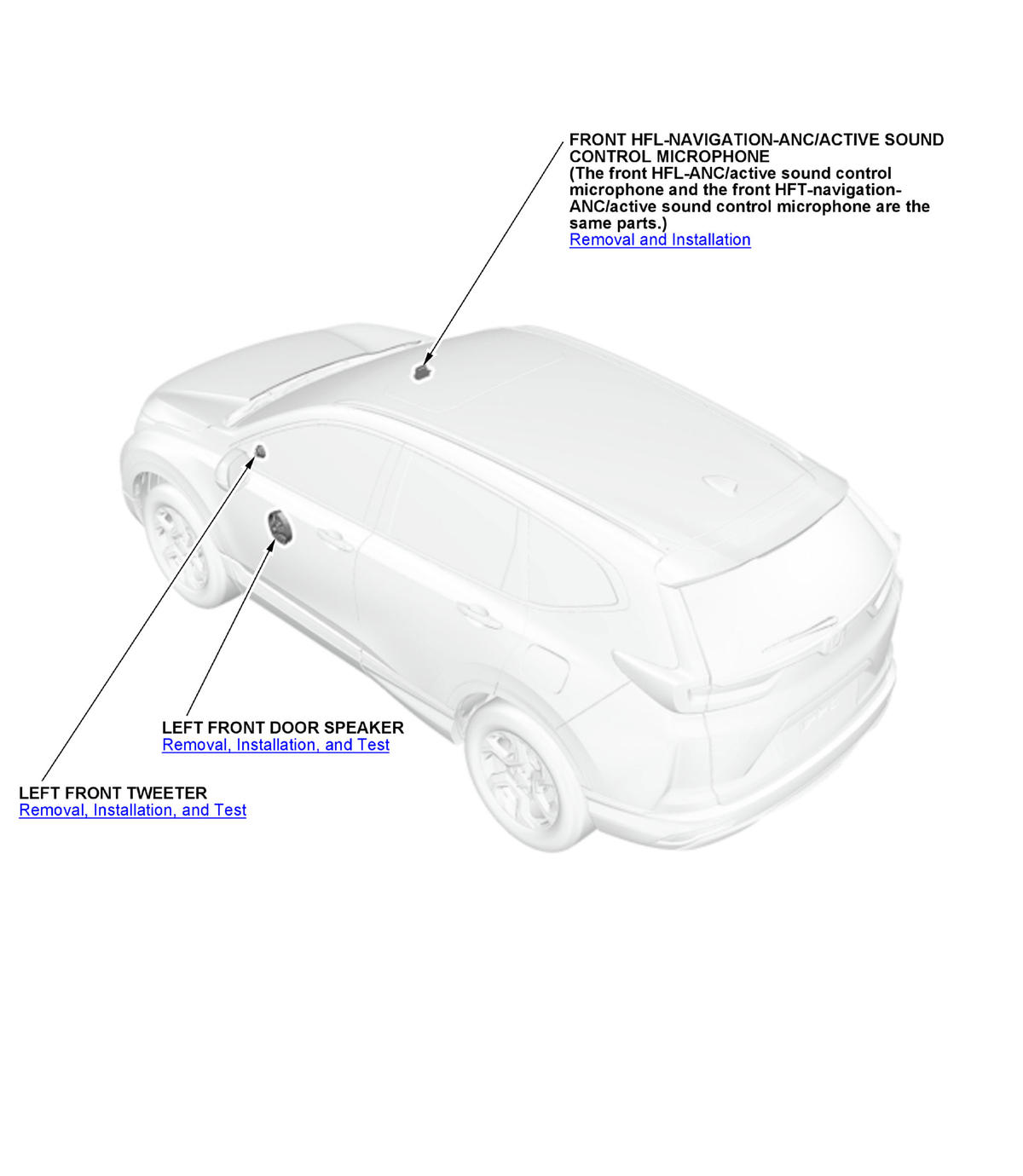

GHH428911

Courtesy of HONDA, U.S.A., INC.

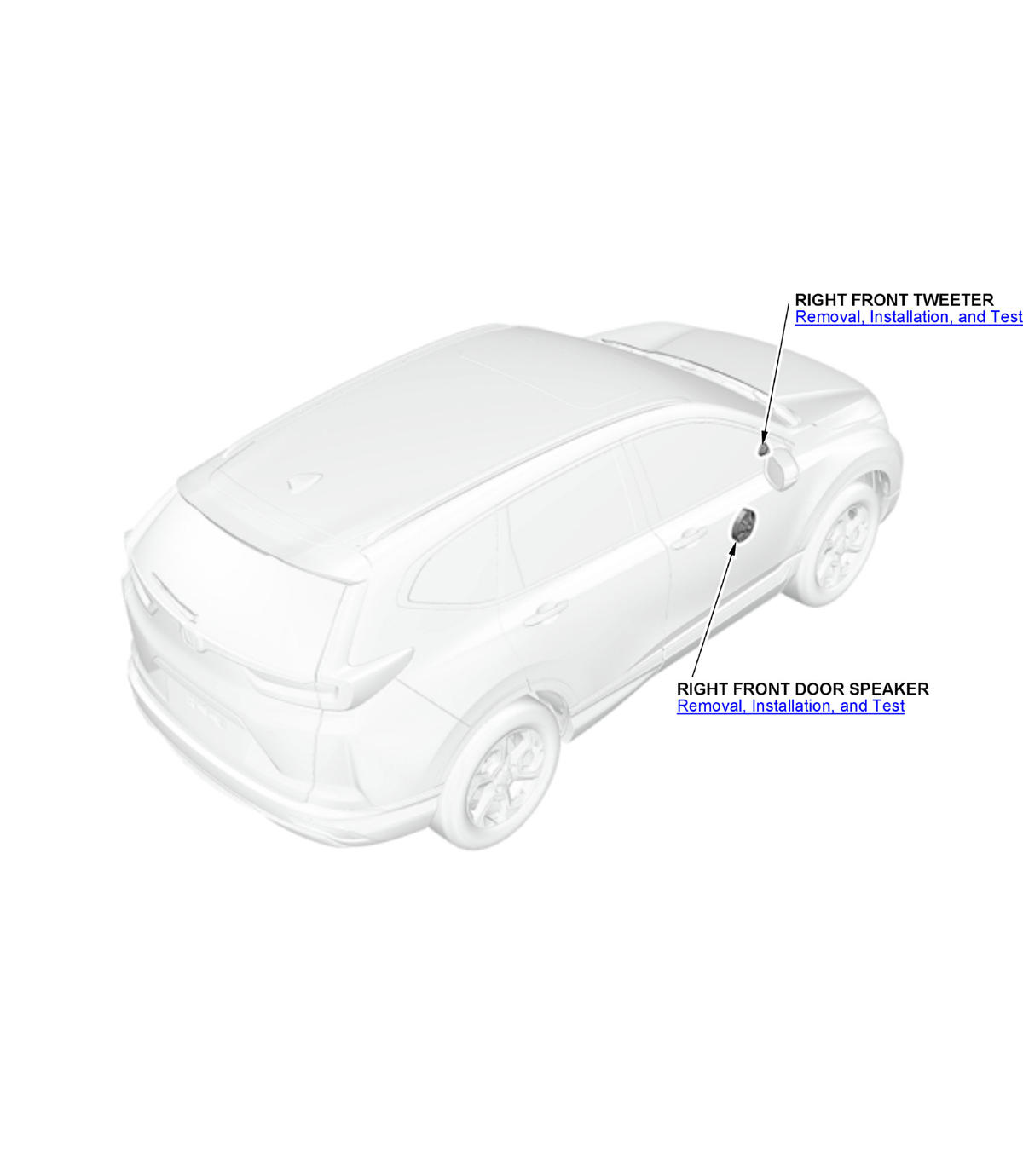

GHH428912

Courtesy of HONDA, U.S.A., INC.
