Tuner Unit Connector for Inputs and Outputs
| Connector Index |
| Tuner Unit Connector A (10P) |
| Tuner Unit Connector B (2P) |
| Tuner Unit Connector C (5P) |
| Tuner Unit Connector D (2P) (Not used) |

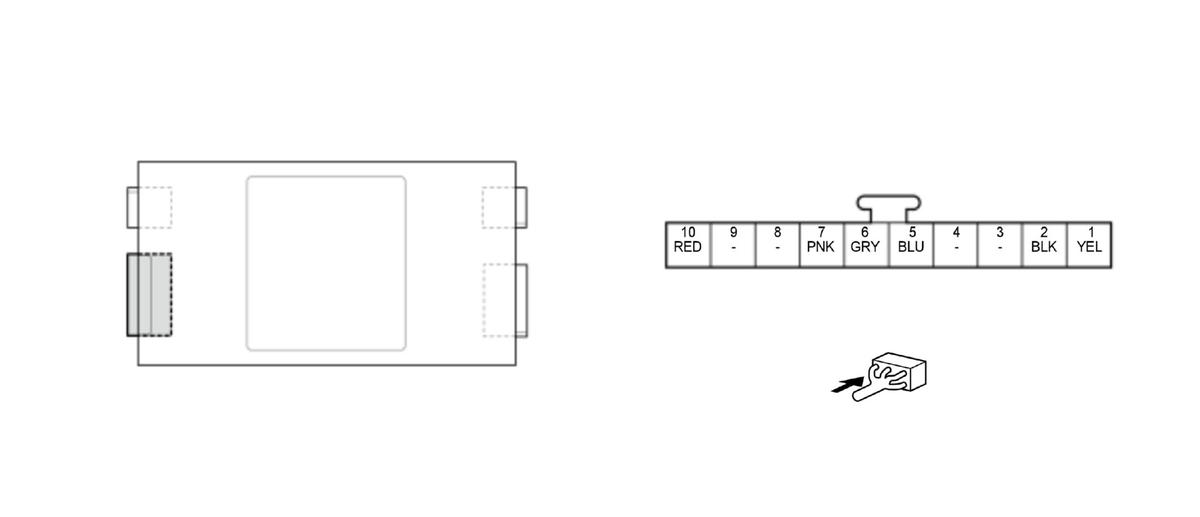

Tuner Unit Connector A (10P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
TUNER 9V |
Power source for tuner unit |
| A2 |
TUNER GND |
Tuner unit ground |
| A3 |
--- |
Not used |
| A4 |
--- |
Not used |
| A5 |
TUNER RS485+ |
Communication signal |
| A6 |
TUNER RS485 SH |
Shield for terminals No. 5 and No. 7 |
| A7 |
TUNER RS485- |
Communication signal |
| A8 |
--- |
Not used |
| A9 |
--- |
Not used |
| A10 |
TUNER 6V |
Power source for tuner unit |

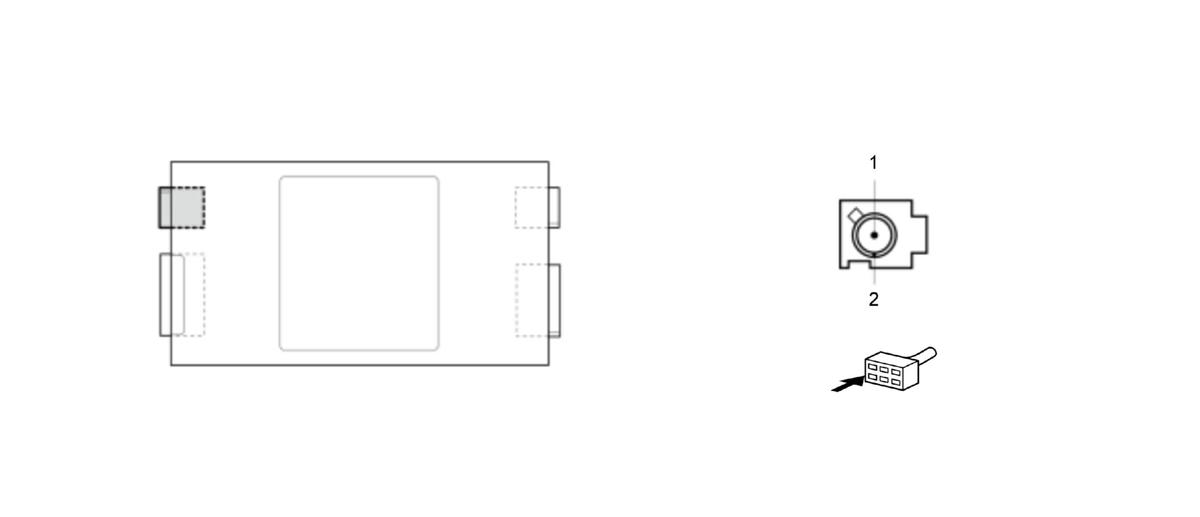

Tuner Unit Connector B (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
SPDIF1 SIG |
Communication signal |
| B2 |
SPDIF1 SH |
Shield for terminal No. 1 |

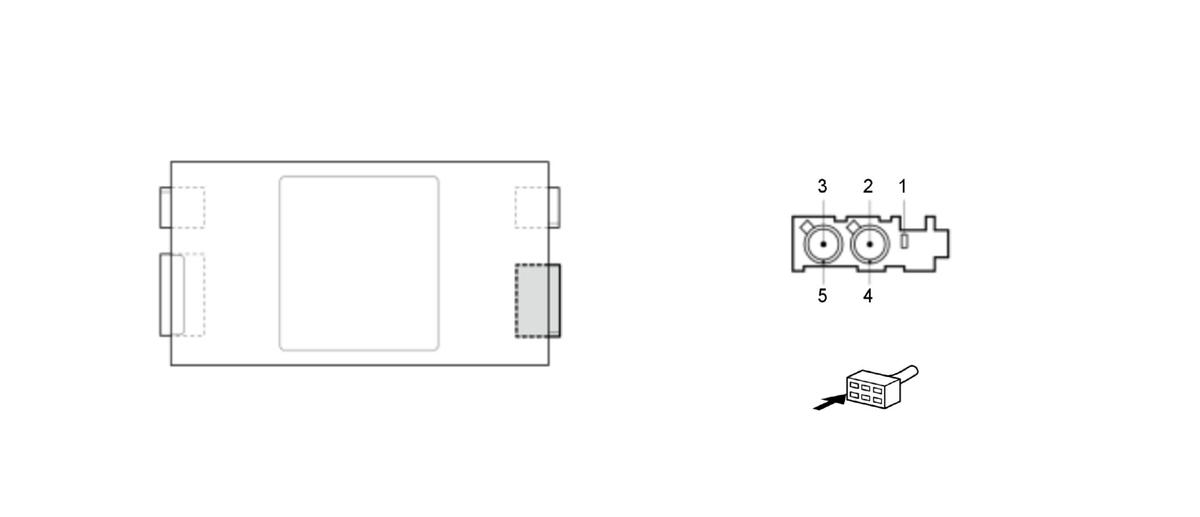

Tuner Unit Connector C (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| C1 |
ANT+B |
Power source for AM/FM antenna amplifier |
| C2 |
RF IN |
Inputs AM/FM signal |
| C3 |
--- |
Not used |
| C4 |
SH(RF IN) |
Shield for terminal No. 2 |
| C5 |
--- |
Not used |
