Stereo Amplifier Connector for Inputs and Outputs
| Connector Index |
| Stereo Amplifier Connector A (18P) |
| Stereo Amplifier Connector B (8P) (Not used) |
| Stereo Amplifier Connector C (16P) |
| Stereo Amplifier Connector D (2P) |

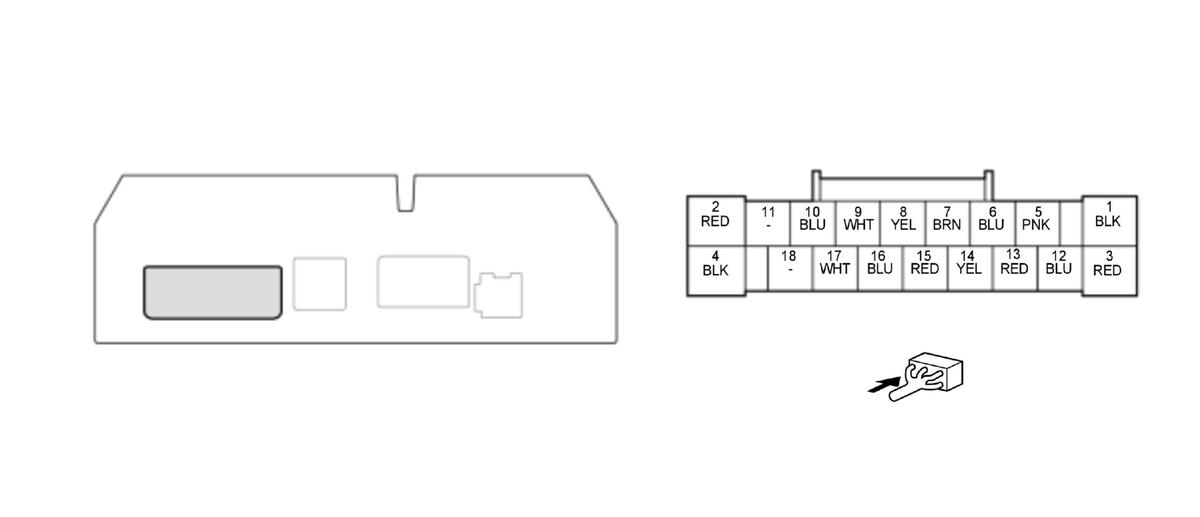

Stereo Amplifier Connector A (18P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
GND |
Ground for stereo amplifier |
| A2 |
SUB WOOFER+ |
Outputs sound signal for subwoofer |
| A3 |
+B AUDIO AMP |
+B power source |
| A4 |
SUB WOOFER- |
Outputs sound signal for subwoofer |
| A5 |
FL SPKR+ |
Outputs sound signal for left front door speaker |
| A6 |
FL SPKR- |
Outputs sound signal for left front door speaker |
| A7 |
RR SPKR- |
Outputs sound signal for right rear speakers |
| A8 |
RR SPKR+ |
Outputs sound signal for right rear speakers |
| A9 |
RL SPKR- |
Outputs sound signal for left rear speakers |
| A10 |
RL SPKR+ |
Outputs sound signal for left rear speaker |
| A11 |
--- |
Not used |
| A12 |
FR SPKR- |
Outputs sound signal for right front door speaker |
| A13 |
FR SPKR+ |
Outputs sound signal for right front door speaker |
| A14 |
FL TWEETER+ |
Outputs sound signal for left front tweeter |
| A15 |
FL TWEETER- |
Outputs sound signal for left front tweeter |
| A16 |
FR TWEETER+ |
Outputs sound signal for right front tweeter |
| A17 |
FR TWEETER- |
Outputs sound signal for right front tweeter |
| A18 |
--- |
Not used |

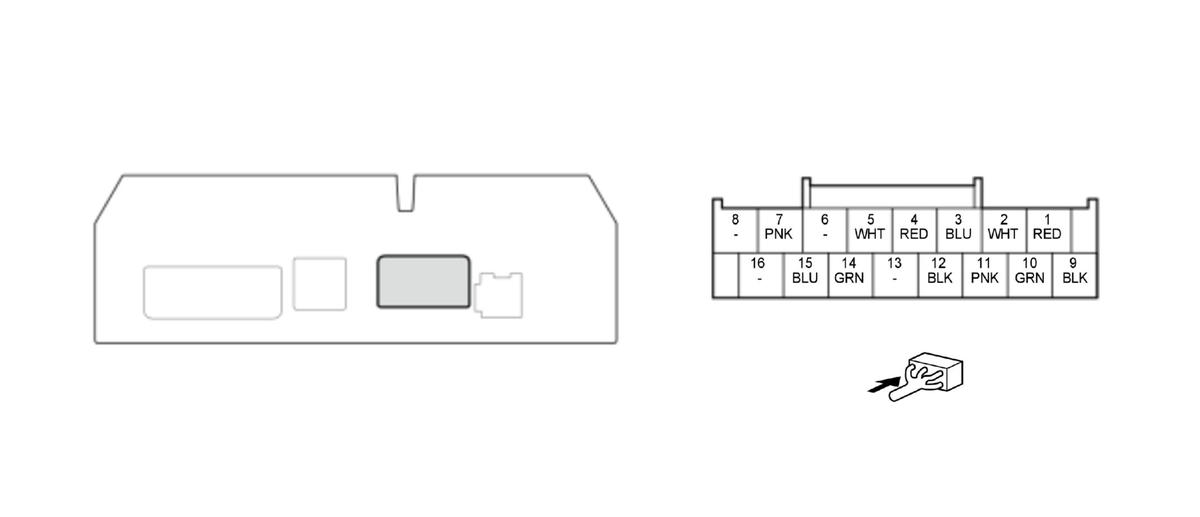

Stereo Amplifier Connector C (16P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| C1 |
ANC R- |
Inputs noise cancelling signal from ANC/active sound control unit |
| C2 |
ANC F- |
Inputs noise cancelling signal from ANC/active sound control unit |
| C3 |
AUD F MIX GND |
Basis ground for terminals No. 11 |
| C4 |
AUX BEEP |
Inputs system beep signal |
| C5 |
AUX NAVI GND |
Basis ground for terminals No. 4 and No. 12 |
| C6 |
--- |
Not used |
| C7 |
RS485- |
Communication signal |
| C8 |
--- |
Not used |
| C9 |
ANC R+ |
Inputs noise cancelling signal from ANC/active sound control unit |
| C10 |
ANC F+ |
Inputs noise cancelling signal from ANC/active sound control unit |
| C11 |
AUD F MIX |
Inputs noise cancelling mixing signal from ANC/active sound control unit |
| C12 |
AUX NAVI |
Inputs sound signal for voice guidance and Voice Recognition (VR) prompts |
| C13 |
--- |
Not used |
| C14 |
SWD+B |
Inputs signal for stereo amplifier switching on/off |
| C15 |
RS485+ |
Communication signal |
| C16 |
--- |
Not used |

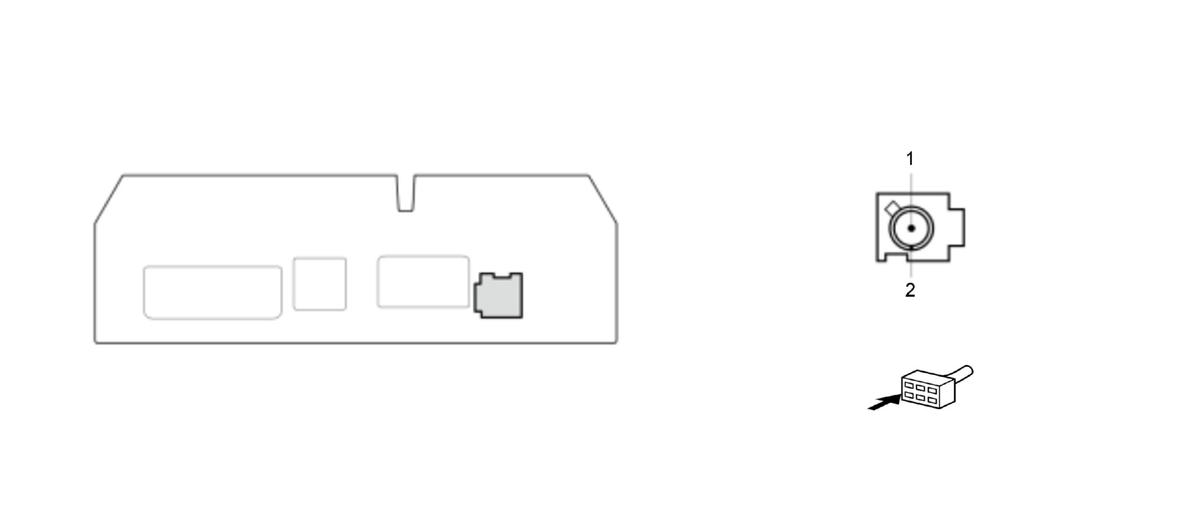

Stereo Amplifier Connector D (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| D1 |
SPDIF2 SIG |
Communication signal |
| D2 |
SPDIF2 SH |
Shield for terminal No. 1 |
