Audio-Navigation Unit Connector for Inputs and Outputs

Connector Index
Audio-Navigation Unit Connector A (24P) (with rearview camera diode)
Audio-Navigation Unit Connector A (24P) (without rearview camera diode)
Audio-Navigation Unit Connector B (24P)
Audio-Navigation Unit Connector C (32P)
Audio-Navigation Unit Connector E (16P)
Audio-Navigation Unit Connector F (5P)
Audio-Navigation Unit Connector G (5P)
Audio-Navigation Unit Connector H (3P)
Audio-Navigation Unit Connector J (3P)
Audio-Navigation Unit Connector K (2P)
Audio-Navigation Unit Connector L (2P)
Audio-Navigation Unit Connector M (4P) (with Stereo Amplifier)
Audio-Navigation Unit Connector N (2P) (with XM)

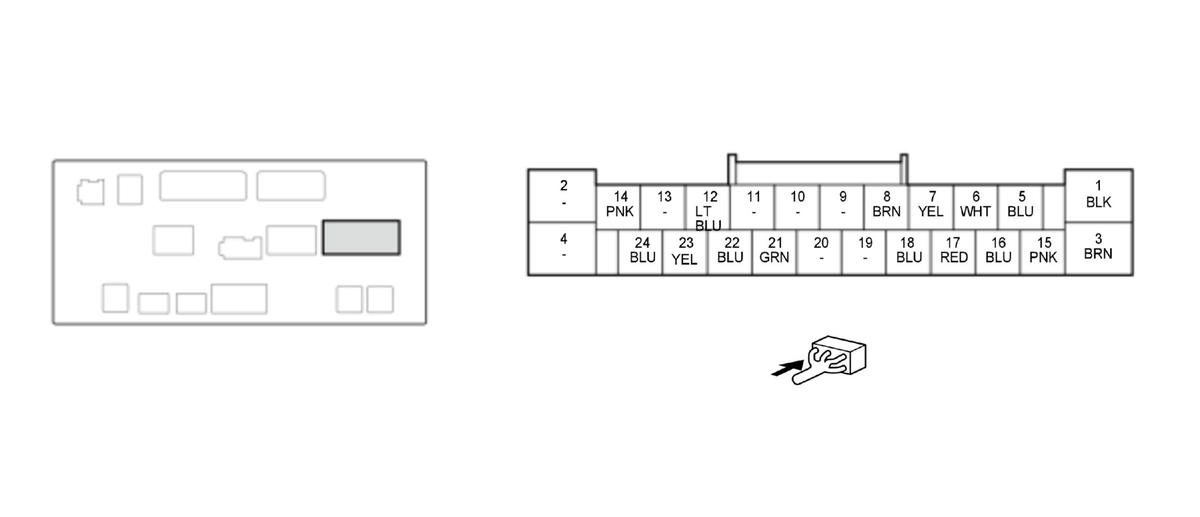

Audio-Navigation Unit Connector A (24P) (female terminals) (with rearview camera diode)

Courtesy of HONDA, U.S.A., INC.

Audio-Navigation Unit Connector A (24P) (female terminals) (without rearview camera diode)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
A1	GND	Audio-navigation unit ground
A2	---	Not used
A3	+B BACKUP2 SUB* 4+B AUDIO* 5	+B power source
A4	---	Not used
A5* 1	RL SPKR+	Outputs sound signal for left rear speakers
A6* 1	RL SPKR-	Outputs sound signal for left rear speakers
A7* 1	RR SPKR+	Outputs sound signal for right rear speakers
A8* 1	RR SPKR-	Outputs sound signal for right rear speakers
A9	---	Not used
A10	---	Not used
A11	---	Not used
A12	K LINE	Communication signal
A13	---	Not used
A14	B-CAN_H	Communication signal
A15* 1	FL SPKR+	Outputs sound signal for left front speakers
A16* 1	FL SPKR-	Outputs sound signal for left front speakers
A17* 1	FR SPKR+	Outputs sound signal for right front speakers
A18* 1	FR SPKR-	Outputs sound signal for right front speakers
A19	---	Not used
A20	---	Not used
A21	SWD+B	Outputs signal for related unit switching on/off
A22	VSP	Inputs vehicle speed pulse
A23	IG1 WITH DIODE FMVSS* 2ACC CUT(VST)* 3* 4ACC* 3* 5	ACCESSORY power source
A24	B-CAN_L	Communication signal

*1: Without stereo amplifier

*2: With rearview camera diode

*3: Without rearview camera diode

*4: With auto idle stop system

*5: Without auto idle stop system

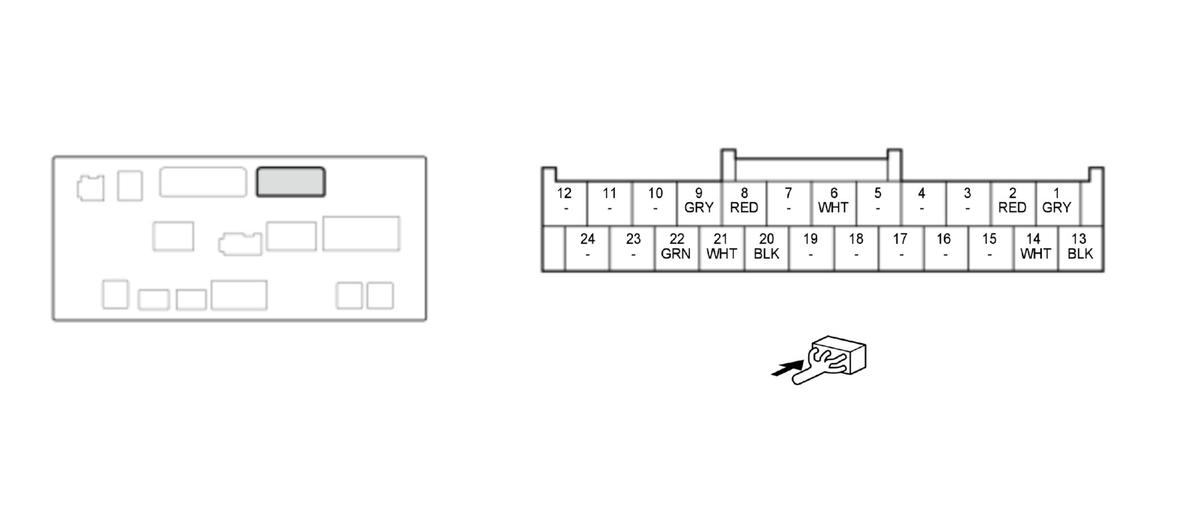

Audio-Navigation Unit Connector B (24P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
B1* 1	AUX NAVI SH	Shield for terminals No. 2, No. 13, and No. 14
B2* 1	AUX BEEP	Outputs system beep signal
B3	---	Not used
B4	---	Not used
B5	---	Not used
B6* 2	LWC SW	Detects LaneWatch switch signal
B7	---	Not used
B8* 2	LWC CAM VCC	Power source for LaneWatch camera
B9* 2	SH LWC CAM	Shield for terminals No. 8, No. 20, No. 21, and No. 22
B10	---	Not used
B11	---	Not used
B12	---	Not used
B13* 1	AUX NAVI	Outputs sound signal for voice guidance and Voice Recognition (VR) prompts
B14* 1	AUX NAVI GND	Basis ground for terminals No. 2 and No. 13
B15	---	Not used
B16	---	Not used
B17	---	Not used
B18	---	Not used
B19	---	Not used
B20* 2	LWC CAM VID	Inputs video signal from LaneWatch camera
B21* 2	LWC CAM VGND	Ground for LaneWatch camera
B22* 2	LWC UART	Communication signal
B23	---	Not used
B24	---	Not used

*1: With stereo amplifier

*2: With LaneWatch

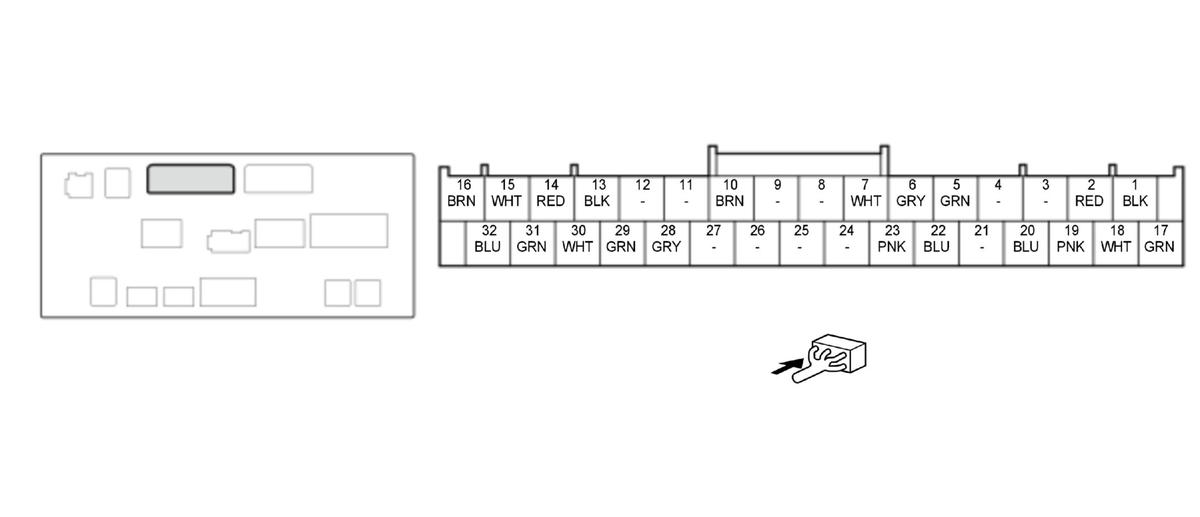

Audio-Navigation Unit Connector C (32P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
C1*	ANC R+	Inputs noise cancelling signal from ANC/active sound control unit
C2*	ANC R-	Inputs noise cancelling signal from ANC/active sound control unit
C3	---	Not used
C4	---	Not used
C5	HFT MUTE	Outputs HFL microphone directivity switching signal
C6	SH MIC	Shield for terminals No. 22 and No. 23
C7	MIC PWR	Power source for HFL microphone
C8	---	Not used
C9	---	Not used
C10	IG1 METER	IG1 power source
C11	---	Not used
C12	---	Not used
C13	CAMERA VCC	Power source for rearview camera
C14	CAMERA GND	Ground for rearview camera
C15	BACK LT	Detects reverse signal
C16	CAMERA ADPT	Detects connection for rearview camera
C17*	ANC F+	Inputs noise cancelling signal from ANC/active sound control unit
C18*	ANC F-	Inputs noise cancelling signal from ANC/active sound control unit
C19*	AUD F MIX	Inputs noise cancelling mixing signal from ANC/active sound control unit
C20*	AUD F MIX GND	Basis ground for terminals No. 19
C21	---	Not used
C22	MIC+	Inputs sound signal from HFL microphone
C23	MIC GND	Ground for HFL microphone
C24	---	Not used
C25	---	Not used
C26	---	Not used
C27	---	Not used
C28	SH CAMERA	Shield for terminals No. 13, No. 14, No. 29, and No. 30
C29	CAMERA V	Inputs NTSC video signal from rearview camera
C30	CAMERA V GND	Ground for NTSC video signal from rearview camera
C31	CAMERA BIT0	Outputs mode select signal for rearview camera
C32	CAMERA BIT1	Outputs mode select signal for rearview camera

*: Without stereo amplifier

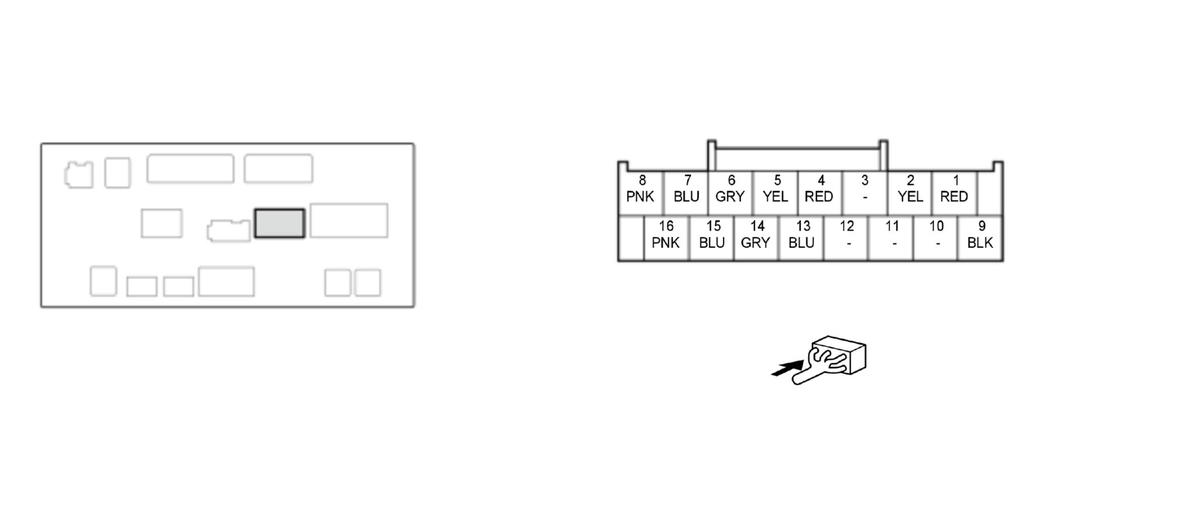

Audio-Navigation Unit Connector E (16P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
E1	TUNER 6V	Power source for tuner unit
E2	TUNER 9V	Power source for tuner unit
E3	---	Not used
E4	DISP CONT	Outputs signal for center display unit switching on/off
E5	F-CAN B_H	Communication signal
E6	AMP RS485 SH	Shield for terminals No. 7 and No. 8
E7	RS485+	Communication signal
E8	RS485-	Communication signal
E9	TUNER GND	Ground for tuner unit
E10	---	Not used
E11	---	Not used
E12	---	Not used
E13	F-CAN B_L	Communication signal
E14	TUNER RS485 SH	Shield for terminals No. 15 and No. 16
E15	TUNER RS485+	Communication signal
E16	TUNER RS485-	Communication signal

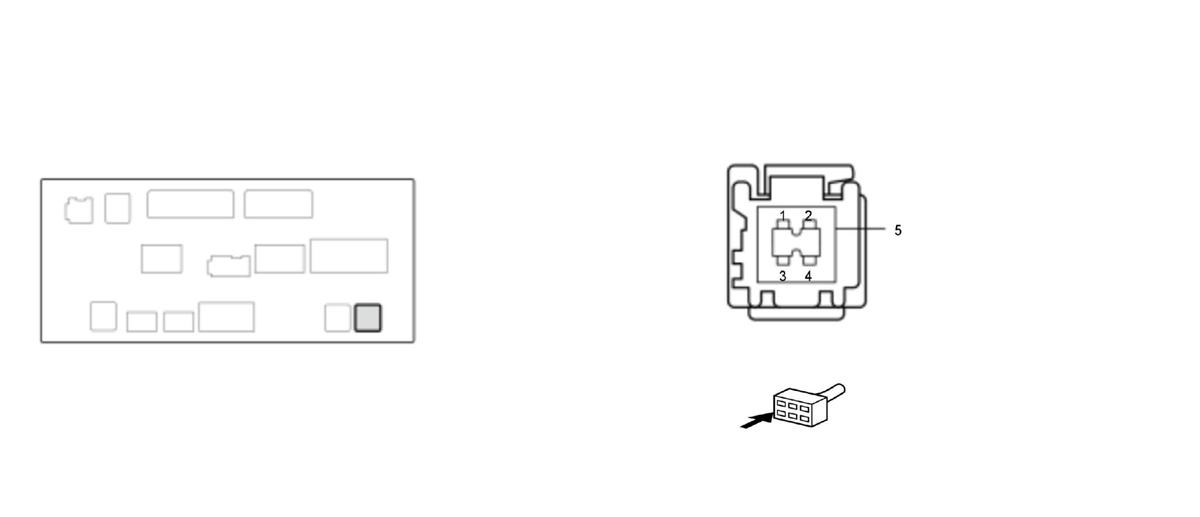

Audio-Navigation Unit Connector F (5P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
F1	USB1 GND	Ground for USB port A
F2	USB1 VBUS	Outputs power source for USB port A
F3	USB1 DATA+	Communication signal
F4	USB1 DATA-	Communication signal
F5	USB1 SH	Shield for terminals No. 1, No. 2, No. 3, and No. 4

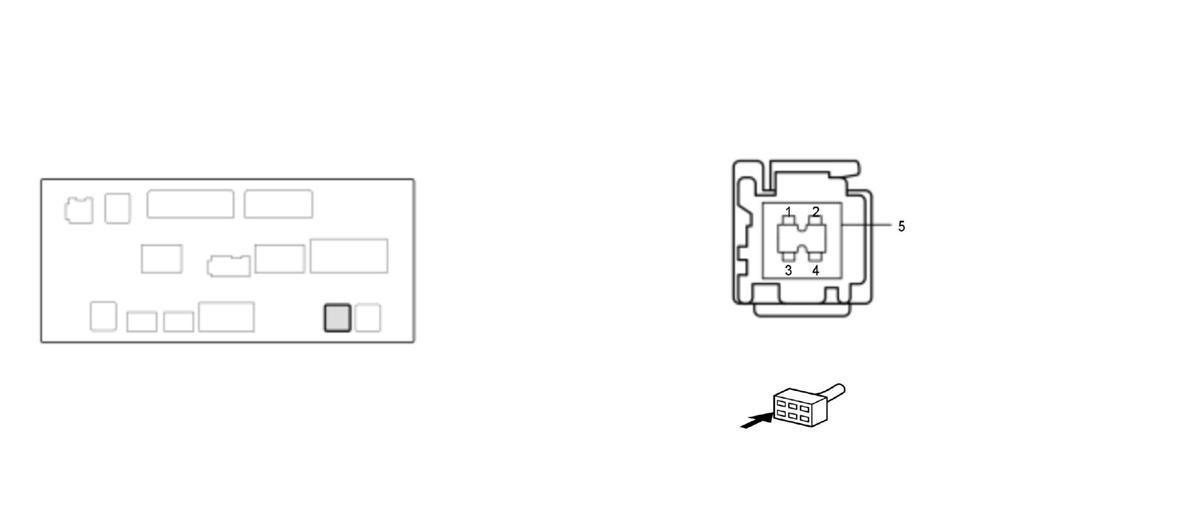

Audio-Navigation Unit Connector G (5P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
G1	USB2 GND	Ground for USB port B
G2	USB2 VBUS	Outputs power source for USB port B
G3	USB2 DATA+	Communication signal
G4	USB2 DATA-	Communication signal
G5	USB2 SH	Shield for terminals No. 1, No. 2, No. 3, and No. 4

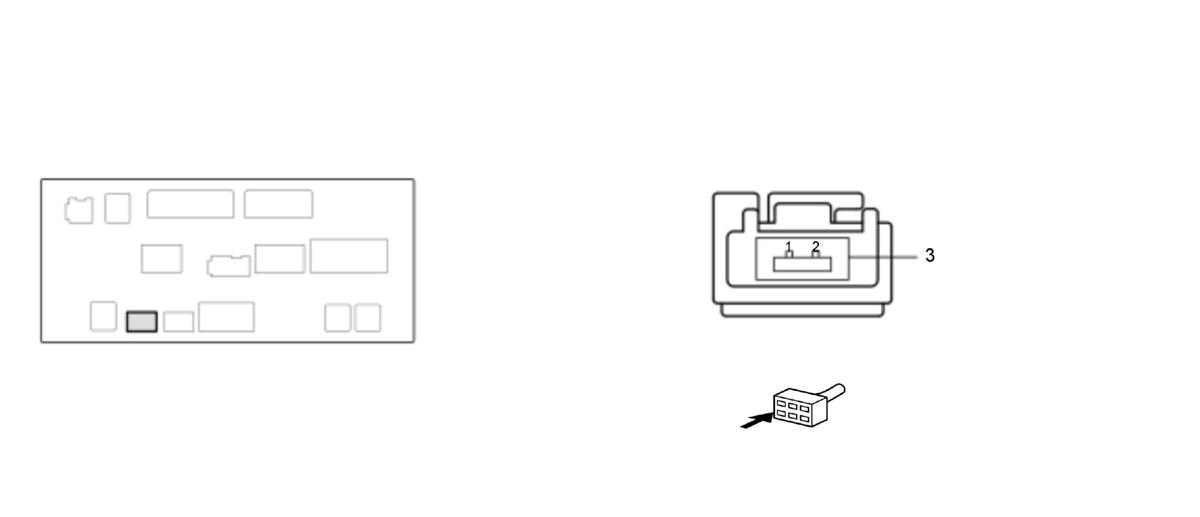

Audio-Navigation Unit Connector H (3P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
H1	LVDS1+	Communication signal
H2	LVDS1-	Communication signal
H3	LVDS1 SH	Shield for terminals No. 1 and No. 2

Audio-Navigation Unit Connector J (3P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
J1	LVDS2+	Communication signal
J2	LVDS2-	Communication signal
J3	LVDS2 SH	Shield for terminals No. 1 and No. 2

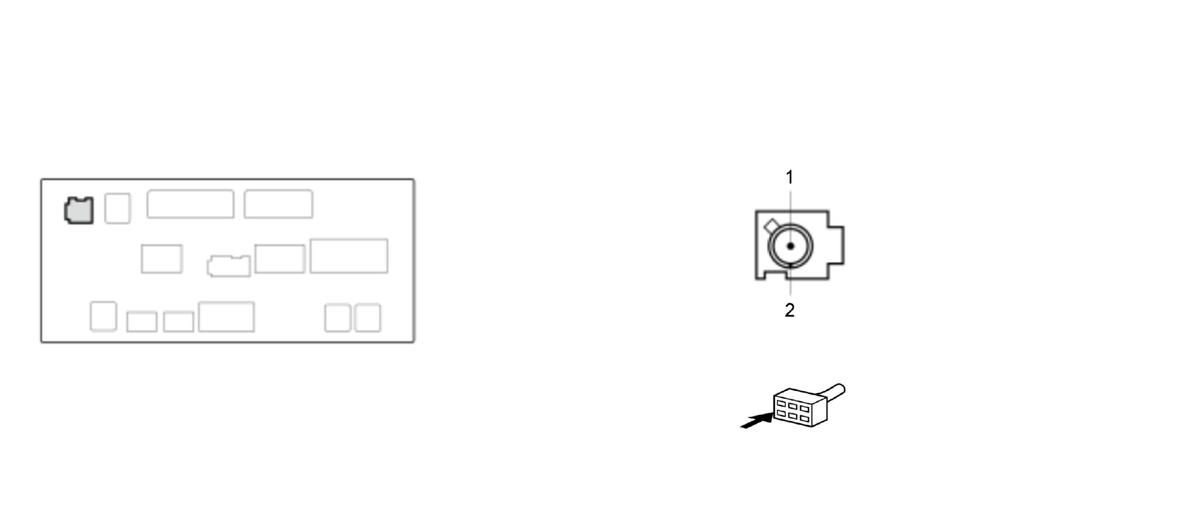

Audio-Navigation Unit Connector K (2P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
K1	GPS ANT	Inputs GPS signal
K2	GPS SH	Shield for terminal No. 1

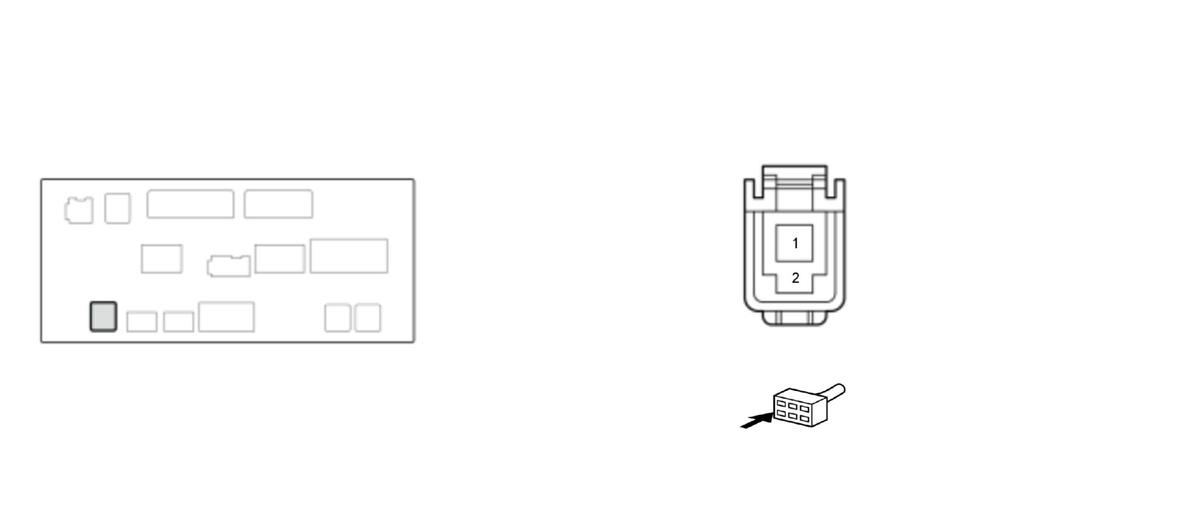

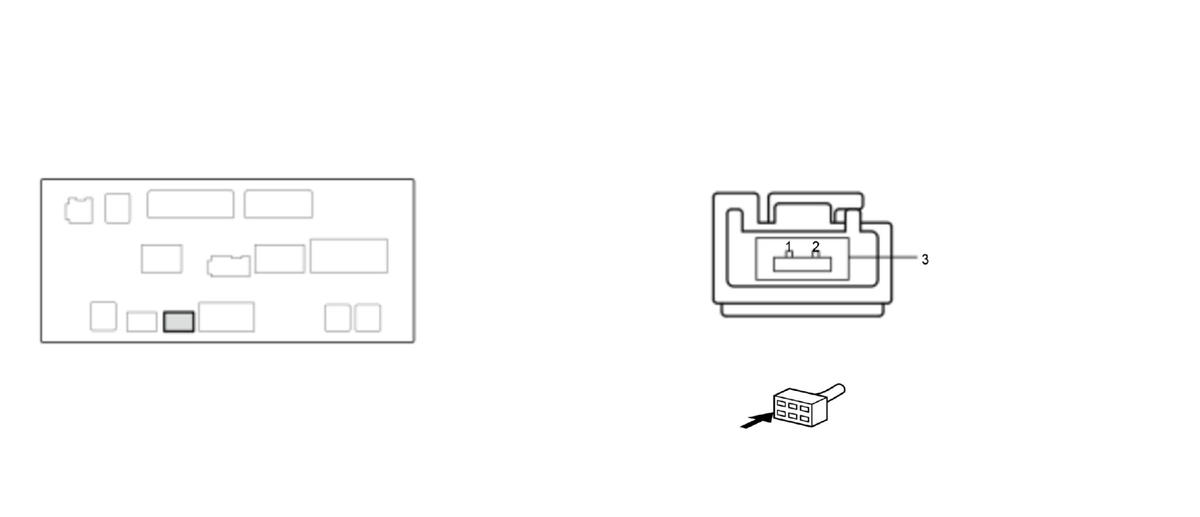

Audio-Navigation Unit Connector L (2P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
L1	SPDIF1 SIG	Communication signal for tuner unit
L2	SPDIF1 SH	Shield for terminal No. 1

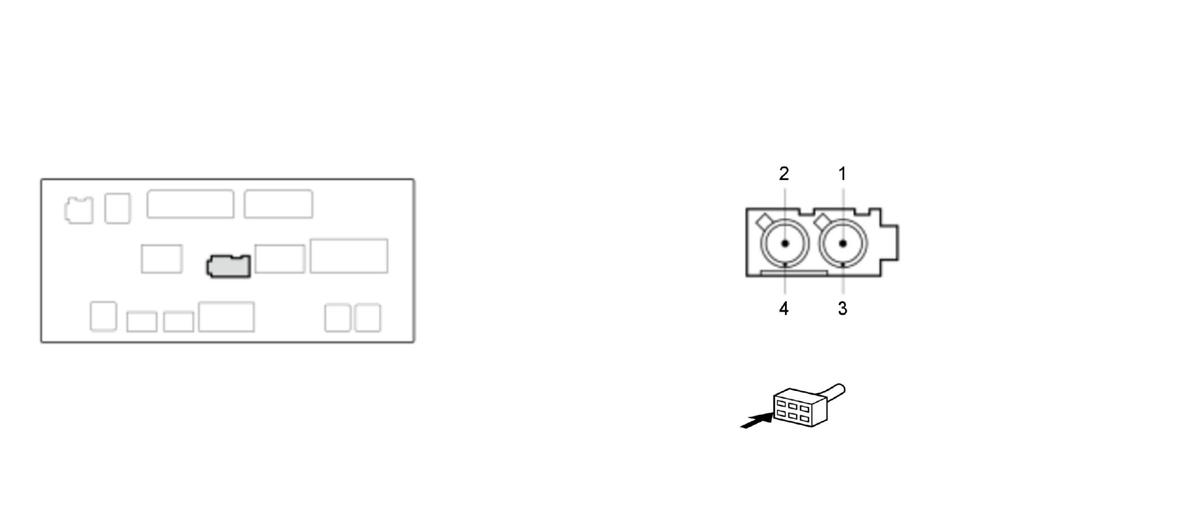

Audio-Navigation Unit Connector M (4P) (female terminals) (with stereo amplifier)

Courtesy of HONDA, U.S.A., INC.

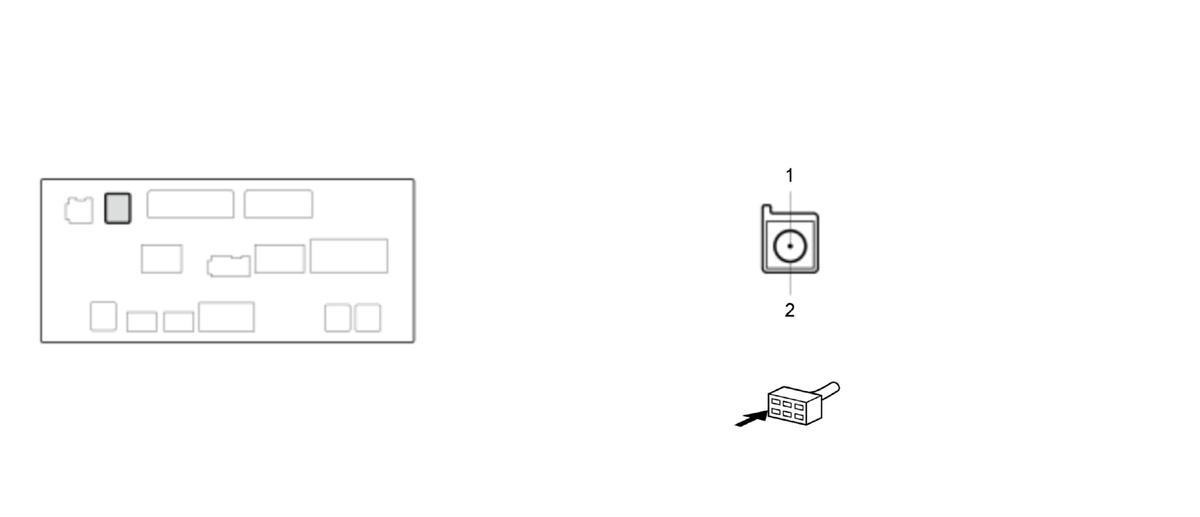

Audio-Navigation Unit Connector N (2P) (female terminals) (with XM)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
N1	SAT/TER	Inputs satellite/terrestrial signal
N2	SH (SAT/TER)	Shield for terminal No. 1
